URJ150L-GKTGKA (2019)

Toyota Lexus Gx460

Production Aug 2019 - Sep 9999
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

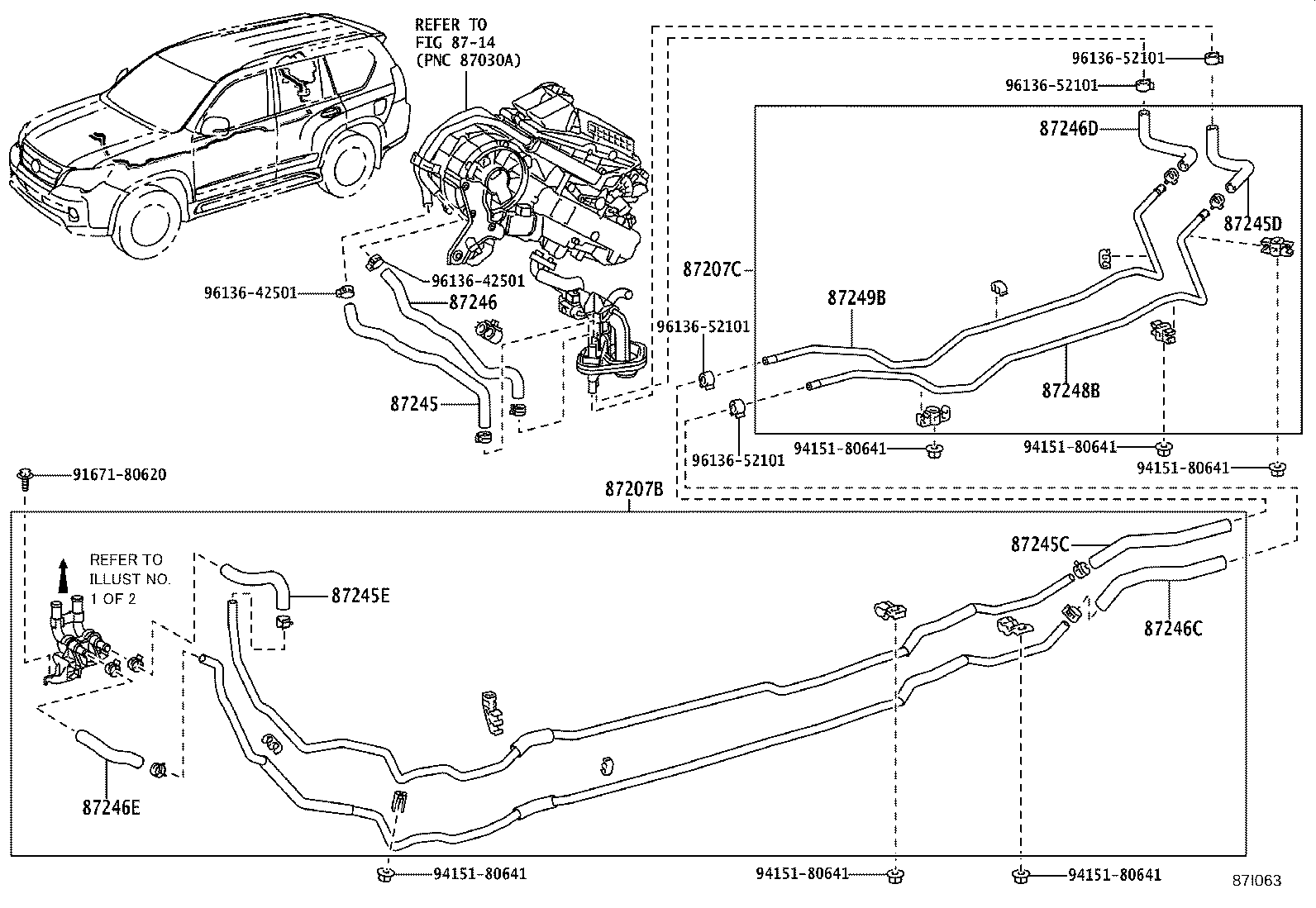

ILLUST NO. 2 OF 2(1908- )

Click highlighted areas on diagram

REAR

diagram 8714 87207B 87207C 87245 87245C 87245D 87245E 87246 87246C 87246D 87246E 87248B 87249B 9167180620 9415180641 9415180641 9415180641 9415180641 9415180641 9415180641 9613642501 9613642501 9613652101 9613652101 9613652101 9613652101
Part # Description Qty Price
87207B - PIPE & HOSE SUB-ASSY, WATER B
87207-60250

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87207C - PIPE & HOSE SUB-ASSY, WATER C
87207-60170

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87245 - HOSE, HEATER WATER, INLET
87245-60E60

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-60F30

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87245D - HOSE, HEATER WATER, INLET D
87245-60F00

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87245E - HOSE, HEATER WATER, INLET E
87245-60J40

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-60E50

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-60F20

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87246D - HOSE, HEATER WATER, OUTLET D
87245-60F10

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-60J30

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87248B - PIPE, HEATER WATER INLET, B
87248-60B00

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-60A90

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
Common parts
91671-80620
94151-80641
96136-42501
96136-52101
Linked diagrams
8714
