Toyota Lexus gx460 URJ150 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

Manufacturers Home
Toyota
US
LEXUS GX460
URJ150L-GKTGKA (2019)
8715 - HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

URJ150L-GKTGKA (2019)

Toyota Lexus Gx460

Production Aug 2019 - Sep 9999

Engine 1URFE

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

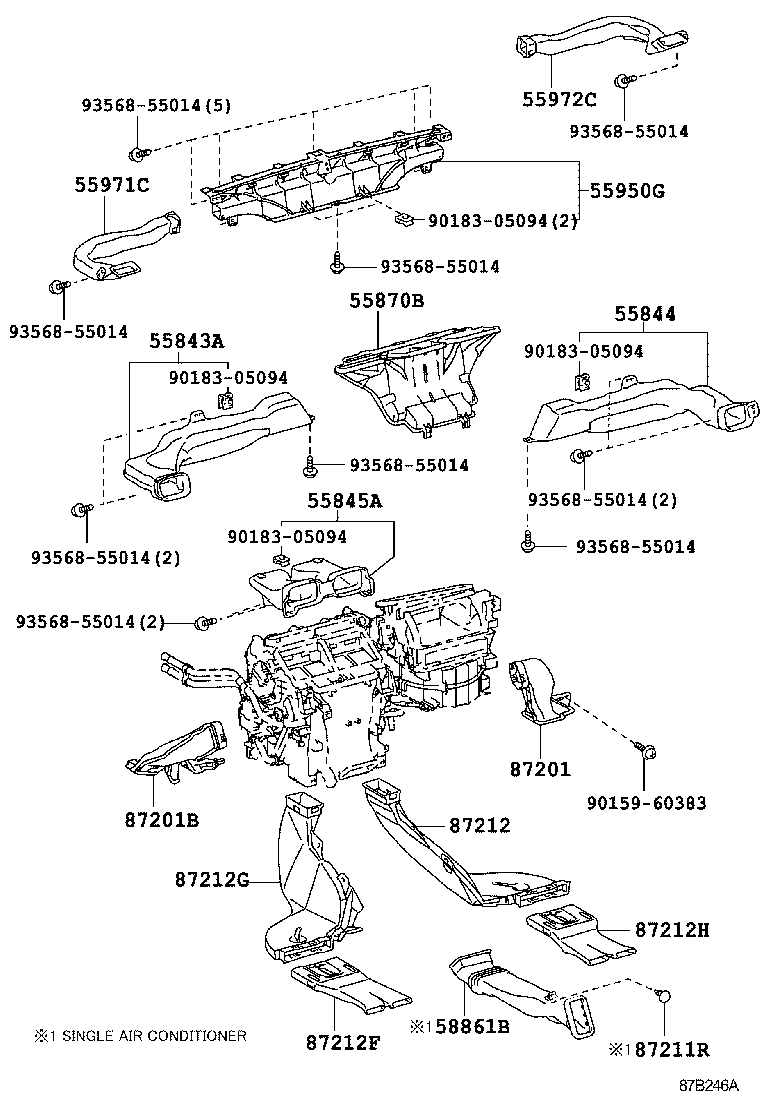

ILLUST NO. 3 OF 5(0911-2108)

Click highlighted areas on diagram

FRONT AIR DUCT

Part #	Description	Period	Qty
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-60201	URJ150	08/2019 - 12/2999	1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-60240	URJ150	08/2019 - 08/2021	1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-60130	URJ150	08/2019 - 08/2021	1
55870B - DUCT ASSY, HEATER TO REGISTER
55870-60060	URJ150..G	08/2019 - 12/2999	1
55870-60070	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	1
55950G - NOZZLE ASSY, DEFROSTER
55950-60160	URJ150	08/2019 - 12/2999	1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-60170	URJ150	08/2019 - 12/2999	1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-60120	URJ150	08/2019 - 12/2999	1
58861B - DUCT, CONSOLE BOX, NO.1
58861-60110	URJ150..G	08/2019 - 12/2999	1
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-60350	URJ150	08/2019 - 12/2999	1
87201B - DUCT SUB-ASSY, AIR, NO.2
87211-60320	URJ150	08/2019 - 12/2999	1
87211R - CLIP, AIR DUCT
90467-05162C0	URJ150..G BLACK	08/2019 - 12/2999	1
87212 - DUCT, AIR, REAR NO.1
87212-35020	URJ150	08/2019 - 12/2999	1
87212F - DUCT, AIR, REAR NO.2
87216-60030	URJ150	08/2019 - 12/2999	1
87212G - DUCT, AIR, REAR NO.3
87213-35020	URJ150	08/2019 - 12/2999	1
87212H - DUCT, AIR, REAR NO.4
87215-60020	URJ150	08/2019 - 12/2999	1
Common parts
90159-60383
90183-05094
93568-55014

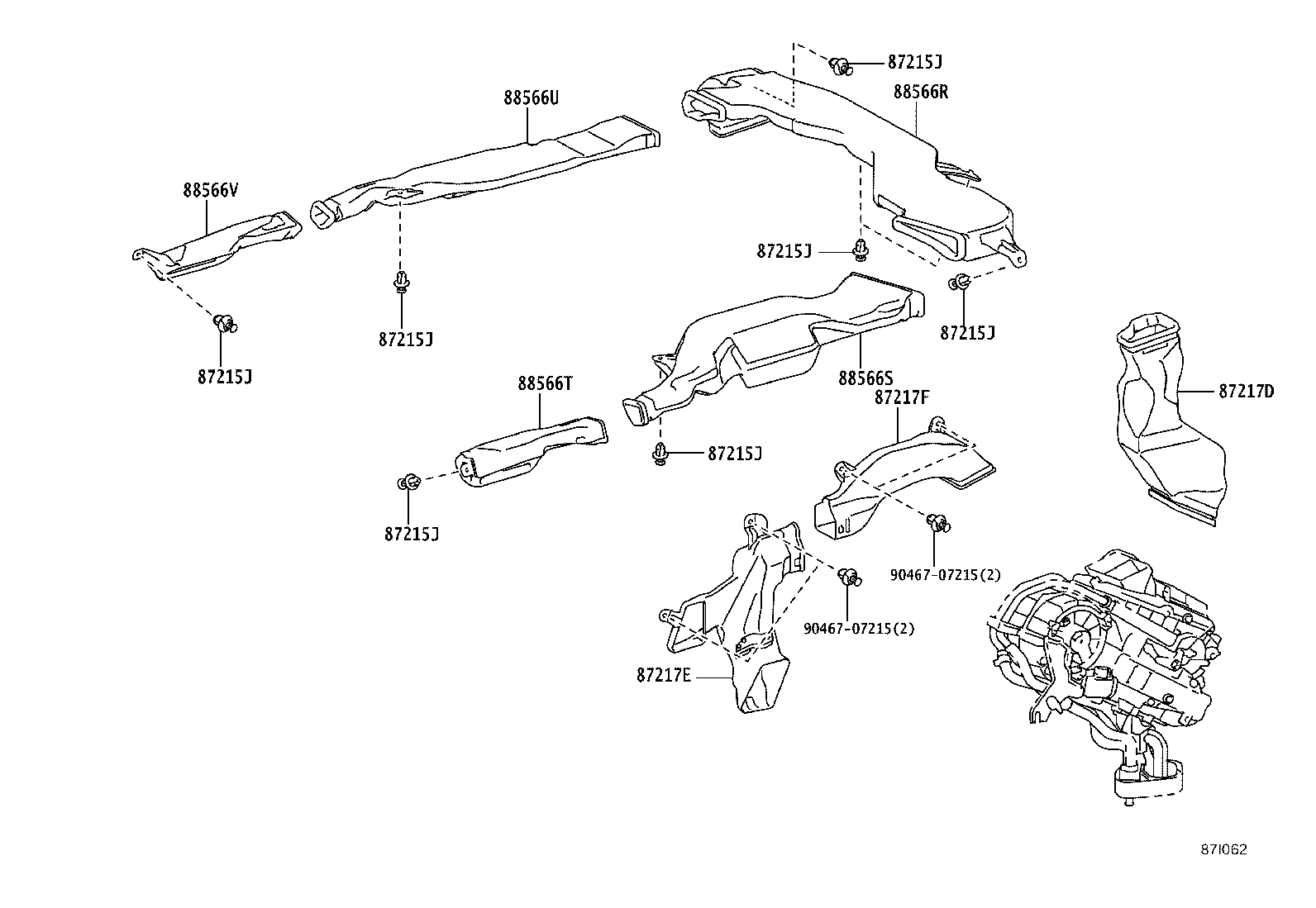

ILLUST NO. 4 OF 5(1908-2008)

Click highlighted areas on diagram

REAR AIR DUCT

Part #	Description	Period	Qty
87215J - CLIP (FOR AIR REAR DUCT)
90467-07215	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	8
87215J - CLIP (FOR AIR REAR DUCT)
90467-07215	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	8
87215J - CLIP (FOR AIR REAR DUCT)
90467-07215	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	8
87215J - CLIP (FOR AIR REAR DUCT)
90467-07215	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	8
87215J - CLIP (FOR AIR REAR DUCT)
90467-07215	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	8
87215J - CLIP (FOR AIR REAR DUCT)
90467-07215	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	8
87215J - CLIP (FOR AIR REAR DUCT)
90467-07215	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	8
87217D - DUCT, AIR, REAR SIDE NO.1
62974-60010	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	1
87217E - DUCT, AIR, REAR SIDE NO.2
87218-60050	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	1
87217F - DUCT, AIR, REAR SIDE NO.3
87217-60050	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	1
88566R - DUCT, AIR, REAR ROOF NO.1
62973-60010	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	1
88566S - DUCT, AIR, REAR ROOF NO.2
63926-60010	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	1
88566T - DUCT, AIR, REAR ROOF NO.3
63925-60010	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	1
88566U - DUCT, AIR, REAR ROOF NO.4
63916-60010	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	1
88566V - DUCT, AIR, REAR ROOF NO.5
63915-60010	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	1
Common parts
90467-07215

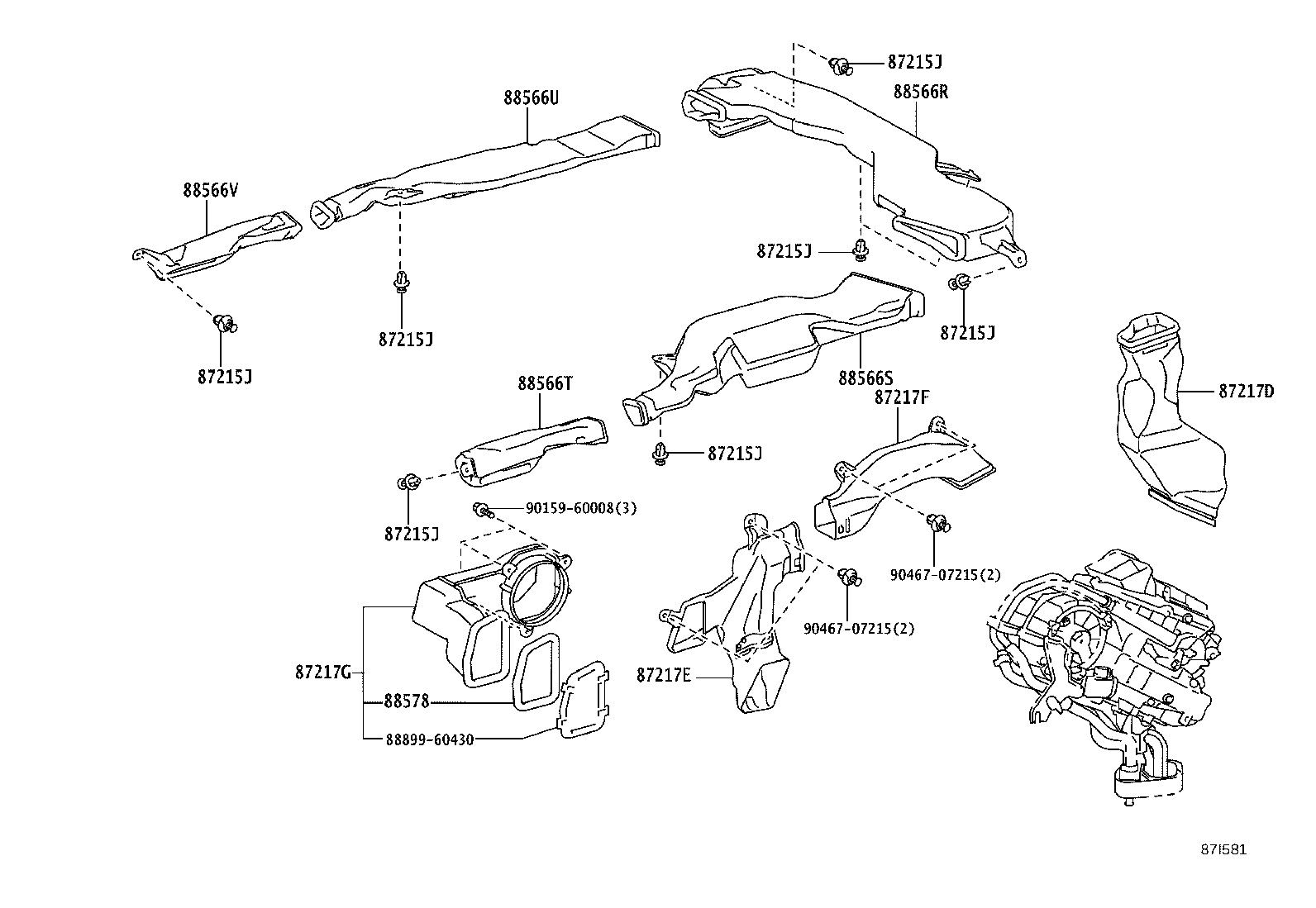

ILLUST NO. 4 OF 5(2008- )

Click highlighted areas on diagram

REAR AIR DUCT

Part #	Description	Period	Qty
87215J - CLIP (FOR AIR REAR DUCT)
90467-07215	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	8
87215J - CLIP (FOR AIR REAR DUCT)
90467-07215	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	8
87215J - CLIP (FOR AIR REAR DUCT)
90467-07215	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	8
87215J - CLIP (FOR AIR REAR DUCT)
90467-07215	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	8
87215J - CLIP (FOR AIR REAR DUCT)
90467-07215	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	8
87215J - CLIP (FOR AIR REAR DUCT)
90467-07215	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	8
87215J - CLIP (FOR AIR REAR DUCT)
90467-07215	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	8
87217D - DUCT, AIR, REAR SIDE NO.1
62974-60010	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	1
87217E - DUCT, AIR, REAR SIDE NO.2
87218-60050	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	1
87217F - DUCT, AIR, REAR SIDE NO.3
87217-60050	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	1
87217G - DUCT, AIR, REAR SIDE NO.4
87212-60240	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2020 - 12/2999	1
88566R - DUCT, AIR, REAR ROOF NO.1
62973-60010	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	1
88566S - DUCT, AIR, REAR ROOF NO.2
63926-60010	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	1
88566T - DUCT, AIR, REAR ROOF NO.3
63925-60010	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	1
88566U - DUCT, AIR, REAR ROOF NO.4
63916-60010	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	1
88566V - DUCT, AIR, REAR ROOF NO.5
63915-60010	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2019 - 12/2999	1
88578 - PAKING, COOLER AIR DUCT
88578-60490	URJ150..G AIR CONDITIONER-FRONT DUAL & REAR AUTO	08/2020 - 12/2999	1
Common parts
88899-60430
90159-60008
90467-07215
