URJ150L-GKTGKA (2019)

Toyota Lexus Gx460

Production Aug 2019 - Sep 9999
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 4(0911-2008)

Click highlighted areas on diagram

REAR

diagram 82210L 87030A 87030E 87030F 87103D 87107B 8712460240 8716 8716 8716 8716 87165C 8745260070 88501R 88515B 88539C 88578B 88578C 886886B080 88688Z 887186B380 88840B 88891S 88892Q 9009900968 9009904542 9011906833 9011906941 9015960008 9015960008 9155380618
Part # Description Qty Price
82210L - HARNESS ASSY, AIR CONDITIONER, NO.2
82212-48021

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87030A - UNIT ASSY, COOLING, REAR
87030-60200

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87030-60060

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87030E - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.1
87106-28170

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87030F - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.2
87106-58030

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR)
87103-28111

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87107B - UNIT SUB-ASSY, HEATER RADIATOR
87107-60420

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87165C - CONTROL, BLOWER MOTOR
87165-36010

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87165-28020

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-48370

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88501-28360

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88515B - VALVE, REAR COOLING UNIT EXPANSION
88515-60330

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88515-60220

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-60290

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-60450

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88578C - PACKING, COOLING UNIT, NO.2
88578-60510

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88688Z - BRACKET
88688-6B230

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88840B - ACCESSORY ASSY, AIR CONDITIONER
88840-60161

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88840-60200

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88891S - COVER, COOLER, NO.1
88891-20240

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88892Q - PLATE, COOLER
88892-28020

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
Common parts
87124-60240
87452-60070
88688-6B080
88718-6B380
90099-00968
90099-04542
90119-06833
90119-06941
90159-60008
91553-80618
Linked diagrams
8716

ILLUST NO. 1 OF 4(0911-2008)

Click highlighted areas on diagram

FRONT

diagram 82210K 87050 87050C 87050D 87103B 87107A 8712835020 87130D 87130K 87139D 88501 88515 88539J 8856921010 8857860500 88625 88650E 88669B 88710H 887182J150 88897K 88897U 8889944050 88899K 88899L 88899M 9009900149 9009900968 9011906952 9017906282 9331514010
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-60141

URJ150

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-60K30

URJ150..G

 1
87050-60K20

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87050-60570

URJ150..G

 1
87050-60550

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-60220

URJ150

 1
87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87106-60230

URJ150

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-60400

URJ150

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-60430

URJ150

 1
87130D - BLOWER ASSY
87130-60611

URJ150

 1
87130-60680

URJ150

 1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-33270

URJ150

 1
87139D - ELEMENT, AIR REFINER
87139-52040

URJ150

POLLEN FILTER

 1
87139-50100

URJ150

*DPF

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-60421

URJ150..G

 1
88501-60412

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88501-60490

URJ150..G

 1
88501-60500

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88515 - VALVE, COOLER EXPANSION
88515-60240

URJ150..G

 1
88515-60290

URJ150..G

 1
88515-60300

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88515-60250

URJ150

 1
88515-50240

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88539J - HOSE, DRAIN COOLER
88539-60340

URJ150

 1
88625 - THERMISTOR, COOLER, NO.1
88620-50020

URJ150

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-60V60

URJ150..G

 1
88650-60Z50

URJ150..G

 1
88650-60V70

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88650-6A050

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88669B - HOSE, COOLER AIR
88669-60070

URJ150

 1
88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-60B70

URJ150

 1
88897K - GROMMET, (FOR COOLER PIPE)
88897-35020

URJ150

 1
88897U - PIPE, ASPIRATOR
88897-32090

URJ150

 1
88899K - PLATE, COVER
88899-3A010

URJ150

 1
88899L - PARTS, COOLING UNIT
88899-60460

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88899-60440

URJ150..G

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-33040

URJ150

 1
Common parts
87128-35020
88569-21010
88578-60500
88718-2J150
88899-44050
90099-00149
90099-00968
90119-06952
90179-06282
93315-14010

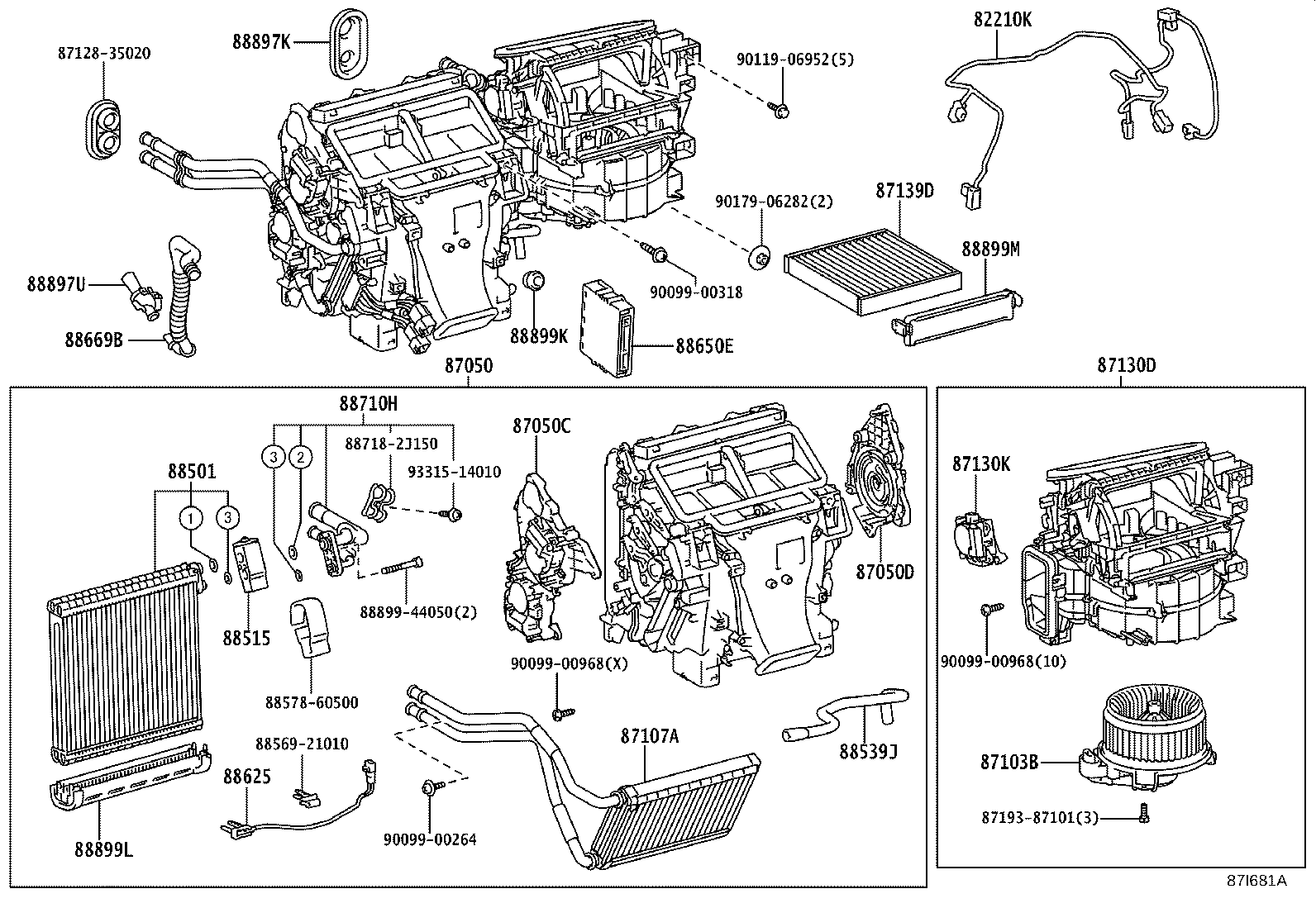

ILLUST NO. 1 OF 4(2008- )

Click highlighted areas on diagram

FRONT

diagram 82210K 87050 87050C 87050D 87103B 87107A 8712835020 87130D 87130K 87139D 8719387101 88501 88515 88539J 8856921010 8857860500 88625 88650E 88669B 88710H 887182J150 88897K 88897U 8889944050 88899K 88899L 88899M 9009900264 9009900318 9009900968 9009900968 9011906952 9017906282 9331514010
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-60141

URJ150

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-60K30

URJ150..G

 1
87050-60K20

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87050-60570

URJ150..G

 1
87050-60550

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-60220

URJ150

 1
87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87106-60230

URJ150

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-60400

URJ150

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-60430

URJ150

 1
87130D - BLOWER ASSY
87130-60611

URJ150

 1
87130-60680

URJ150

 1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-33270

URJ150

 1
87139D - ELEMENT, AIR REFINER
87139-52040

URJ150

POLLEN FILTER

 1
87139-50100

URJ150

*DPF

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-60421

URJ150..G

 1
88501-60412

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88501-60490

URJ150..G

 1
88501-60500

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88515 - VALVE, COOLER EXPANSION
88515-60240

URJ150..G

 1
88515-60290

URJ150..G

 1
88515-60300

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88515-60250

URJ150

 1
88515-50240

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88539J - HOSE, DRAIN COOLER
88539-60340

URJ150

 1
88625 - THERMISTOR, COOLER, NO.1
88620-50020

URJ150

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-60V60

URJ150..G

 1
88650-60Z50

URJ150..G

 1
88650-60V70

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88650-6A050

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88669B - HOSE, COOLER AIR
88669-60070

URJ150

 1
88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-60B70

URJ150

 1
88897K - GROMMET, (FOR COOLER PIPE)
88897-35020

URJ150

 1
88897U - PIPE, ASPIRATOR
88897-32090

URJ150

 1
88899K - PLATE, COVER
88899-3A010

URJ150

 1
88899L - PARTS, COOLING UNIT
88899-60460

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88899-60440

URJ150..G

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-33040

URJ150

 1
Common parts
87128-35020
87193-87101
88569-21010
88578-60500
88718-2J150
88899-44050
90099-00264
90099-00318
90099-00968
90119-06952
90179-06282
93315-14010

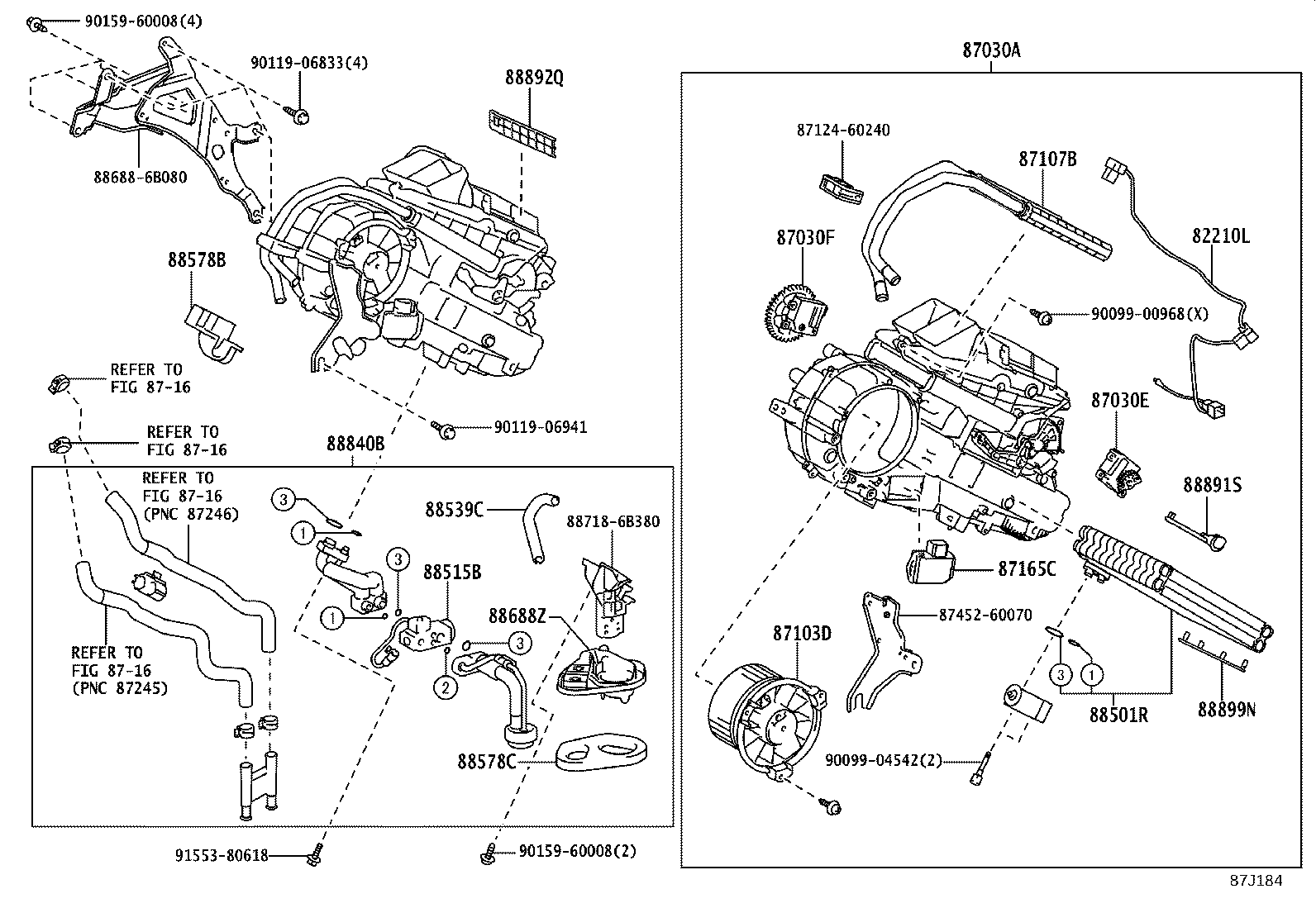

ILLUST NO. 2 OF 4(2008- )

Click highlighted areas on diagram

REAR

diagram 82210L 87030A 87030E 87030F 87103D 87107B 8712460240 8716 8716 8716 8716 87165C 8745260070 88501R 88515B 88539C 88578B 88578C 886886B080 88688Z 887186B380 88840B 88891S 88892Q 88899N 9009900968 9009904542 9011906833 9011906941 9015960008 9015960008 9155380618
Part # Description Qty Price
82210L - HARNESS ASSY, AIR CONDITIONER, NO.2
82212-48021

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87030A - UNIT ASSY, COOLING, REAR
87030-60200

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87030-60060

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87030E - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.1
87106-28170

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87030F - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.2
87106-58030

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR)
87103-28111

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87107B - UNIT SUB-ASSY, HEATER RADIATOR
87107-60420

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87165C - CONTROL, BLOWER MOTOR
87165-36010

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
87165-28020

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-48370

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88501-28360

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88515B - VALVE, REAR COOLING UNIT EXPANSION
88515-60330

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88515-60220

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-60290

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-60450

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88578C - PACKING, COOLING UNIT, NO.2
88578-60510

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88688Z - BRACKET
88688-6B230

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88840B - ACCESSORY ASSY, AIR CONDITIONER
88840-60161

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88840-60200

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88891S - COVER, COOLER, NO.1
88891-20240

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88892Q - PLATE, COOLER
88892-28020

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88899N - PLATE, COVER
88899-60450

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
88899-60520

URJ150..G

AIR CONDITIONER-FRONT DUAL & REAR AUTO

 1
Common parts
87124-60240
87452-60070
88688-6B080
88718-6B380
90099-00968
90099-04542
90119-06833
90119-06941
90159-60008
91553-80618
Linked diagrams
8716
