URJ150L-GKTGKA (2019)

Toyota Lexus Gx460

Production Aug 2019 - Sep 9999
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF12(1908- )

Click highlighted areas on diagram

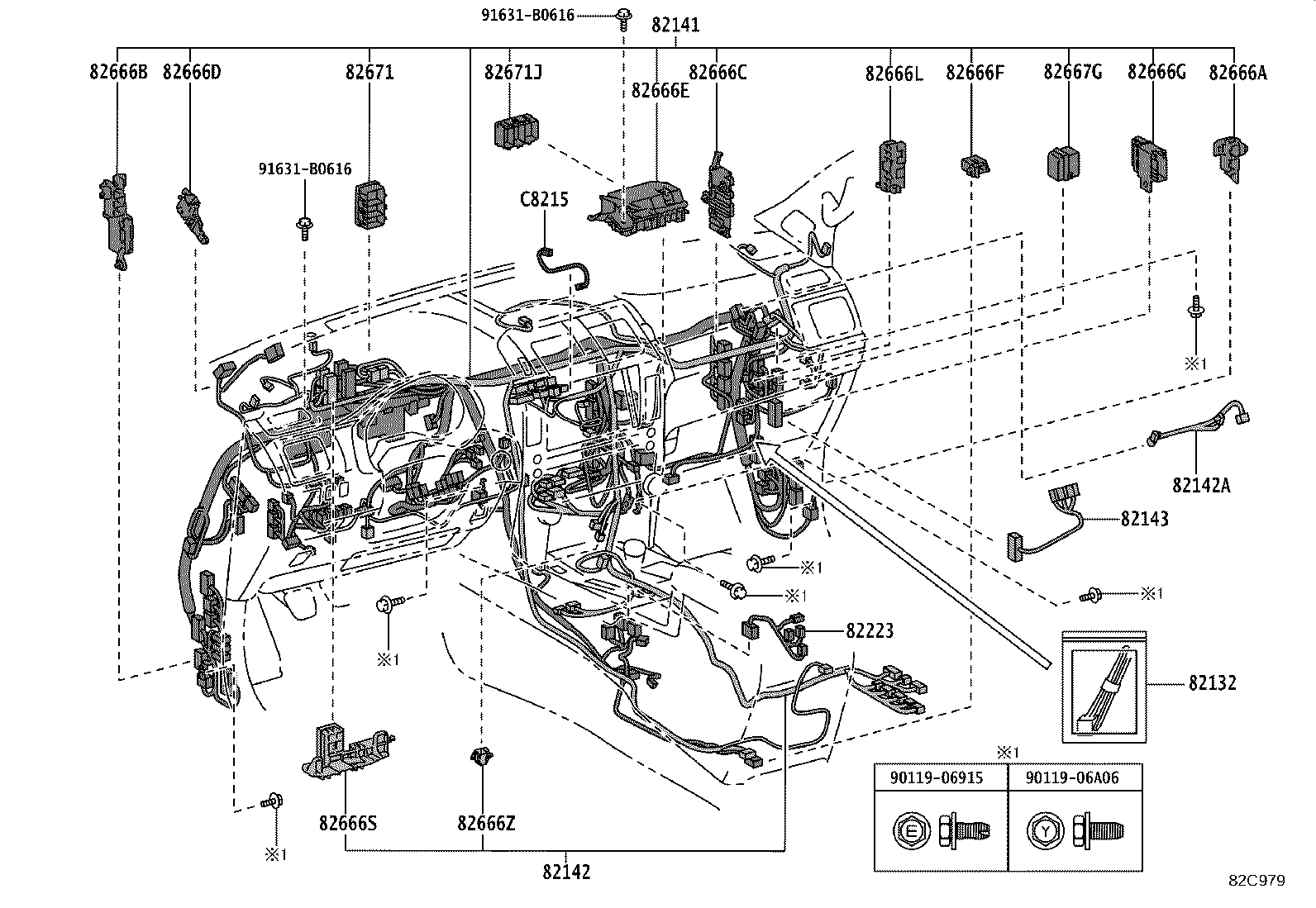

INSTRUMENT PANEL

diagram 82132 82141 82142 82142A 82143 82223 82666A 82666B 82666C 82666D 82666E 82666F 82666G 82666L 82666S 82666Z 82667G 82671 82671J 9011906915 9011906A06 91631B0616 91631B0616 C8215
Part # Description Qty Price
82132 - WIRE, COWL, NO.2
82132-60110

URJ150

TOWING HITCH-WITH

 1
82141 - WIRE, INSTRUMENT PANEL
82141-6BZ10

URJ150..G

USA POSSESSION SPEC(EXCEPT HAWAII)

 1
82141-6BZ10

URJ150..G

HAWAII SPEC

 1
82141-6BZ10

URJ150..G

HAWAII SPEC&TOURING PACKAGE

 1
82141-6BZ11

URJ150..G

USA POSSESSION SPEC(EXCEPT HAWAII)

 1
82141-6BZ10

URJ150..G

USA POSSESSION SPEC(EXCEPT HAWAII)&TOURING PACKAGE

 1
82141-6BZ31

URJ150

 1
82141-6BZ20

URJ150..G

TOURING PACKAGE

 1
82141-6BZ11

URJ150..G

HAWAII SPEC&TOURING PACKAGE

 1
82141-6BZ11

URJ150..G

USA POSSESSION SPEC(EXCEPT HAWAII)&TOURING PACKAGE

 1
82141-6BZ30

URJ150

 1
82141-6BZ21

URJ150..G

TOURING PACKAGE

 1
82141-6BZ11

URJ150..G

HAWAII SPEC

 1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-60U90

URJ150..G

USA POSSESSION SPEC(EXCEPT HAWAII)

 1
82142-60U90

URJ150..G

HAWAII SPEC

 1
82142-6A080

URJ150..G

AUDIO(OVERSEAS MARKET)-EMV 9SPEAKER

 1
82142-6A060

URJ150..G

HAWAII SPEC&AUDIO(OVERSEAS MARKET)-EMV 9SPEAKER

 1
82142-6A060

URJ150..G

USA POSSESSION SPEC(EXCEPT HAWAII)&AUDIO(OVERSEAS MARKET)-EMV 9SPEAKER

 1
82142-60U91

URJ150..G

USA POSSESSION SPEC(EXCEPT HAWAII)

 1
82142-60V11

URJ150..G

 1
82142-6A061

URJ150..G

HAWAII SPEC&AUDIO(OVERSEAS MARKET)-EMV 9SPEAKER

 1
82142-60U91

URJ150..G

HAWAII SPEC

 1
82142-60V10

URJ150..G

 1
82142-6A081

URJ150..G

AUDIO(OVERSEAS MARKET)-EMV 9SPEAKER

 1
82142-6A091

URJ150

HAWAII SPEC&AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER

 1
82142-6A091

URJ150

USA POSSESSION SPEC(EXCEPT HAWAII)&AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER

 1
82142-6A111

URJ150

AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER

 1
82142-6A061

URJ150..G

USA POSSESSION SPEC(EXCEPT HAWAII)&AUDIO(OVERSEAS MARKET)-EMV 9SPEAKER

 1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-60C00

URJ150

 1
82223 - WIRE, SWITCH
82223-60G60

URJ150

 1
82223-60G30

URJ150..G

SEAT AIR CONDITIONER-WITHOUT

 1
82666A - HOLDER, CONNECTOR NO.2
82666-60730

URJ150

 1
82666B - HOLDER, CONNECTOR NO.3
82666-60740

URJ150

 1
82666C - HOLDER, CONNECTOR NO.4
82666-60750

URJ150

 1
82666D - HOLDER, CONNECTOR NO.5
82666-60760

URJ150

 1
82666E - HOLDER, CONNECTOR NO.6
82666-60E70

URJ150

 1
82666F - HOLDER, CONNECTOR NO.7
82666-60800

URJ150

 1
82666G - HOLDER, CONNECTOR NO.8
82666-60B60

URJ150

 1
82666L - HOLDER, CONNECTOR NO.9
82666-60780

URJ150

 1
82666S - HOLDER, CONNECTOR NO.13
82666-60A00

URJ150

 1
82666Z - HOLDER, CONNECTOR NO.19
82666-60C80

URJ150

 1
82667G - HOLDER, CONNECTOR, NO.22
82666-60G60

URJ150

 1
82671 - BLOCK, JUNCTION
82671-60110

URJ150

 1
82671J - BLOCK, JUNCTION, NO.2
82671-60120

URJ150

 1
C8215 - WIRE, HAZARD SWITCH
C8215-60020

URJ150

 1
Common parts
90119-06915
90119-06A06
91631-B0616
