URJ150L-GKTGKA (2019)
Toyota Lexus Gx460
Production
Aug 2019
-
Sep 9999
Engine
1URFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1908- )

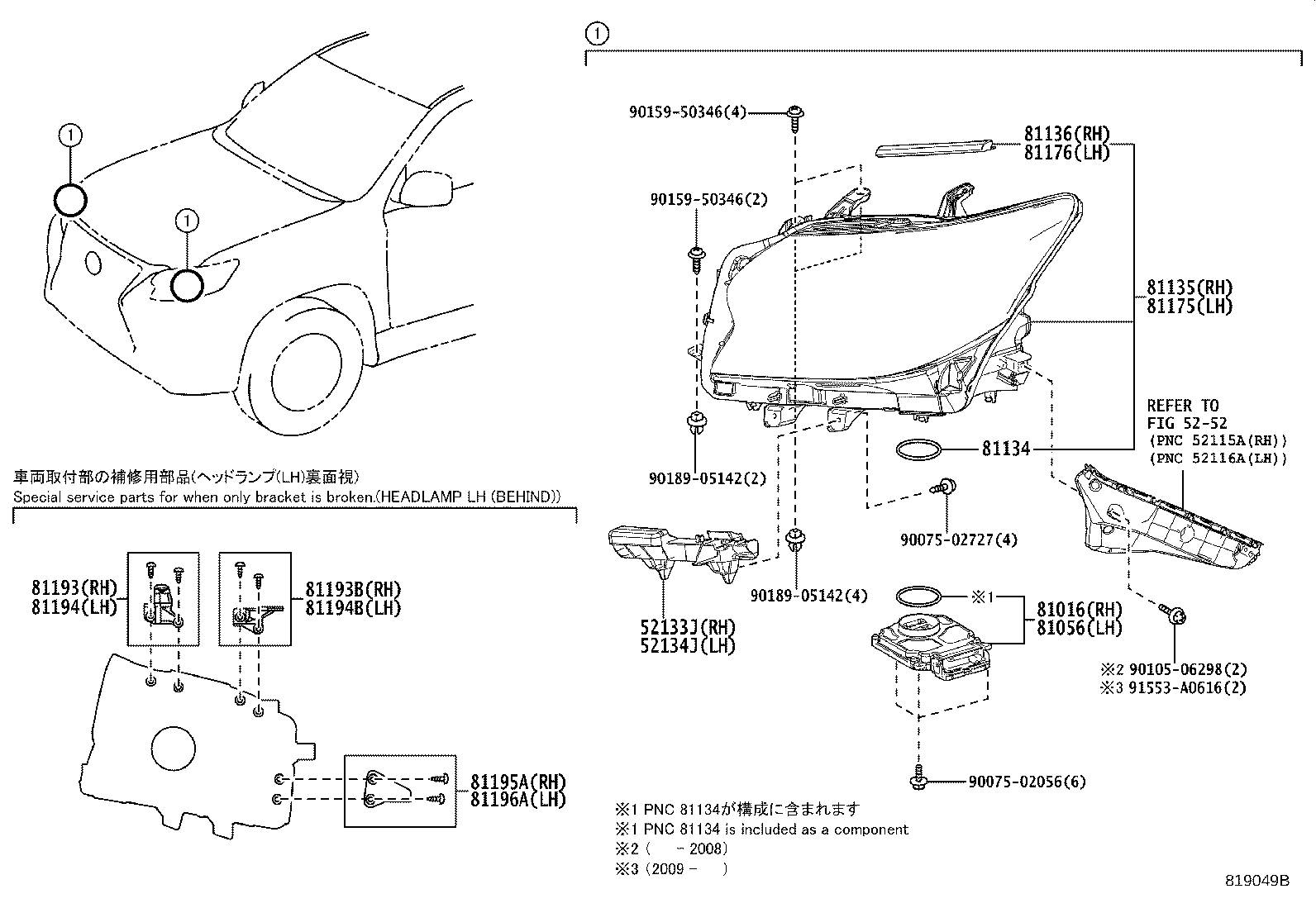

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52133J - REINFORCEMENT, FRONT BUMPER BAR, RH | ||||
| 52133-60140 |
URJ150 |
1 | ||
| 52134J - REINFORCEMENT, FRONT BUMPER BAR, LH | ||||
| 52134-60150 |
URJ150 |
1 | ||
| 81016 - COMPUTER SUB-ASSY, HEADLAMP, RH NO.1 | ||||
| 81016-60Q00 |
URJ150 |
1 | ||
| 81056 - COMPUTER SUB-ASSY, HEADLAMP, LH NO.1 | ||||
| 81056-60P70 |
URJ150 |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23003 |
URJ150 |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-60Q00 |
URJ150 |
1 | ||
| 81136 - PROTECTOR, HEADLAMP, NO.1 RH | ||||
| 81117-60Q00 |
URJ150 |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-60P70 |
URJ150 |
1 | ||
| 81176 - PROTECTOR, HEADLAMP, NO.1 LH | ||||
| 81157-60P70 |
URJ150 |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-60140 |
URJ150 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-60150 |
URJ150 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-60140 |
URJ150 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-60150 |
URJ150 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-60130 |
URJ150 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-60120 |
URJ150 |
1 | ||
| Common parts | ||||
| 90075-02056 | ||||
| 90075-02727 | ||||
| 90105-06298 | ||||
| 90159-50346 | ||||
| 90189-05142 | ||||
| 91553-A0616 | ||||
| Linked diagrams | ||||
| 5252 | ||||
