URJ150L-GKTGKA (2019)

Toyota Lexus Gx460

Production Aug 2019 - Sep 9999
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

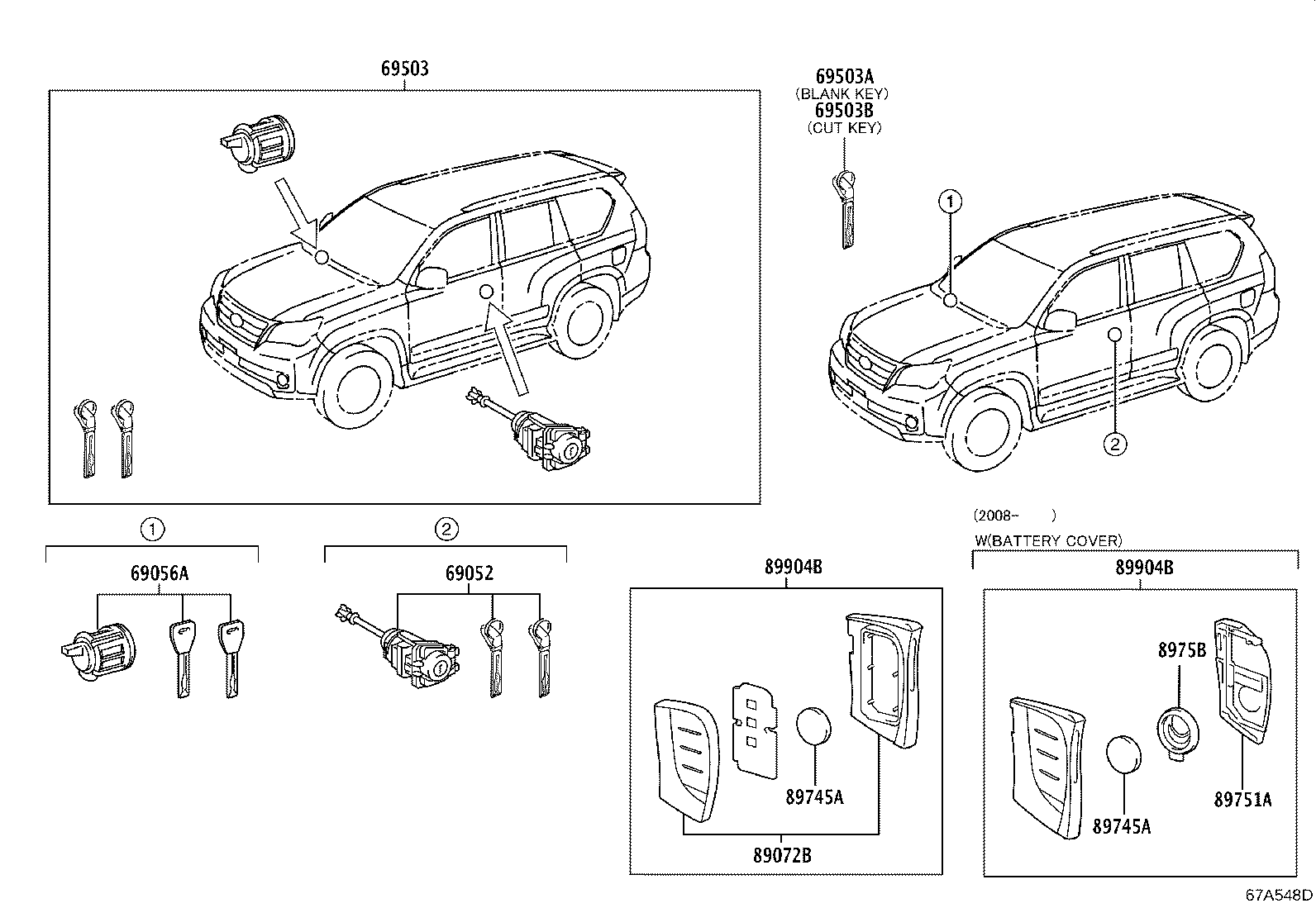

Click highlighted areas on diagram

diagram 69052 69056A 69503 69503A 69503B 89072B 89745A 89745A 89751A 8975B 89904B 89904B
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-60420

URJ150

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-50160

URJ150

 1
69503 - CYLINDER SET, LOCK
69005-60K80

URJ150

 1
69503A - KEY, BLANK
69515-33150

URJ150

MASTER KEY,W(*68)

 1
69503B - KEY, CUT
69515-33140

URJ150

MASTER KEY,W(*68)

 2
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-60C30

URJ150

 2
89745A - BATTERY, TRANSMITTER
89745-50020

URJ150

CR2032

 1
89745A - BATTERY, TRANSMITTER
89745-50020

URJ150

CR2032

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-60U80

URJ150

 2
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-60U80

URJ150

 2
