URJ150L-GKTGKA (2019)
Toyota Lexus Gx460

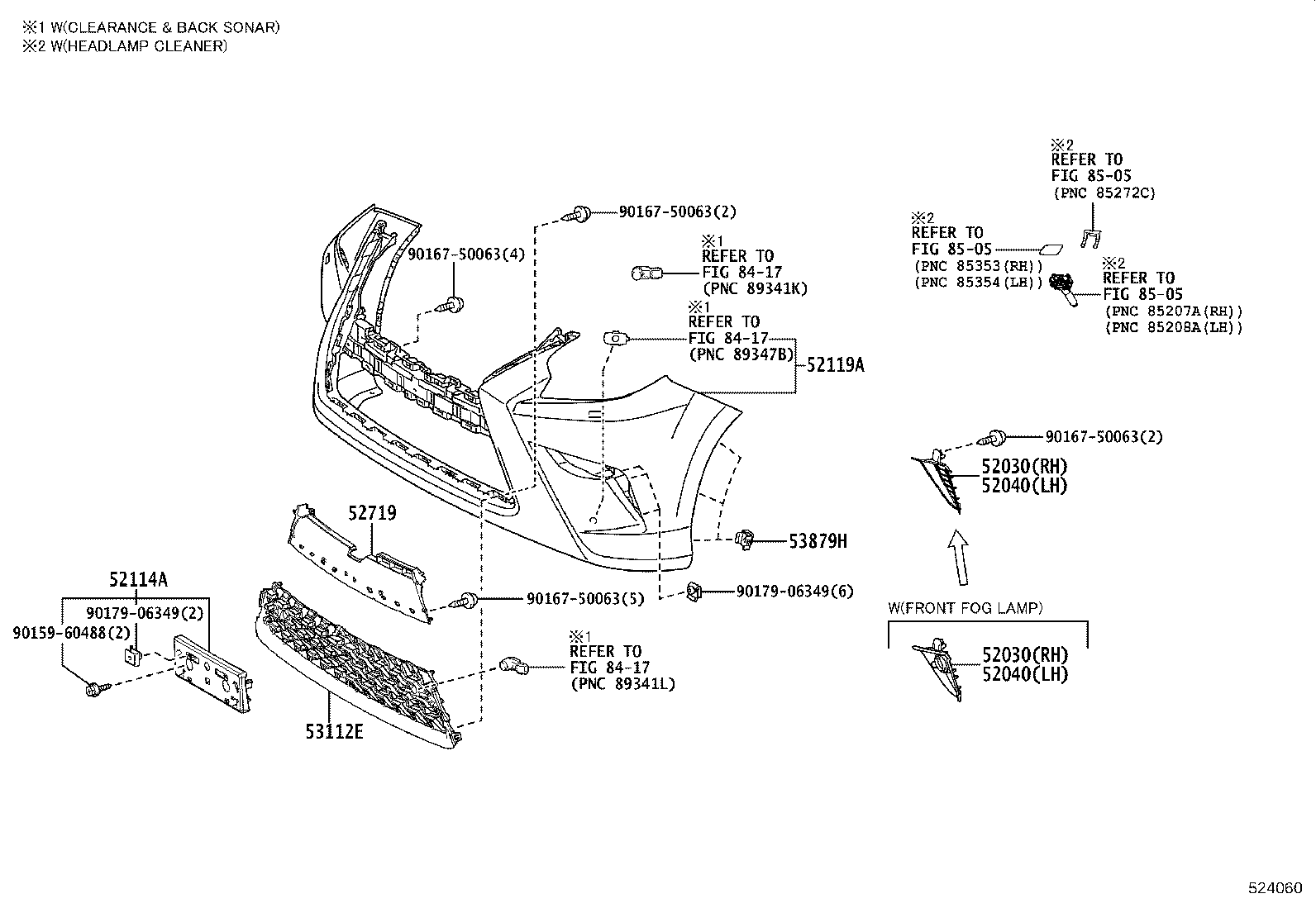

ILLUST NO. 2 OF 2(1908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 81481-60060 |
URJ150..G NO PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) & WITH(*BSM) |
1 | ||
| 52030-60040 |
URJ150 PLATED |
1 | ||
| 81481-60060 |
URJ150..G NO PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 81481-60060 |
URJ150..G NO PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 81481-60060 |
URJ150..G NO PAINT REQ.,FRONT FOG LAMP-WITHOUT |
1 | ||
| 81481-60060 |
URJ150..G NO PAINT REQ.,FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) & WITH(*BSM) |
1 | ||
| 81481-60060 |
URJ150..G NO PAINT REQ.,FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 81481-60060 |
URJ150..G NO PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) & WITH(*BSM) |
1 | ||
| 52030-60040 |
URJ150 PLATED |
1 | ||
| 81481-60060 |
URJ150..G NO PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 81481-60060 |
URJ150..G NO PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 81481-60060 |
URJ150..G NO PAINT REQ.,FRONT FOG LAMP-WITHOUT |
1 | ||
| 81481-60060 |
URJ150..G NO PAINT REQ.,FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) & WITH(*BSM) |
1 | ||
| 81481-60060 |
URJ150..G NO PAINT REQ.,FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 81482-60050 |
URJ150..G NO PAINT REQ.,FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 81482-60050 |
URJ150..G NO PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 52040-60090 |
URJ150 PLATED |
1 | ||
| 81482-60050 |
URJ150..G NO PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) & WITH(*BSM) |
1 | ||
| 81482-60050 |
URJ150..G NO PAINT REQ.,FRONT FOG LAMP-WITHOUT |
1 | ||
| 81482-60050 |
URJ150..G NO PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 81482-60050 |
URJ150..G NO PAINT REQ.,FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) & WITH(*BSM) |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 81482-60050 |
URJ150..G NO PAINT REQ.,FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 81482-60050 |
URJ150..G NO PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 52040-60090 |
URJ150 PLATED |
1 | ||
| 81482-60050 |
URJ150..G NO PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) & WITH(*BSM) |
1 | ||
| 81482-60050 |
URJ150..G NO PAINT REQ.,FRONT FOG LAMP-WITHOUT |
1 | ||
| 81482-60050 |
URJ150..G NO PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 81482-60050 |
URJ150..G NO PAINT REQ.,FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) & WITH(*BSM) |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-60290 |
URJ150 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-6B999 |
URJ150..G PAINT REQ.,HEADLAMP CLEANER-WITH |
1 | ||
| 52119-6B998 |
URJ150..G PAINT REQ.,FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) & WITH(*BSM) |
1 | ||
| 52119-6C901 |
URJ150..G PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52119-6B992 |
URJ150..G PAINT REQ. |
1 | ||
| 52119-6C901 |
URJ150..G PAINT REQ.,HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52119-6B998 |
URJ150..G PAINT REQ.,FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52119-6B999 |
URJ150..G PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 52119-6B998 |
URJ150..G PAINT REQ.,CLEARANCE & BACK SONAR-WITH(FRONT & REAR) & WITH(*BSM) |
1 | ||
| 52119-6C901 |
URJ150..G PAINT REQ.,HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) & WITH(*BSM) |
1 | ||
| 52119-6C901 |
URJ150..G PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) & WITH(*BSM) |
1 | ||
| 52119-6B998 |
URJ150..G PAINT REQ.,CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52719 - COVER, FRONT BUMPER MOULDING | ||||
| 52719-60040 |
URJ150 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-60340 |
URJ150..G HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 53112-60340 |
URJ150..G HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) & WITH(*BSM) |
1 | ||
| 53112-60340 |
URJ150..G HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) & WITH(*BSM) |
1 | ||
| 53112-60340 |
URJ150..G CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 53112-60330 |
URJ150..G |
1 | ||
| 53112-60340 |
URJ150..G FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) & WITH(*BSM) |
1 | ||
| 53112-60340 |
URJ150..G FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 53112-60340 |
URJ150..G HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 53112-60340 |
URJ150..G CLEARANCE & BACK SONAR-WITH(FRONT & REAR) & WITH(*BSM) |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
URJ150 |
6 | ||
| Common parts | ||||
| 90159-60488 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| Linked diagrams | ||||
| 8417 | ||||
| 8505 | ||||

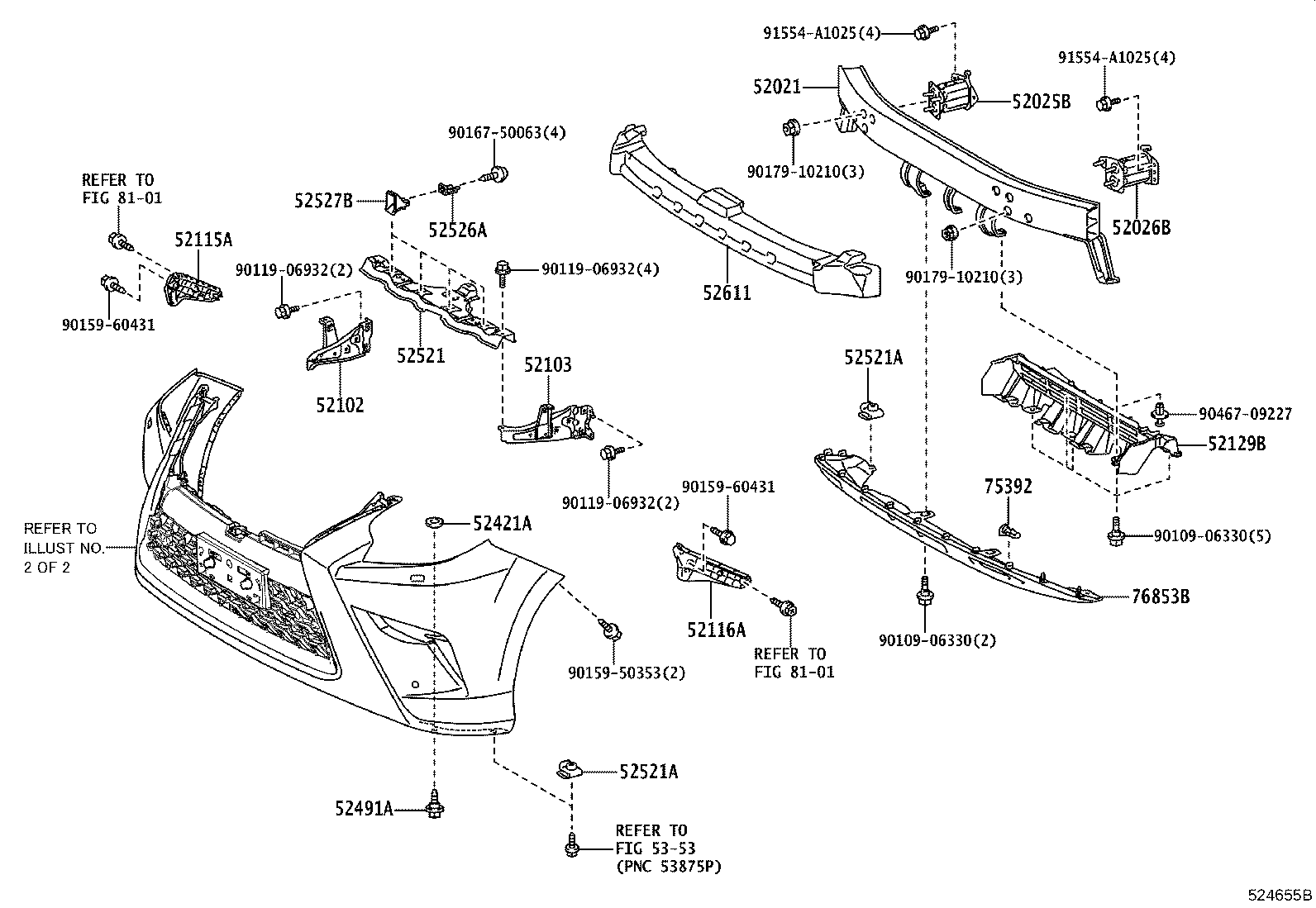

ILLUST NO. 1 OF 2(1908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-60221 |
URJ150 |
1 | ||
| 52025B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH | ||||
| 52025-60050 |
URJ150 |
1 | ||
| 52026B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH | ||||
| 52026-60050 |
URJ150 |
1 | ||
| 52102 - BRACKET SUB-ASSY, FRONT BUMPER, RH | ||||
| 52102-60250 |
URJ150 |
1 | ||
| 52103 - BRACKET SUB-ASSY, FRONT BUMPER, LH | ||||
| 52103-60260 |
URJ150 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-60190 |
URJ150 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-60230 |
URJ150 |
1 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52129-60030 |
URJ150 |
1 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-60191 |
URJ150 |
2 | ||
| 52491A - BOLT, BUMPER PAD | ||||
| 52491-60010 |
URJ150 |
2 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52506-60070 |
URJ150 |
1 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 90467-05138 |
URJ150 |
4 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 90467-05138 |
URJ150 |
4 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52526-60040 |
URJ150 |
4 | ||
| 52527B - RETAINER, FRONT BUMPER, LOWER NO.2 | ||||
| 52527-60030 |
URJ150 |
4 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-60110 |
URJ150 |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
URJ150 |
12 | ||
| 76853B - COVER, FRONT SPOILER, CENTER | ||||
| 76853-60010 |
URJ150 |
1 | ||
| Common parts | ||||
| 90109-06330 | ||||
| 90119-06932 | ||||
| 90159-50353 | ||||
| 90159-60431 | ||||
| 90167-50063 | ||||
| 90179-10210 | ||||
| 90467-09227 | ||||
| 91554-A1025 | ||||
| Linked diagrams | ||||
| 5353 | ||||
| 8101 | ||||
