URJ150L-GKTGKA (2019)

Toyota Lexus Gx460

Production Aug 2019 - Sep 9999
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

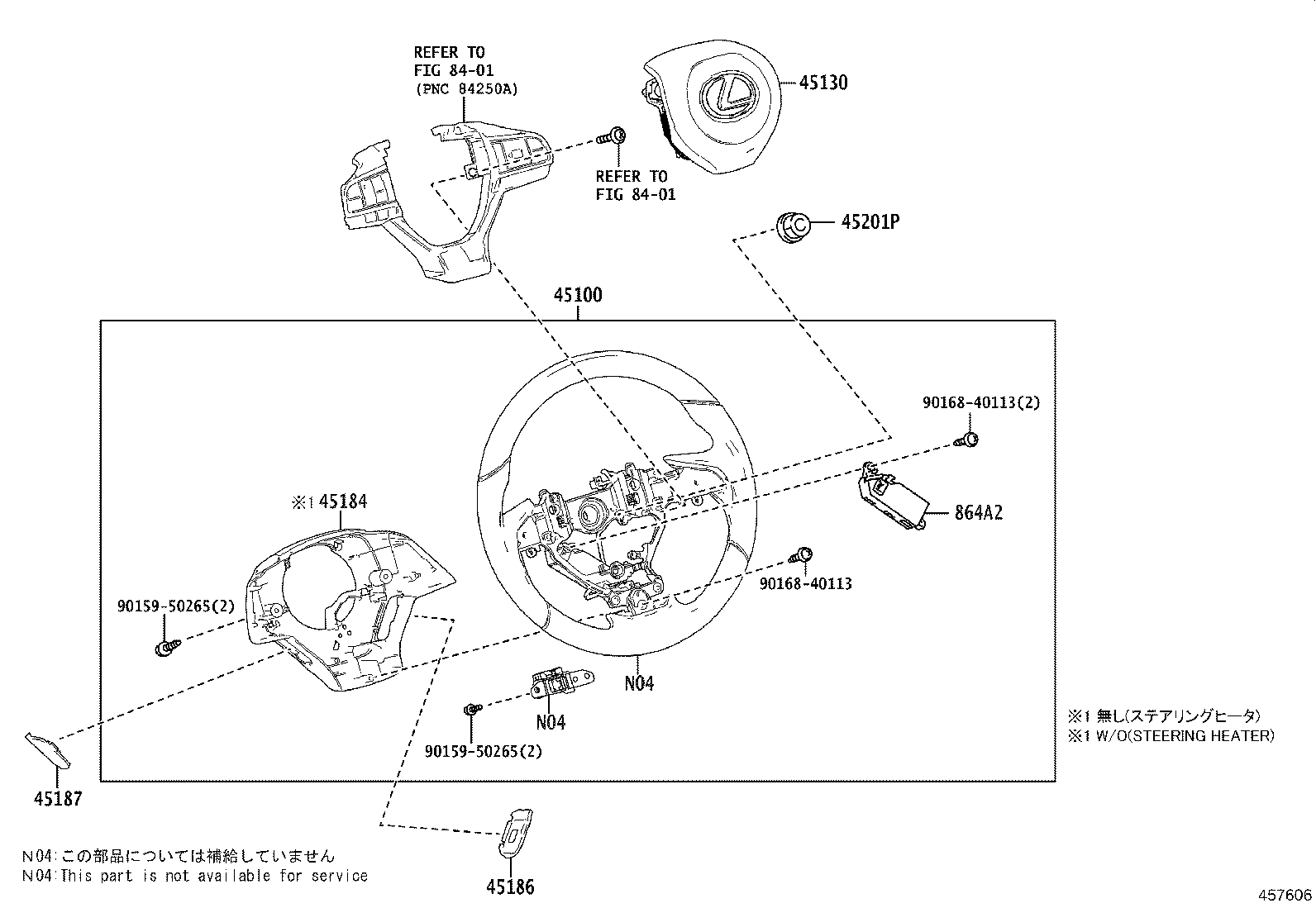

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45130 45184 45186 45201P 8401 8401 864A2 9015950265 9015950265 9016840113 9016840113
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-60A3125

URJ150..G

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-WOOD,WITH(AIR BAG & STEERING HEATER),BLACK/CRIMSON/DK.GRAY,TRIM21

 1
45100-60B00C2

URJ150..G

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-WOOD,WITH(AIR BAG),BLACK,TRIM21

 1
45100-60A3126

URJ150..G

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-WOOD,WITH(AIR BAG & STEERING HEATER),BLACK/BEIGE/DK.GRAY,TRIM0#,20,4#

 1
45100-60A70C3

URJ150..G

3-SPOKE,LEATHER,BLACK,TRIM0#,20,4#

 1
45100-60A70C2

URJ150..G

3-SPOKE,LEATHER,BLACK,TRIM21

 1
45100-60B00C3

URJ150..G

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-WOOD,WITH(AIR BAG),BLACK,TRIM0#,20,4#

 1
45130 - BUTTON ASSY, HORN
45130-60620C0

URJ150

BLACK,TRIM0#,2#,4#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-48100C0

URJ150

BLACK,TRIM0#,2#,4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-48060C0

URJ150

BLACK,TRIM0#,2#,4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

URJ150

 1
864A2 - COMPUTER, STEERING VIBRATION
864A1-48011

URJ150..G

STEERING WHEEL-WOOD,WITH(AIR BAG & STEERING HEATER)

 1
864A2-48011

URJ150

 1
Common parts
90159-50265
90168-40113
Linked diagrams
8401
