UZS190L-BETQKA (2005)
Toyota Lexus Gs Series

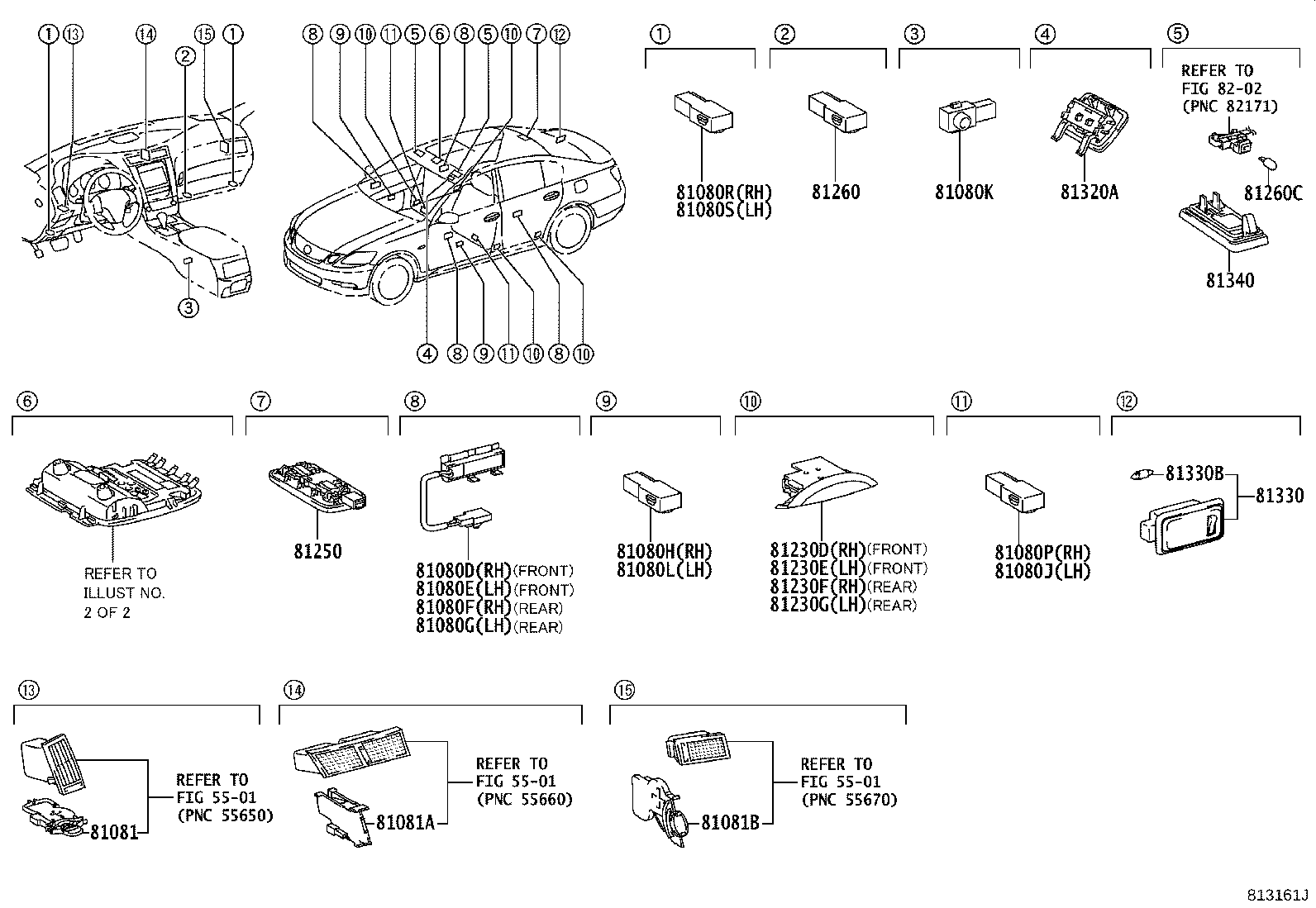

ILLUST NO. 1 OF 2(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81080D - LAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH | ||||
| 81080-30050 |
GRS19#,UZS190 |
1 | ||
| 81080E - LAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH | ||||
| 81080-30060 |
GRS19#,UZS190 |
1 | ||
| 81080F - LAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH | ||||
| 81080-30050 |
GRS19#,UZS190 |
1 | ||
| 81080G - LAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH | ||||
| 81080-30060 |
GRS19#,UZS190 |
1 | ||
| 81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-22040 |
GRS19#,UZS190 |
1 | ||
| 81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81080-30010 |
GRS19#,UZS190 |
1 | ||
| 81080K - LAMP ASSY, CONSOLE BOX ILLUMINATION | ||||
| 81080-30010 |
GRS19#,UZS190 |
1 | ||
| 81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81080-22040 |
GRS19#,UZS190 |
1 | ||
| 81080P - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-30010 |
GRS19#,UZS190 |
1 | ||
| 81080R - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-30010 |
GRS191,196,UZS190 |
1 | ||
| 81080S - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81080-30010 |
GRS191,196,UZS190 |
1 | ||
| 81081 - LAMP SUB-ASSY, INTERIOR ILLUMINATION | ||||
| 81081-30010 |
GRS19#,UZS190 |
1 | ||
| 81081A - LAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2 | ||||
| 81081-30020 |
GRS19#,UZS190 |
1 | ||
| 81081B - LAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.3 | ||||
| 81081-30030 |
GRS19#,UZS190 |
1 | ||
| 81230D - LAMP ASSY, FRONT DOOR COURTESY, RH | ||||
| 81230-30180 |
GRS19#,UZS190 |
1 | ||
| 81230E - LAMP ASSY, FRONT DOOR COURTESY, LH | ||||
| 81310-30010 |
GRS19#,UZS190 |
1 | ||
| 81230F - LAMP ASSY, REAR DOOR COURTESY, RH | ||||
| 81230-30180 |
GRS19#,UZS190 |
1 | ||
| 81230G - LAMP ASSY, REAR DOOR COURTESY, LH | ||||
| 81310-30010 |
GRS19#,UZS190 |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81250-30200A0 |
GRS19#,UZS190 IVORY,TRIM0# |
1 | ||
| 81250-30200B0 |
GRS19#,UZS190 GRAY,TRIM1#,2# |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81080-30010 |
GRS19#,UZS190 |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
GRS19#,UZS190 12V 8W |
2 | ||
| 81320A - LAMP ASSY, STEERING SPOT | ||||
| 81320-30010A0 |
GRS19#,UZS190 IVORY,TRIM0# |
1 | ||
| 81320-30010B0 |
GRS19#,UZS190 GRAY,TRIM1#,2# |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81250-48010 |
GRS191,196,UZS190 |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 99132-13050 |
GRS191,196,UZS190 12V 5W |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-30100A0 |
GRS19#,UZS190 IVORY,TRIM0# |
2 | ||
| 81340-30100B1 |
GRS19#,UZS190 GRAY,TRIM1#,2# |
2 | ||
| Linked diagrams | ||||
| 5501 | ||||
| 8202 | ||||

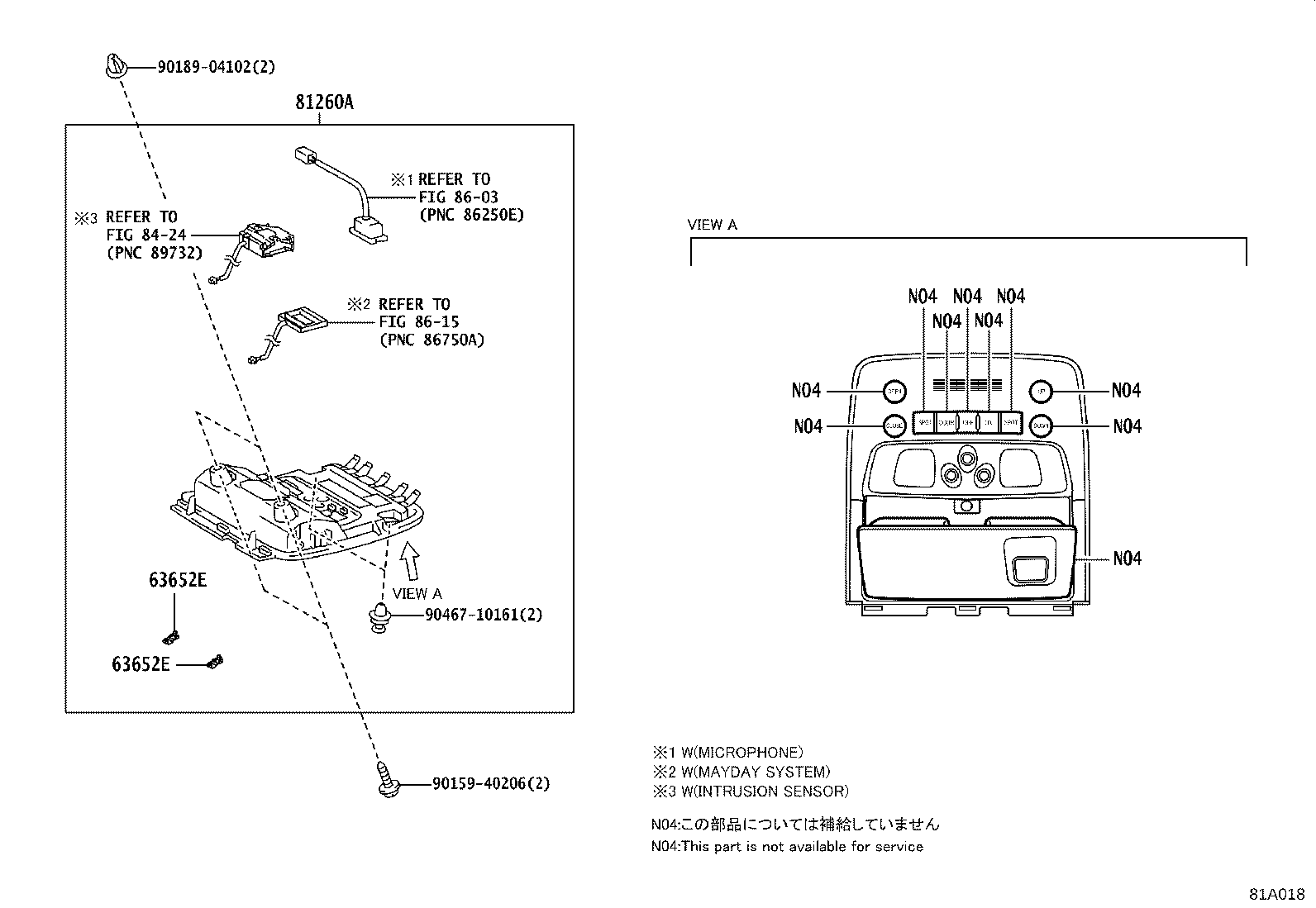

ILLUST NO. 2 OF 2(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63652E - COVER, ROOF CONSOLE BOX, NO.1 | ||||
| 63652-30010B0 |
GRS19#,UZS190 GRAY,TRIM1#,2# |
2 | ||
| 63652-30010A0 |
GRS19#,UZS190 IVORY,TRIM0# |
2 | ||
| 63652-30010A0 |
GRS190,195,UZS190 IVORY,TRIM0# |
2 | ||
| 63652-30010B0 |
GRS190,195,UZS190 GRAY,TRIM1#,2# |
2 | ||
| 63652E - COVER, ROOF CONSOLE BOX, NO.1 | ||||
| 63652-30010B0 |
GRS19#,UZS190 GRAY,TRIM1#,2# |
2 | ||
| 63652-30010A0 |
GRS19#,UZS190 IVORY,TRIM0# |
2 | ||
| 63652-30010A0 |
GRS190,195,UZS190 IVORY,TRIM0# |
2 | ||
| 63652-30010B0 |
GRS190,195,UZS190 GRAY,TRIM1#,2# |
2 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-30410B0 |
GRS19#,UZS190 GRAY,TRIM1#,2# |
1 | ||
| 81260-30410A0 |
GRS19#,UZS190 IVORY,TRIM0# |
1 | ||
| 81260-30420B0 |
GRS190,UZS190 INTERMITTENT WIPER-AUTO(RAIN SENSOR),GRAY,TRIM1#,2# |
1 | ||
| 81260-30450B0 |
GRS19#,UZS190 MOON ROOF-WITH,GRAY,TRIM1#,2# |
1 | ||
| 81260-30420A0 |
GRS190,UZS190 INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
1 | ||
| 81260-30450A0 |
GRS19#,UZS190 MOON ROOF-WITH,IVORY,TRIM0# |
1 | ||
| 81260-30460A0 |
GRS190,UZS190 MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
1 | ||
| 81260-30460B0 |
GRS190,UZS190 MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),GRAY,TRIM1#,2# |
1 | ||
| 81260-30461A0 |
GRS190,UZS190 MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
1 | ||
| 81260-30421B0 |
GRS190,UZS190 INTERMITTENT WIPER-AUTO(RAIN SENSOR),GRAY,TRIM1#,2# |
1 | ||
| 81260-30421A0 |
GRS190,UZS190 INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
1 | ||
| 81260-30411A0 |
GRS19#,UZS190 IVORY,TRIM0# |
1 | ||
| 81260-30411B0 |
GRS19#,UZS190 GRAY,TRIM1#,2# |
1 | ||
| 81260-30822B0 |
GRS191,UZS190 INTERMITTENT WIPER-AUTO(RAIN SENSOR),GRAY,TRIM1#,2# |
1 | ||
| 81260-30461B0 |
GRS190,UZS190 MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),GRAY,TRIM1#,2# |
1 | ||
| 81260-30451A0 |
GRS19#,UZS190 MOON ROOF-WITH,IVORY,TRIM0# |
1 | ||
| 81260-30832A0 |
GRS191,UZS190 MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
1 | ||
| 81260-30A40B0 |
GRS191,UZS190 INTERMITTENT WIPER-AUTO(RAIN SENSOR)&MAYDAY SYSTEM-WITH,GRAY,TRIM1#,2# |
1 | ||
| 81260-30A40A0 |
GRS191,UZS190 INTERMITTENT WIPER-AUTO(RAIN SENSOR)&MAYDAY SYSTEM-WITH,IVORY,TRIM0# |
1 | ||
| 81260-30451B0 |
GRS19#,UZS190 MOON ROOF-WITH,GRAY,TRIM1#,2# |
1 | ||
| 81260-30822A0 |
GRS191,UZS190 INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
1 | ||
| 81260-30A50B0 |
GRS19#,UZS190 MOON ROOF-WITH&MAYDAY SYSTEM-WITH,GRAY,TRIM1#,2# |
1 | ||
| 81260-30A40A0 |
GRS19#,UZS190 MAYDAY SYSTEM-WITH,IVORY,TRIM0# |
1 | ||
| 81260-30A50A0 |
GRS19#,UZS190 MOON ROOF-WITH&MAYDAY SYSTEM-WITH,IVORY,TRIM0# |
1 | ||
| 81260-30832B0 |
GRS191,UZS190 MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),GRAY,TRIM1#,2# |
1 | ||
| 81260-30A60B0 |
GRS19#,UZS190 GRAY,TRIM1#,2# |
1 | ||
| 81260-30A70B0 |
GRS19#,UZS190 MOON ROOF-WITH,GRAY,TRIM1#,2# |
1 | ||
| 81260-30A50A0 |
GRS191,UZS190 MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&MAYDAY SYSTEM-WITH,IVORY,TRIM0# |
1 | ||
| 81260-30A60A0 |
GRS19#,UZS190 IVORY,TRIM0# |
1 | ||
| 81260-30A50B0 |
GRS191,UZS190 MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&MAYDAY SYSTEM-WITH,GRAY,TRIM1#,2# |
1 | ||
| 81260-30A40B0 |
GRS19#,UZS190 MAYDAY SYSTEM-WITH,GRAY,TRIM1#,2# |
1 | ||
| 81260-30A70A0 |
GRS19#,UZS190 MOON ROOF-WITH,IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90159-40206 | ||||
| 90189-04102 | ||||
| 90467-10161 | ||||
| Linked diagrams | ||||
| 8424 | ||||
| 8603 | ||||
| 8615 | ||||
