GWL10L-BEXQBA (2012)

Toyota Lexus Gs Series

Production Mar 2012 - Oct 2015
Engine 2GRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1203- )2GRFXE

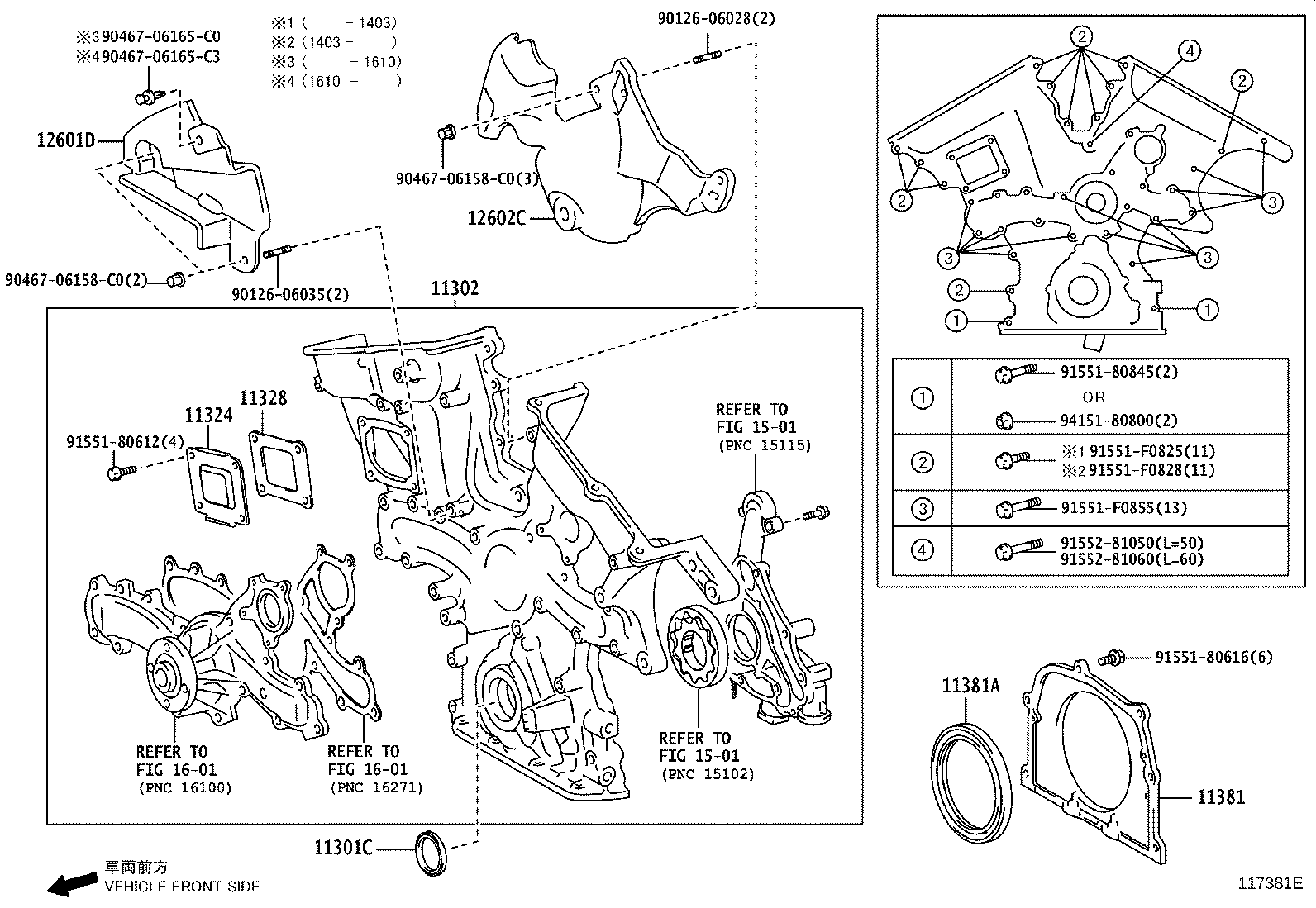

Click highlighted areas on diagram

diagram 11301C 11302 11324 11328 11381 11381A 12601D 12602C 1501 1501 1601 1601 9012606028 9012606035 9046706158C0 9046706158C0 9046706165C0 9046706165C3 9155180612 9155180616 9155180845 91551F0825 91551F0828 91551F0855 9155281050 9155281060 9415180800
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42045

2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-31042

2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10

 1
11310-31044

2GR#,4GRFSE..GRL1#,GWL10

 1
11324 - PLATE, TIMING CHAIN COVER
11324-31020

2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-31030

2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-31021

2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10

 1
11381A - SEAL, ENGINE REAR OIL
90311-92010

2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10

 1
90311-92011

2GR#..GRL10,15,GWL10

 1
12601D - COVER, ENGINE, NO.1
12601-31030

2GRFXE..GWL10

 1
12602C - COVER, ENGINE, NO.2
12602-31013

2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10

 1
Common parts
90126-06028
90126-06035
90467-06158C0
90467-06165C0
90467-06165C3
91551-80612
91551-80616
91551-80845
91551-F0825
91551-F0828
91551-F0855
91552-81050
91552-81060
94151-80800
Linked diagrams
1501
1601
