GRS196L-BETQHA (2006)
Toyota Lexus Gs Series

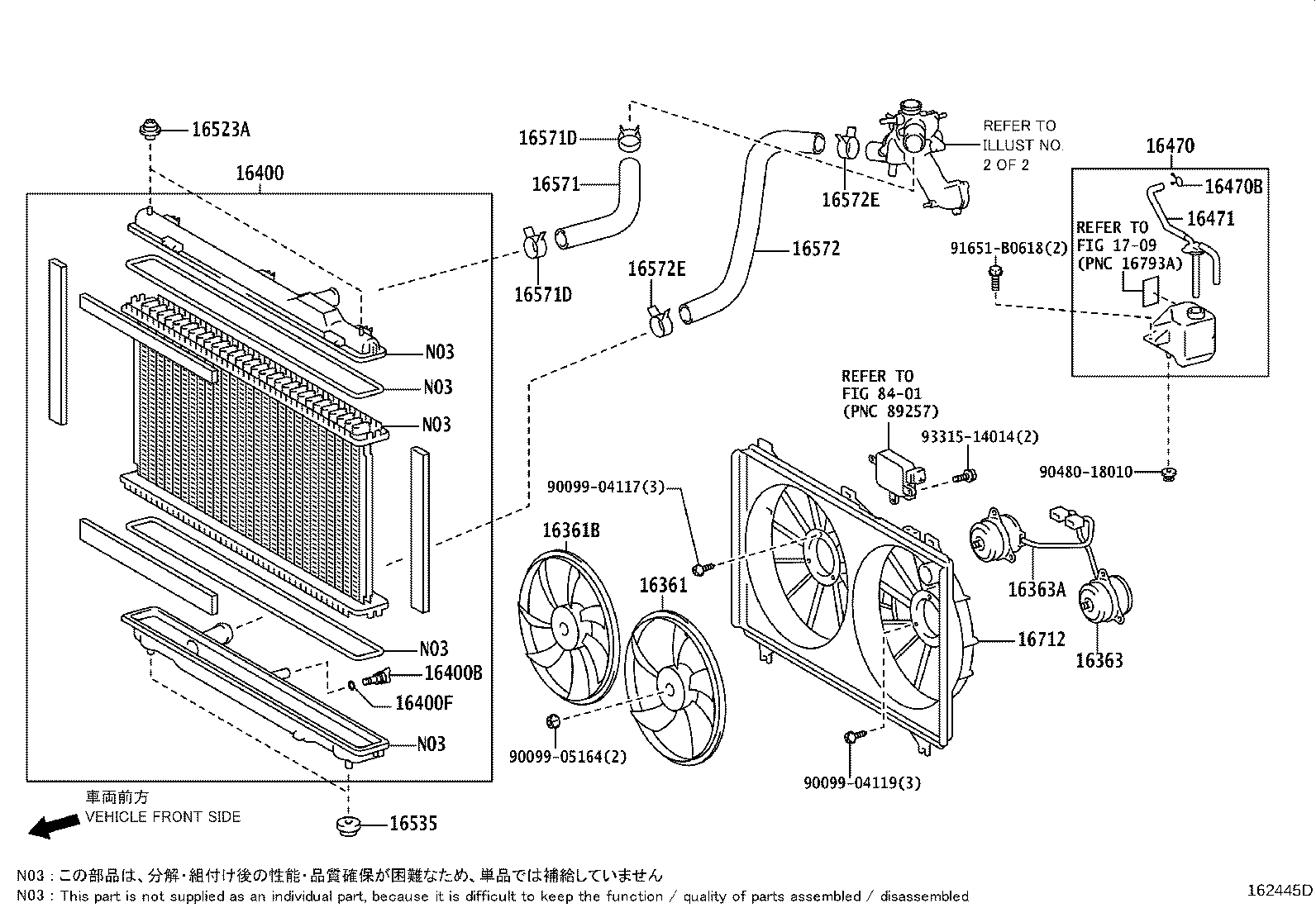

ILLUST NO. 1 OF 2(0607- )2GRFSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-31110 |
2GRFSE..GRS19# |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-31080 |
2GRFSE,3GRFSE..GRS19# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-31050 |
2GRFSE..GRS19# |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-31070 |
2GRFSE..GRS19# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-31370 |
2GRFSE..GRS191,196 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
2GRFSE..GRS191,196 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2GRFSE..GRS191,196 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-31030 |
2GRFSE..GRS191,196 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2GRFSE..GRS191,196 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-31030 |
2GRFSE..GRS191,196 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-31010 |
2GRFSE..GRS191,196 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40021 |
2GRFSE..GRS191,196 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-31160 |
2GRFSE..GRS191,196 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54801 |
2GRFSE..GRS191,196 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54801 |
2GRFSE..GRS191,196 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-31180 |
2GRFSE..GRS191,196 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
2GRFSE..GRS191,196 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
2GRFSE..GRS191,196 |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16711-31240 |
2GRFSE..GRS19# |
1 | ||
| Common parts | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90480-18010 | ||||
| 91651-B0618 | ||||
| 93315-14014 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||

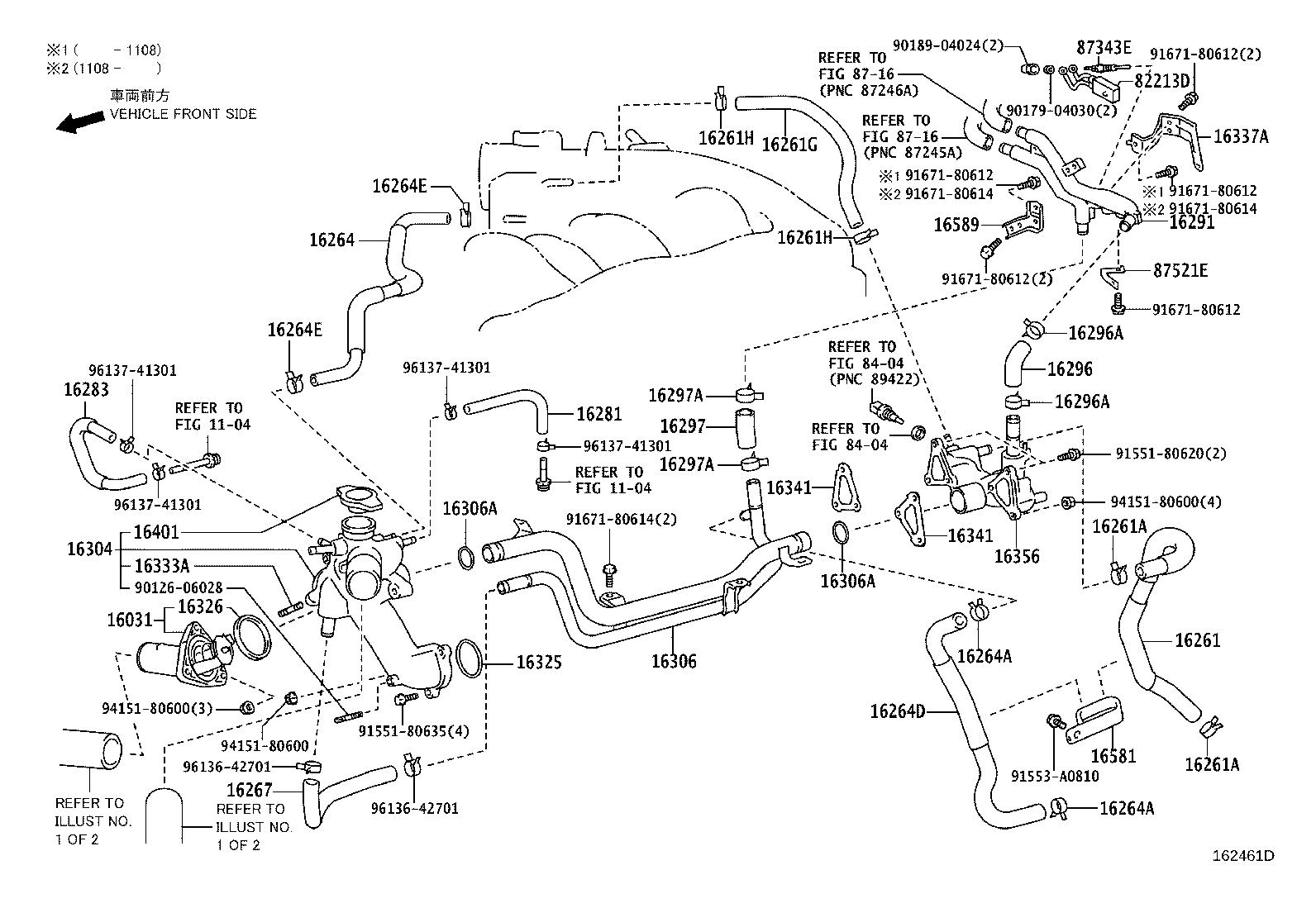

ILLUST NO. 2 OF 2(0607- )2GRFSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-31020 |
2GRFSE..GRS191,196 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-31040 |
2GRFSE,3GRFSE..GRS19# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-52101 |
2GRFSE,3GRFSE..GRS19# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-52101 |
2GRFSE,3GRFSE..GRS19# |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-31071 |
2GRFSE..GRS19# |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96137-51501 |
2GRFSE..GRS191,196 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96137-51501 |
2GRFSE..GRS191,196 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-31060 |
2GRFSE..GRS19# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-52101 |
2GRFSE,3GRFSE..GRS19# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-52101 |
2GRFSE,3GRFSE..GRS19# |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-31030 |
2GRFSE,3GRFSE..GRS19# |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-51501 |
2GRFSE..GRS191,196 |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-51501 |
2GRFSE..GRS191,196 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-31021 |
2GRFSE..GRS191,196 |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-31010 |
2GRFSE..GRS191,196 |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-31060 |
2GRFSE..GRS19# |
1 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-31030 |
2GRFSE..GRS19# |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-42701 |
2GRFSE..GRS191,196 |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-42701 |
2GRFSE..GRS191,196 |
2 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-31030 |
2GRFSE..GRS19# |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-42701 |
2GRFSE..GRS191,196 |
2 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-42701 |
2GRFSE..GRS191,196 |
2 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-31032 |
2GRFSE,3GRFSE..GRS19# |
1 | ||
| 16304-31033 |
2GRFSE..GRS19# |
1 | ||
| 16306A - RING, O(FOR WATER OUTLET PIPE) | ||||
| 96761-35025 |
2GRFSE..GRS191,196 |
2 | ||
| 16306A - RING, O(FOR WATER OUTLET PIPE) | ||||
| 96761-35025 |
2GRFSE..GRS191,196 |
2 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-31010 |
2GRFSE..GRS191,196 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-31020 |
2GRFSE..GRS191,196 |
1 | ||
| 16333A - BOLT, STUD(FOR WATER OUTLET HOUSING) | ||||
| 92122-80618 |
2GRFSE..GRS191,196 |
3 | ||
| 16337A - STAY, WATER OUTLET | ||||
| 16337-31010 |
2GRFSE..GRS19# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
2GRFSE..GRS191,196 |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
2GRFSE..GRS191,196 |
2 | ||
| 16356 - JOINT, WATER BY-PASS, REAR | ||||
| 16356-31021 |
2GRFSE..GRS191,196 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-75440 |
2GRFSE..GRS191,196 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-31010 |
2GRFSE..GRS191,196 |
1 | ||
| 16589 - STAY, PIPE CLAMP | ||||
| 16589-31010 |
2GRFSE..GRS19# |
1 | ||
| 82213D - WIRE, HEATER BLOWER | ||||
| 82213-30040 |
GRS19# |
1 | ||
| 82213-30040 |
GRS19# USA POSSESSIONS SPEC |
1 | ||
| 82213-30060 |
GRS19# |
1 | ||
| 82213-30040 |
GRS19# HAWAII SPEC |
1 | ||
| 87343E - PLUG, WATER BY-PASS GLOW | ||||
| 87343-30010 |
GRS19# |
2 | ||
| 87343-30010 |
GRS19# USA POSSESSIONS SPEC |
2 | ||
| 87343-30010 |
GRS19# HAWAII SPEC |
2 | ||
| 87521E - BRACKET,ENGINE BLOCK HEATER | ||||
| 87521-30010 |
GRS19# |
1 | ||
| 87521-30010 |
GRS19# HAWAII SPEC |
1 | ||
| 87521-30010 |
GRS19# USA POSSESSIONS SPEC |
1 | ||
| 87521-30020 |
GRS19# |
1 | ||
| Common parts | ||||
| 90126-06028 | ||||
| 90179-04030 | ||||
| 90189-04024 | ||||
| 91551-80620 | ||||
| 91551-80635 | ||||
| 91553-A0810 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| 96136-42701 | ||||
| 96137-41301 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 8404 | ||||
| 8716 | ||||
