GRS195L-BETQHA (2005)

Toyota Lexus Gs Series

Production Jan 2005 - Jul 2006
Engine 3GRFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0501-0607)3GRFSE

Click highlighted areas on diagram

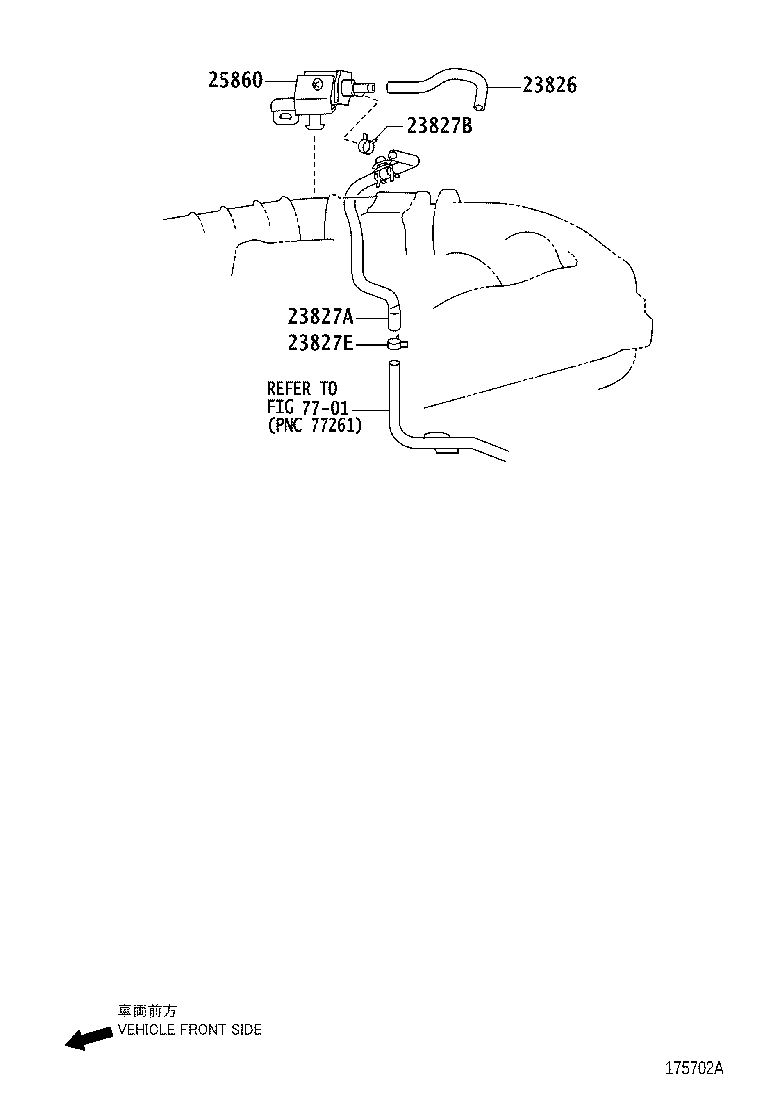

diagram 23826 23827A 23827B 23827E 25860 7701
Part # Description Qty Price
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-31020

3GRFSE..GRS19#

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-31030

3GRFSE..GRS19#

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300

2GRFSE,3GRFSE..GRS19#

 1
23827E - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-41500

3GRFSE..GRS19#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31040

3GRFSE..GRS19#

 1
Linked diagrams
7701
