GRS195L-BETQHA (2005)
Toyota Lexus Gs Series
Production
Jan 2005
-
Jul 2006
Engine
3GRFSE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0501- )2GRFSE,3GRFSE

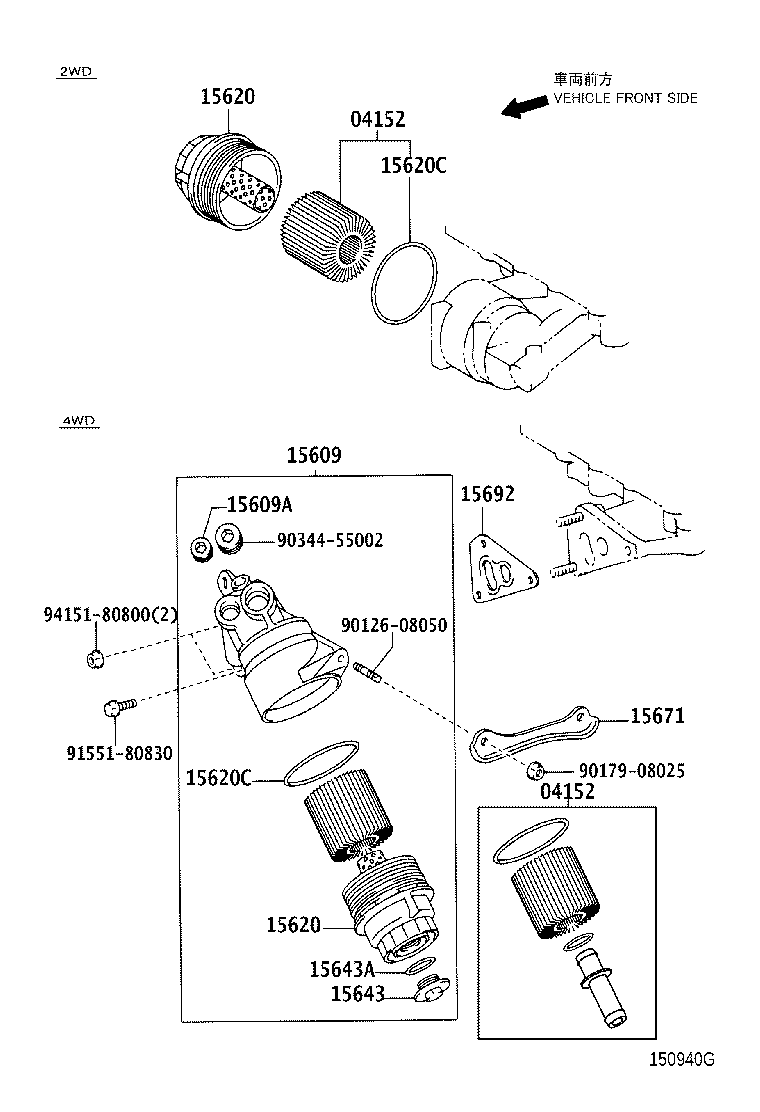

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04152 - ELEMENT KIT, OIL FILTER | ||||
| 04152-31060 |
2GRFSE,3GRFSE..GRS195,196 |
1 | ||
| 04152 - ELEMENT KIT, OIL FILTER | ||||
| 04152-31060 |
2GRFSE,3GRFSE..GRS195,196 |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15670-31020 |
3GRFSE..GRS195 |
1 | ||
| 15609A - PLUG, TAPER SCREW(FOR OIL FILTER BRACKET) | ||||
| 90344-54006 |
3GRFSE..GRS195 |
1 | ||
| 15620 - CAP ASSY, OIL FILTER | ||||
| 15620-31050 |
3GRFSE..GRS195 |
1 | ||
| 15620 - CAP ASSY, OIL FILTER | ||||
| 15620-31050 |
3GRFSE..GRS195 |
1 | ||
| 15620C - GASKET(FOR OIL FILTER CAP) | ||||
| 90301-79005 |
2GRFSE,3GRFSE..GRS19# |
1 | ||
| 15620C - GASKET(FOR OIL FILTER CAP) | ||||
| 90301-79005 |
2GRFSE,3GRFSE..GRS19# |
1 | ||
| 15643 - PLUG, OIL FILTER DRAIN | ||||
| 15643-31040 |
2GRFSE,3GRFSE..GRS195,196 |
1 | ||
| 15643A - RING, O(FOR OIL FILTER DRAIN PLUG) | ||||
| 96723-35028 |
3GRFSE..GRS195 |
1 | ||
| 15671 - BRACKET, OIL FILTER | ||||
| 15671-31020 |
3GRFSE..GRS195 |
1 | ||
| 15692 - GASKET, OIL FILTER BRACKET | ||||
| 15692-31020 |
3GRFSE..GRS195 |
1 | ||
| Common parts | ||||
| 90126-08050 | ||||
| 90179-08025 | ||||
| 90344-55002 | ||||
| 91551-80830 | ||||
| 94151-80800 | ||||
