GRS190L-BETQHA (2005)

Toyota Lexus Gs Series

Production Jan 2005 - Jul 2006
Engine 3GRFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )GRS190,191,URS190,UZS190

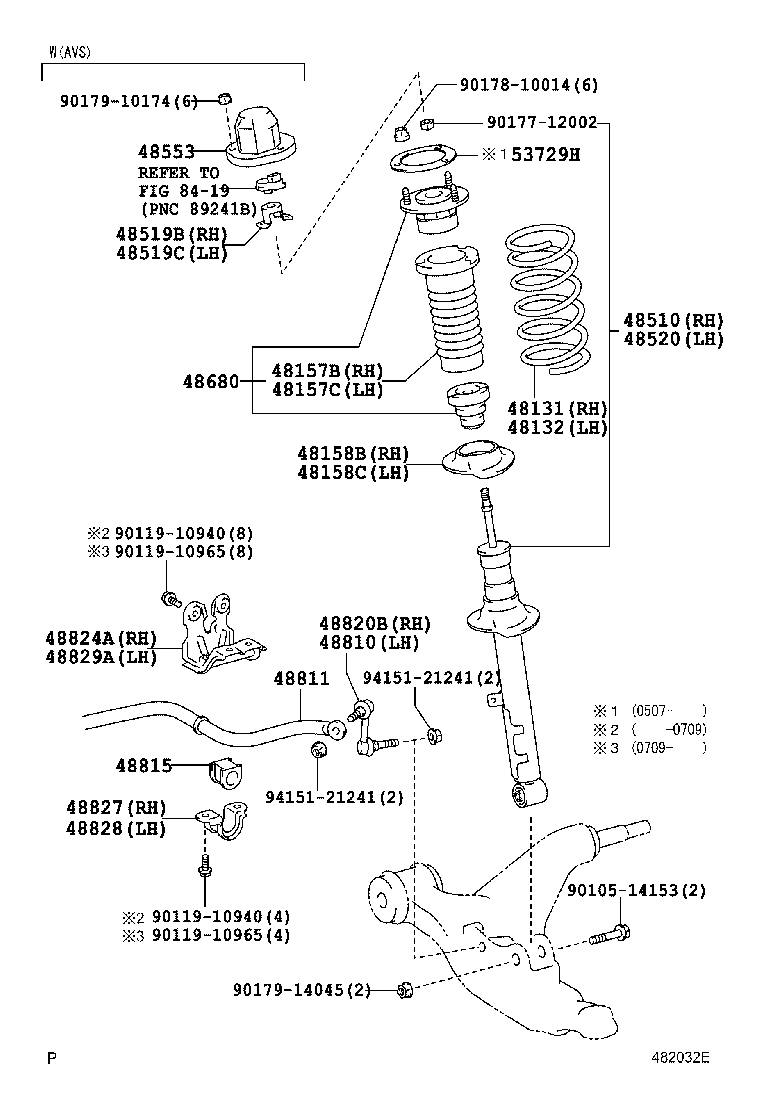

Click highlighted areas on diagram

diagram 48131 48132 48157B 48157C 48158B 48158C 48510 48519B 48519C 48520 48553 48680 48810 48811 48815 48820B 48824A 48827 48828 48829A 53729H 8419 9010514153 9011910940 9011910940 9011910965 9011910965 9017712002 9017810014 9017910174 9017914045 9415121241 9415121241
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-30A40

GRS190

 1
48132 - SPRING, FRONT COIL, LH
48131-30A70

GRS190

 1
48131-30A40

GRS190

 1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-30250

GRS190

 1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-30250

GRS190

 1
48158B - INSULATOR, FRONT COIL SPRING, LOWER RH
48158-30020

GRS19#

 1
48158C - INSULATOR, FRONT COIL SPRING, LOWER LH
48158-30020

GRS19#

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-80215

GRS190

MARK 48510-30650

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-80041

GRS190

MARK 48520-30130

 1
48680 - SUPPORT ASSY, FRONT SUSPENSION
48680-30300

GRS190

 2
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-30070

GRS190

 1
48811 - BAR, STABILIZER, FRONT
48811-30660

GRS190

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-30570

GRS190

 2
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-30090

GRS190

 1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48809-30060

GRS190

 1
48827 - BRACKET, FRONT STABILIZER, NO.2 RH
48824-30130

GRS190

 1
48828 - BRACKET, FRONT STABILIZER, NO.2 LH
48824-30130

GRS190

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48809-30060

GRS190

 1
53729H - REINFORCEMENT, FRONT SPRING SUPPORT, NO.3
53729-53020

GRS19#

 2
Common parts
90105-14153
90119-10940
90119-10965
90177-12002
90178-10014
90179-10174
90179-14045
94151-21241
Linked diagrams
8419
