GRL12L-BEZQHA (2015)

Toyota Lexus Gs Series

Production Oct 2015 - Jul 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )GRL1#

Click highlighted areas on diagram

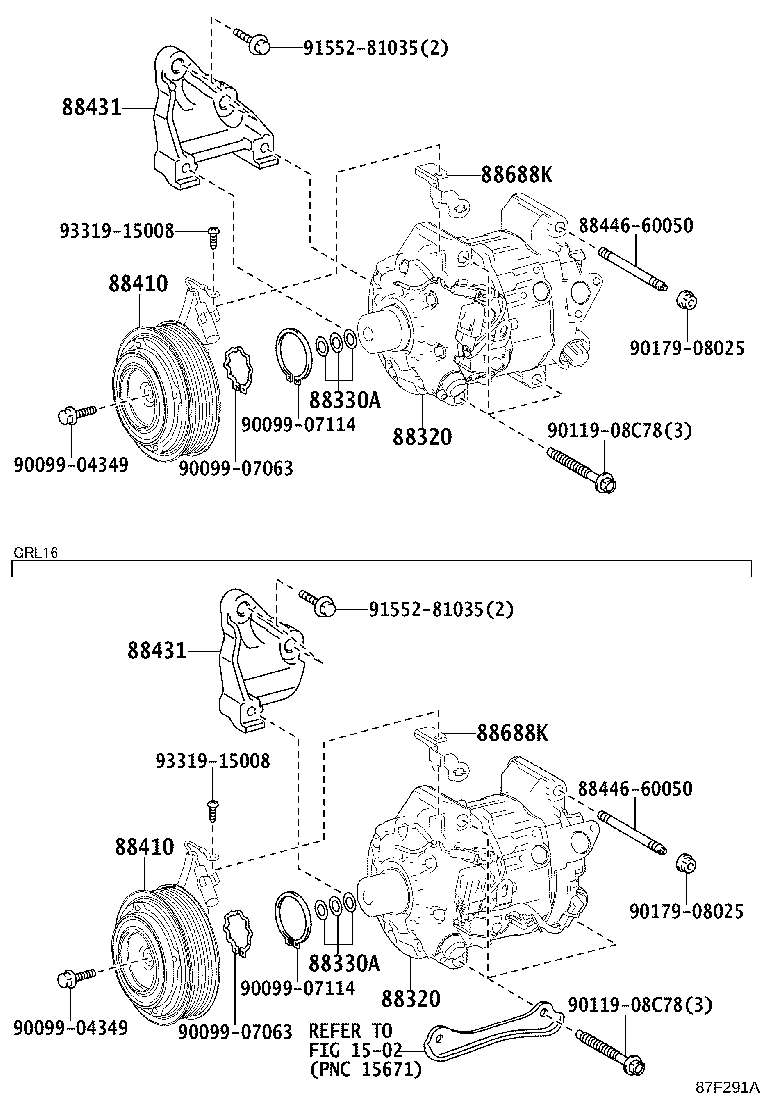

diagram 1502 88320 88320 88330A 88330A 88410 88410 88431 88431 8844660050 8844660050 88688K 88688K 9009904349 9009904349 9009907063 9009907063 9009907114 9009907114 9011908C78 9011908C78 9017908025 9017908025 9155281035 9155281035 9331915008 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-48320

ARL10,GRL12

 1
88320 - COMPRESSOR ASSY, COOLER
88320-48320

ARL10,GRL12

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

ARL10,GRL1#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

ARL10,GRL1#

 1
88410 - CLUTCH ASSY, MAGNET
88410-0N010

ARL10,GRL1#

 1
88410 - CLUTCH ASSY, MAGNET
88410-0N010

ARL10,GRL1#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-48050

GRL12

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-48050

GRL12

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-33570

ARL10,GRL1#

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-33570

ARL10,GRL1#

 1
Common parts
88446-60050
90099-04349
90099-07063
90099-07114
90119-08C78
90179-08025
91552-81035
93319-15008
Linked diagrams
1502
