GRL12L-BEZQHA (2015)
Toyota Lexus Gs Series
Production
Oct 2015
-
Jul 2020
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1510- )GRL1#

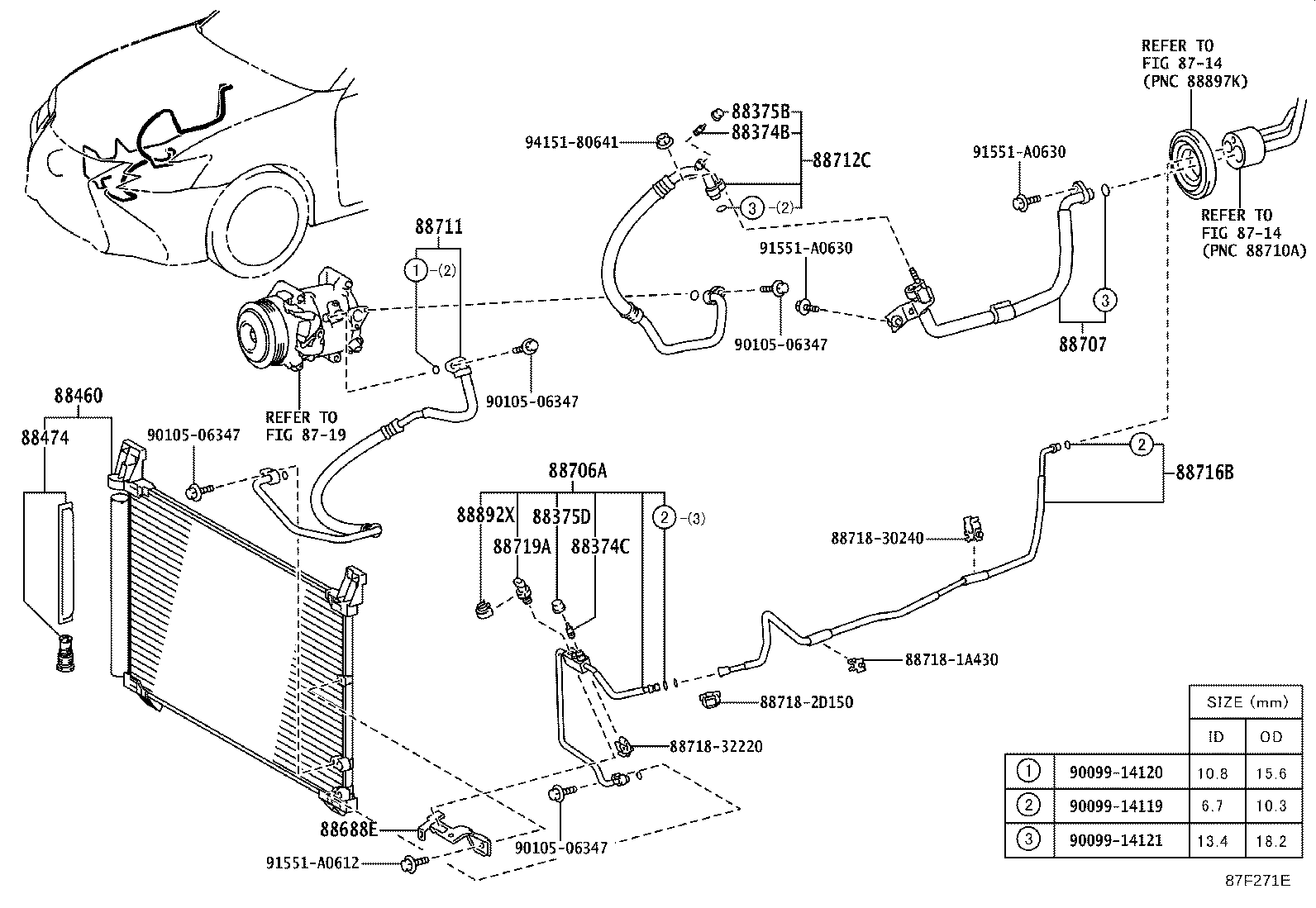

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ARL10,GRL1#,GWL10 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
ARL10,GRL1#,GWL10 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
ARL10,GRL1#,GWL10 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
ARL10,GRL1#,GWL10 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-30B40 |
GRL1# |
1 | ||
| 88460-30B20 |
GRL1# |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12010 |
ARL10,GRL1# |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-3F020 |
ARL10,GRL1#,GWL10 |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-3A590 |
GRL1# |
1 | ||
| 88706-30A20 |
GRL1# |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-30A40 |
GRL1# |
1 | ||
| 88707-30A41 |
GRL1# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-30A30 |
GRL1# |
1 | ||
| 88712C - HOSE, SUCTION | ||||
| 88712-30A00 |
GRL12 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-30070 |
GRL1# |
1 | ||
| 88716-30B10 |
GRL1# |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
ARL10,GRL1#,GWL10 |
1 | ||
| 88892X - COVER, COOLER, NO.2 | ||||
| 88892-50120 |
ARL10,GRL1#,GWL10 |
1 | ||
| Common parts | ||||
| 88718-1A430 | ||||
| 88718-2D150 | ||||
| 88718-30240 | ||||
| 88718-32220 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-06347 | ||||
| 91551-A0612 | ||||
| 91551-A0630 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
