GRL12L-BEZQHA (2015)

Toyota Lexus Gs Series

Production Oct 2015 - Jul 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )

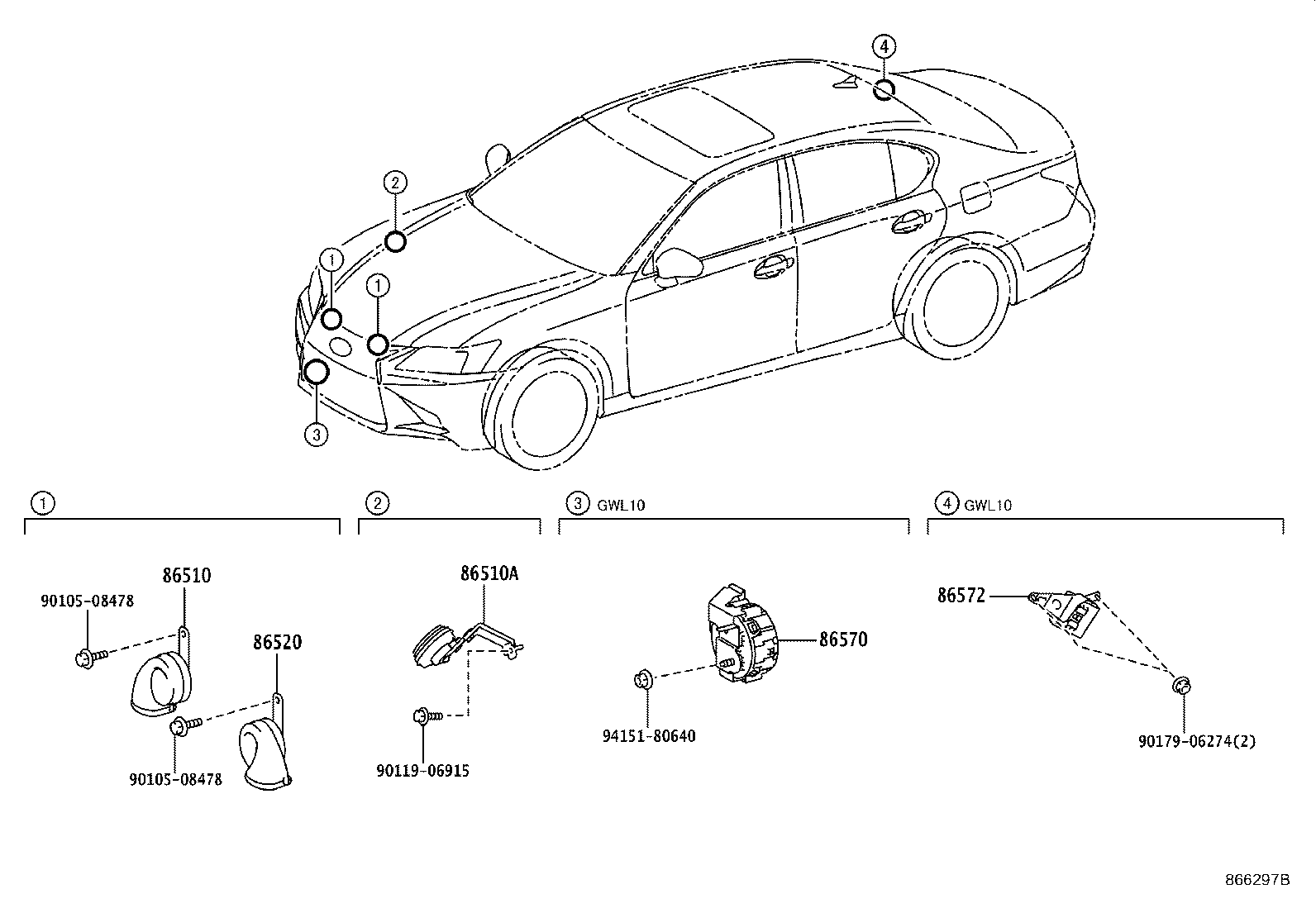

Click highlighted areas on diagram

diagram 86510 86510A 86520 86570 86572 9010508478 9010508478 9011906915 9017906274 9415180640
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-50211

ARL10,GRL12,GWL10

KOREA SPEC

 1
86510-30790

ARL10,GRL1#,GWL10

 1
86510A - HORN ASSY, SECURITY
86560-30030

ARL10,GRL1#,GWL10

 1
86520 - HORN ASSY, LOW PITCHED
86520-50181

ARL10,GRL12,GWL10

KOREA SPEC

 1
86520-30670

ARL10,GRL1#,GWL10

 1
Common parts
90105-08478
90119-06915
90179-06274
94151-80640
