Toyota Lexus gs series GRL12 NAVIGATION & FRONT MONITOR DISPLAY

Part #	Description	Period	Qty
83253A - GLASS, ACCESSORY METER
83253-30010	GRL1#,GWL10	10/2015 - 07/2020	1
83253-30010	GRL12,GWL10 KOREA SPEC&EMV & NAVIGATION SYSTEM-8INCH DISPLAY	10/2015 - 07/2020	1
83290J - METER ASSY, ACCESSORY
83290-30260	GRL12,GWL10 KOREA SPEC	10/2015 - 09/2019	1
83290-30240	GRL1#,GWL10	10/2015 - 07/2020	1
83290-30240	GRL12,GWL10 KOREA SPEC&EMV & NAVIGATION SYSTEM-8INCH DISPLAY	10/2015 - 07/2020	1
84013D - PANEL SUB-ASSY, INTEGRATION
84013-30260	ARL10,GRL1#,GWL10	10/2015 - 07/2020	1
84781 - SWITCH, REMOTE OPERATION
84781-30110	GRL1#,GWL10	10/2015 - 01/2018	1
84781-30111	GRL1#,GWL10	02/2018 - 07/2020	1
84782 - BOARD, REMOTE OPERATION
84782-30030	ARL10,GRL1#,GWL10	10/2015 - 07/2020	1
84811F - KNOB, SWITCH
84811-30070	ARL10,GRL1#,GWL10	10/2015 - 07/2020	1
84811-30050	GRL1#,GWL10	12/2011 - 09/2014	1
86111 - MULTI-DISPLAY
86110-30450	GRL12,GWL10 PIONEER,EMV & NAVIGATION SYSTEM-8INCH DISPLAY	10/2015 - 03/2017	1
86110-30451	GRL12,GWL10 PIONEER,EMV & NAVIGATION SYSTEM-8INCH DISPLAY	03/2017 - 09/2019	1
86134A - PARTS, MULTI-DISPLAY
86134-30140	GRL12,GWL10 EMV & NAVIGATION SYSTEM-8INCH DISPLAY	10/2015 - 09/2019	1
86271 - DISC, DISC PLAYER
86271-53391	GRL1#,GWL10	09/2017 - 12/2017	1
86271-30B50	GRL1#,GWL10	10/2015 - 08/2016	1
86271-53390	GRL1#,GWL10	08/2016 - 09/2017	1
86271-48320	GRL1#,GWL10	01/2018 - 08/2018	1
86271-48321	GRL1#,GWL10	08/2018 - 08/2019	1
86271-48322	GRL1#	08/2019 - 07/2020	1
86681B - DIVIDER, ANTENNA
86681-30050	ARL10,GRL1#,GWL10	10/2015 - 09/2017	1
86730A - MICROPHONE ASSY, TELEPHONE
86730-30220	ARL10,GRL1#,GWL10	10/2015 - 07/2020	1
86860 - ANTENNA ASSY, NAVIGATION
86860-30310	ARL10,GRL12,GWL10 KOREA SPEC	10/2015 - 06/2017	1
86860-30310	ARL10,GRL12,GWL10 HAWAII SPEC	10/2015 - 06/2017	1
86860-30310	ARL10,GRL12,GWL10 GUAM,PUERTO RICO SPEC	10/2015 - 06/2017	1
868A0-30010	ARL10,GRL1#,GWL10	09/2017 - 07/2020	1
86860-30310	ARL10,GRL1#,GWL10 CANADA SPEC	10/2015 - 06/2017	1
86860-30350	ARL10,GRL12,GWL10 HAWAII SPEC	07/2017 - 07/2020	1
86860-30350	ARL10,GRL12,GWL10 KOREA SPEC	07/2017 - 09/2019	1
86860-30350	ARL10,GRL12 CANADA SPEC	07/2017 - 09/2017	1
86860-30350	ARL10,GRL12,GWL10 GUAM,PUERTO RICO SPEC	07/2017 - 07/2020	1
89279Q - COVER
89279-30190D0	GRL1# "ETERNAL TOURING",RED NO.55,TRIM2#	06/2020 - 07/2020	1
89279-30150B0	GRL1# LT.GRAY NO.831,TRIM1#,2#,3#,5#,6#	10/2015 - 07/2020	1
Common parts
55539-30260
90099-00262
90153-50010
90159-50327
91673-80616
93315-13008
Linked diagrams
8401
8417
8601

GRL12L-BEZQHA (2015)

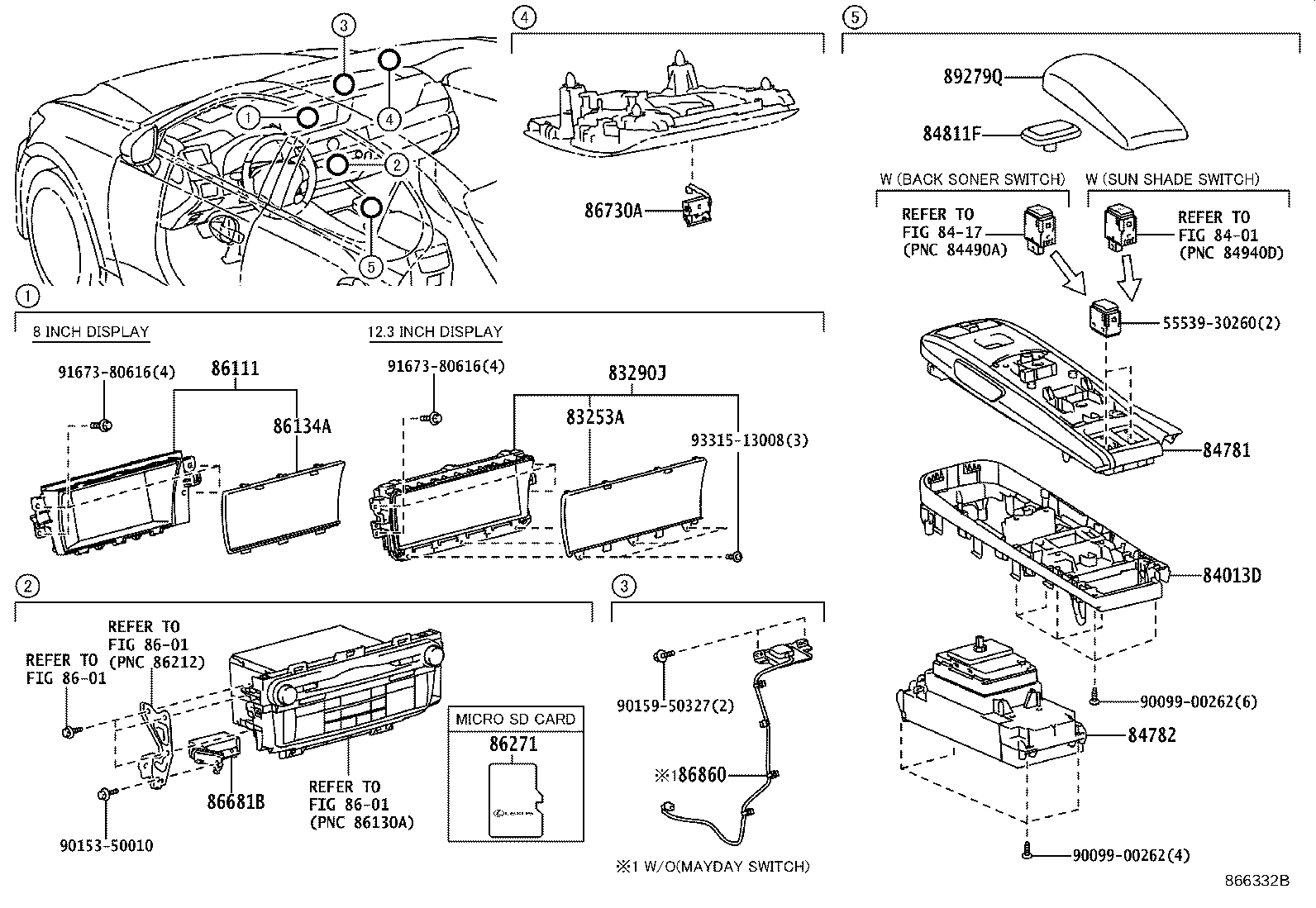

ILLUST NO. 1 OF 2(1510- )
