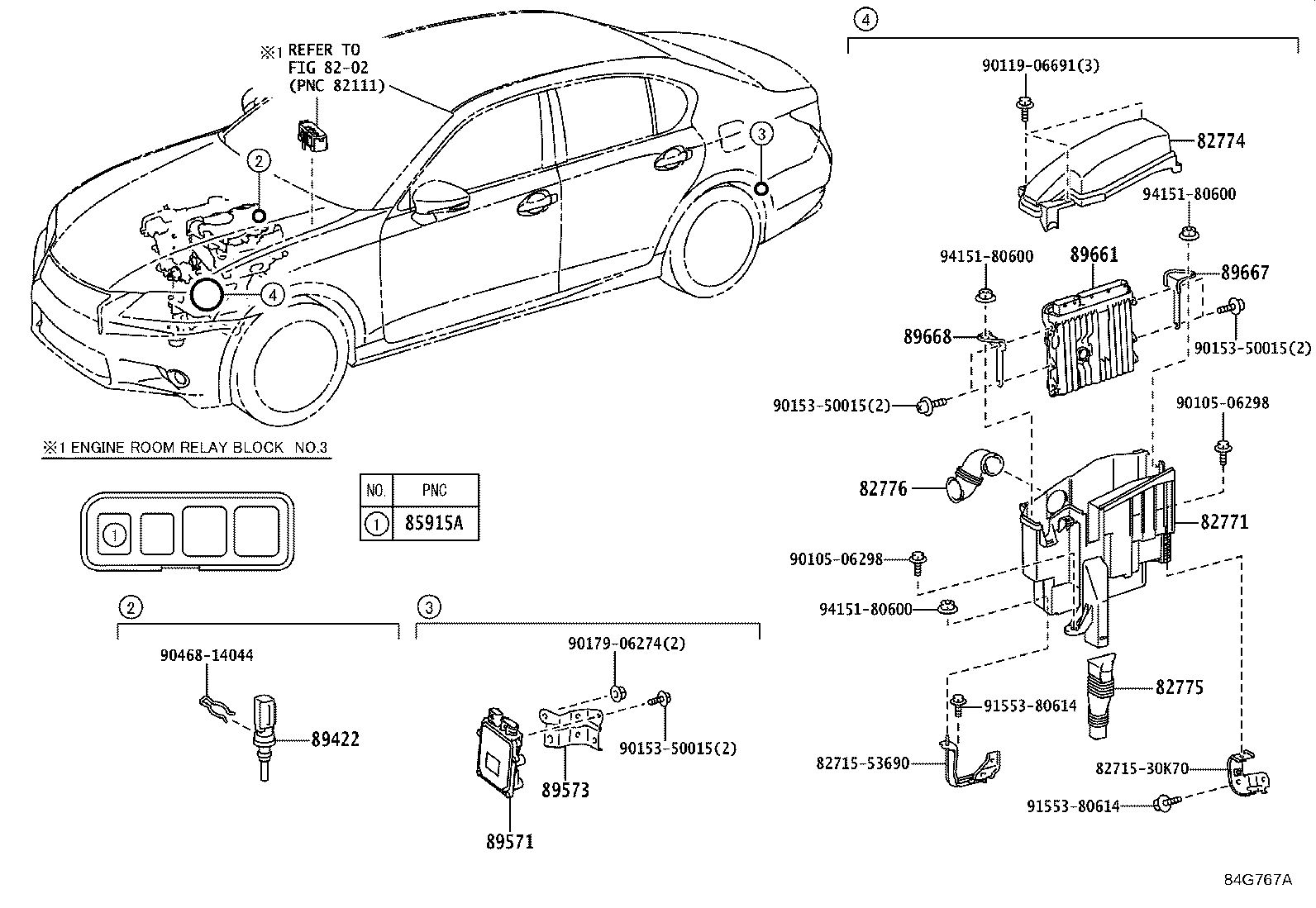

Toyota Lexus gs series GRL12 ELECTRONIC FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
82771 - BOX, ENGINE ROOM ECU
82771-30080	ARL10,GRL12 KOREA SPEC	10/2015 - 09/2019	1
82771-30090	ARL10,GRL1#	10/2015 - 07/2020	1
82774 - COVER, ENGINE ROOM ECU
82774-30090	ARL10,GRL1#	10/2015 - 07/2020	1
82775 - DUCT, ENGINE ROOM ECU INLET
82775-30070	ARL10,GRL12 KOREA SPEC	10/2015 - 09/2019	1
82775-24010	ARL10,GRL1#	10/2015 - 07/2020	1
82776 - DUCT, ENGINE ROOM ECU OUTLET
82776-30160	ARL10,GRL1#	10/2015 - 07/2020	1
85915A - RELAY, MAIN
90987-02027	ARL10,GRL1#	10/2015 - 07/2020	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-47010	GRL1#	10/2015 - 07/2020	1
89571 - COMPUTER, FUEL PUMP CONTROL
89571-58010	ARL10,GRL1#	10/2015 - 07/2020	1
89573 - BRACKET, FUEL PUMP CONTROL COMPUTER
89573-53030	ARL10,GRL1#	10/2015 - 07/2020	1
89661 - COMPUTER, ENGINE CONTROL
89661-3AB10	GRL12	10/2015 - 11/2015	1
89661-3AB11	GRL12	12/2015 - 09/2017	1
89661-3AG21	GRL12 DENSO	05/2018 - 09/2018	1
89661-3AG20	GRL12	09/2017 - 04/2018	1
89661-3AJ11	GRL12 DENSO	01/2019 - 07/2019	1
89661-3AJ12	GRL12 DENSO	08/2019 - 07/2020	1
89661-3AJ10	GRL12 DENSO	09/2018 - 12/2018	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-53040	ARL10,GRL1#	10/2015 - 07/2020	1
89667-30300	GRL1#	12/2011 - 10/2015	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-53040	ARL10,GRL1#	10/2015 - 07/2020	1
89668-30280	GRL1#	12/2011 - 10/2015	1
Common parts
82715-30K70
82715-53690
90105-06298
90119-06691
90153-50015
90179-06274
90468-14044
91553-80614
94151-80600
Linked diagrams
8202

GRL12L-BEZQHA (2015)
