GRL12L-BEZQHA (2015)
Toyota Lexus Gs Series
ILLUST NO. 1 OF10(1510- )GRL1#

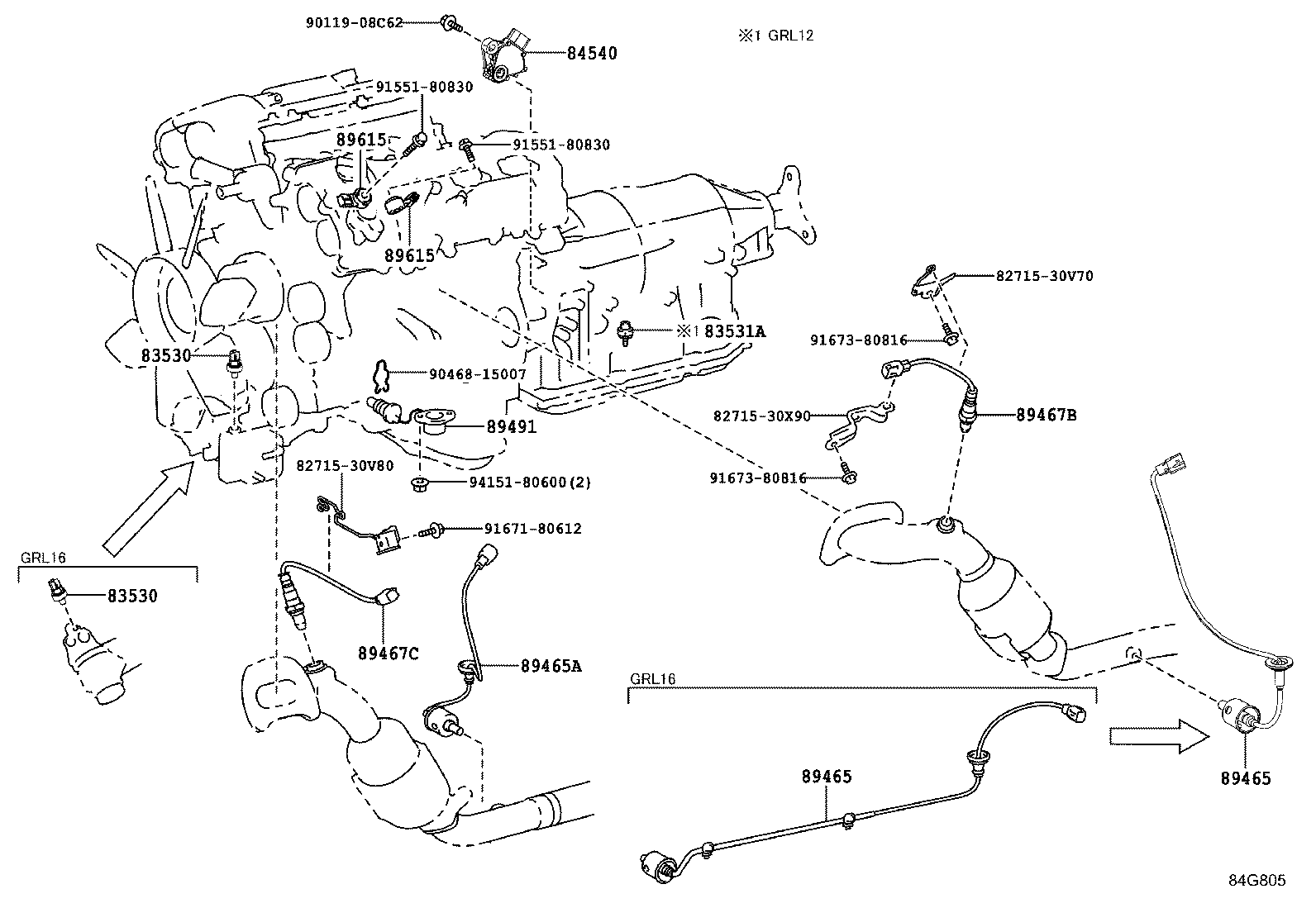

ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
GRL1#,GWL10 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
GRL1#,GWL10 |
1 | ||
| 83531A - SWITCH, OIL PRESSURE | ||||
| 83531-50010 |
GRL12 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-71010 |
ARL10,GRL12 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-30B40 |
GRL12 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-30B40 |
GRL12 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-30B50 |
GRL1# |
1 | ||
| 89465-30730 |
GRL1# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-30080 |
GRL1# |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-30090 |
GRL1# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-30101 |
GRL1# |
1 | ||
| 89491-30100 |
GRL1# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GRL1#,GWL10 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GRL1#,GWL10 |
2 | ||
| Common parts | ||||
| 82715-30V70 | ||||
| 82715-30V80 | ||||
| 82715-30X90 | ||||
| 90119-08C62 | ||||
| 90468-15007 | ||||
| 91551-80830 | ||||
| 91671-80612 | ||||
| 91673-80816 | ||||
| 94151-80600 | ||||
ILLUST NO. 5 OF10(1510- )

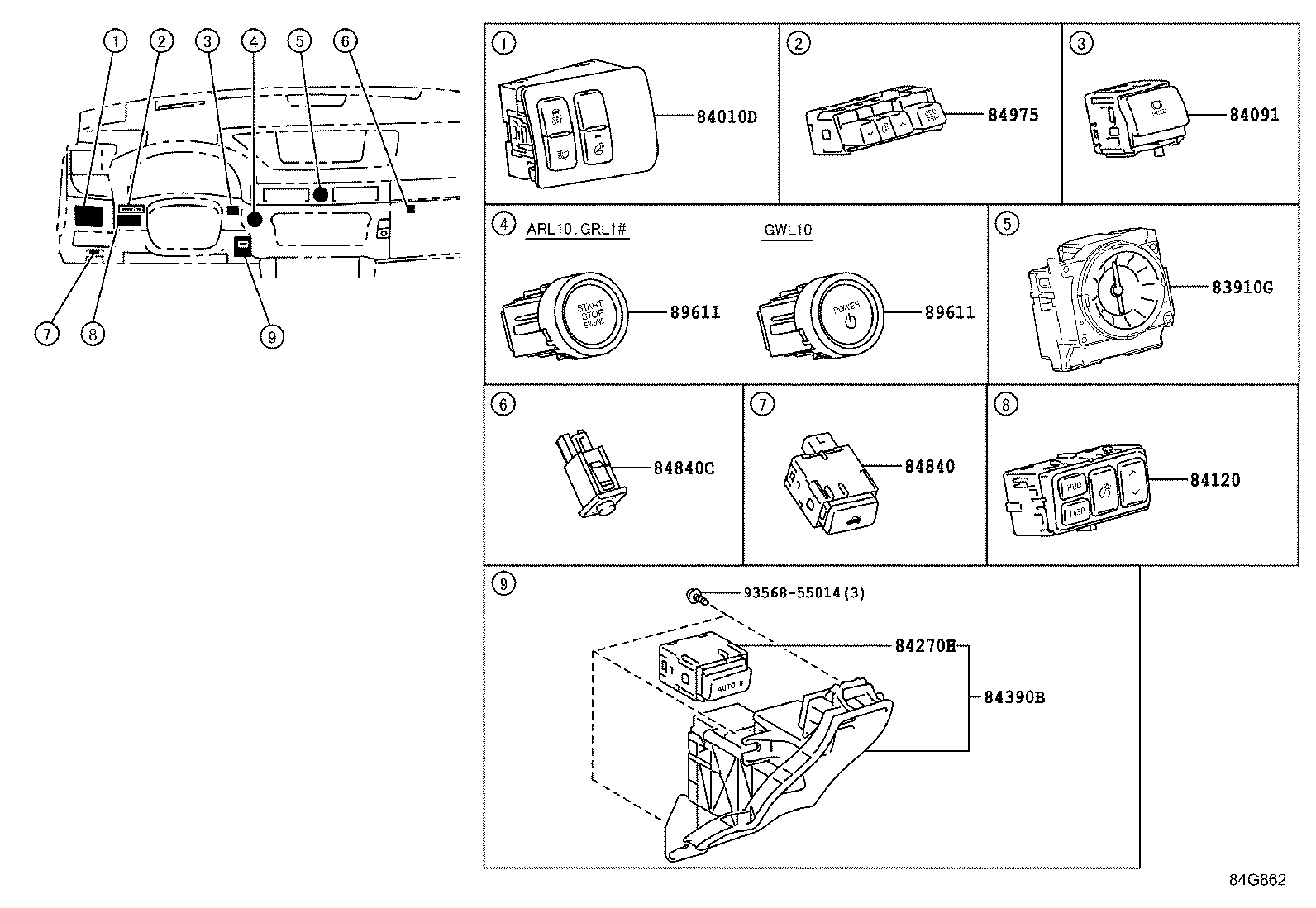

INSTRUMENT PANEL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-30630 |
ARL10,GRL1#,GWL10 |
1 | ||
| 83910-30690 |
ARL10,GRL1#,GWL10 |
1 | ||
| 83910-30620 |
GRL1#,GWL10 |
1 | ||
| 83910-30691 |
ARL10,GRL1# |
1 | ||
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-30K30 |
GRL1# STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&HEADLAMP-LED(TRINOCULAR FULL LED) &WITH(*AHB) |
1 | ||
| 84010-30860 |
ARL10,GRL12 STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER) |
1 | ||
| 84010-30860 |
GRL12 STEERING WHEEL-WOOD & LEATHER, WITH(STEERING HEATER) |
1 | ||
| 84010-30A40 |
ARL10,GRL1# |
1 | ||
| 84010-30860 |
ARL10,GRL1# STEERING WHEEL-LEATHER, WITH(STEERING HEATER) |
1 | ||
| 84010-30K30 |
ARL10,GRL1# STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&HEADLAMP-LED(PROJECTOR) & WITH(*AHB) |
1 | ||
| 84010-30K30 |
ARL10,GRL1# STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&HEADLAMP-LED(PROJECTOR) & WITH(*AHB& AFS) |
1 | ||
| 84010-30K30 |
ARL10,GRL1# STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER)&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 84010-30K30 |
GRL1# STEERING WHEEL-WOOD & LEATHER, WITH(STEERING HEATER)&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 84010-30K30 |
GRL1# STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&HEADLAMP-LED(TRINOCULAR FULL LED) &WITH(*AHB) |
1 | ||
| 84010-30K30 |
ARL10,GRL1# STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER)&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 84010-30K30 |
ARL10,GRL1# STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER)&HEADLAMP-LED(PROJECTOR) & WITH(*AHB) |
1 | ||
| 84010-30K30 |
GRL1# STEERING WHEEL-WOOD & LEATHER, WITH(STEERING HEATER)&HEADLAMP-LED(TRINOCULAR FULLLED) & WITH(*AHB) |
1 | ||
| 84010-30L10 |
ARL10,GRL1# HEADLAMP-LED(PROJECTOR) & WITH(*AHB) |
1 | ||
| 84010-30L10 |
ARL10,GRL1# HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 84010-30L10 |
GRL1# HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 84010-30K30 |
GRL1# STEERING WHEEL-WOOD & LEATHER, WITH(STEERING HEATER)&HEADLAMP-LED(PROJECTOR) & WITH(*AHB) |
1 | ||
| 84010-30K30 |
GRL1# STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&HEADLAMP-LED(PROJECTOR) & WITH(*AHB) |
1 | ||
| 84010-30K30 |
GRL1# STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&HEADLAMP-LED(PROJECTOR) & WITH(*AHB& AFS) |
1 | ||
| 84091 - SWITCH SET, SATELLITE | ||||
| 84091-30570 |
ARL10,GRL1#,GWL10 |
1 | ||
| 84120 - SWITCH ASSY, HEAD UP DISPLAY | ||||
| 84120-30040 |
ARL10,GRL1#,GWL10 HEAD UP DISPLAY-WITH |
1 | ||
| 84270H - SWITCH ASSY, PARKING LAMP | ||||
| 84332-30331 |
ARL10,GRL1#,GWL10 |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-30021 |
ARL10,GRL1#,GWL10 |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30251 |
ARL10,GRL1#,GWL10 |
1 | ||
| 84840C - SWITCH ASSY, LUGGAGE DOOR OPENING, CANCEL | ||||
| 84840-24020 |
ARL10,GRL1#,GWL10 |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-30100 |
ARL10,GRL1#,GWL10 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30120 |
GRL1# |
1 | ||
| 89611-30123 |
ARL10,GRL1# |
1 | ||
| 89611-30122 |
ARL10,GRL1# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30120 |
GRL1# |
1 | ||
| 89611-30123 |
ARL10,GRL1# |
1 | ||
| 89611-30122 |
ARL10,GRL1# |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||
ILLUST NO. 7 OF10(1510- )

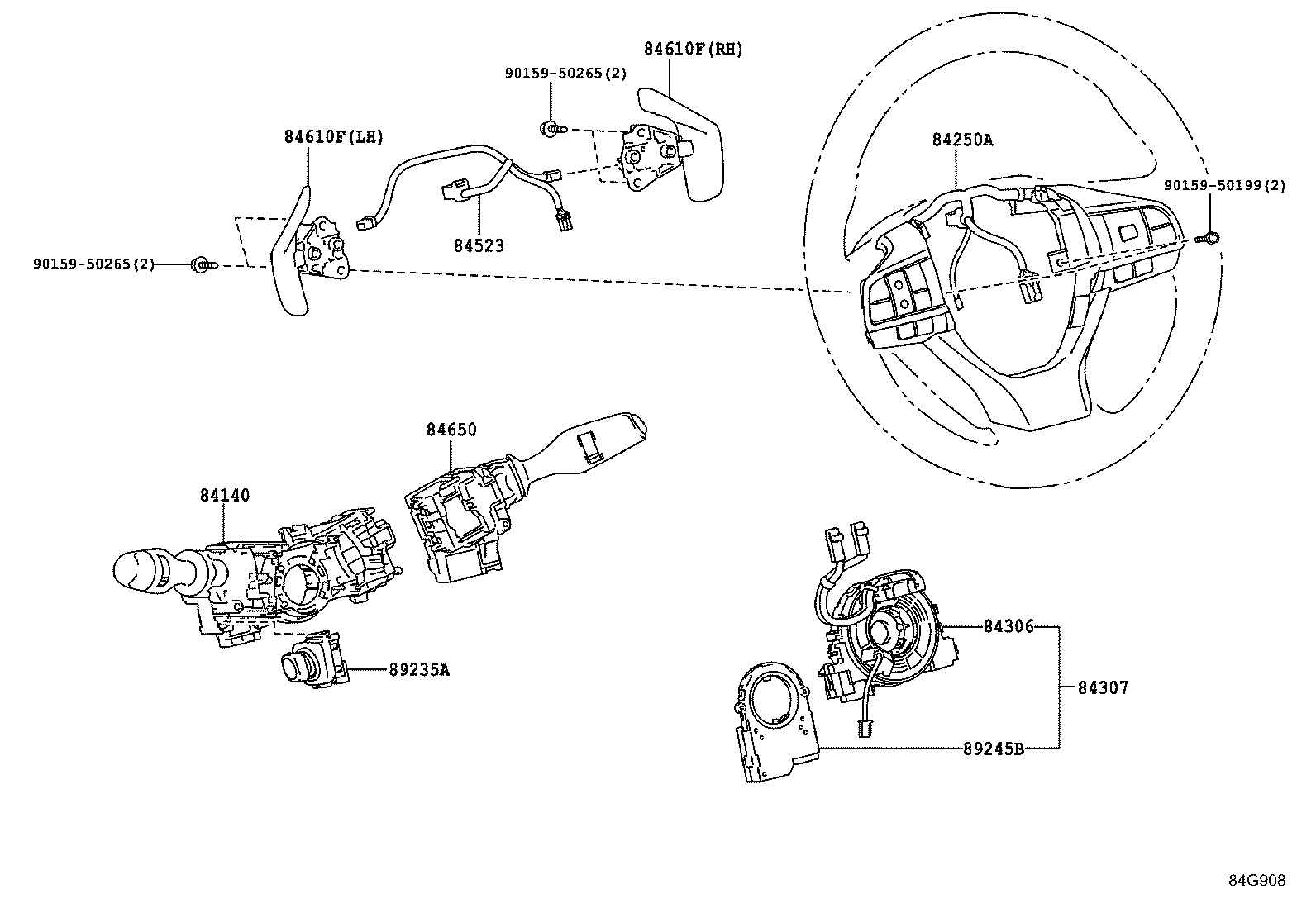

STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-30420 |
ARL10,GRL1#,GWL10 |
1 | ||
| 84140-30340 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 84140-30430 |
ARL10,GRL12 CANADA SPEC |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-30560 |
GRL12,GWL10 KOREA SPEC&F SPORT&LDH-WITH |
1 | ||
| 84250-30570 |
GRL12 "ETERNAL TOURING"&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR CRUISE)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA) |
1 | ||
| 84250-30570 |
GRL12,GWL10 KOREA SPEC&F SPORT&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR CRUISE)&LDH-WITH&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA) |
1 | ||
| 84250-48451 |
ARL10,GRL1#,GWL10 PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR CRUISE)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA) |
1 | ||
| 84250-30570 |
GRL12 F SPORT&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR CRUISE)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA) |
1 | ||
| 84250-48431 |
ARL10,GRL1#,GWL10 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-30040 |
ARL10,GRL1# |
1 | ||
| 84308-30010 |
GRL12 KOREA SPEC&VERSION L&STEERING WHEEL-WOOD & LEATHER, WITH(STEERING HEATER) |
1 | ||
| 84308-30010 |
GRL12 KOREA SPEC&F SPORT&STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER)&LDH-WITH |
1 | ||
| 84308-30010 |
ARL10,GRL1# STEERING WHEEL-LEATHER, WITH(STEERING HEATER) |
1 | ||
| 84308-48040 |
GRL12 KOREA SPEC&F SPORT&STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER)&LDH-WITH |
1 | ||
| 84308-30010 |
ARL10,GRL1# PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR CRUISE)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA) |
1 | ||
| 84308-48030 |
ARL10,GRL1# |
1 | ||
| 84308-48040 |
ARL10,GRL1# STEERING WHEEL-LEATHER, WITH(STEERING HEATER) |
1 | ||
| 84308-48040 |
GRL12 KOREA SPEC&VERSION L&STEERING WHEEL-WOOD & LEATHER, WITH(STEERING HEATER) |
1 | ||
| 84308-48040 |
GRL12 KOREA SPEC&VERSION L&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR CRUISE)&STEERING WHEEL-WOOD & LEATHER, WITH(STEERING HEATER)&LANE KEEPING SYSTEM-WITH(LANEDEPARTURE ALERT & *LKA) |
1 | ||
| 84308-30010 |
ARL10,GRL1# PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR CRUISE)&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA) |
1 | ||
| 84308-48040 |
GRL12 KOREA SPEC&F SPORT&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR CRUISE)&STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER)&LDH-WITH&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA) |
1 | ||
| 84308-48040 |
ARL10,GRL1# PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR CRUISE)&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA) |
1 | ||
| 84308-48040 |
ARL10,GRL1# PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR CRUISE)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA) |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-30240 |
ARL10,GRL1# |
1 | ||
| 84307-30220 |
ARL10,GRL1# PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR CRUISE)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA) |
1 | ||
| 84307-30220 |
ARL10,GRL1# PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR CRUISE)&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA) |
1 | ||
| 84307-30220 |
GRL12 KOREA SPEC&VERSION L&STEERING WHEEL-WOOD & LEATHER, WITH(STEERING HEATER) |
1 | ||
| 84307-30220 |
ARL10,GRL1# STEERING WHEEL-LEATHER, WITH(STEERING HEATER) |
1 | ||
| 84307-60110 |
GRL12 F SPORT&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR CRUISE)&STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA) |
1 | ||
| 84307-60110 |
GRL12 F SPORT&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR CRUISE)&STEERING WHEEL-LEATHER(DIMPLED)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA) |
1 | ||
| 84307-60110 |
GRL12 KOREA SPEC&F SPORT&STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER)&LDH-WITH |
1 | ||
| 84307-30250 |
GRL12 KOREA SPEC&F SPORT&STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER)&LDH-WITH |
1 | ||
| 84307-30270 |
GRL12 KOREA SPEC&F SPORT&STEERING WHEEL-LEATHER(DIMPLED)&LDH-WITH |
1 | ||
| 84307-30250 |
GRL12 KOREA SPEC&F SPORT&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR CRUISE)&STEERING WHEEL-LEATHER(DIMPLED)&LDH-WITH&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA) |
1 | ||
| 84307-30260 |
GRL12 KOREA SPEC&VERSION L&STEERING WHEEL-WOOD & LEATHER, WITH(STEERING HEATER) |
1 | ||
| 84307-60120 |
GRL12 KOREA SPEC&F SPORT&STEERING WHEEL-LEATHER(DIMPLED)&LDH-WITH |
1 | ||
| 84307-30280 |
ARL10,GRL1# |
1 | ||
| 84307-30250 |
GRL12 "ETERNAL TOURING"&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR CRUISE)&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&LANE KEEPING SYSTEM-WITH(LANE DEPARTUREALERT & *LKA) |
1 | ||
| 84307-30260 |
ARL10,GRL1# PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR CRUISE)&STEERING WHEEL-LEATHER, WITH(STEERING HEATER)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA) |
1 | ||
| 84307-30260 |
ARL10,GRL1# PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR CRUISE)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA) |
1 | ||
| 84307-30250 |
GRL12 F SPORT&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR CRUISE)&STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA) |
1 | ||
| 84307-30260 |
ARL10,GRL1# STEERING WHEEL-LEATHER, WITH(STEERING HEATER) |
1 | ||
| 84307-30260 |
GRL12 KOREA SPEC&VERSION L&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR CRUISE)&STEERING WHEEL-WOOD & LEATHER, WITH(STEERING HEATER)&LANE KEEPING SYSTEM-WITH(LANEDEPARTURE ALERT & *LKA) |
1 | ||
| 84307-30250 |
GRL12 F SPORT&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR CRUISE)&STEERING WHEEL-LEATHER(DIMPLED)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA) |
1 | ||
| 84307-30250 |
GRL12 KOREA SPEC&F SPORT&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR CRUISE)&STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER)&LDH-WITH&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA) |
1 | ||
| 84523 - WIRE, SWITCH NO.1 | ||||
| 84523-48020 |
GRL1# PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-WOOD & LEATHER |
1 | ||
| 84523-48020 |
GRL1# PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-WOOD & LEATHER, WITH(STEERING HEATER) |
1 | ||
| 84523-48020 |
GRL12 KOREA SPEC&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-WOOD & LEATHER, WITH(STEERINGHEATER) |
1 | ||
| 84523-48020 |
GRL12 KOREA SPEC&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-WOOD & LEATHER |
1 | ||
| 84523-48020 |
GRL12 HAWAII SPEC&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-WOOD & LEATHER, WITH(STEERING HEATER) |
1 | ||
| 84523-48020 |
ARL10,GRL1# PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER) |
1 | ||
| 84523-30010 |
GRL1#,GWL10 |
1 | ||
| 84523-48020 |
GRL12 KOREA SPEC&STEERING WHEEL-WOOD & LEATHER, WITH(STEERING HEATER) |
1 | ||
| 84523-48020 |
ARL10,GRL12 KOREA SPEC&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-LEATHER(DIMPLED) |
1 | ||
| 84523-48020 |
ARL10,GRL1# STEERING WHEEL-LEATHER, WITH(STEERING HEATER) |
1 | ||
| 84523-48020 |
ARL10,GRL1# PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84523-48020 |
GRL12 GUAM,PUERTO RICO SPEC&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-WOOD & LEATHER, WITH(STEERING HEATER) |
1 | ||
| 84523-48010 |
ARL10,GRL1# |
1 | ||
| 84523-48020 |
ARL10,GRL12 KOREA SPEC&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER) |
1 | ||
| 84523-48020 |
ARL10,GRL1# PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-LEATHER, WITH(STEERING HEATER) |
1 | ||
| 84523-48020 |
GRL12 HAWAII SPEC&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-WOOD & LEATHER |
1 | ||
| 84523-48020 |
GRL12 GUAM,PUERTO RICO SPEC&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-WOOD & LEATHER |
1 | ||
| 84523-48020 |
ARL10,GRL12 KOREA SPEC&STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER) |
1 | ||
| 84523-48020 |
ARL10,GRL1# PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-LEATHER(DIMPLED) |
1 | ||
| 84523-48020 |
GRL1# PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-LEATHER, WITH(STEERING HEATER) |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-30100 |
GRL1#,GWL10 LH |
1 | ||
| 84610-48050 |
ARL10,GRL1#,GWL10 LH |
1 | ||
| 84610-30110 |
GRL1#,GWL10 RH |
1 | ||
| 84610-48060 |
ARL10,GRL1#,GWL10 RH |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-30100 |
GRL1#,GWL10 LH |
1 | ||
| 84610-48050 |
ARL10,GRL1#,GWL10 LH |
1 | ||
| 84610-30110 |
GRL1#,GWL10 RH |
1 | ||
| 84610-48060 |
ARL10,GRL1#,GWL10 RH |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-30650 |
ARL10,GRL12 CANADA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 84652-30681 |
ARL10,GRL1# |
1 | ||
| 84652-30641 |
ARL10,GRL12 KOREA SPEC |
1 | ||
| 84652-30690 |
ARL10,GRL1# INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 84652-30650 |
ARL10,GRL12 KOREA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-33010 |
ARL10,GRL1#,GWL10 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-33020 |
GRL12 F SPORT |
1 | ||
| 89245-39035 |
GRL12 F SPORT |
1 | ||
| 8924B-53010 |
ARL10,GRL1#,GWL10 |
1 | ||
| 8924B-33020 |
GRL12 "ETERNAL TOURING" |
1 | ||
| 89245-39045 |
ARL10,GRL1#,GWL10 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||

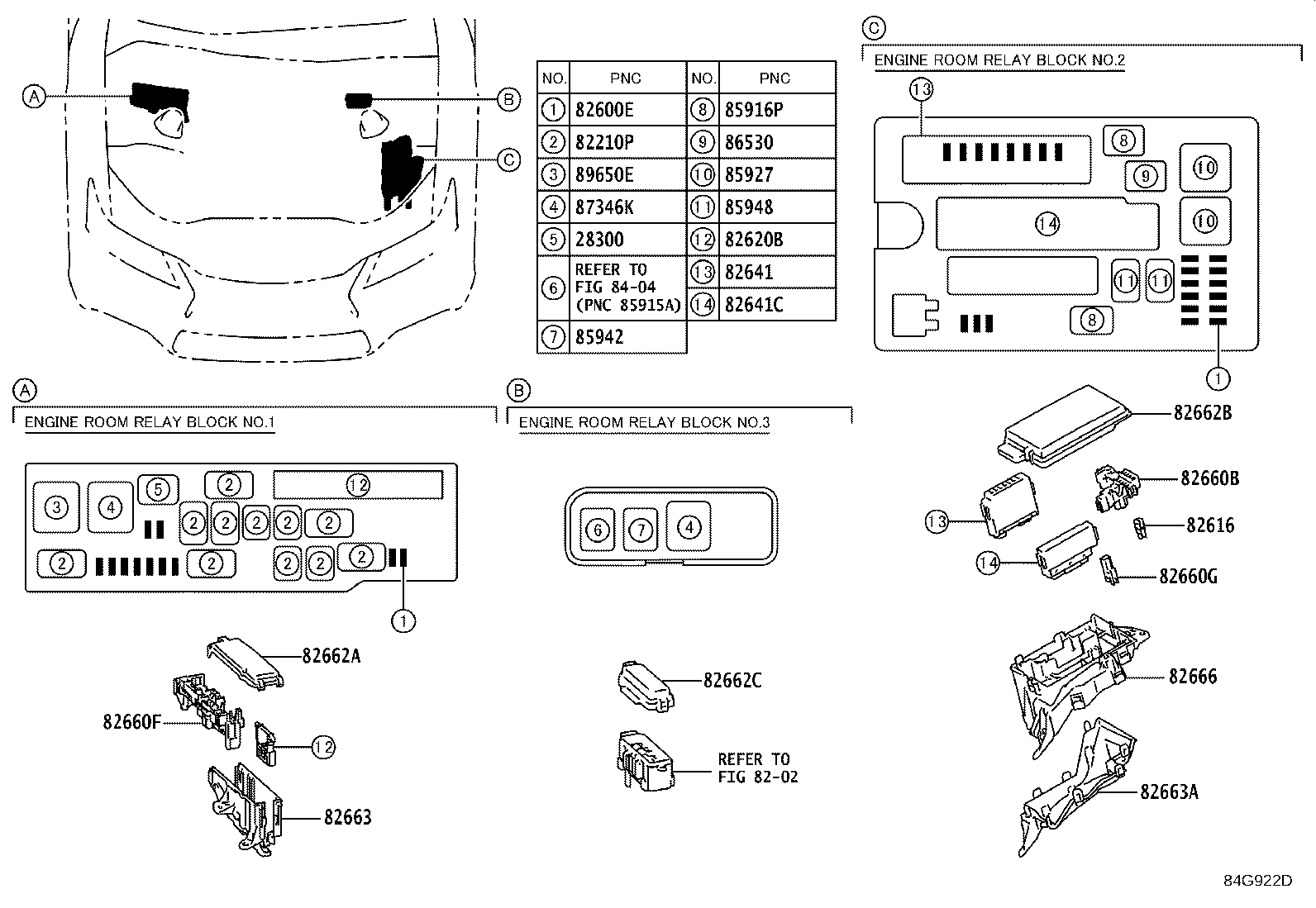

ILLUST NO. 3 OF10(1510- )ARL10,GRL1#
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
8ARFTS,2GRFKS..ARL10,GRL1# |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08299 |
GRL1#,GWL10 40A-40A-40A,FEMALE |
1 | ||
| 90982-08294 |
GRL1# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
GRL1# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08305 |
GRL1#,GWL10 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08303 |
GRL1#,GWL10 50A-50A-50A,FEMALE |
1 | ||
| 90982-08300 |
GRL1# 50A-30A-30A,FEMALE |
1 | ||
| 90982-08299 |
ARL10,GRL1# 40A-40A-40A,FEMALE |
1 | ||
| 90982-08301 |
GRL1#,GWL10 50A-30A-40A,FEMALE |
1 | ||
| 90982-08302 |
ARL10,GRL1# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08300 |
ARL10,GRL1# 50A-30A-30A,FEMALE |
1 | ||
| 90982-08296 |
ARL10,GRL1# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
ARL10,GRL1#,GWL10 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08305 |
ARL10,GRL1#,GWL10 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08304 |
GRL1#,GWL10 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08304 |
ARL10,GRL1#,GWL10 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08303 |
ARL10,GRL1#,GWL10 50A-50A-50A,FEMALE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
GRL1#,GWL10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
GRL1#,GWL10 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRL1#,GWL10 25A,MINI FUSE |
1 | ||
| 90982-09021 |
GRL1#,GWL10 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
GRL1#,GWL10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
GRL1#,GWL10 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
GRL1#,GWL10 30A,MINI FUSE,GRN |
1 | ||
| 90982-09025 |
ARL10,GRL1#,GWL10 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
ARL10,GRL1#,GWL10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ARL10,GRL1#,GWL10 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ARL10,GRL1#,GWL10 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ARL10,GRL1#,GWL10 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ARL10,GRL1#,GWL10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
ARL10,GRL1#,GWL10 25A,MINI FUSE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ARL10,GRL1#,GWL10 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-30270 |
GRL1# |
1 | ||
| 82620-30270 |
ARL10,GRL1# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-30330 |
GRL1#,GWL10 |
1 | ||
| 82641-30390 |
ARL10,GRL1# |
1 | ||
| 82641C - RELAY, INTEGRATION NO.2 | ||||
| 82641-30320 |
GRL1# |
1 | ||
| 82641-30320 |
GRL12 KOREA SPEC&COLD AREA SPEC |
1 | ||
| 82641-30320 |
GRL1# COLD AREA SPEC |
1 | ||
| 82641-30320 |
GRL12 KOREA SPEC |
1 | ||
| 82641-30320 |
GRL12 KOREA SPEC&F SPORT&COLD AREA SPEC |
1 | ||
| 82641-30320 |
GRL12 KOREA SPEC&VERSION L&COLD AREA SPEC |
1 | ||
| 82641-30320 |
GRL1# "ETERNAL TOURING"&COLD AREA SPEC |
1 | ||
| 82641-30320 |
GRL12 KOREA SPEC&VERSION L |
1 | ||
| 82641-30320 |
GRL1# F SPORT&COLD AREA SPEC |
1 | ||
| 82641-30340 |
GRL1# |
1 | ||
| 82641-30320 |
GRL12 KOREA SPEC&F SPORT |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-30B90 |
GRL1# |
1 | ||
| 82660-30B90 |
ARL10,GRL1# |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-30B50 |
GRL1# |
1 | ||
| 82660-30B50 |
ARL10,GRL1# |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-30C00 |
ARL10,GRL1#,GWL10 |
1 | ||
| 82660-30C00 |
GRL1#,GWL10 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-30B90 |
ARL10,GRL1# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-30A00 |
GRL1# |
1 | ||
| 82662-30C20 |
ARL10,GRL1# |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-30C30 |
ARL10,GRL1# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-30260 |
GRL1# |
1 | ||
| 82663-30260 |
ARL10,GRL1# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-30320 |
GRL1# |
1 | ||
| 82663-30320 |
ARL10,GRL1# |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-30C00 |
ARL10,GRL1# |
1 | ||
| 82666-30C00 |
GRL1# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02027 |
ARL10,GRL1#,GWL10 |
2 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
GRL1#,GWL10 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 90987-02027 |
ARL10,GRL1#,GWL10 COLD AREA SPEC |
1 | ||
| 85948 - RELAY, WINDSHIELD WIPER | ||||
| 90987-04004 |
ARL10,GRL1#,GWL10 |
2 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
ARL10,GRL1#,GWL10 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
ARL10,GRL1#,GWL10 COLD AREA SPEC |
2 | ||
| 89650E - RELAY, ELECTRIC POWER STEERING | ||||
| 90987-02025 |
ARL10,GRL1#,GWL10 |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||

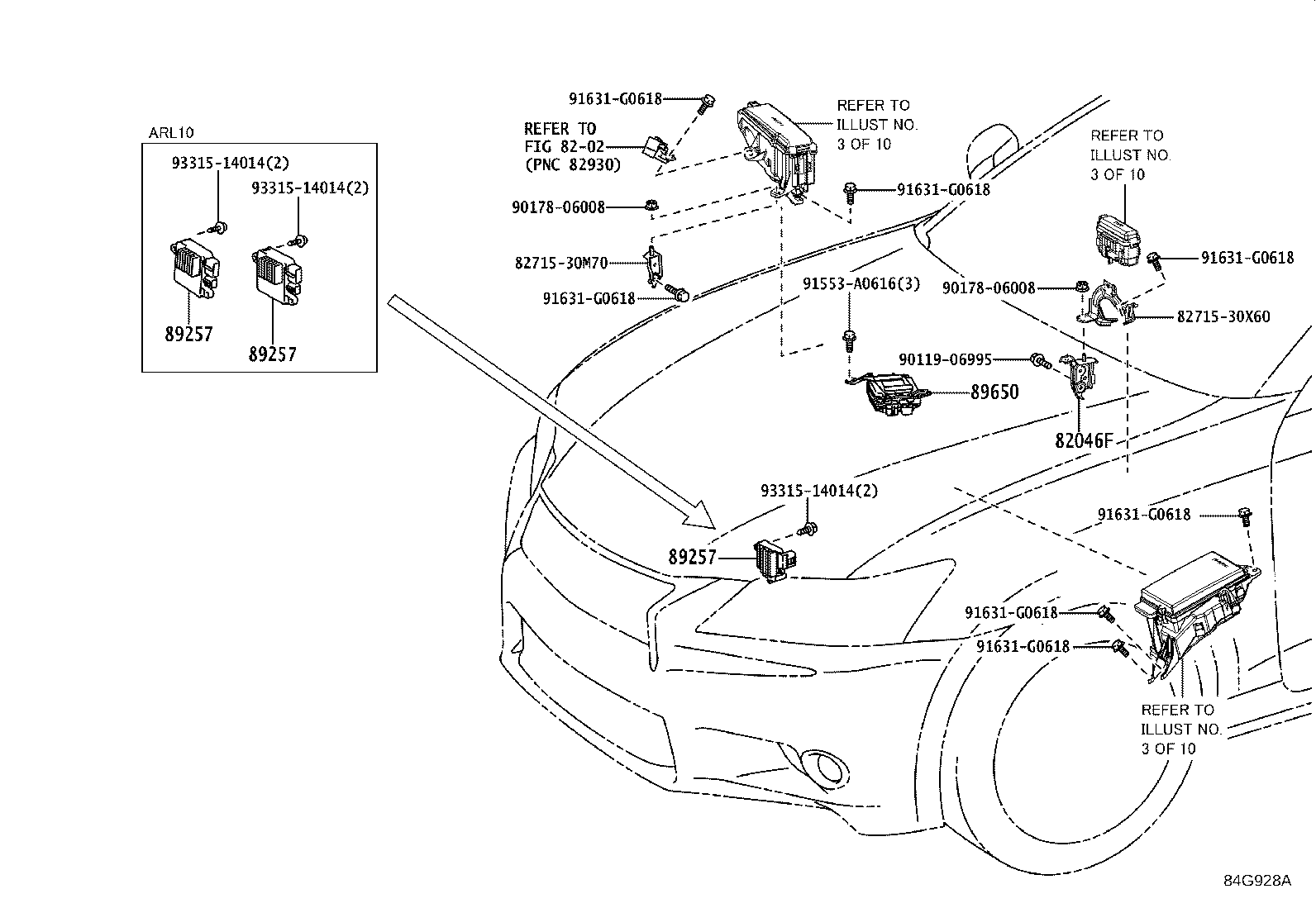

ILLUST NO. 2 OF10(1510- )ARL10,GRL1#
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82046F - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-24080 |
ARL10,GRL1# |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30100 |
GRL1# |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30100 |
GRL1# |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30100 |
GRL1# |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-30890 |
GRL1# |
1 | ||
| 89650-30C00 |
ARL10,GRL1# |
1 | ||
| 89650-30C20 |
GRL12 "ETERNAL TOURING" |
1 | ||
| 89650-30C20 |
GRL12 F SPORT |
1 | ||
| Common parts | ||||
| 82715-30M70 | ||||
| 82715-30X60 | ||||
| 90119-06995 | ||||
| 90178-06008 | ||||
| 91553-A0616 | ||||
| 91631-G0618 | ||||
| 93315-14014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
