GRL12L-BEZQHA (2015)
Toyota Lexus Gs Series

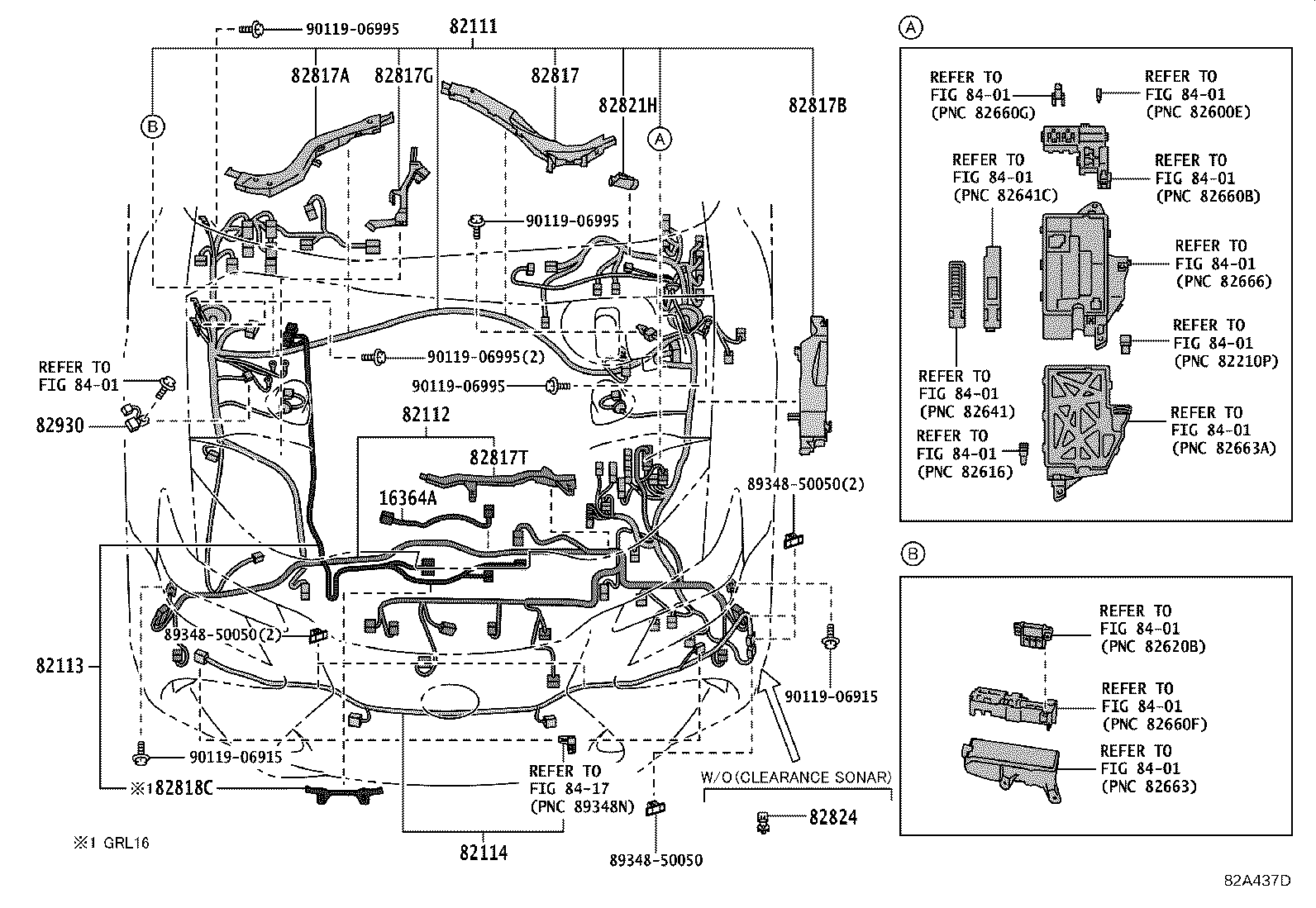

ILLUST NO. 1 OF11(1510- )ARL10,GRL1#
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-3AQ90 |
GRL12 F SPORT |
1 | ||
| 82111-30X30 |
GRL12 KOREA SPEC |
1 | ||
| 82111-3AQ90 |
GRL12 VERSION L |
1 | ||
| 82111-3AQ50 |
GRL12 KOREA SPEC&VERSION L |
1 | ||
| 82111-3AQ50 |
GRL12 KOREA SPEC&F SPORT |
1 | ||
| 82111-3AQ90 |
GRL12 HAWAII SPEC&VERSION L |
1 | ||
| 82111-3AQ90 |
GRL12 GUAM,PUERTO RICO SPEC&VERSION L |
1 | ||
| 82111-3AQ51 |
GRL12 KOREA SPEC&F SPORT |
1 | ||
| 82115-30520 |
GRL12 |
1 | ||
| 82111-30X31 |
GRL12 KOREA SPEC |
1 | ||
| 82111-30X31 |
GRL12 KOREA SPEC&COLD AREA SPEC |
1 | ||
| 82111-3AQ51 |
GRL12 KOREA SPEC&VERSION L&COLD AREA SPEC |
1 | ||
| 82115-30521 |
GRL12 COLD AREA SPEC |
1 | ||
| 82111-3AR40 |
GRL12 |
1 | ||
| 82111-3AQ51 |
GRL12 KOREA SPEC&F SPORT&COLD AREA SPEC |
1 | ||
| 82111-3AR50 |
GRL12 F SPORT |
1 | ||
| 82111-3AQ51 |
GRL12 KOREA SPEC&VERSION L |
1 | ||
| 82111-3AQ91 |
GRL12 F SPORT&COLD AREA SPEC |
1 | ||
| 82111-3AR50 |
GRL12 GUAM,PUERTO RICO SPEC&VERSION L |
1 | ||
| 82111-3AR50 |
GRL12 HAWAII SPEC&VERSION L |
1 | ||
| 82111-3AR50 |
GRL12 "ETERNAL TOURING" |
1 | ||
| 82111-3AQ91 |
GRL12 "ETERNAL TOURING"&COLD AREA SPEC |
1 | ||
| 82111-3AR50 |
GRL12 VERSION L |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-30820 |
GRL1# F SPORT |
1 | ||
| 82112-30D60 |
GRL1# |
1 | ||
| 82112-30K60 |
GRL12 CANADA SPEC&PREMIUM PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 82112-30K60 |
GRL12 VERSION L&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 82112-30K60 |
GRL12 VERSION L&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 82112-30L00 |
GRL12 KOREA SPEC&F SPORT&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 82112-30K60 |
GRL12 HAWAII SPEC&PREMIUM PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 82112-30K80 |
GRL12 KOREA SPEC |
1 | ||
| 82112-30K60 |
GRL12 GUAM,PUERTO RICO SPEC&VERSION L&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED(PROJECTOR)& WITH(*AHB & AFS) |
1 | ||
| 82112-30L00 |
GRL12 KOREA SPEC&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED(PROJECTOR) & WITH(*AHB) |
1 | ||
| 82112-30K60 |
GRL12 GUAM,PUERTO RICO SPEC&PREMIUM PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 82112-30K60 |
GRL12 HAWAII SPEC&VERSION L&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED(TRINOCULAR FULL LED)& WITH(*AHB) |
1 | ||
| 82112-30K50 |
GRL1# |
1 | ||
| 82112-30L00 |
GRL12 KOREA SPEC&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 82112-30K60 |
GRL1# PREMIUM PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 82112-30L00 |
GRL12 KOREA SPEC&VERSION L&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 82112-30L00 |
GRL12 KOREA SPEC&F SPORT&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 82112-30K60 |
GRL12 GUAM,PUERTO RICO SPEC&VERSION L&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED(TRINOCULARFULL LED) & WITH(*AHB) |
1 | ||
| 82112-30K60 |
GRL12 PREMIUM PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 82112-30K60 |
GRL1# F SPORT&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 82112-30K60 |
GRL12 HAWAII SPEC&VERSION L&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 82112-30K60 |
GRL1# F SPORT&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 82112-30K60 |
GRL12 VERSION L&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 82112-30K60 |
GRL1# "ETERNAL TOURING"&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED(PROJECTOR) & WITH(*AHB &AFS) |
1 | ||
| 82112-30K60 |
GRL1# "ETERNAL TOURING"&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 82112-30K60 |
GRL12 VERSION L&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 82112-30K60 |
GRL1# PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED(PROJECTOR) & WITH(*AHB) |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-30810 |
ARL10,GRL12,GWL10 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-30200 |
GRL1#,GWL10 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82114-30290 |
ARL10,GRL1#,GWL10 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-30Y40 |
ARL10,GRL1# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-30M00 |
ARL10,GRL1# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-30M70 |
ARL10,GRL1# |
1 | ||
| 82817-3AK40 |
ARL10,GRL1# |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-30W40 |
ARL10,GRL1#,GWL10 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-30Q70 |
ARL10,GRL1#,GWL10 |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-22120 |
ARL10,GRL1#,GWL10 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-50430 |
GRL1#,GWL10 |
1 | ||
| 82114-22050 |
ARL10,GRL1#,GWL10 |
1 | ||
| 82930 - CONDENSER ASSY, WIRING HARNESS, NO.1 | ||||
| 82930-30030 |
GRL1# |
1 | ||
| 82930-30030 |
ARL10,GRL1# |
1 | ||
| Common parts | ||||
| 89348-50050 | ||||
| 90119-06915 | ||||
| 90119-06995 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||

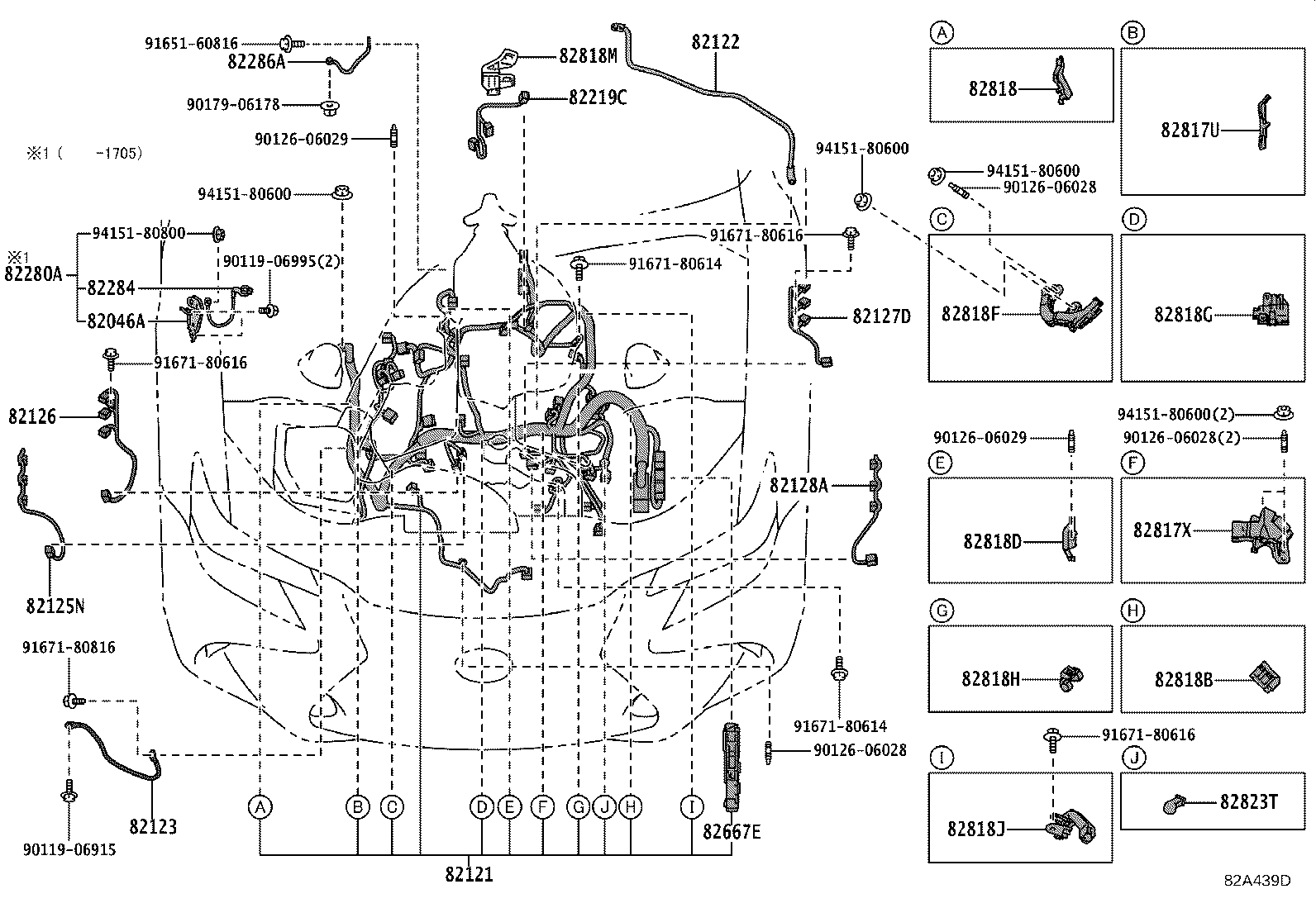

ILLUST NO. 2 OF11(1510- )GRL1#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82046A - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-30120 |
ARL10,GRL1# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-30K80 |
GRL12 |
1 | ||
| 82121-30K81 |
GRL12 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-30A10 |
GRL1# |
1 | ||
| 82122-30A20 |
GRL1# |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-30490 |
GRL1# |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-30600 |
GRL1# |
1 | ||
| 82126 - WIRE, ENGINE | ||||
| 82126-30080 |
GRL1# |
1 | ||
| 82127D - WIRE, ENGINE, NO.7 | ||||
| 82127-30080 |
GRL1# |
1 | ||
| 82127-30070 |
GRL1# |
1 | ||
| 82128A - WIRE, ENGINE, NO.8 | ||||
| 82128-30020 |
GRL1# |
1 | ||
| 82219C - WIRE, SENSOR | ||||
| 82219-30050 |
GRL1# |
1 | ||
| 82280A - WIRE ASSY, BATTERY TO COWL TOP SIDE | ||||
| 82280-30080 |
GRL1# |
1 | ||
| 82280-30080 |
ARL10,GRL1# |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-30080 |
GRL1# |
1 | ||
| 82284-30080 |
ARL10,GRL1# |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-30110 |
ARL10,GRL12 |
1 | ||
| 82667E - HOLDER, CONNECTOR, NO.20 | ||||
| 82666-30D90 |
ARL10,GRL1# |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-30X40 |
GRL1# |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-3AB20 |
GRL1# |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-30D60 |
GRL1# |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-3AB60 |
GRL1# |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-30L90 |
GRL1# |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-3AB30 |
GRL1# |
1 | ||
| 82818G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-30X50 |
GRL1# |
1 | ||
| 82818H - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-30X80 |
GRL1# |
1 | ||
| 82818J - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-3AB40 |
GRL1# |
1 | ||
| 82818M - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-30X70 |
GRL1# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-52010 |
GRL1# |
1 | ||
| 82823-52010 |
GRL1# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06995 | ||||
| 90126-06028 | ||||
| 90126-06029 | ||||
| 90179-06178 | ||||
| 91651-60816 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
