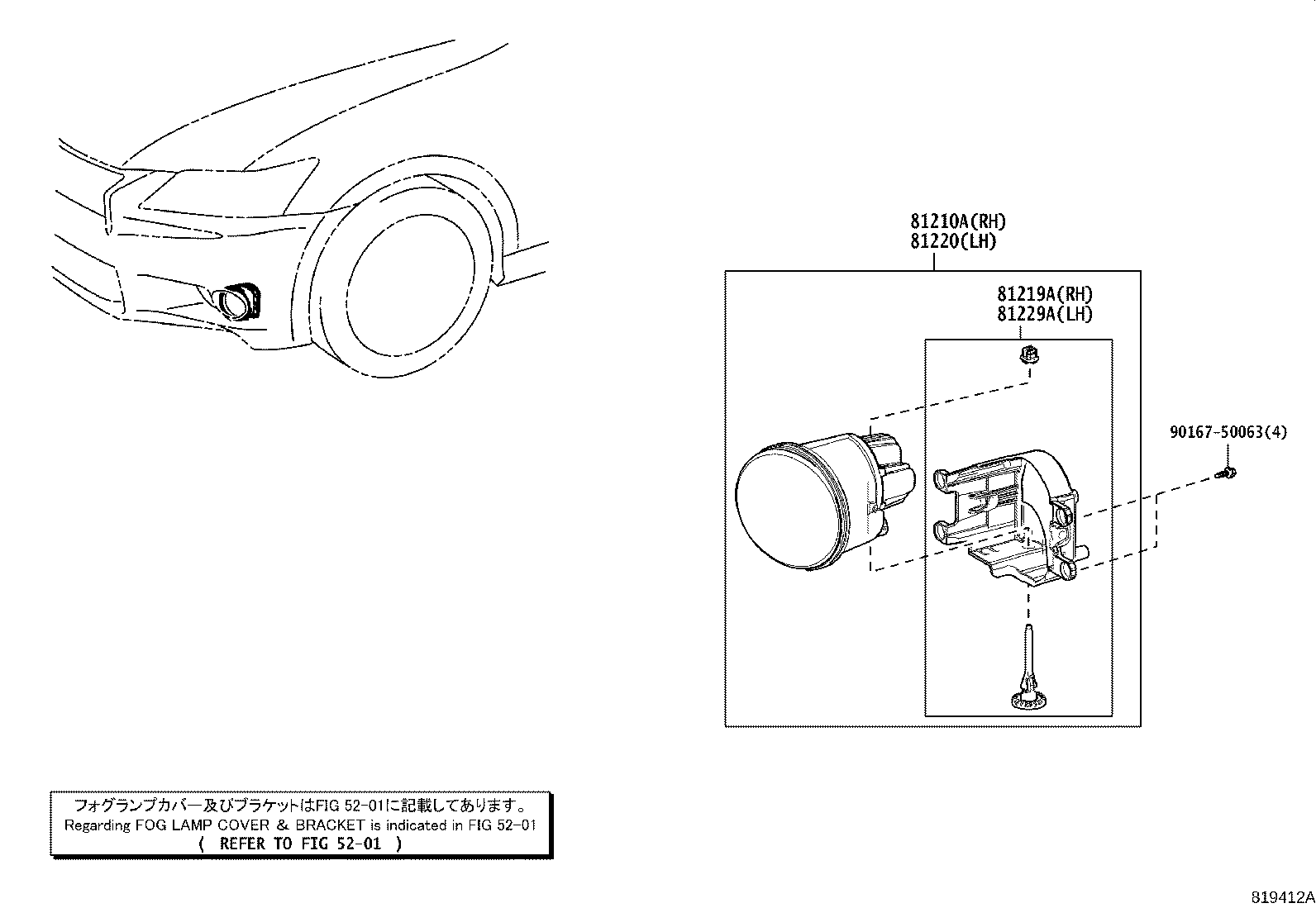

Toyota Lexus gs series GRL12 FOG LAMP

Part #	Description	Period	Qty
81210A - LAMP ASSY, FOG, RH
81210-0D042	GRL1#,GWL10 F SPORT	12/2011 - 09/2013	1
81210-0D042	GRL1#,GWL10	12/2011 - 09/2013	1
81210-48050	ARL10,GRL12,GWL10 KOREA SPEC	10/2015 - 08/2016	1
81210-48051	ARL10,GRL12,GWL10 KOREA SPEC	09/2016 - 09/2019	1
81219A - BRACKET, FOG LAMP, RH
81219-48051	ARL10,GRL12,GWL10 KOREA SPEC	09/2016 - 09/2019	1
81220 - LAMP ASSY, FOG, LH
81220-0D042	GRL1#,GWL10	12/2011 - 09/2013	1
81220-0D042	GRL1#,GWL10 F SPORT	12/2011 - 09/2013	1
81220-48050	ARL10,GRL12,GWL10 KOREA SPEC	10/2015 - 08/2016	1
81220-48051	ARL10,GRL12,GWL10 KOREA SPEC	09/2016 - 09/2019	1
81229A - BRACKET, FOG LAMP, LH
81229-48051	ARL10,GRL12,GWL10 KOREA SPEC	09/2016 - 09/2019	1
Common parts
90167-50063
Linked diagrams
5201

GRL12L-BEZQHA (2015)
