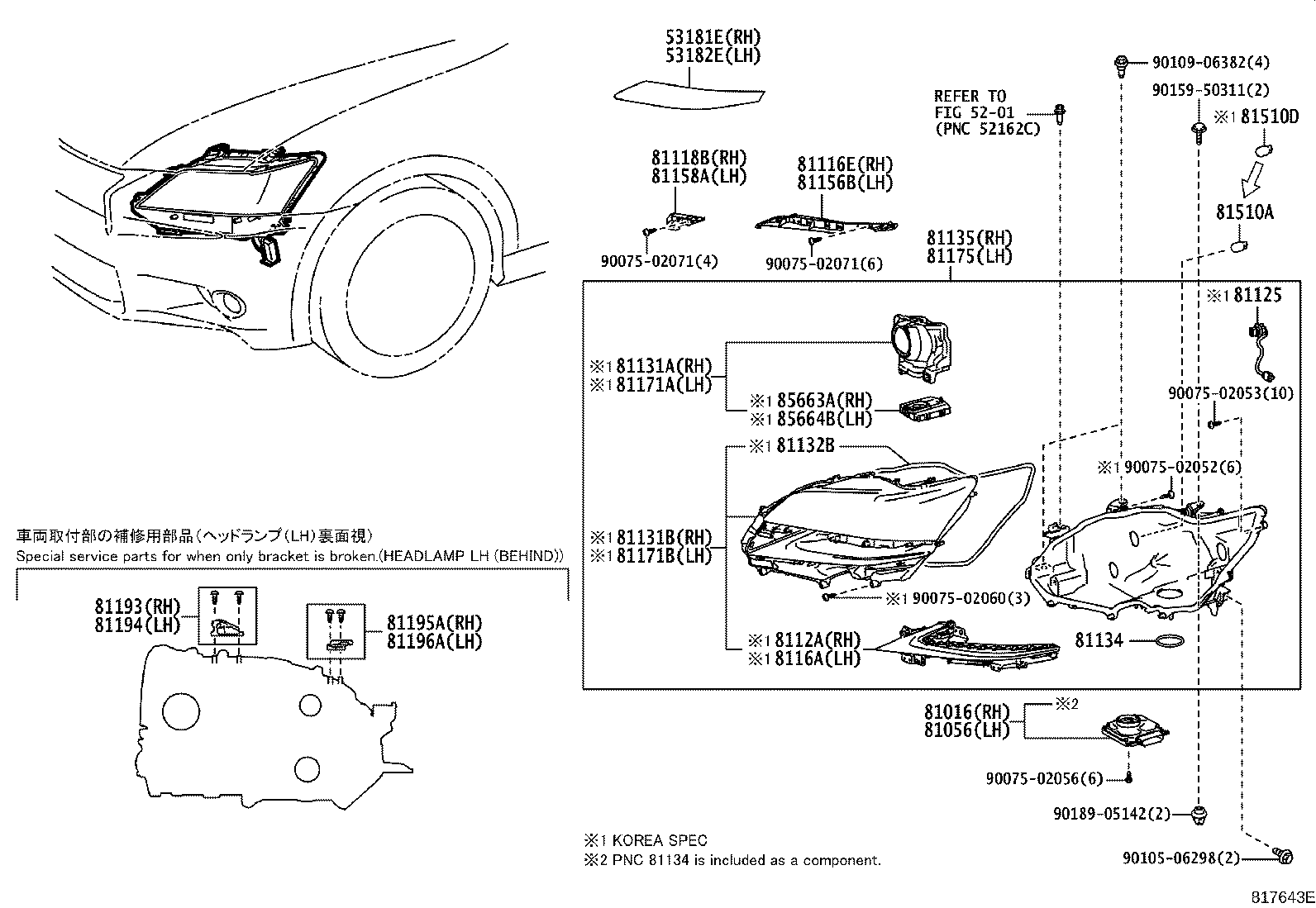

GRL12L-BEZQHA (2015)
Toyota Lexus Gs Series
(1510- )
LED(PROJECTOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53181E - COVER, HEADLAMP, RH | ||||
| 53181-30060A0 |
ARL10,GRL1#,GWL10 WHITE NOVA GF.,083 |
1 | ||
| 53181-30060C1 |
ARL10,GRL1#,GWL10 GRAPHITE BLACK GF.,223 |
1 | ||
| 53181-30060A1 |
ARL10,GRL1#,GWL10 SONIC QUARTZ,085 |
1 | ||
| 53181-30060B2 |
ARL10,GRL1#,GWL10 SONIC TITANIUM,1J7 |
1 | ||
| 53181-30060E0 |
ARL10,GRL1#,GWL10 AMBER CS.,4X2 |
1 | ||
| 53181-30060J1 |
ARL10,GRL1#,GWL10 DEEP BLUE MC.,8X5 |
1 | ||
| 53181-30060B3 |
ARL10,GRL1#,GWL10 DK.GRAY MC.,1G0 |
1 | ||
| 53181-30060J0 |
ARL10,GRL1#,GWL10 HEAT BLUE CONTRAST LAYERI,8X1 |
1 | ||
| 53181-30060C0 |
ARL10,GRL1#,GWL10 BLACK,212 |
1 | ||
| 53181-30060B1 |
ARL10,GRL1#,GWL10 SONIC SILVER,1J2 |
1 | ||
| 53181-30060B0 |
ARL10,GRL1#,GWL10 MERCURY GRAY MC.,1H9 |
1 | ||
| 53181-30060D1 |
ARL10,GRL1#,GWL10 RED MC.CS.,3R1 |
1 | ||
| 53182E - COVER, HEADLAMP, LH | ||||
| 53182-30060C0 |
ARL10,GRL1#,GWL10 BLACK,212 |
1 | ||
| 53182-30060E0 |
ARL10,GRL1#,GWL10 AMBER CS.,4X2 |
1 | ||
| 53182-30060C1 |
ARL10,GRL1#,GWL10 GRAPHITE BLACK GF.,223 |
1 | ||
| 53182-30060B0 |
ARL10,GRL1#,GWL10 MERCURY GRAY MC.,1H9 |
1 | ||
| 53182-30060J0 |
ARL10,GRL1#,GWL10 HEAT BLUE CONTRAST LAYERI,8X1 |
1 | ||
| 53182-30060J1 |
ARL10,GRL1#,GWL10 DEEP BLUE MC.,8X5 |
1 | ||
| 53182-30060B1 |
ARL10,GRL1#,GWL10 SONIC SILVER,1J2 |
1 | ||
| 53182-30060A1 |
ARL10,GRL1#,GWL10 SONIC QUARTZ,085 |
1 | ||
| 53182-30060B3 |
ARL10,GRL1#,GWL10 DK.GRAY MC.,1G0 |
1 | ||
| 53182-30060A0 |
ARL10,GRL1#,GWL10 WHITE NOVA GF.,083 |
1 | ||
| 53182-30060B2 |
ARL10,GRL1#,GWL10 SONIC TITANIUM,1J7 |
1 | ||
| 53182-30060D1 |
ARL10,GRL1#,GWL10 RED MC.CS.,3R1 |
1 | ||
| 81016 - COMPUTER SUB-ASSY, HEADLAMP, RH NO.1 | ||||
| 81016-30K90 |
ARL10,GRL12 GUAM,PUERTO RICO SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81016-30K90 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81016-30K90 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81016-30L20 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81016-30J30 |
ARL10,GRL1#,GWL10 |
1 | ||
| 81016-30K90 |
ARL10,GRL12 HAWAII SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81016-30K90 |
ARL10,GRL12 CANADA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81016-30L20 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81016-30L20 |
ARL10,GRL1# HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81016-30K90 |
ARL10,GRL1#,GWL10 HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81016-30K90 |
GRL12 HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81016-30L20 |
ARL10,GRL1#,GWL10 HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81056 - COMPUTER SUB-ASSY, HEADLAMP, LH NO.1 | ||||
| 81056-30K90 |
ARL10,GRL12 HAWAII SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81056-30K90 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81056-30K90 |
ARL10,GRL12 GUAM,PUERTO RICO SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81056-30K90 |
ARL10,GRL12 CANADA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81056-30K90 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81056-30K90 |
ARL10,GRL1#,GWL10 HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81056-30L20 |
ARL10,GRL1#,GWL10 HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81056-30L20 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81056-30J30 |
ARL10,GRL1#,GWL10 |
1 | ||
| 81056-30L20 |
ARL10,GRL1# HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81056-30L20 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81056-30K90 |
GRL12 HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81116E - BRACKET, HEADLAMP, RH NO.2 | ||||
| 81116-30J30 |
ARL10,GRL1#,GWL10 |
1 | ||
| 81118B - BRACKET, HEADLAMP, RH NO.1 | ||||
| 81118-30J30 |
ARL10,GRL1#,GWL10 |
1 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-30K60 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
2 | ||
| 81125-30K60 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
2 | ||
| 81125-30J30 |
ARL10,GRL1#,GWL10 |
2 | ||
| 81125-30K60 |
ARL10,GRL12,GWL10 KOREA SPEC |
2 | ||
| 8112A - UNIT, HEADLAMP CLEARANCE LED, NO.1 RH | ||||
| 8112A-30K60 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 8112A-30K60 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 8112A-30K60 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 8112A-30K60 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 8112A-30K60 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-30K70 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 81130-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81130-30L50 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81130-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81130-30L50 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-30L50 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81131-30K70 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 81131-30L51 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81131-30L51 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81131-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81131-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-30E40 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
2 | ||
| 81132-30E40 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
2 | ||
| 81132-30E40 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
2 | ||
| 81132-30E40 |
ARL10,GRL12,GWL10 KOREA SPEC |
2 | ||
| 81132-30E40 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23003 |
ARL10,GRL1#,GWL10 |
1 | ||
| 90075-23002 |
GRL1#,GWL10 |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81145-30L50 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81145-30K80 |
ARL10,GRL12 GUAM,PUERTO RICO SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81145-30K80 |
ARL10,GRL12 CANADA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81145-30L20 |
ARL10,GRL1#,GWL10 HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81145-30K80 |
ARL10,GRL12 HAWAII SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81145-30L51 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81145-30L51 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81145-30K70 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 81145-30K80 |
GRL12 HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81145-30J30 |
ARL10,GRL1#,GWL10 |
1 | ||
| 81145-30L20 |
ARL10,GRL1# HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81145-30L21 |
ARL10,GRL1#,GWL10 HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81145-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81145-30L21 |
ARL10,GRL1# HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81145-30K80 |
ARL10,GRL1#,GWL10 HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81156B - BRACKET, HEADLAMP, LH NO.2 | ||||
| 81156-30J30 |
ARL10,GRL1#,GWL10 |
1 | ||
| 81158A - BRACKET, HEADLAMP, LH NO.1 | ||||
| 81158-30J30 |
ARL10,GRL1#,GWL10 |
1 | ||
| 8116A - UNIT, HEADLAMP CLEARANCE LED, NO.1 LH | ||||
| 8116A-30K60 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 8116A-30K60 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 8116A-30K60 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 8116A-30K60 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 8116A-30K60 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81170-30K70 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 81170-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81170-30L50 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81170-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81170-30L50 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-30L51 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81171-30K70 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 81171-30L51 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81171-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81171-30L50 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81171-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-30L20 |
ARL10,GRL1#,GWL10 HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81185-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81185-30L20 |
ARL10,GRL1# HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81185-30K80 |
ARL10,GRL12 CANADA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81185-30K70 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 81185-30K80 |
ARL10,GRL12 HAWAII SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81185-30L50 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81185-30L51 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81185-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81185-30J30 |
ARL10,GRL1#,GWL10 |
1 | ||
| 81185-30K80 |
ARL10,GRL1#,GWL10 HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81185-30L21 |
ARL10,GRL1# HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81185-30L51 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81185-30K80 |
ARL10,GRL12 GUAM,PUERTO RICO SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81185-30K80 |
GRL12 HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81185-30L21 |
ARL10,GRL1#,GWL10 HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-30090 |
GRL1#,GWL10 |
1 | ||
| 81193-30120 |
ARL10,GRL1#,GWL10 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-30120 |
ARL10,GRL1#,GWL10 |
1 | ||
| 81194-30090 |
GRL1#,GWL10 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-30070 |
ARL10,GRL1#,GWL10 |
1 | ||
| 81195-30050 |
GRL1#,GWL10 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-30070 |
ARL10,GRL1#,GWL10 |
1 | ||
| 81196-30050 |
GRL1#,GWL10 |
1 | ||
| 81510A - BULB, FRONT TURN SIGNAL & PARKING LAMP | ||||
| 90981-15024 |
ARL10,GRL1#,GWL10 12V 28/8W |
2 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
ARL10,GRL12,GWL10 12V 21W,AMBER,KOREA SPEC |
2 | ||
| 90981-15021 |
ARL10,GRL12,GWL10 12V 21W,AMBER,KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
2 | ||
| 90981-15021 |
ARL10,GRL12,GWL10 12V 21W,AMBER,KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
2 | ||
| 85663A - MOTOR, HEADLAMP SWIVEL, RH | ||||
| 85663-30030 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 85663-30030 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 85664B - MOTOR, HEADLAMP SWIVEL, LH | ||||
| 85664-30030 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 85664-30030 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| Common parts | ||||
| 90075-02052 | ||||
| 90075-02053 | ||||
| 90075-02056 | ||||
| 90075-02060 | ||||
| 90075-02071 | ||||
| 90105-06298 | ||||
| 90109-06382 | ||||
| 90159-50311 | ||||
| 90189-05142 | ||||
| Linked diagrams | ||||
| 5201 | ||||

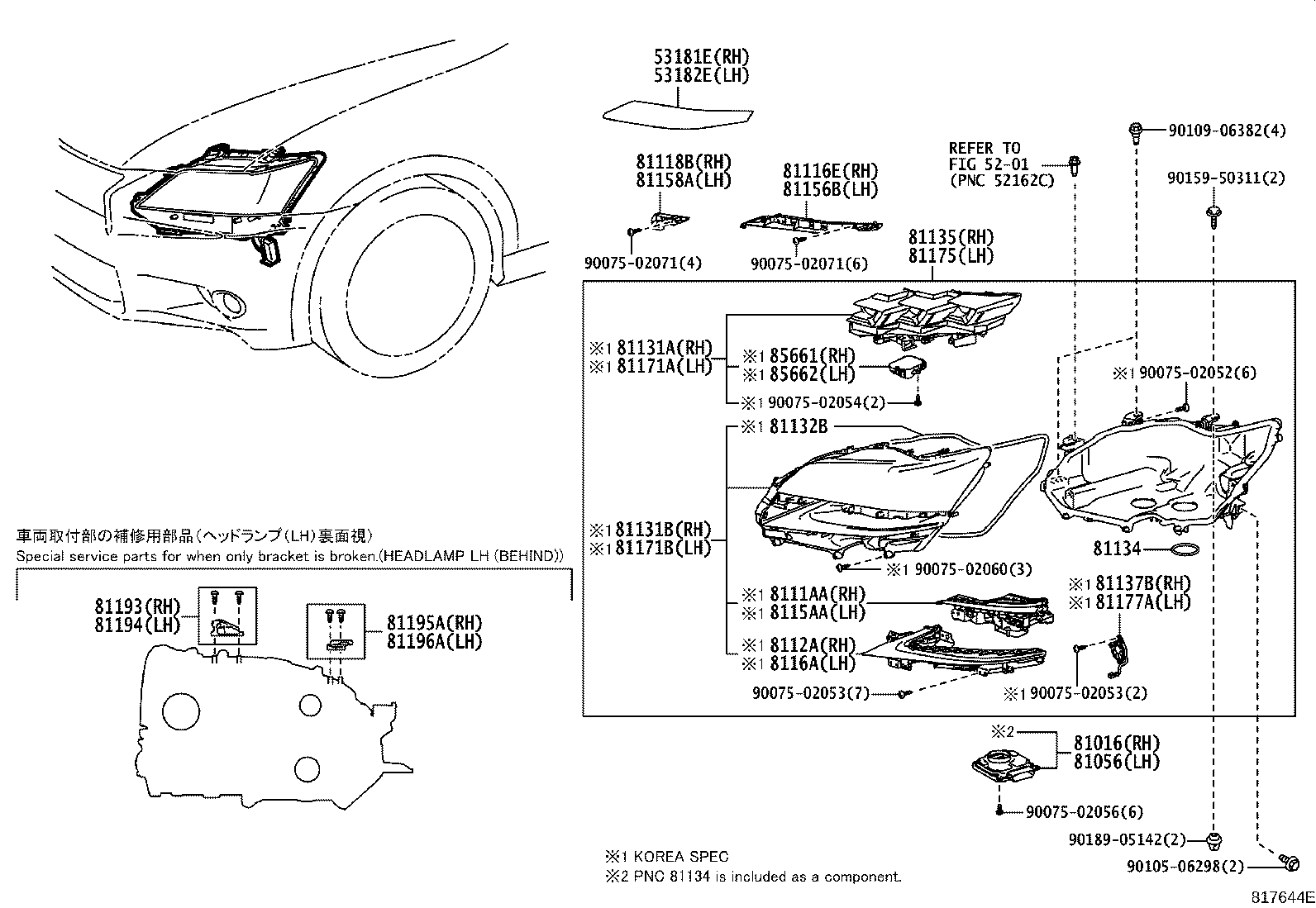

(1510- )
LED(TRINOCULAR FULL LED)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53181E - COVER, HEADLAMP, RH | ||||
| 53181-30060B3 |
ARL10,GRL1#,GWL10 DK.GRAY MC.,1G0 |
1 | ||
| 53181-30060A0 |
ARL10,GRL1#,GWL10 WHITE NOVA GF.,083 |
1 | ||
| 53181-30060C1 |
ARL10,GRL1#,GWL10 GRAPHITE BLACK GF.,223 |
1 | ||
| 53181-30060A1 |
ARL10,GRL1#,GWL10 SONIC QUARTZ,085 |
1 | ||
| 53181-30060B2 |
ARL10,GRL1#,GWL10 SONIC TITANIUM,1J7 |
1 | ||
| 53181-30060E0 |
ARL10,GRL1#,GWL10 AMBER CS.,4X2 |
1 | ||
| 53181-30060J1 |
ARL10,GRL1#,GWL10 DEEP BLUE MC.,8X5 |
1 | ||
| 53181-30060J0 |
ARL10,GRL1#,GWL10 HEAT BLUE CONTRAST LAYERI,8X1 |
1 | ||
| 53181-30060C0 |
ARL10,GRL1#,GWL10 BLACK,212 |
1 | ||
| 53181-30060B1 |
ARL10,GRL1#,GWL10 SONIC SILVER,1J2 |
1 | ||
| 53181-30060B0 |
ARL10,GRL1#,GWL10 MERCURY GRAY MC.,1H9 |
1 | ||
| 53181-30060D1 |
ARL10,GRL1#,GWL10 RED MC.CS.,3R1 |
1 | ||
| 53182E - COVER, HEADLAMP, LH | ||||
| 53182-30060C0 |
ARL10,GRL1#,GWL10 BLACK,212 |
1 | ||
| 53182-30060E0 |
ARL10,GRL1#,GWL10 AMBER CS.,4X2 |
1 | ||
| 53182-30060C1 |
ARL10,GRL1#,GWL10 GRAPHITE BLACK GF.,223 |
1 | ||
| 53182-30060B0 |
ARL10,GRL1#,GWL10 MERCURY GRAY MC.,1H9 |
1 | ||
| 53182-30060J0 |
ARL10,GRL1#,GWL10 HEAT BLUE CONTRAST LAYERI,8X1 |
1 | ||
| 53182-30060J1 |
ARL10,GRL1#,GWL10 DEEP BLUE MC.,8X5 |
1 | ||
| 53182-30060B1 |
ARL10,GRL1#,GWL10 SONIC SILVER,1J2 |
1 | ||
| 53182-30060A1 |
ARL10,GRL1#,GWL10 SONIC QUARTZ,085 |
1 | ||
| 53182-30060B3 |
ARL10,GRL1#,GWL10 DK.GRAY MC.,1G0 |
1 | ||
| 53182-30060A0 |
ARL10,GRL1#,GWL10 WHITE NOVA GF.,083 |
1 | ||
| 53182-30060B2 |
ARL10,GRL1#,GWL10 SONIC TITANIUM,1J7 |
1 | ||
| 53182-30060D1 |
ARL10,GRL1#,GWL10 RED MC.CS.,3R1 |
1 | ||
| 81016 - COMPUTER SUB-ASSY, HEADLAMP, RH NO.1 | ||||
| 81016-30K90 |
ARL10,GRL12 GUAM,PUERTO RICO SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81016-30K90 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81016-30K90 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81016-30L20 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81016-30J30 |
ARL10,GRL1#,GWL10 |
1 | ||
| 81016-30K90 |
ARL10,GRL12 HAWAII SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81016-30K90 |
ARL10,GRL12 CANADA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81016-30L20 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81016-30L20 |
ARL10,GRL1# HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81016-30K90 |
ARL10,GRL1#,GWL10 HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81016-30K90 |
GRL12 HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81016-30L20 |
ARL10,GRL1#,GWL10 HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81056 - COMPUTER SUB-ASSY, HEADLAMP, LH NO.1 | ||||
| 81056-30K90 |
ARL10,GRL12 HAWAII SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81056-30K90 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81056-30K90 |
ARL10,GRL12 GUAM,PUERTO RICO SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81056-30K90 |
ARL10,GRL12 CANADA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81056-30K90 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81056-30K90 |
ARL10,GRL1#,GWL10 HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81056-30L20 |
ARL10,GRL1#,GWL10 HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81056-30L20 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81056-30J30 |
ARL10,GRL1#,GWL10 |
1 | ||
| 81056-30L20 |
ARL10,GRL1# HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81056-30L20 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81056-30K90 |
GRL12 HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81116E - BRACKET, HEADLAMP, RH NO.2 | ||||
| 81116-30J30 |
ARL10,GRL1#,GWL10 |
1 | ||
| 81118B - BRACKET, HEADLAMP, RH NO.1 | ||||
| 81118-30J30 |
ARL10,GRL1#,GWL10 |
1 | ||
| 8111AA - UNIT, HEADLAMP TURN SIGNAL LED, RH | ||||
| 8111A-30L41 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 8111A-30L41 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 8111A-30L40 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 8112A - UNIT, HEADLAMP CLEARANCE LED, NO.1 RH | ||||
| 8112A-30K60 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 8112A-30K60 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 8112A-30K60 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 8112A-30K60 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 8112A-30K60 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-30K70 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 81130-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81130-30L50 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81130-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81130-30L50 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-30L50 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81131-30K70 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 81131-30L51 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81131-30L51 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81131-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81131-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-30E40 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
2 | ||
| 81132-30E40 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
2 | ||
| 81132-30E40 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
2 | ||
| 81132-30E40 |
ARL10,GRL12,GWL10 KOREA SPEC |
2 | ||
| 81132-30E40 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23003 |
ARL10,GRL1#,GWL10 |
1 | ||
| 90075-23002 |
GRL1#,GWL10 |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81145-30L50 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81145-30K80 |
ARL10,GRL12 GUAM,PUERTO RICO SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81145-30K80 |
ARL10,GRL12 CANADA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81145-30L20 |
ARL10,GRL1#,GWL10 HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81145-30K80 |
ARL10,GRL12 HAWAII SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81145-30L51 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81145-30L51 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81145-30K70 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 81145-30K80 |
GRL12 HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81145-30J30 |
ARL10,GRL1#,GWL10 |
1 | ||
| 81145-30L20 |
ARL10,GRL1# HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81145-30L21 |
ARL10,GRL1#,GWL10 HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81145-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81145-30L21 |
ARL10,GRL1# HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81145-30K80 |
ARL10,GRL1#,GWL10 HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81137B - FAN, HEADLAMP, RH | ||||
| 81137-47660 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81137-47660 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81156B - BRACKET, HEADLAMP, LH NO.2 | ||||
| 81156-30J30 |
ARL10,GRL1#,GWL10 |
1 | ||
| 81158A - BRACKET, HEADLAMP, LH NO.1 | ||||
| 81158-30J30 |
ARL10,GRL1#,GWL10 |
1 | ||
| 8115AA - UNIT, HEADLAMP TURN SIGNAL LED, LH | ||||
| 8115A-30L41 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 8115A-30L40 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 8115A-30L41 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 8116A - UNIT, HEADLAMP CLEARANCE LED, NO.1 LH | ||||
| 8116A-30K60 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 8116A-30K60 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 8116A-30K60 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 8116A-30K60 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 8116A-30K60 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81170-30K70 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 81170-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81170-30L50 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81170-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81170-30L50 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-30L51 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81171-30K70 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 81171-30L51 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81171-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81171-30L50 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81171-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-30L20 |
ARL10,GRL1#,GWL10 HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81185-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81185-30L20 |
ARL10,GRL1# HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81185-30K80 |
ARL10,GRL12 CANADA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81185-30K70 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 81185-30K80 |
ARL10,GRL12 HAWAII SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81185-30L50 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81185-30L51 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81185-30L10 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81185-30J30 |
ARL10,GRL1#,GWL10 |
1 | ||
| 81185-30K80 |
ARL10,GRL1#,GWL10 HEADLAMP-LED(PROJECTOR) & WITH(*AHB & AFS) |
1 | ||
| 81185-30L21 |
ARL10,GRL1# HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81185-30L51 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81185-30K80 |
ARL10,GRL12 GUAM,PUERTO RICO SPEC&HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81185-30K80 |
GRL12 HEADLAMP-LED(PROJECTOR) & WITH(AFS) |
1 | ||
| 81185-30L21 |
ARL10,GRL1#,GWL10 HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81177A - FAN, HEADLAMP, LH | ||||
| 81137-47660 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 81137-47660 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-30090 |
GRL1#,GWL10 |
1 | ||
| 81193-30120 |
ARL10,GRL1#,GWL10 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-30120 |
ARL10,GRL1#,GWL10 |
1 | ||
| 81194-30090 |
GRL1#,GWL10 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-30070 |
ARL10,GRL1#,GWL10 |
1 | ||
| 81195-30050 |
GRL1#,GWL10 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-30070 |
ARL10,GRL1#,GWL10 |
1 | ||
| 81196-30050 |
GRL1#,GWL10 |
1 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-48060 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| 85661-48060 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85691-48010 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
1 | ||
| 85691-48010 |
ARL10,GRL12,GWL10 KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
1 | ||
| Common parts | ||||
| 90075-02052 | ||||
| 90075-02053 | ||||
| 90075-02054 | ||||
| 90075-02056 | ||||
| 90075-02060 | ||||
| 90075-02071 | ||||
| 90105-06298 | ||||
| 90109-06382 | ||||
| 90159-50311 | ||||
| 90189-05142 | ||||
| Linked diagrams | ||||
| 5201 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
