GRL12L-BEZQHA (2015)
Toyota Lexus Gs Series

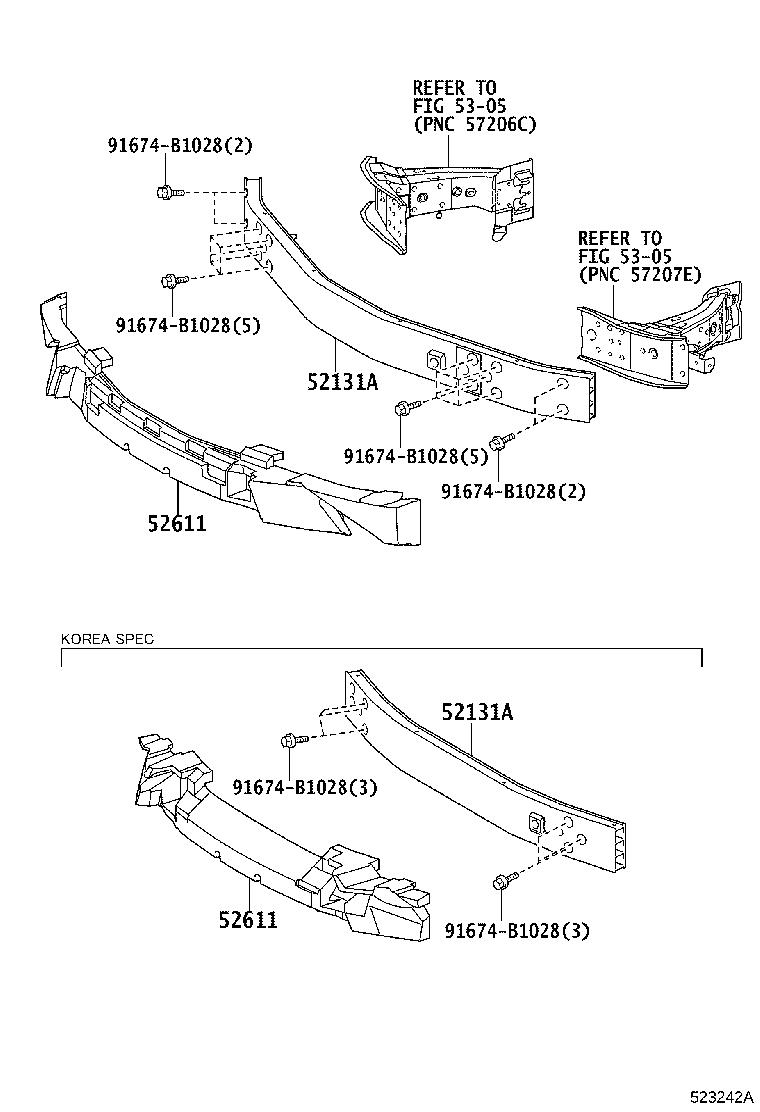

ILLUST NO. 2 OF 2(1510- )
BUMPER REINFORCEMENT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-30370 |
ARL10,GRL1#,GWL10 |
1 | ||
| 52131-30360 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-30370 |
ARL10,GRL1#,GWL10 |
1 | ||
| 52131-30360 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-30490 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 52611-30480 |
ARL10,GRL1#,GWL10 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-30490 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 52611-30480 |
ARL10,GRL1#,GWL10 |
1 | ||
| Common parts | ||||
| 91674-B1028 | ||||
| Linked diagrams | ||||
| 5305 | ||||

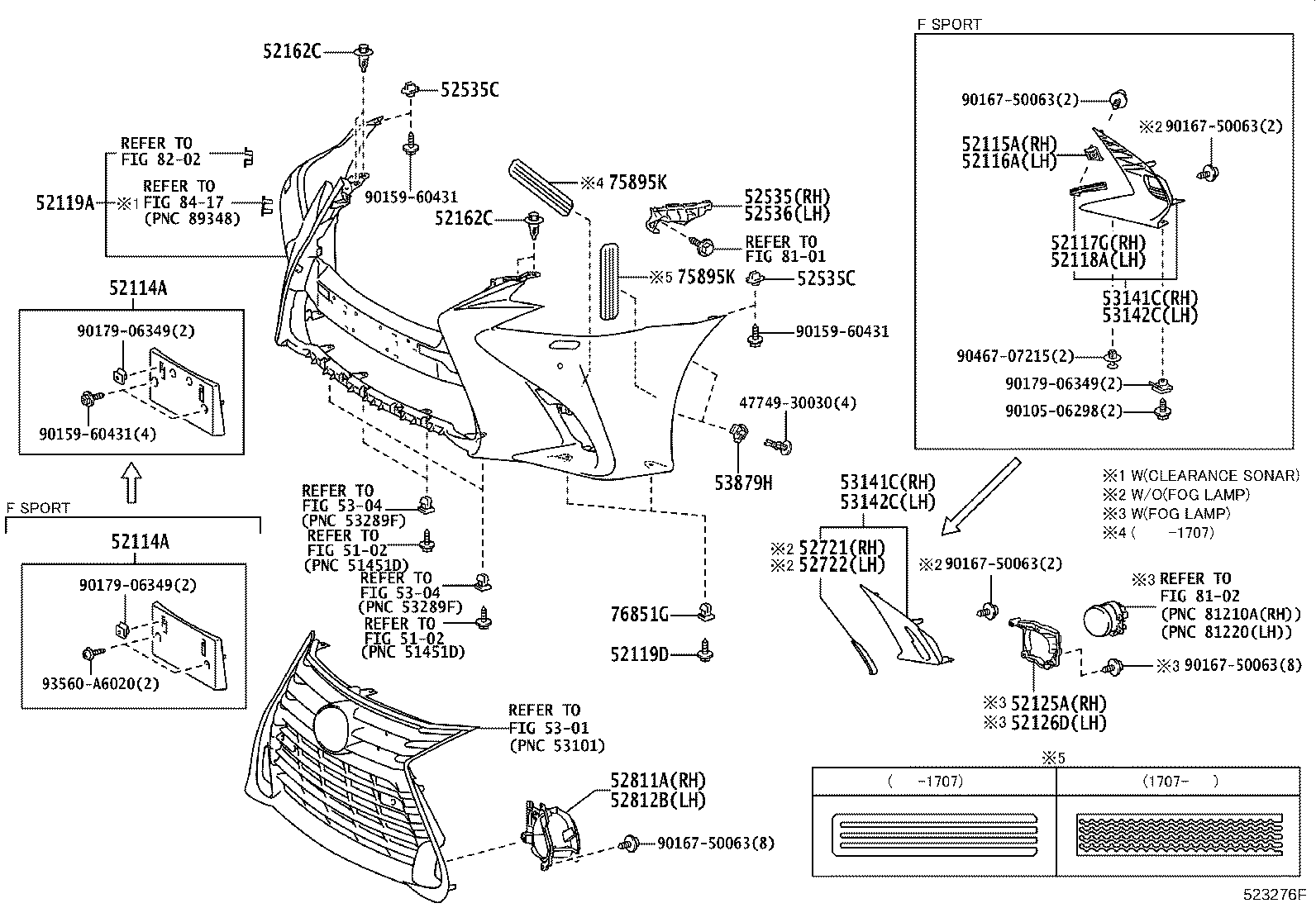

ILLUST NO. 1 OF 2(1510- )
BUMPER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-30250 |
ARL10,GRL1#,GWL10 |
1 | ||
| 52114-30250 |
GRL12,GWL10 KOREA SPEC&F SPORT |
1 | ||
| 52114-30290 |
ARL10,GRL1#,GWL10 F SPORT |
1 | ||
| 52114-30290 |
GRL1# "ETERNAL TOURING" |
1 | ||
| 52114-30250 |
GRL12,GWL10 KOREA SPEC |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-30250 |
ARL10,GRL1#,GWL10 |
1 | ||
| 52114-30250 |
GRL12,GWL10 KOREA SPEC&F SPORT |
1 | ||
| 52114-30290 |
ARL10,GRL1#,GWL10 F SPORT |
1 | ||
| 52114-30290 |
GRL1# "ETERNAL TOURING" |
1 | ||
| 52114-30250 |
GRL12,GWL10 KOREA SPEC |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-30140 |
GRL1#,GWL10 |
1 | ||
| 52115-30170 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52115-30170 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC |
1 | ||
| 52115-30170 |
ARL10,GRL1#,GWL10 F SPORT&COLD AREA SPEC |
1 | ||
| 52115-30170 |
GRL1# "ETERNAL TOURING"&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52115-30170 |
GRL1# "ETERNAL TOURING"&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52115-30170 |
ARL10,GRL1#,GWL10 F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52115-30170 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT |
1 | ||
| 52115-30170 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52115-30170 |
ARL10,GRL1#,GWL10 F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52115-30170 |
ARL10,GRL1#,GWL10 F SPORT |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-30090 |
GRL1#,GWL10 |
1 | ||
| 52116-30120 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT |
1 | ||
| 52116-30120 |
ARL10,GRL1#,GWL10 F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52116-30120 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52116-30120 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52116-30120 |
ARL10,GRL1#,GWL10 F SPORT&COLD AREA SPEC |
1 | ||
| 52116-30120 |
ARL10,GRL1#,GWL10 F SPORT |
1 | ||
| 52116-30120 |
GRL1# "ETERNAL TOURING"&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52116-30120 |
ARL10,GRL1#,GWL10 F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52116-30120 |
GRL1# "ETERNAL TOURING"&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52116-30120 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC |
1 | ||
| 52117G - INSERT, FRONT BUMPER EXTENSION, NO.2 RH | ||||
| 52117-30050 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT |
1 | ||
| 52117-30050 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52117-30050 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52117-30050 |
GRL1# "ETERNAL TOURING"&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52117-30050 |
ARL10,GRL1#,GWL10 F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52117-30050 |
ARL10,GRL1#,GWL10 F SPORT&COLD AREA SPEC |
1 | ||
| 52117-30050 |
ARL10,GRL1#,GWL10 F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52117-30050 |
ARL10,GRL1#,GWL10 F SPORT |
1 | ||
| 52117-30050 |
GRL1# "ETERNAL TOURING"&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52117-30050 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC |
1 | ||
| 52118A - INSERT, FRONT BUMPER EXTENSION, NO.2 LH | ||||
| 52118-30030 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52118-30030 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52118-30030 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT |
1 | ||
| 52118-30030 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC |
1 | ||
| 52118-30030 |
GRL1# "ETERNAL TOURING"&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52118-30030 |
GRL1# "ETERNAL TOURING"&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52118-30030 |
ARL10,GRL1#,GWL10 F SPORT&COLD AREA SPEC |
1 | ||
| 52118-30030 |
ARL10,GRL1#,GWL10 F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52118-30030 |
ARL10,GRL1#,GWL10 F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52118-30030 |
ARL10,GRL1#,GWL10 F SPORT |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-3A986 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-3A989 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-3F935 |
ARL10,GRL12,GWL10 KOREA SPEC&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-3F960 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT |
1 | ||
| 52119-3F957 |
ARL10,GRL12,GWL10 KOREA SPEC&COLD AREA SPEC |
1 | ||
| 52119-3F959 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC |
1 | ||
| 52119-3A989 |
ARL10,GRL1#,GWL10 F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-3F957 |
ARL10,GRL1#,GWL10 COLD AREA SPEC |
1 | ||
| 52119-3A986 |
ARL10,GRL1#,GWL10 F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-3A986 |
GRL1# PAINT REQ.,"ETERNAL TOURING"&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-3F960 |
ARL10,GRL1#,GWL10 F SPORT |
1 | ||
| 52119-3A989 |
GRL1# PAINT REQ.,"ETERNAL TOURING"&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-3F943 |
ARL10,GRL12,GWL10 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-3F935 |
ARL10,GRL1#,GWL10 COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-3F943 |
ARL10,GRL1#,GWL10 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-3F958 |
ARL10,GRL1#,GWL10 |
1 | ||
| 52119-3F959 |
ARL10,GRL1#,GWL10 F SPORT&COLD AREA SPEC |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60477 |
ARL10,GRL1#,GWL10 |
4 | ||
| 90159-60477 |
GRL1#,GWL10 |
4 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-30180 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC |
1 | ||
| 52125-30180 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 52125-30180 |
ARL10,GRL12,GWL10 KOREA SPEC&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52125-30180 |
ARL10,GRL12,GWL10 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52125-30180 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52125-30180 |
ARL10,GRL12,GWL10 KOREA SPEC&COLD AREA SPEC |
1 | ||
| 52125-30180 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52125-30180 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT |
1 | ||
| 52126D - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-30070 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52126-30070 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT |
1 | ||
| 52126-30070 |
ARL10,GRL12,GWL10 KOREA SPEC&COLD AREA SPEC |
1 | ||
| 52126-30070 |
ARL10,GRL12,GWL10 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52126-30070 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 52126-30070 |
ARL10,GRL12,GWL10 KOREA SPEC&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52126-30070 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC |
1 | ||
| 52126-30070 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52162C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ARL10,GRL1#,GWL10 |
4 | ||
| 52162C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ARL10,GRL1#,GWL10 |
4 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-30270 |
ARL10,GRL1#,GWL10 |
1 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-50060 |
ARL10,GRL1#,GWL10 |
2 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-50060 |
ARL10,GRL1#,GWL10 |
2 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-30260 |
ARL10,GRL1#,GWL10 |
1 | ||
| 52721 - MOULDING, FRONT BUMPER EXTENSION, RH | ||||
| 52721-30100 |
ARL10,GRL1#,GWL10 |
1 | ||
| 52722 - MOULDING, FRONT BUMPER EXTENSION, LH | ||||
| 52722-30100 |
ARL10,GRL1#,GWL10 |
1 | ||
| 52811A - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52811-30020 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT |
1 | ||
| 52811-30020 |
ARL10,GRL1#,GWL10 F SPORT&COLD AREA SPEC |
1 | ||
| 52811-30020 |
ARL10,GRL1#,GWL10 F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52811-30020 |
ARL10,GRL1#,GWL10 F SPORT |
1 | ||
| 52811-30010 |
ARL10,GRL1#,GWL10 |
1 | ||
| 52811-30020 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52811-30020 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC |
1 | ||
| 52811-30020 |
GRL1# "ETERNAL TOURING"&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52811-30020 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52811-30020 |
ARL10,GRL1#,GWL10 F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52811-30020 |
GRL1# "ETERNAL TOURING"&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52812B - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 52812-30020 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52812-30020 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52812-30020 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT |
1 | ||
| 52812-30020 |
GRL1# "ETERNAL TOURING"&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52812-30020 |
ARL10,GRL1#,GWL10 F SPORT&COLD AREA SPEC |
1 | ||
| 52812-30020 |
ARL10,GRL1#,GWL10 F SPORT |
1 | ||
| 52812-30020 |
ARL10,GRL1#,GWL10 F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52812-30020 |
ARL10,GRL1#,GWL10 F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52812-30020 |
GRL1# "ETERNAL TOURING"&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52812-30020 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC |
1 | ||
| 52812-30010 |
ARL10,GRL1#,GWL10 |
1 | ||
| 53141C - GARNISH, RADIATOR GRILLE | ||||
| 53141-30360 |
ARL10,GRL12,GWL10 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53141-30370 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53141-30340 |
ARL10,GRL1#,GWL10 |
1 | ||
| 53141-30360 |
ARL10,GRL12,GWL10 KOREA SPEC&COLD AREA SPEC |
1 | ||
| 53141-30360 |
ARL10,GRL12,GWL10 KOREA SPEC&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53141-30350 |
ARL10,GRL1#,GWL10 F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53141-30470 |
GRL1# "ETERNAL TOURING"&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53141-30360 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 53141-30350 |
ARL10,GRL1#,GWL10 F SPORT&COLD AREA SPEC |
1 | ||
| 53141-30370 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53141-30470 |
GRL1# "ETERNAL TOURING"&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53141-30370 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT |
1 | ||
| 53141-30350 |
ARL10,GRL1#,GWL10 F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53141-30350 |
ARL10,GRL1#,GWL10 F SPORT |
1 | ||
| 53141-30370 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC |
1 | ||
| 53141C - GARNISH, RADIATOR GRILLE | ||||
| 53141-30360 |
ARL10,GRL12,GWL10 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53141-30370 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53141-30340 |
ARL10,GRL1#,GWL10 |
1 | ||
| 53141-30360 |
ARL10,GRL12,GWL10 KOREA SPEC&COLD AREA SPEC |
1 | ||
| 53141-30360 |
ARL10,GRL12,GWL10 KOREA SPEC&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53141-30350 |
ARL10,GRL1#,GWL10 F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53141-30470 |
GRL1# "ETERNAL TOURING"&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53141-30360 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 53141-30350 |
ARL10,GRL1#,GWL10 F SPORT&COLD AREA SPEC |
1 | ||
| 53141-30370 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53141-30470 |
GRL1# "ETERNAL TOURING"&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53141-30370 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT |
1 | ||
| 53141-30350 |
ARL10,GRL1#,GWL10 F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53141-30350 |
ARL10,GRL1#,GWL10 F SPORT |
1 | ||
| 53141-30370 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC |
1 | ||
| 53142C - GARNISH, RADIATOR GRILLE, NO.2 | ||||
| 53142-30150 |
ARL10,GRL1#,GWL10 F SPORT |
1 | ||
| 53142-30150 |
ARL10,GRL1#,GWL10 F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142-30170 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142-30160 |
ARL10,GRL12,GWL10 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142-30210 |
GRL1# "ETERNAL TOURING"&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142-30170 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC |
1 | ||
| 53142-30170 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT |
1 | ||
| 53142-30140 |
ARL10,GRL1#,GWL10 |
1 | ||
| 53142-30160 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 53142-30150 |
ARL10,GRL1#,GWL10 F SPORT&COLD AREA SPEC |
1 | ||
| 53142-30160 |
ARL10,GRL12,GWL10 KOREA SPEC&COLD AREA SPEC |
1 | ||
| 53142-30170 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142-30150 |
ARL10,GRL1#,GWL10 F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142-30160 |
ARL10,GRL12,GWL10 KOREA SPEC&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142-30210 |
GRL1# "ETERNAL TOURING"&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142C - GARNISH, RADIATOR GRILLE, NO.2 | ||||
| 53142-30150 |
ARL10,GRL1#,GWL10 F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142-30170 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142-30160 |
ARL10,GRL12,GWL10 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142-30210 |
GRL1# "ETERNAL TOURING"&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142-30170 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&COLD AREA SPEC |
1 | ||
| 53142-30170 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT |
1 | ||
| 53142-30140 |
ARL10,GRL1#,GWL10 |
1 | ||
| 53142-30160 |
ARL10,GRL12,GWL10 KOREA SPEC |
1 | ||
| 53142-30150 |
ARL10,GRL1#,GWL10 F SPORT&COLD AREA SPEC |
1 | ||
| 53142-30160 |
ARL10,GRL12,GWL10 KOREA SPEC&COLD AREA SPEC |
1 | ||
| 53142-30170 |
ARL10,GRL12,GWL10 KOREA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142-30150 |
ARL10,GRL1#,GWL10 F SPORT&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142-30160 |
ARL10,GRL12,GWL10 KOREA SPEC&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142-30150 |
ARL10,GRL1#,GWL10 F SPORT |
1 | ||
| 53142-30210 |
GRL1# "ETERNAL TOURING"&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-30060 |
ARL10,GRL1#,GWL10 |
4 | ||
| 53879-30040 |
GRL1#,GWL10 |
4 | ||
| 53879-30050 |
ARL10,GRL1#,GWL10 |
4 | ||
| 75895K - TAPE, MOULDING, NO.1 | ||||
| 75895-28010 |
ARL10,GRL1#,GWL10 |
4 | ||
| 75895-53010 |
ARL10,GRL1#,GWL10 |
2 | ||
| 75895-30050 |
ARL10,GRL1#,GWL10 |
2 | ||
| 75895K - TAPE, MOULDING, NO.1 | ||||
| 75895-28010 |
ARL10,GRL1#,GWL10 |
4 | ||
| 75895-53010 |
ARL10,GRL1#,GWL10 |
2 | ||
| 75895-30050 |
ARL10,GRL1#,GWL10 |
2 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06193 |
ARL10,GRL1#,GWL10 |
4 | ||
| 90189-06193 |
GRL1#,GWL10 |
4 | ||
| Common parts | ||||
| 47749-30030 | ||||
| 90105-06298 | ||||
| 90159-60431 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 90467-07215 | ||||
| 93560-A6020 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5301 | ||||
| 5304 | ||||
| 8101 | ||||
| 8102 | ||||
| 8202 | ||||
| 8417 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
