GRL12L-BEZQHA (2015)

Toyota Lexus Gs Series

Production Oct 2015 - Jul 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1510- )ARL10,GRL1#

Click highlighted areas on diagram

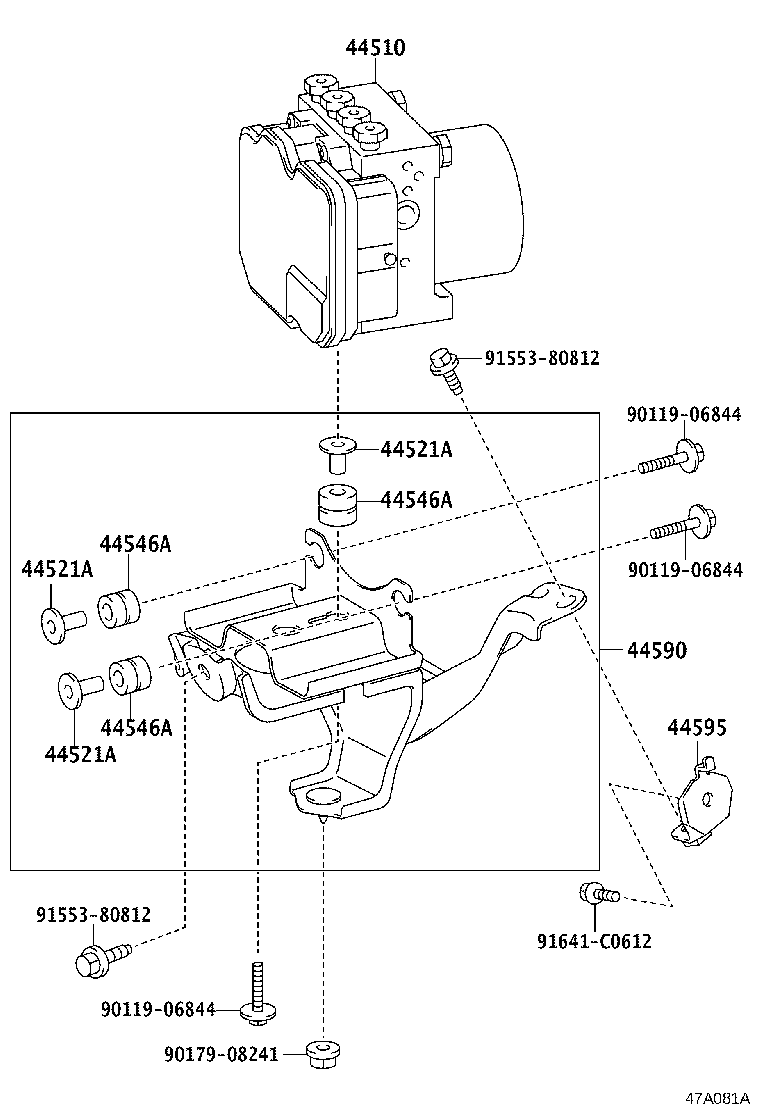

BRAKE ACTUATOR

diagram 44510 44521A 44521A 44521A 44546A 44546A 44546A 44590 44595 9011906844 9011906844 9011906844 9017908241 9155380812 9155380812 91641C0612
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-30880

ARL10,GRL12

KOREA SPEC&FRONT WHEEL BRAKE-18INCHES DISC

 1
44050-30860

ARL10,GRL1#

 1
44050-30A50

ARL10,GRL1#

PRE-COLLISION SYSTEM-WITH&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA)

 1
44050-30880

ARL10,GRL12

KOREA SPEC&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)

 1
44050-30540

GRL1#

 1
44050-30D40

GRL12

PRE-COLLISION SYSTEM-WITH&REAR DIFFERENTIAL-FD21CT WITH(FIN) 2.937(LSD)&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA)

 1
44050-30D40

GRL12

PRE-COLLISION SYSTEM-WITH&REAR DIFFERENTIAL-FD21CT WITH(FIN) 2.937(LSD)&FRONT WHEEL BRAKE-18INCHES DISC&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA)

 1
44050-30A60

ARL10,GRL12

PRE-COLLISION SYSTEM-WITH&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA)

 1
44050-30E30

ARL10,GRL12

KOREA SPEC&FRONT WHEEL BRAKE-18INCHES DISC

 1
44050-30A60

ARL10,GRL12

PRE-COLLISION SYSTEM-WITH&FRONT WHEEL BRAKE-18INCHES DISC&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA)

 1
44050-30E30

ARL10,GRL12

FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)

 1
44050-30C70

GRL12

KOREA SPEC&REAR DIFFERENTIAL-FD21CT WITH(FIN) 2.937(LSD)&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)

 1
44050-30E30

ARL10,GRL12

KOREA SPEC&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)

 1
44050-30J00

GRL12

REAR DIFFERENTIAL-FD21CT WITH(FIN) 2.937(LSD)&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)

 1
44050-30C70

GRL12

KOREA SPEC&REAR DIFFERENTIAL-FD21CT WITH(FIN) 2.937(LSD)&FRONT WHEEL BRAKE-18INCHES DISC

 1
44050-30J00

GRL12

REAR DIFFERENTIAL-FD21CT WITH(FIN) 2.937(LSD)&FRONT WHEEL BRAKE-18INCHES DISC

 1
44050-30E30

ARL10,GRL12

FRONT WHEEL BRAKE-18INCHES DISC

 1
44050-30J70

GRL12

PRE-COLLISION SYSTEM-WITH&REAR DIFFERENTIAL-FD21CT WITH(FIN) 2.937(LSD)&FRONT WHEEL BRAKE-18INCHES DISC&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA)

 1
44050-30F00

ARL10,GRL12

PRE-COLLISION SYSTEM-WITH&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA)

 1
44050-30E10

ARL10,GRL1#

 1
44050-30F00

ARL10,GRL12

PRE-COLLISION SYSTEM-WITH&FRONT WHEEL BRAKE-18INCHES DISC&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA)

 1
44050-30G80

GRL12

REAR DIFFERENTIAL-FD21CT WITH(FIN) 2.937(LSD)

 1
44050-30J70

GRL12

PRE-COLLISION SYSTEM-WITH&REAR DIFFERENTIAL-FD21CT WITH(FIN) 2.937(LSD)&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA)

 1
44050-30E90

ARL10,GRL1#

PRE-COLLISION SYSTEM-WITH&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA)

 1
44050-30J60

GRL12

PRE-COLLISION SYSTEM-WITH&REAR DIFFERENTIAL-FD21CT WITH(FIN) 2.937(LSD)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA)

 1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050

ARL10,GRL1#

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050

ARL10,GRL1#

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050

ARL10,GRL1#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

ARL10,GRL1#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

ARL10,GRL1#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

ARL10,GRL1#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-30160

GRL1#

 1
44590-30220

ARL10,GRL1#

 1
44595 - BRACKET, BRAKE ACTUATOR, NO.5
44595-30030

ARL10,GRL1#

 1
Common parts
90119-06844
90179-08241
91553-80812
91641-C0612

ILLUST NO. 1 OF 2(1510- )ARL10,GRL1#

Click highlighted areas on diagram

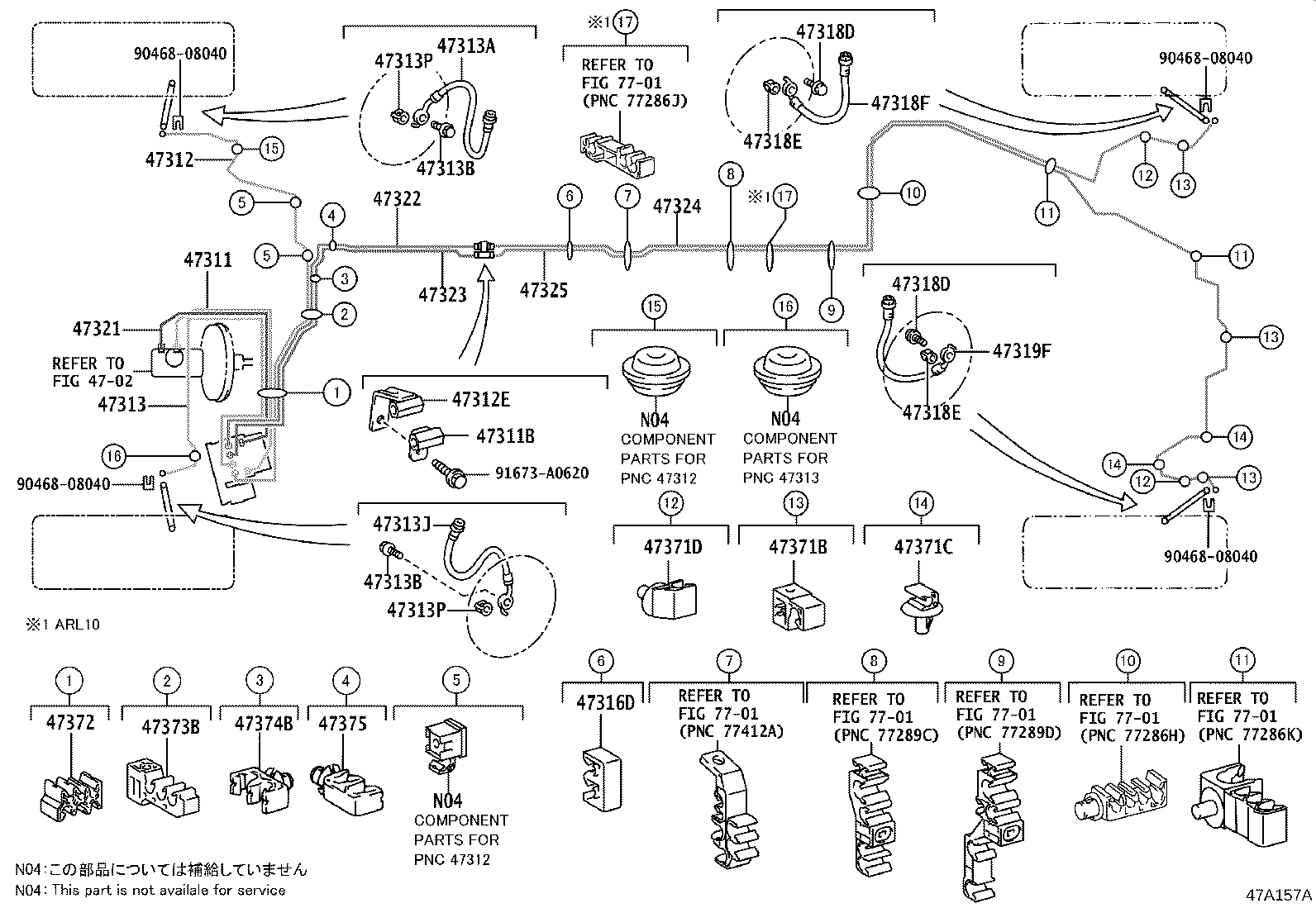

BRAKE TUBE

diagram 4702 47311 47311B 47312 47312E 47313 47313A 47313B 47313B 47313J 47313P 47313P 47316D 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47323 47324 47325 47371B 47371C 47371D 47372 47373B 47374B 47375 7701 7701 7701 7701 7701 7701 9046808040 9046808040 9046808040 9046808040 91673A0620
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-30750

ARL10,GRL1#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10290

GRL1#,GWL10

 1
90412-10292

ARL10,GRL1#,GWL10

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-30890

ARL10,GRL12

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10275

GRL1#,GWL10

 1
90412-10297

ARL10,GRL1#,GWL10

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-30880

ARL10,GRL12

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02G57

ARL10,GRL12,GWL10

FRONT WHEEL BRAKE-18INCHES DISC

 1
90947-02G56

ARL10,GRL12,GWL10

 1
90947-02G57

ARL10,GRL12,GWL10

FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ARL10,GRL1#,GWL10

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ARL10,GRL1#,GWL10

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02G57

ARL10,GRL12,GWL10

FRONT WHEEL BRAKE-18INCHES DISC

 1
90947-02G57

ARL10,GRL12,GWL10

FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)

 1
90947-02G56

ARL10,GRL12,GWL10

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ARL10,GRL1#,GWL10

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ARL10,GRL1#,GWL10

 2
47316D - GROMMET(FOR REAR BRAKE TUBE)
90480-01621

GRL1#,GWL10

 1
90480-01621

ARL10,GRL1#,GWL10

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ARL10,GRL1#,GWL10

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ARL10,GRL1#,GWL10

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ARL10,GRL1#,GWL10

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ARL10,GRL1#,GWL10

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02G54

ARL10,GRL1#,GWL10

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02G54

ARL10,GRL1#,GWL10

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-30450

ARL10,GRL1#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-30440

GRL1#

 1
47322-30600

ARL10,GRL1#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-30400

GRL1#

 1
47323-30540

ARL10,GRL1#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-30330

GRL1#,GWL10

 1
47324-30360

ARL10,GRL1#,GWL10

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-30110

GRL1#,GWL10

 1
47325-30140

ARL10,GRL1#,GWL10

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01C82

GRL1#,GWL10

 3
90949-01C82

ARL10,GRL1#,GWL10

 3
47371C - CLAMP, BRAKE TUBE, NO.7
90949-01D17

GRL1#,GWL10

 2
90949-01D17

ARL10,GRL1#,GWL10

 2
47371D - CLAMP, BRAKE TUBE, NO.8
90949-01D46

GRL1#,GWL10

 2
90949-01D46

ARL10,GRL1#,GWL10

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D52

ARL10,GRL1#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D08

ARL10,GRL1#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D12

ARL10,GRL1#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-01D13

ARL10,GRL1#

 1
Common parts
90468-08040
91673-A0620
Linked diagrams
4702
7701
