GRL12L-BEZQHA (2015)
Toyota Lexus Gs Series
Production
Oct 2015
-
Jul 2020
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1510- )2GRFKS

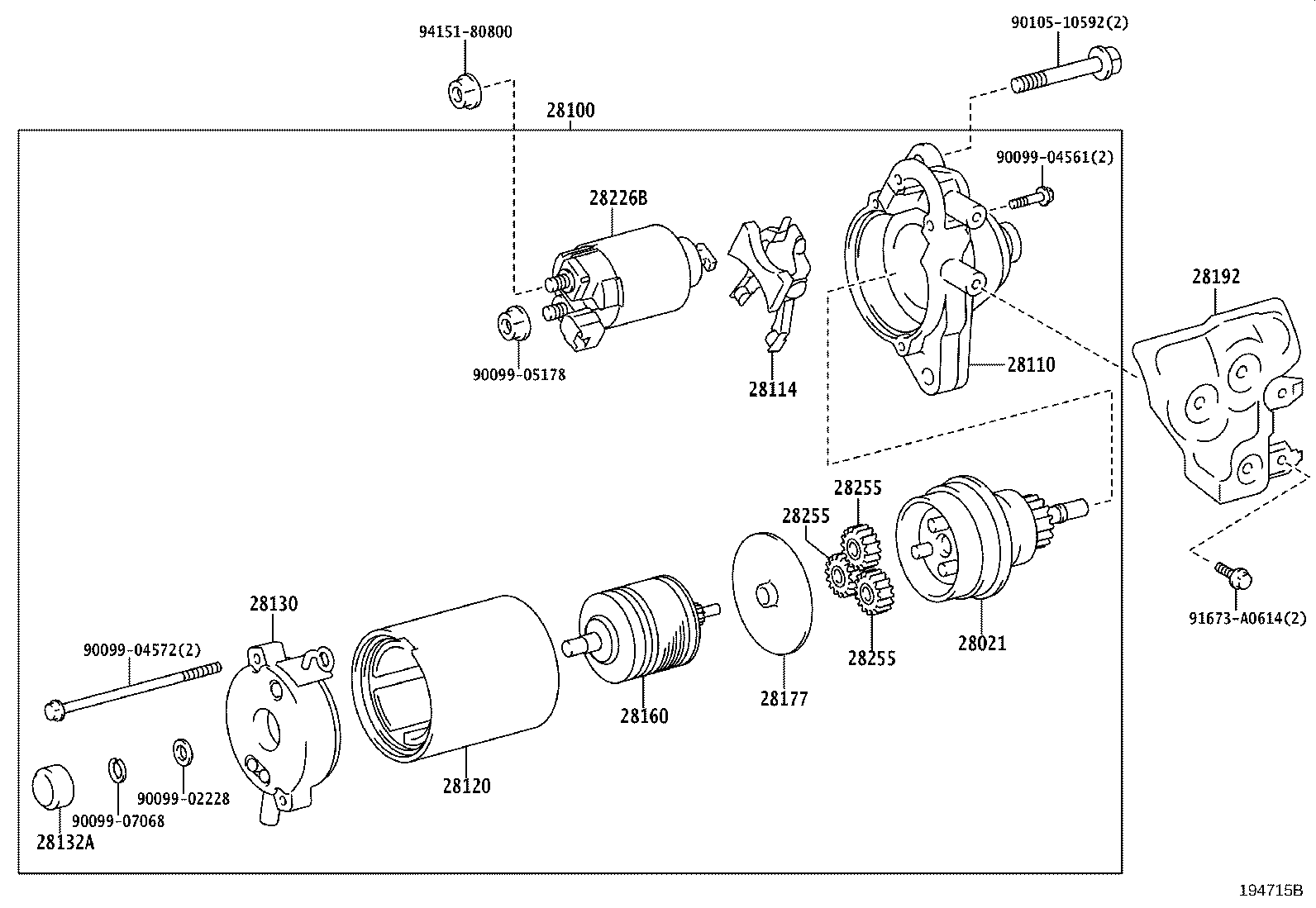

Click highlighted areas on diagram
12V 1.7KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-21060 |
8ARFTS,2GRFKS..ARL10,GRL1# |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-31220 |
2GRFKS..GRL1# 12V 1.7KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-31210 |
2GRFKS..GRL1# |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-21060 |
8ARFTS,2GRFKS..ARL10,GRL1# |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-28060 |
8ARFTS,2GRFKS..ARL10,GRL1# |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-31070 |
2GRFKS..GRL1# |
1 | ||
| 28132A - COVER, STARTER COMMUTATOR END FRAME | ||||
| 28132-28040 |
8ARFTS,2GRFKS..ARL10,GRL1# |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-21060 |
8ARFTS,2GRFKS..ARL10,GRL1# |
1 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-28040 |
8ARFTS,2GRFKS..ARL10,GRL1# |
1 | ||
| 28192 - COVER, STARTER | ||||
| 28192-31030 |
2GRFKS..GRL1# |
1 | ||
| 28226B - STARTER KIT, REPAIR SERVICE | ||||
| 28226-22061 |
8ARFTS,2GRFKS..ARL10,GRL1# |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-20020 |
8ARFTS,2GRFKS..ARL10,GRL1# |
3 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-20020 |
8ARFTS,2GRFKS..ARL10,GRL1# |
3 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-20020 |
8ARFTS,2GRFKS..ARL10,GRL1# |
3 | ||
| Common parts | ||||
| 90099-02228 | ||||
| 90099-04561 | ||||
| 90099-04572 | ||||
| 90099-05178 | ||||
| 90099-07068 | ||||
| 90105-10592 | ||||
| 91673-A0614 | ||||
| 94151-80800 | ||||
