GRL12L-BEZQHA (2015)

Toyota Lexus Gs Series

Production Oct 2015 - Jul 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )2GRFKS

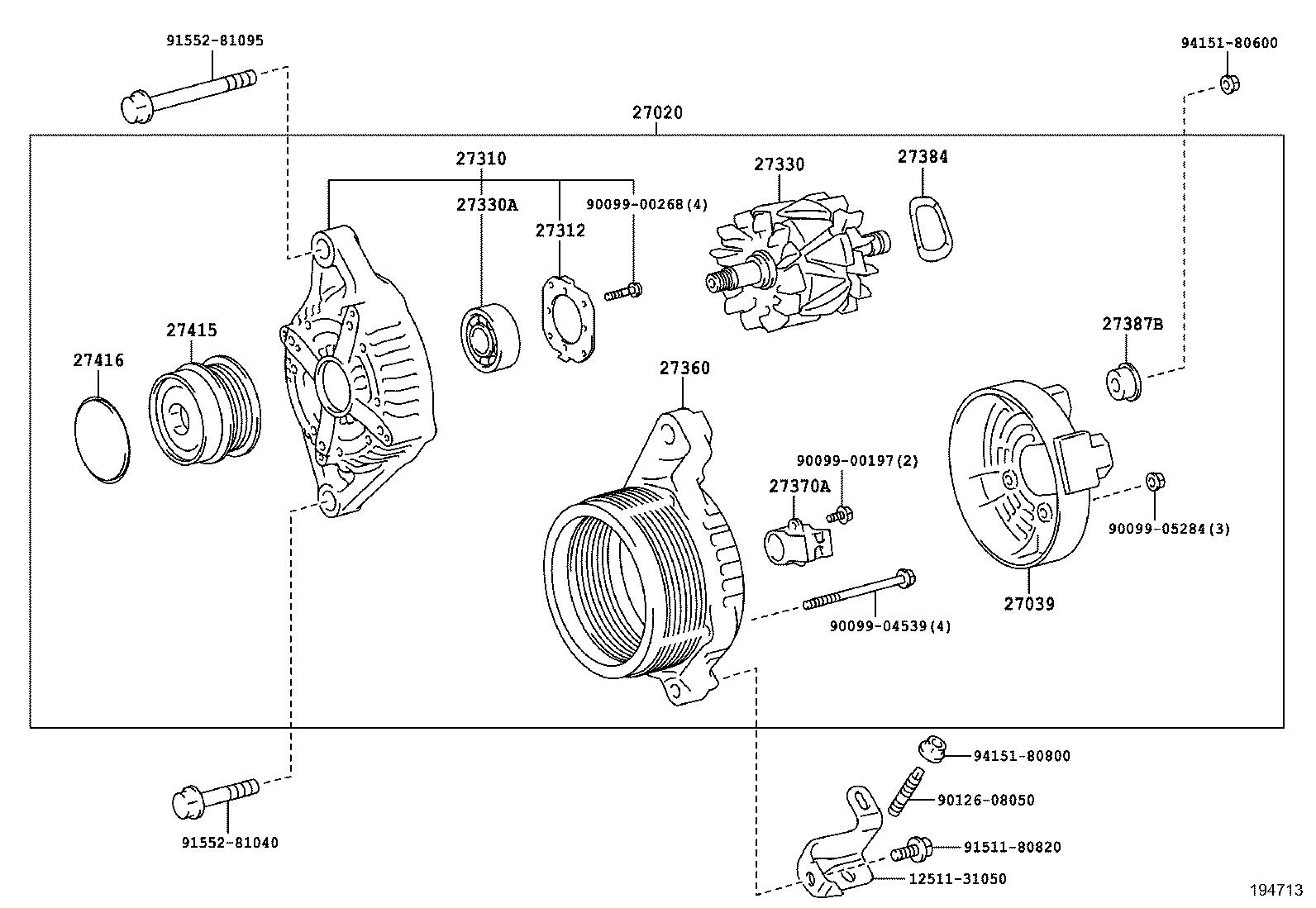

Click highlighted areas on diagram

12V 150A

diagram 1251131050 27020 27039 27310 27312 27330 27330A 27360 27370A 27384 27387B 27415 27416 9009900197 9009900268 9009904539 9009905284 9012608050 9151180820 9155281040 9155281095 9415180600 9415180800
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-31300

2GRFKS..GRL1#

12V 150A

 1
27039 - COVER, ALTERNATOR REAR END
27039-31570

2GRFKS..GRL1#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-31570

2GRFKS..GRL1#

 1
27312 - PLATE, RETAINER
27312-72100

2GRFKS..GRL1#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-58460

2GRFKS..GRL1#

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10223

2GRFKS..GRL1#

 1
27360 - COIL ASSY, ALTERNATOR
27360-31570

2GRFKS..GRL1#

 1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-31220

2GRFKS..GRL1#

 1
27384 - WASHER
27384-50030

2GRFKS..GRL1#

 1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-31580

2GRFKS..GRL1#

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0P020

2GRFKS..GRL1#

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0W050

8ARFTS,2GRFKS..ARL10,GRL1#

 1
Common parts
12511-31050
90099-00197
90099-00268
90099-04539
90099-05284
90126-08050
91511-80820
91552-81040
91552-81095
94151-80600
94151-80800
