GRL12L-BEZQHA (2015)

Toyota Lexus Gs Series

Production Oct 2015 - Jul 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )2GRFKS

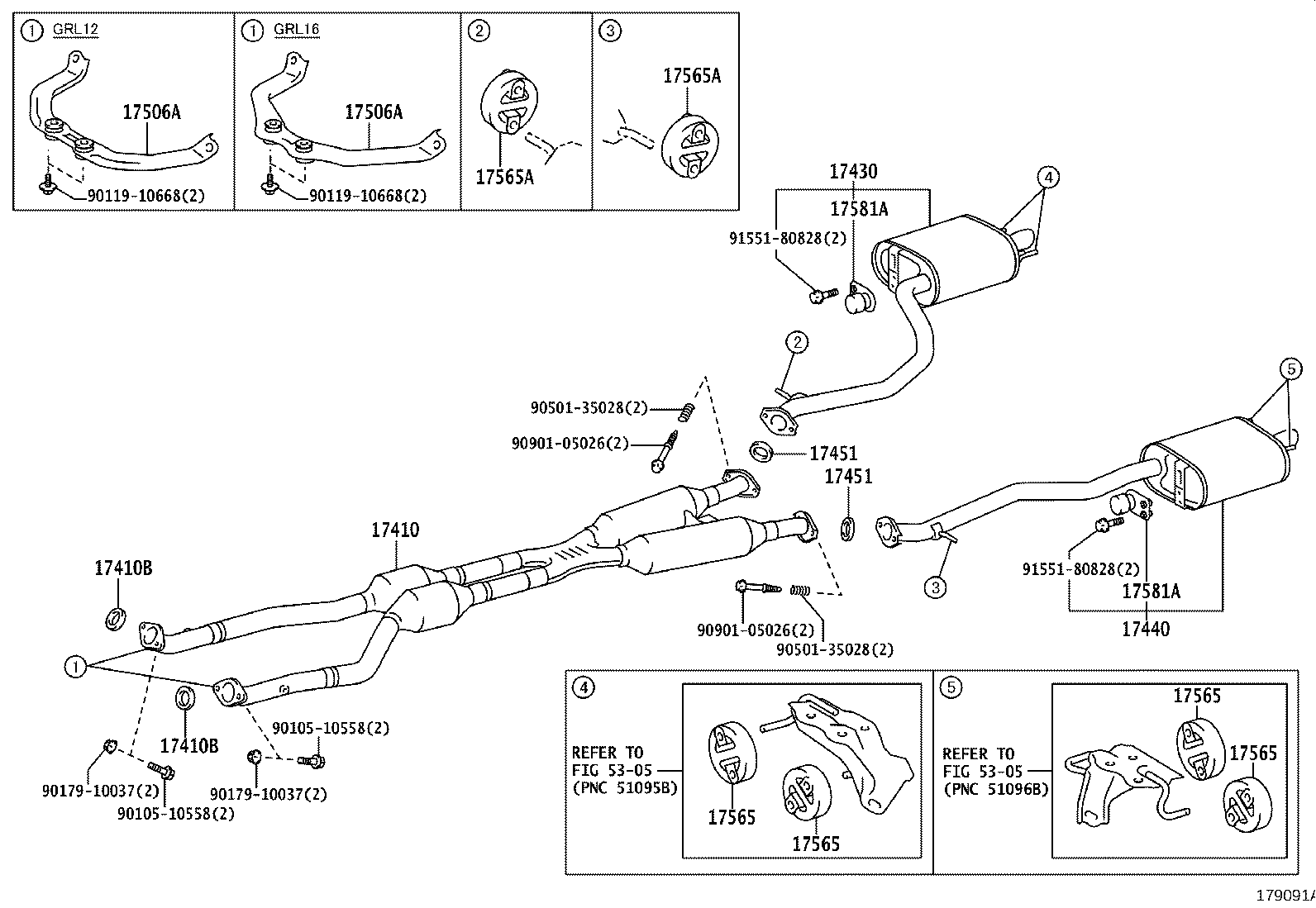

Click highlighted areas on diagram

diagram 17410 17410B 17410B 17430 17440 17451 17451 17506A 17506A 17565 17565 17565 17565 17565A 17565A 17581A 17581A 5305 5305 9010510558 9010510558 9011910668 9011910668 9017910037 9017910037 9050135028 9050135028 9090105026 9090105026 9155180828 9155180828
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31E90

2GRFKS..GRL12

 1
17410B - GASKET, EXHAUST PIPE
90917-06078

2GR#..GRL1#,GWL10

 2
17410B - GASKET, EXHAUST PIPE
90917-06078

2GR#..GRL1#,GWL10

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31C80

2GRFKS..GRL1#

 1
17440 - PIPE, EXHAUST TAIL, LH
17440-31160

2GRFKS..GRL1#

 1
17451 - GASKET, EXHAUST PIPE
17451-28032

8ARFTS,2GR#..ARL10,GRL1#,GWL10

 2
17451 - GASKET, EXHAUST PIPE
17451-28032

8ARFTS,2GR#..ARL10,GRL1#,GWL10

 2
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-31110

2GRFKS..GRL12

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-31110

2GRFKS..GRL12

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2GR#,4GRFSE..GRL1#,GWL10

 4
17565-22040

8ARFTS,2GR#..ARL10,GRL1#,GWL10

 4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2GR#,4GRFSE..GRL1#,GWL10

 4
17565-22040

8ARFTS,2GR#..ARL10,GRL1#,GWL10

 4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2GR#,4GRFSE..GRL1#,GWL10

 4
17565-22040

8ARFTS,2GR#..ARL10,GRL1#,GWL10

 4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2GR#,4GRFSE..GRL1#,GWL10

 4
17565-22040

8ARFTS,2GR#..ARL10,GRL1#,GWL10

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

8ARFTS,2GR#..ARL10,GRL1#,GWL10

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

8ARFTS,2GR#..ARL10,GRL1#,GWL10

 2
17581A - DAMPER, EXHAUST PIPE
17581-46120

2GRFKS..GRL1#

 2
17581A - DAMPER, EXHAUST PIPE
17581-46120

2GRFKS..GRL1#

 2
Common parts
90105-10558
90119-10668
90179-10037
90501-35028
90901-05026
91551-80828
Linked diagrams
5305
