GRL12L-BEZQHA (2015)

Toyota Lexus Gs Series

Production Oct 2015 - Jul 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )2GRFKS

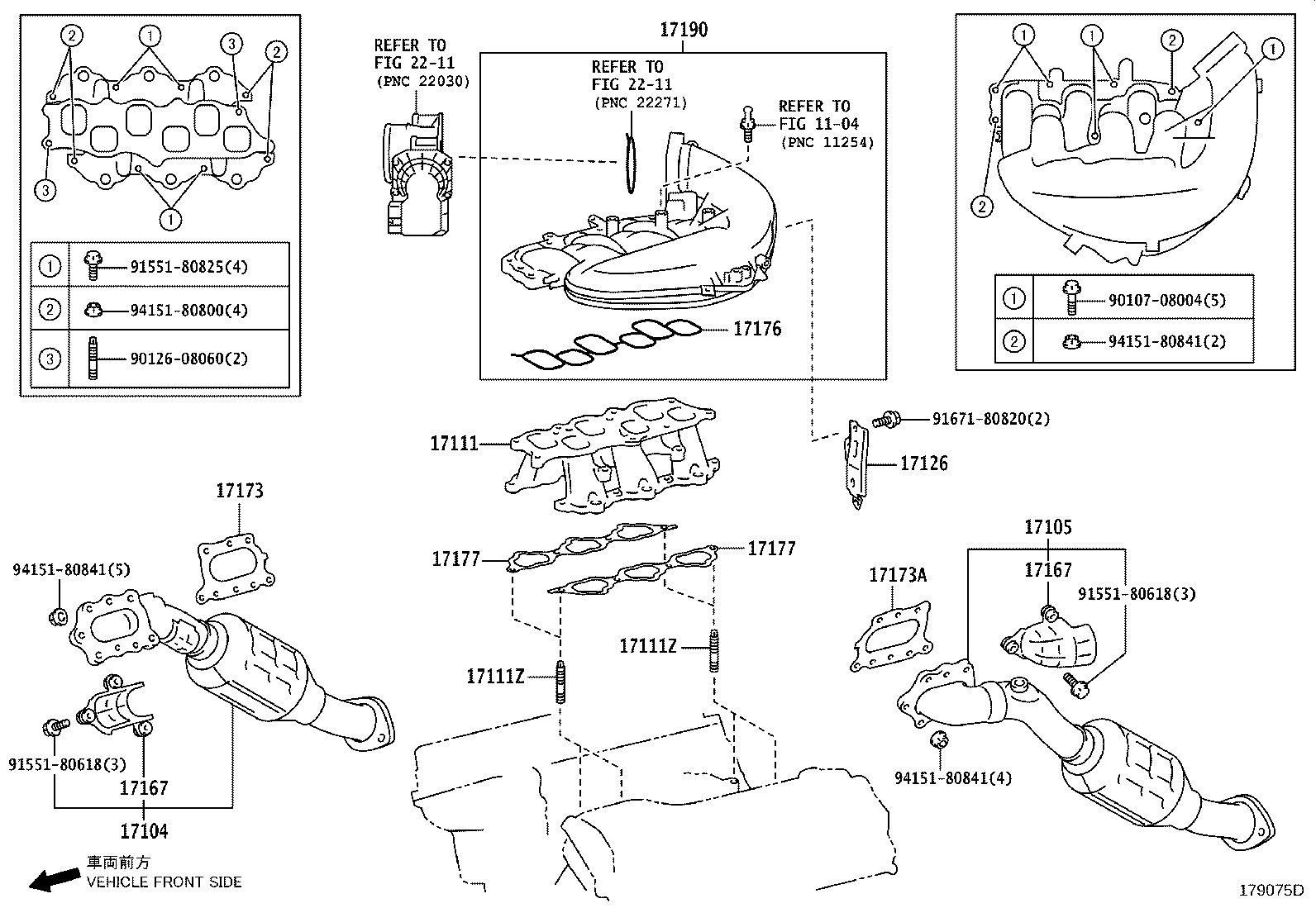

Click highlighted areas on diagram

diagram 1104 17104 17105 17111 17111Z 17111Z 17126 17167 17167 17173 17173A 17176 17177 17177 17190 2211 2211 9010708004 9012608060 9155180618 9155180618 9155180825 9167180820 9415180800 9415180841 9415180841 9415180841
Part # Description Qty Price
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17140-31220

2GRFKS..GRL1#

 1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17150-31340

2GRFKS..GRL12

 1
17111 - MANIFOLD, INTAKE
17111-31250

2GRFKS..GRL1#

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08052

2GRFKS..GRL1#

 4
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08052

2GRFKS..GRL1#

 4
17126 - STAY, SURGE TANK, NO.2
17126-31070

2GR#..GRL1#,GWL10

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-31160

2GRFKS..GRL1#

LH BANK

 1
17167-31120

2GRFKS..GRL1#

RH BANK

 1
17167-31150

2GRFKS..GRL1#

RH BANK

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-31160

2GRFKS..GRL1#

LH BANK

 1
17167-31120

2GRFKS..GRL1#

RH BANK

 1
17167-31150

2GRFKS..GRL1#

RH BANK

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-31070

2GRFKS..GRL1#

 1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-31070

2GRFKS..GRL1#

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-31150

2GRFKS..GRL1#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-31070

2GR#..GRL1#,GWL10

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-31070

2GR#..GRL1#,GWL10

 2
17190 - TANK ASSY, INTAKE AIR SURGE
17190-31210

2GRFKS..GRL1#

 1
Common parts
90107-08004
90126-08060
91551-80618
91551-80825
91671-80820
94151-80800
94151-80841
Linked diagrams
1104
2211
