GRL12L-BEZQHA (2015)

Toyota Lexus Gs Series

Production Oct 2015 - Jul 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )2GRFKS..GRL12

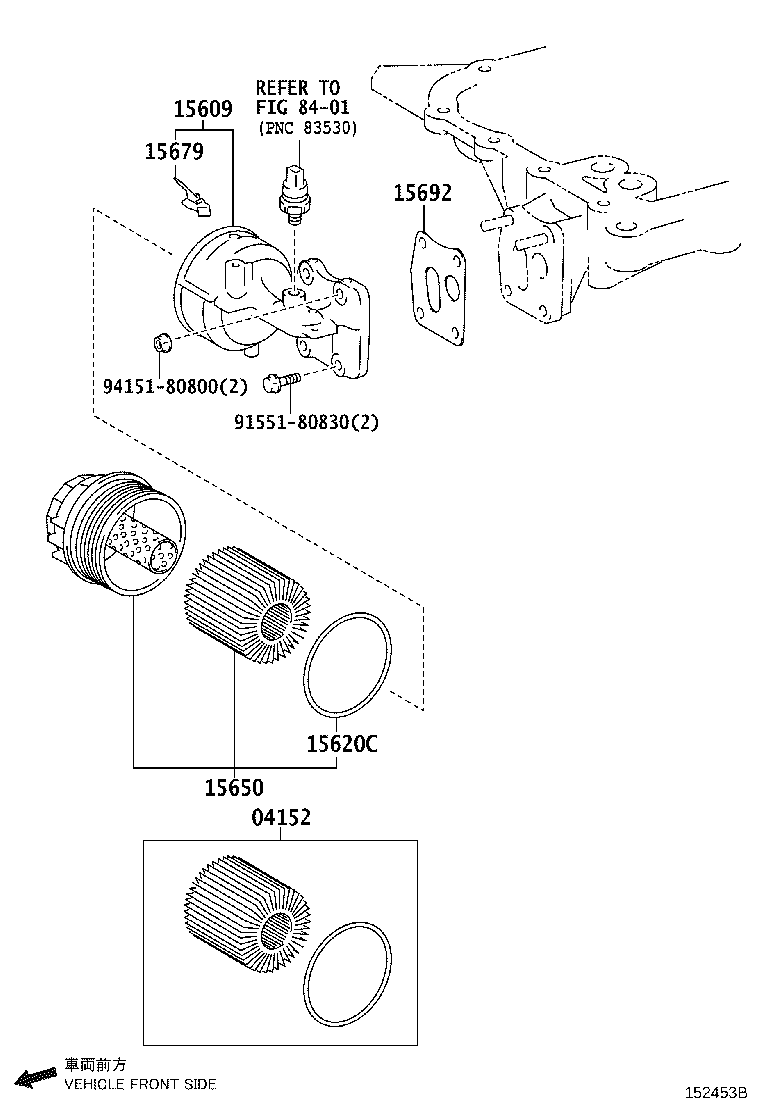

Click highlighted areas on diagram

diagram 04152 15609 15620C 15650 15679 15692 8401 9155180830 9415180800
Part # Description Qty Price
04152 - ELEMENT KIT, OIL FILTER
04152-31110

2GRFKS..GRL12

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-31051

2GRFKS..GRL12

 1
15609-31050

2GRFKS..GRL12

 1
15620C - GASKET(FOR OIL FILTER CAP)
90301-79006

2GR#..GRL1#,GWL10

 1
15650 - CAP ASSY, OIL FILTER W/ELEMEMT
15650-31060

2GRFKS..GRL12

 1
15679 - CLIP, OIL FILTER BRACKET
15679-37011

2GRFKS..GRL12

 1
15692 - GASKET, OIL FILTER BRACKET
15692-31080

2GRFKS..GRL12

 1
Common parts
91551-80830
94151-80800
Linked diagrams
8401
