GRL12L-BEZQHA (2015)

Toyota Lexus Gs Series

Production Oct 2015 - Jul 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

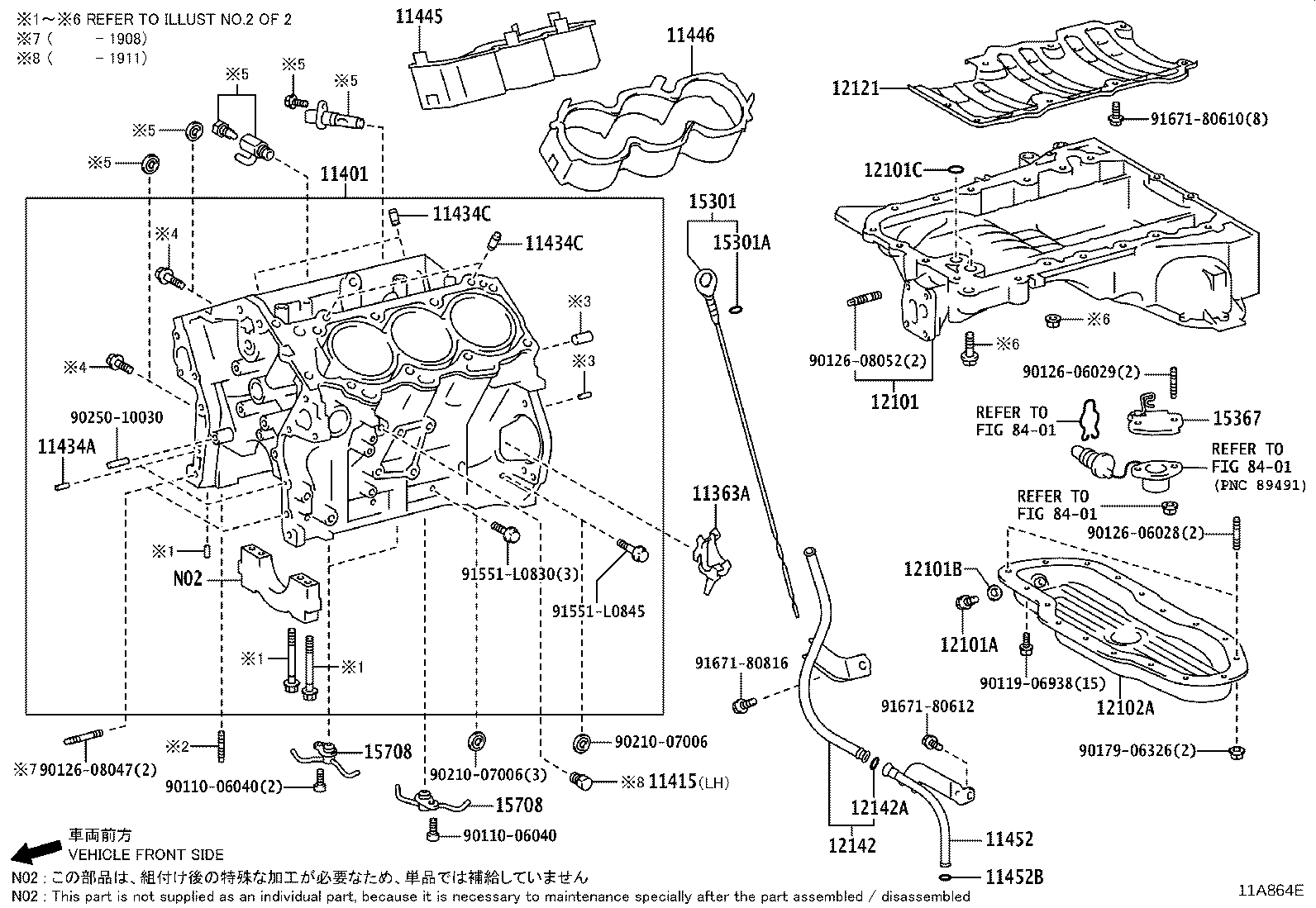

ILLUST NO. 1 OF 2(1510- )2GRFKS..GRL12

Click highlighted areas on diagram

diagram 11363A 11401 11415 11434A 11434C 11434C 11445 11446 11452 11452B 12101 12101A 12101B 12101C 12102A 12121 12142 12142A 15301 15301A 15367 15708 15708 8401 8401 8401 9011006040 9011006040 9011906938 9012606028 9012606029 9012608047 9012608052 9017906326 9021007006 9021007006 9025010030 91551L0830 91551L0845 9167180610 9167180612 9167180816
Part # Description Qty Price
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-31030

2GR#..GRL1#,GWL10

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-80836

2GRFKS..GRL1#

 1
11401-80842

2GRFKS..GRL1#

 1
11401-80863

2GRFKS..GRL1#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129

2GR#..GRL1#,GWL10

RH

 1
90345-52001

2GRFKS..GRL1#

LH

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-04097

2GR#..GRL1#,GWL10

L=12,OD=4.0

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

2GR#..GRL1#,GWL10

L=18,OD=8

 4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

2GR#..GRL1#,GWL10

L=18,OD=8

 4
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-31050

2GRFKS..GRL1#

 1
11446 - SPACER, CYLINDER BLOCK WATER JACKET, LH
11446-31050

2GRFKS..GRL1#

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-31040

2GR#..GRL12,GWL10

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
90301-12018

2GR#..GRL1#,GWL10

 1
12101 - PAN SUB-ASSY, OIL
12101-31240

2GRFKS..GRL12

 1
12101-31241

2GRFKS..GRL12

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

2GR#..GRL1#,GWL10

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

2GR#..GRL1#,GWL10

 1
12101C - RING, O(FOR OIL PAN)
12151-31010

2GR#..GRL1#,GWL10

 2
12102A - PAN SUB-ASSY, OIL, NO.2
12102-31110

2GRFKS..GRL12

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-31080

2GR#..GRL1#,GWL10

 1
12142 - GUIDE, OIL LEVEL GAGE, NO.2
12142-31011

2GRFKS..GRL12

 1
12142A - RING, O(FOR OIL LEVEL GAGE GUIDE, NO.2)
96721-19010

2GR#..GRL1#,GWL10

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-31080

2GRFKS..GRL12

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005

2GR#..GRL1#,GWL10

 1
15367 - BRACKET, OIL LEVEL SENSOR
15367-31020

2GRFKS..GRL1#

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-31050

2GR#..GRL1#,GWL10

 3
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-31050

2GR#..GRL1#,GWL10

 3
Common parts
90110-06040
90119-06938
90126-06028
90126-06029
90126-08047
90126-08052
90179-06326
90210-07006
90250-10030
91551-L0830
91551-L0845
91671-80610
91671-80612
91671-80816
Linked diagrams
8401

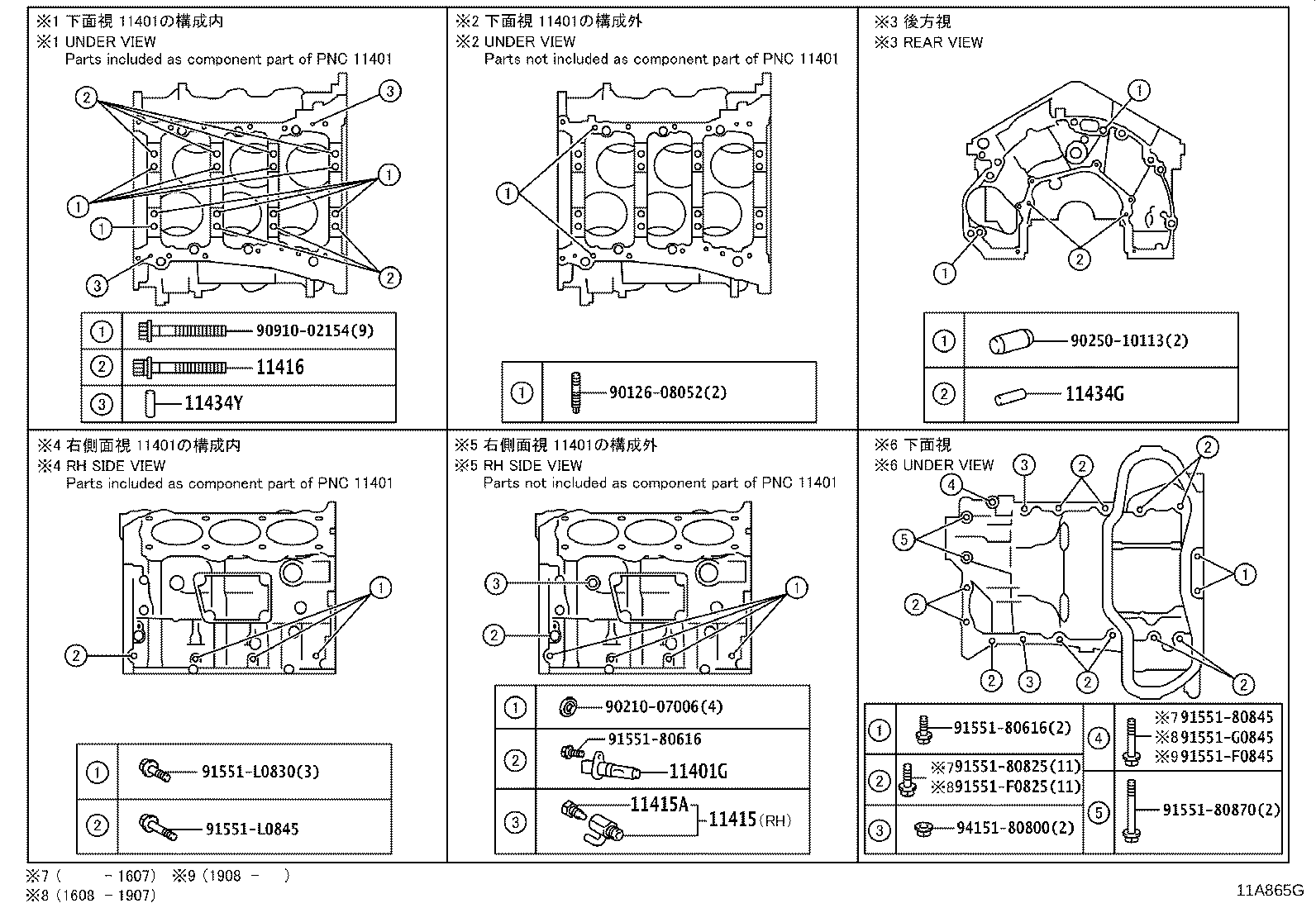

ILLUST NO. 2 OF 2(1510- )2GRFKS..GRL12

Click highlighted areas on diagram

diagram 11401G 11415 11415A 11416 11434G 11434Y 9012608052 9021007006 9025010113 9091002154 9155180616 9155180616 9155180825 9155180845 9155180870 91551F0825 91551F0845 91551G0845 91551L0830 91551L0845 9415180800
Part # Description Qty Price
11401G - SENSOR, CRANK POSITION
90919-05098

2GRFKS..GRL1#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129

2GR#..GRL1#,GWL10

RH

 1
90345-52001

2GRFKS..GRL1#

LH

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

2GR#..GRL1#,GWL10

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02153

2GR#,4GRFSE..GRL1#,GWL10

 7
90910-02153

2GR#..GRL1#,GWL10

 7
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-04097

2GRFKS..GRL1#

 2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-04097

2GR#..GRL1#,GWL10

 2
Common parts
90126-08052
90210-07006
90250-10113
90910-02154
91551-80616
91551-80825
91551-80845
91551-80870
91551-F0825
91551-F0845
91551-G0845
91551-L0830
91551-L0845
94151-80800
