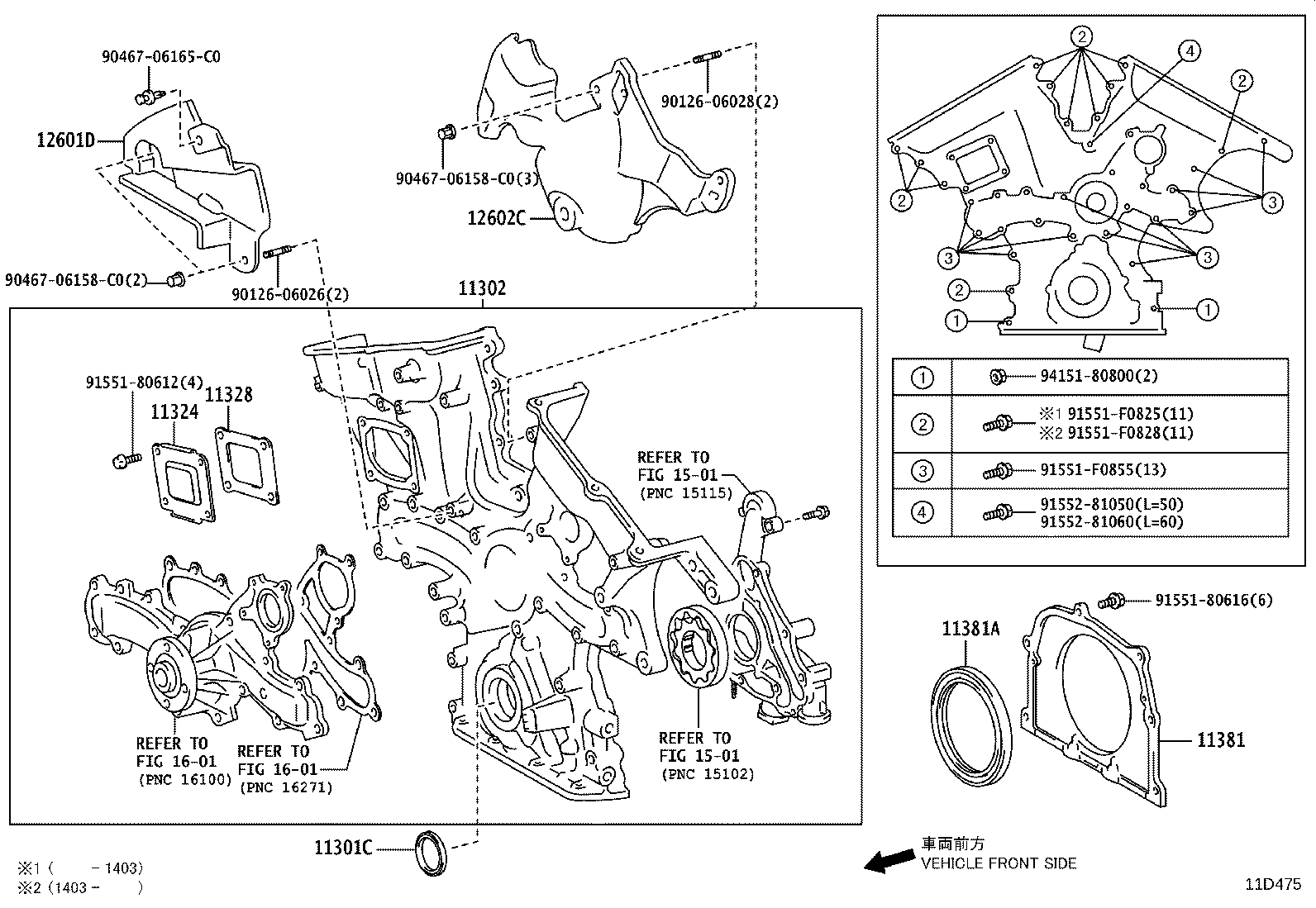

Toyota Lexus gs series GRL10 TIMING GEAR COVER & REAR END PLATE

Part #	Description	Period	Qty
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42045	2GRFSE..GRL10	12/2011 - 09/2013	1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-31042	2GRFSE..GRL10	12/2011 - 09/2013	1
11324 - PLATE, TIMING CHAIN COVER
11324-31020	2GRFSE..GRL10	12/2011 - 09/2013	1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-31030	2GRFSE..GRL10	12/2011 - 09/2013	1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-31021	2GRFSE..GRL10	12/2011 - 09/2013	1
11381A - SEAL, ENGINE REAR OIL
90311-92010	2GRFSE..GRL10	12/2011 - 09/2013	1
12601D - COVER, ENGINE, NO.1
12601-31010	2GRFSE..GRL10	12/2011 - 09/2013	1
12602C - COVER, ENGINE, NO.2
12602-31013	2GRFSE..GRL10	12/2011 - 09/2013	1
Common parts
90126-06026
90126-06028
90467-06158C0
90467-06165C0
91551-80612
91551-80616
91551-F0825
91551-F0828
91551-F0855
91552-81050
91552-81060
94151-80800
Linked diagrams
1501
1601

GRL10L-BETQHA (2011)
