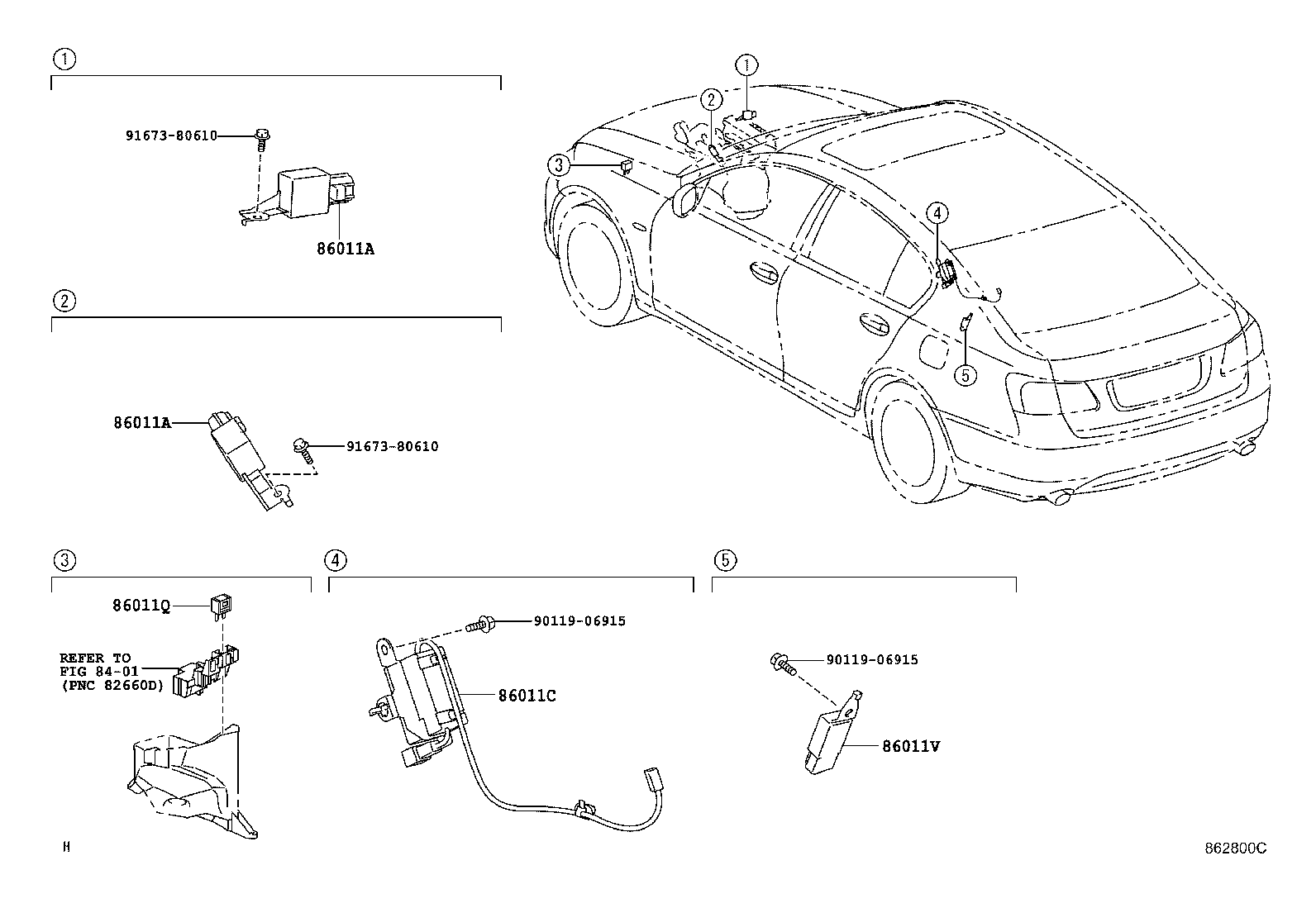

Toyota Lexus gs450h GWS191 RADIO RECEIVER & AMPLIFIER & CONDENSER

Part #	Description	Period	Qty
86011A - CONDENSER, RADIO SETTING
90980-04190	GWS191	02/2006 - 09/2007	2
86011A - CONDENSER, RADIO SETTING
90980-04190	GWS191	02/2006 - 09/2007	2
86011C - FILTER, NOISE
90980-05368	GWS191	02/2006 - 09/2007	1
86011Q - CONDENSER, RADIO SETTING
90980-04066	GWS191	02/2006 - 09/2007	1
86011V - CONDENSER, RADIO SETTING
90980-04184	GWS191	02/2006 - 09/2007	1
Common parts
90119-06915
91673-80610
Linked diagrams
8401

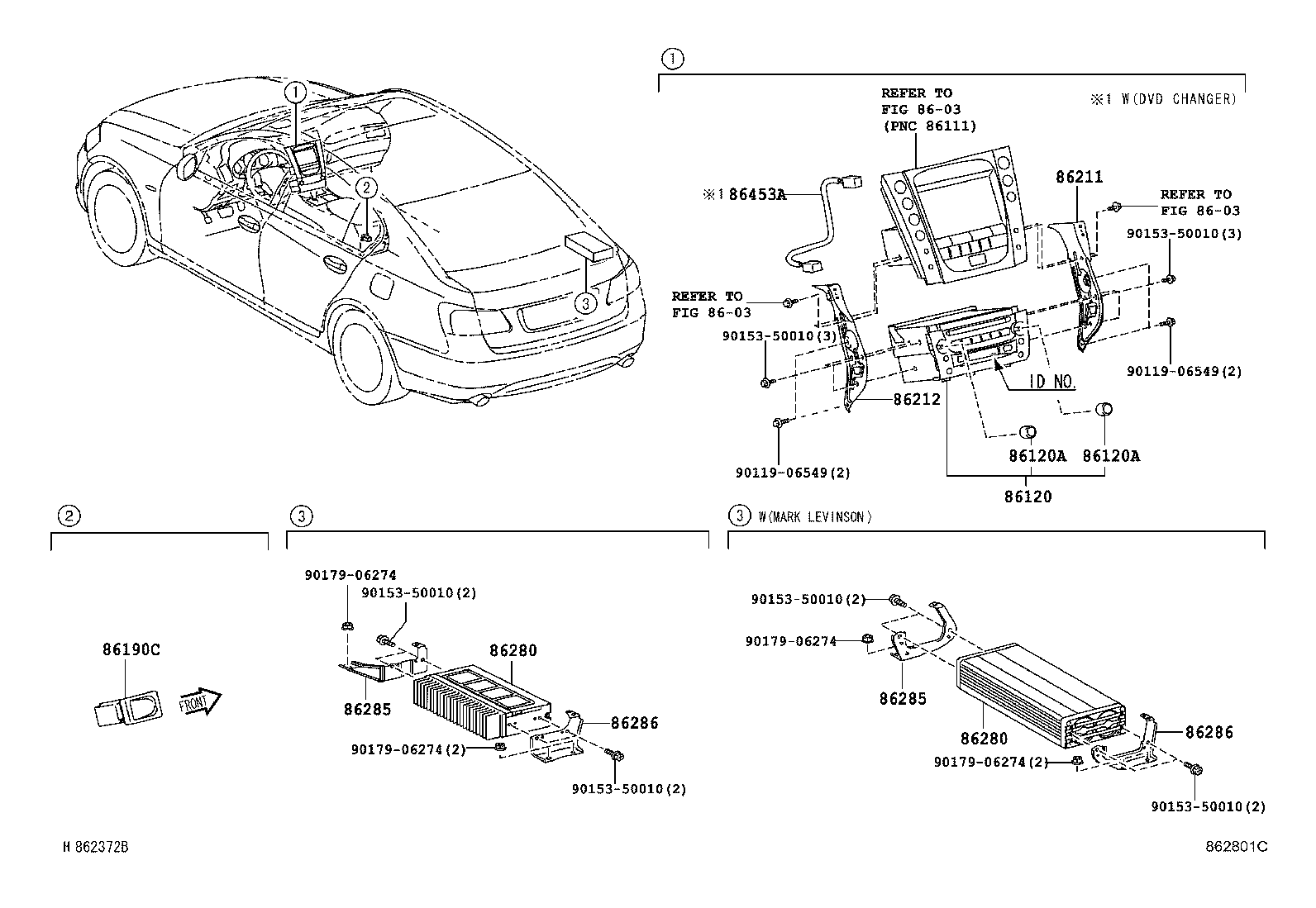

Part #	Description	Period	Qty
86120 - RECEIVER ASSY, RADIO
86120-30A80C0	GWS191 PIONEER,BLACK,TRIM1#,2#	02/2006 - 09/2007	1
86120-30A80E0	GWS191 PIONEER,ORCHID BROWN,TRIM0#	02/2006 - 09/2007	1
86120-30A70C0	GWS191 PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM1#,2#	02/2006 - 09/2007	1
86120-30A70E0	GWS191 PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM0#	02/2006 - 09/2007	1
86120A - KNOB, RADIO RECEIVER SWITCH
90010-22045	GWS191 BLACK	02/2006 - 09/2007	2
90010-22046	GWS191 BROWN	02/2006 - 09/2007	2
86120A - KNOB, RADIO RECEIVER SWITCH
90010-22045	GWS191 BLACK	02/2006 - 09/2007	2
90010-22046	GWS191 BROWN	02/2006 - 09/2007	2
86211 - BRACKET, RADIO, NO.1
86211-30300	GWS191	02/2006 - 09/2007	1
86212 - BRACKET, RADIO, NO.2
86212-30280	GWS191	02/2006 - 09/2007	1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-30520	GWS191	02/2006 - 09/2007	1
86280-0W470	GWS191 AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR	02/2006 - 09/2007	1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-30520	GWS191	02/2006 - 09/2007	1
86280-0W470	GWS191 AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR	02/2006 - 09/2007	1
86285 - BRACKET, AMPLIFIER, NO.1
86285-30290	GWS191	02/2006 - 09/2007	1
86285-30300	GWS191 AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR	02/2006 - 09/2007	1
86285 - BRACKET, AMPLIFIER, NO.1
86285-30290	GWS191	02/2006 - 09/2007	1
86285-30300	GWS191 AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR	02/2006 - 09/2007	1
86286 - BRACKET, AMPLIFIER, NO.2
86286-30060	GWS191	02/2006 - 09/2007	1
86286-30070	GWS191 AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR	02/2006 - 09/2007	1
86286 - BRACKET, AMPLIFIER, NO.2
86286-30060	GWS191	02/2006 - 09/2007	1
86286-30070	GWS191 AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR	02/2006 - 09/2007	1
86453A - WIRE, MULTI-MEDIA MODULE
86453-30040	GWS191 AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR	02/2006 - 09/2007	1
Common parts
90119-06549
90153-50010
90179-06274
Linked diagrams
8603

GWS191L-BEXQHA (2006)

ILLUST NO. 2 OF 2(0602- )

ILLUST NO. 1 OF 2(0602-0909)
