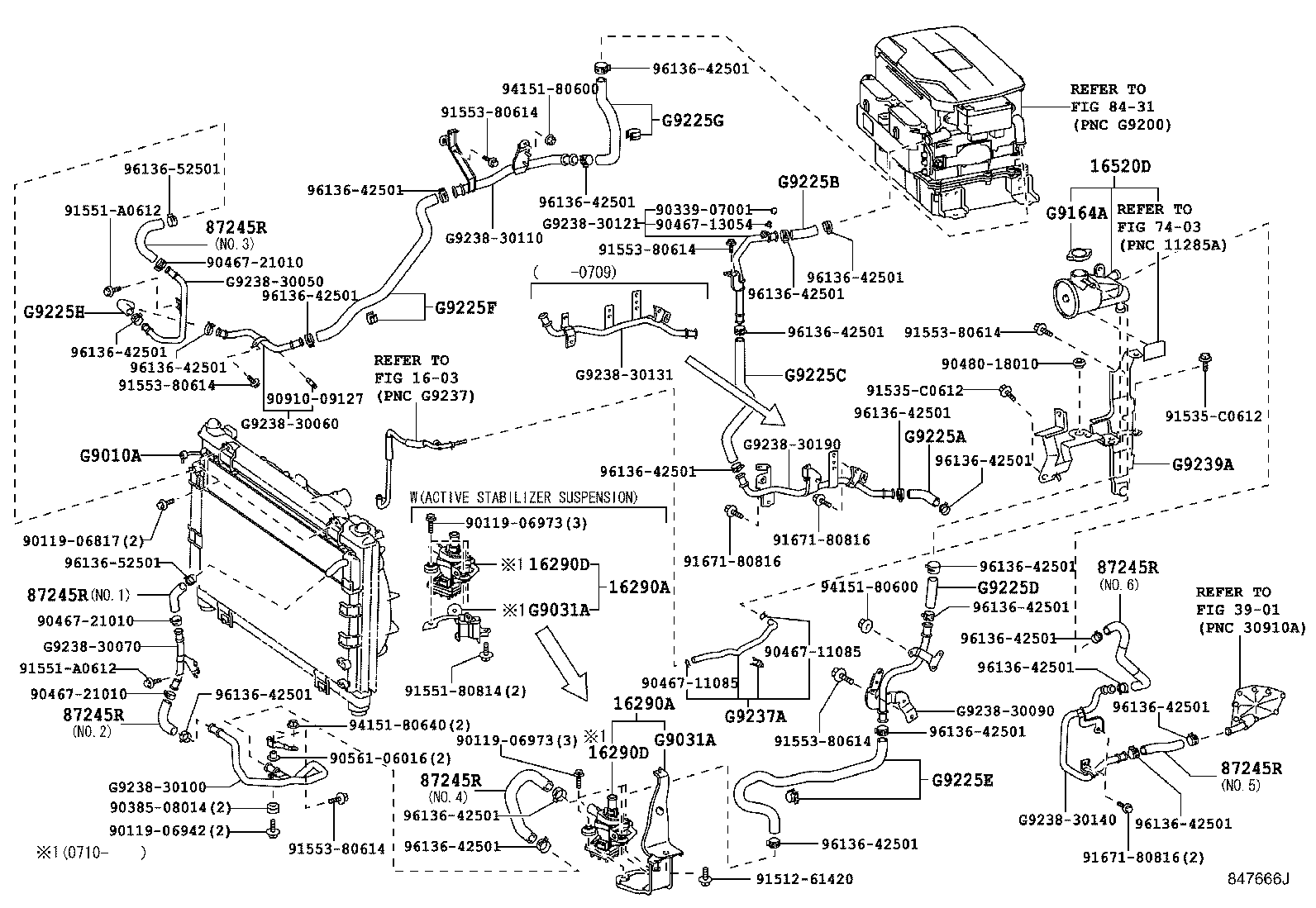

Toyota Lexus gs450h GWS191 INVERTER COOLING

Part #	Description	Period	Qty
16290A - PUMP ASSY, WATER W/MOTOR & BRACKET
G9020-30020	2GRFSE..GWS191 STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)	02/2006 - 09/2007	1
G9020-30030	2GRFSE..GWS191	02/2006 - 09/2007	1
16290A - PUMP ASSY, WATER W/MOTOR & BRACKET
G9020-30020	2GRFSE..GWS191 STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)	02/2006 - 09/2007	1
G9020-30030	2GRFSE..GWS191	02/2006 - 09/2007	1
16520D - FILLER ASSY, WATER
16520-31010	2GRFSE..GWS191	02/2006 - 09/2007	1
87245R - HOSE, WATER
G9225-30150	GWS191 NO.4	02/2006 - 09/2007	1
G9225-30070	GWS191 NO.5	02/2006 - 09/2007	1
G9225-30140	GWS191 NO.2	02/2006 - 09/2007	1
G9225-30110	GWS191 NO.3	02/2006 - 09/2007	1
G9225-30130	GWS191 NO.1	02/2006 - 09/2007	1
G9225-30200	GWS191 NO.6	02/2006 - 09/2007	1
87245R - HOSE, WATER
G9225-30150	GWS191 NO.4	02/2006 - 09/2007	1
G9225-30070	GWS191 NO.5	02/2006 - 09/2007	1
G9225-30140	GWS191 NO.2	02/2006 - 09/2007	1
G9225-30110	GWS191 NO.3	02/2006 - 09/2007	1
G9225-30130	GWS191 NO.1	02/2006 - 09/2007	1
G9225-30200	GWS191 NO.6	02/2006 - 09/2007	1
87245R - HOSE, WATER
G9225-30150	GWS191 NO.4	02/2006 - 09/2007	1
G9225-30070	GWS191 NO.5	02/2006 - 09/2007	1
G9225-30140	GWS191 NO.2	02/2006 - 09/2007	1
G9225-30110	GWS191 NO.3	02/2006 - 09/2007	1
G9225-30130	GWS191 NO.1	02/2006 - 09/2007	1
G9225-30200	GWS191 NO.6	02/2006 - 09/2007	1
87245R - HOSE, WATER
G9225-30150	GWS191 NO.4	02/2006 - 09/2007	1
G9225-30070	GWS191 NO.5	02/2006 - 09/2007	1
G9225-30140	GWS191 NO.2	02/2006 - 09/2007	1
G9225-30110	GWS191 NO.3	02/2006 - 09/2007	1
G9225-30130	GWS191 NO.1	02/2006 - 09/2007	1
G9225-30200	GWS191 NO.6	02/2006 - 09/2007	1
87245R - HOSE, WATER
G9225-30150	GWS191 NO.4	02/2006 - 09/2007	1
G9225-30070	GWS191 NO.5	02/2006 - 09/2007	1
G9225-30140	GWS191 NO.2	02/2006 - 09/2007	1
G9225-30110	GWS191 NO.3	02/2006 - 09/2007	1
G9225-30130	GWS191 NO.1	02/2006 - 09/2007	1
G9225-30200	GWS191 NO.6	02/2006 - 09/2007	1
87245R - HOSE, WATER
G9225-30150	GWS191 NO.4	02/2006 - 09/2007	1
G9225-30070	GWS191 NO.5	02/2006 - 09/2007	1
G9225-30140	GWS191 NO.2	02/2006 - 09/2007	1
G9225-30110	GWS191 NO.3	02/2006 - 09/2007	1
G9225-30130	GWS191 NO.1	02/2006 - 09/2007	1
G9225-30200	GWS191 NO.6	02/2006 - 09/2007	1
G9010A - RADIATOR ASSY
G9010-30010	GWS191	02/2006 - 09/2007	1
G9031A - BRACKET SUB-ASSY, HV WATER PUMP
G9031-30010	GWS191	02/2006 - 09/2007	1
G9031A - BRACKET SUB-ASSY, HV WATER PUMP
G9031-30010	GWS191	02/2006 - 09/2007	1
G9164A - CAP, INVERTER RADIATOR
G9164-28010	GWS191	02/2006 - 09/2007	1
G9225A - HOSE, INVERTER COOLING, NO.7
G9225-30091	GWS191	02/2006 - 09/2007	1
G9225B - HOSE, INVERTER COOLING, NO.8
G9225-30181	GWS191	02/2006 - 09/2007	1
G9225C - HOSE, INVERTER COOLING, NO.9
G9225-30191	GWS191	02/2006 - 09/2007	1
G9225D - HOSE, INVERTER COOLING, NO.10
G9225-30040	GWS191	02/2006 - 09/2007	1
G9225E - HOSE, INVERTER COOLING, NO.11
G9225-30051	GWS191	02/2006 - 09/2007	1
G9225F - HOSE, INVERTER COOLING, NO.12
G9225-30161	GWS191	02/2006 - 09/2007	1
G9225G - HOSE, INVERTER COOLING, NO.13
G9225-30170	GWS191	02/2006 - 09/2007	1
G9225H - HOSE, INVERTER COOLING, NO.14
G9225-30120	GWS191	02/2006 - 09/2007	1
G9237A - HOSE, INVERTER DRAIN
G9237-30020	GWS191	02/2006 - 09/2007	1
G9239A - BRACKET, INVERTER COOLING PIPE
G9239-30020	GWS191	02/2006 - 09/2007	1
Common parts
90119-06817
90119-06942
90119-06973
90339-07001
90385-08014
90467-11085
90467-13054
90467-21010
90480-18010
90561-06016
90910-09127
91512-61420
91535-C0612
91551-80814
91551-A0612
91553-80614
91671-80816
94151-80600
94151-80640
96136-42501
96136-52501
G9238-30050
G9238-30060
G9238-30070
G9238-30090
G9238-30100
G9238-30110
G9238-30121
G9238-30131
G9238-30140
G9238-30190
Linked diagrams
1603
3901
7403
8431

GWS191L-BEXQHA (2006)

(0602- )
