Toyota Lexus gs450h GWS191 REAR DOOR PANEL & GLASS

Manufacturers Home
Toyota
US
LEXUS GS450H
GWS191L-BEXQHA (2006)
6705 - REAR DOOR PANEL & GLASS

GWS191L-BEXQHA (2006)

Toyota Lexus Gs450h

Production Feb 2006 - Sep 2007

Engine 2GRFSE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

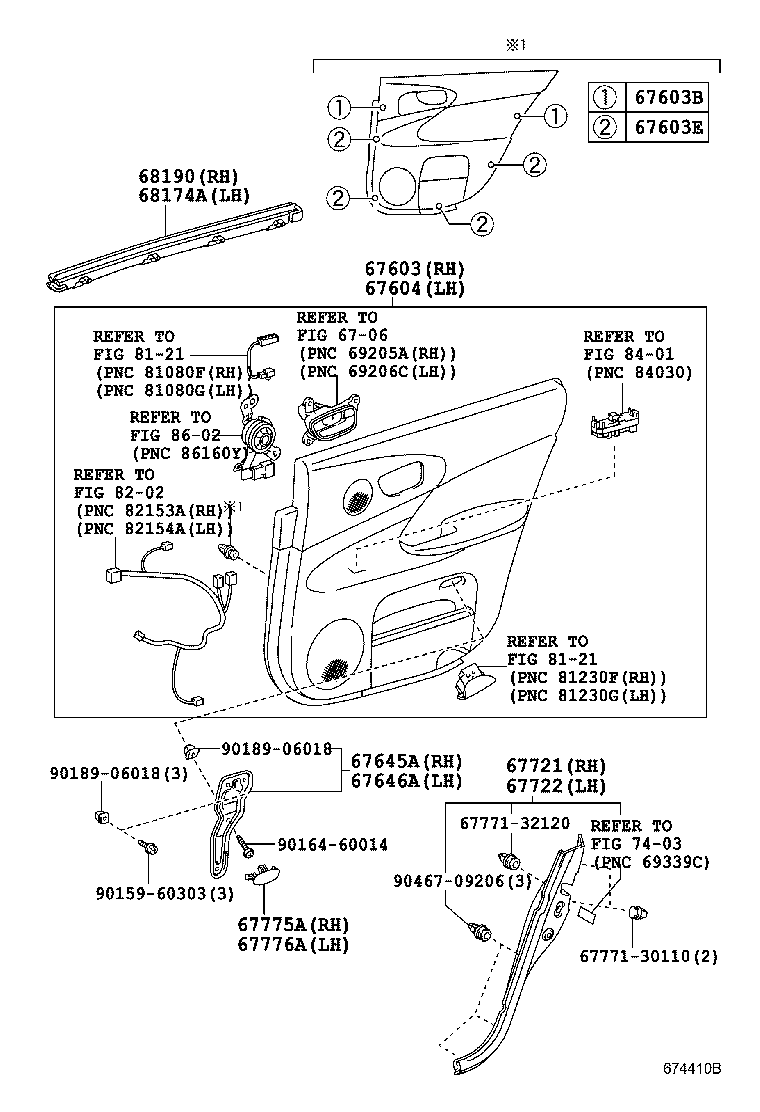

ILLUST NO. 2 OF 2(0602- )

Click highlighted areas on diagram

DOOR TRIM

Part #	Description	Period	Qty
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-30C51C0	GWS191 SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM1#	02/2006 - 09/2007	1
67630-30C51C2	GWS191 SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM2#	02/2006 - 09/2007	1
67630-30C31C1	GWS191 AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM2#	02/2006 - 09/2007	1
67630-30C51E0	GWS191 SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM0#	02/2006 - 09/2007	1
67630-30C41C2	GWS191 SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#	02/2006 - 09/2007	1
67630-30C41E0	GWS191 SEAT COVER MATERIAL-LEATHER,ORCHID BROWN,TRIM0#	02/2006 - 09/2007	1
67630-30C21C1	GWS191 BLACK,TRIM2#	02/2006 - 09/2007	1
67630-30C41C0	GWS191 SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#	02/2006 - 09/2007	1
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
90467-09203	GWS191	02/2006 - 09/2007	4
67603E - CLIP(FOR REAR DOOR TRIM BOARD)
90467-09206	GWS191	02/2006 - 09/2007	8
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-30C21C1	GWS191 BLACK,TRIM2#	02/2006 - 09/2007	1
67640-30C41C0	GWS191 SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#	02/2006 - 09/2007	1
67640-30C31C1	GWS191 AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM2#	02/2006 - 09/2007	1
67640-30C51C2	GWS191 SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM2#	02/2006 - 09/2007	1
67640-30C41C2	GWS191 SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#	02/2006 - 09/2007	1
67640-30C51E0	GWS191 SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM0#	02/2006 - 09/2007	1
67640-30C41E0	GWS191 SEAT COVER MATERIAL-LEATHER,ORCHID BROWN,TRIM0#	02/2006 - 09/2007	1
67640-30C51C0	GWS191 SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM1#	02/2006 - 09/2007	1
67645A - BRACKET, REAR DOOR ARMREST SET, RH
67646-30180	GWS191	02/2006 - 09/2007	1
67646A - BRACKET, REAR DOOR ARMREST SET, LH
67646-30190	GWS191	02/2006 - 09/2007	1
67721 - COVER, REAR DOOR TRIM, RH
67721-30210A0	GWS191 SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#	02/2006 - 03/2007	1
67721-30210B0	GWS191 SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#	02/2006 - 03/2007	1
67721-30211B0	GWS191 SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#	04/2007 - 09/2007	1
67721-30210A0	GWS191 SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,IVORY,TRIM0#	02/2006 - 03/2007	1
67721-30211C0	GWS191 BLACK,TRIM2#	04/2007 - 09/2007	1
67721-30211B0	GWS191 SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,GRAY,TRIM1#	04/2007 - 09/2007	1
67721-30211A0	GWS191 SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#	04/2007 - 09/2007	1
67721-30210C0	GWS191 BLACK,TRIM2#	02/2006 - 03/2007	1
67721-30211A0	GWS191 SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,IVORY,TRIM0#	04/2007 - 09/2007	1
67721-30210B0	GWS191 SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,GRAY,TRIM1#	02/2006 - 03/2007	1
67722 - COVER, REAR DOOR TRIM, LH
67722-30200A0	GWS191 SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,IVORY,TRIM0#	02/2006 - 03/2007	1
67722-30201A0	GWS191 SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#	04/2007 - 09/2007	1
67722-30201B0	GWS191 SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,GRAY,TRIM1#	04/2007 - 09/2007	1
67722-30200B0	GWS191 SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,GRAY,TRIM1#	02/2006 - 03/2007	1
67722-30200B0	GWS191 SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#	02/2006 - 03/2007	1
67722-30201A0	GWS191 SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,IVORY,TRIM0#	04/2007 - 09/2007	1
67722-30201B0	GWS191 SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#	04/2007 - 09/2007	1
67722-30200C0	GWS191 BLACK,TRIM2#	02/2006 - 03/2007	1
67722-30201C0	GWS191 BLACK,TRIM2#	04/2007 - 09/2007	1
67722-30200A0	GWS191 SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#	02/2006 - 03/2007	1
67775A - COVER, REAR DOOR TRIM, LOWER RH
67775-30030A0	GWS191 SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#	02/2006 - 09/2007	1
67775-30030B0	GWS191 SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#	02/2006 - 09/2007	1
67775-30030B0	GWS191 SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,GRAY,TRIM1#	02/2006 - 09/2007	1
67775-30030C0	GWS191 BLACK,TRIM2#	02/2006 - 09/2007	1
67775-30030A0	GWS191 SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,IVORY,TRIM0#	02/2006 - 09/2007	1
67776A - COVER, REAR DOOR TRIM, LOWER LH
67776-30020A0	GWS191 SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,IVORY,TRIM0#	02/2006 - 09/2007	1
67776-30020B0	GWS191 SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#	02/2006 - 09/2007	1
67776-30020B0	GWS191 SEAT COVER MATERIAL-LEATHER&AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,GRAY,TRIM1#	02/2006 - 09/2007	1
67776-30020C0	GWS191 BLACK,TRIM2#	02/2006 - 09/2007	1
67776-30020A0	GWS191 SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#	02/2006 - 09/2007	1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-30130	GWS191	02/2006 - 09/2007	1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68173-30170	GWS191	02/2006 - 09/2007	1
Common parts
67771-30110
67771-32120
90159-60303
90164-60014
90189-06018
90467-09206
Linked diagrams
6706
7403
8121
8202
8401
8602

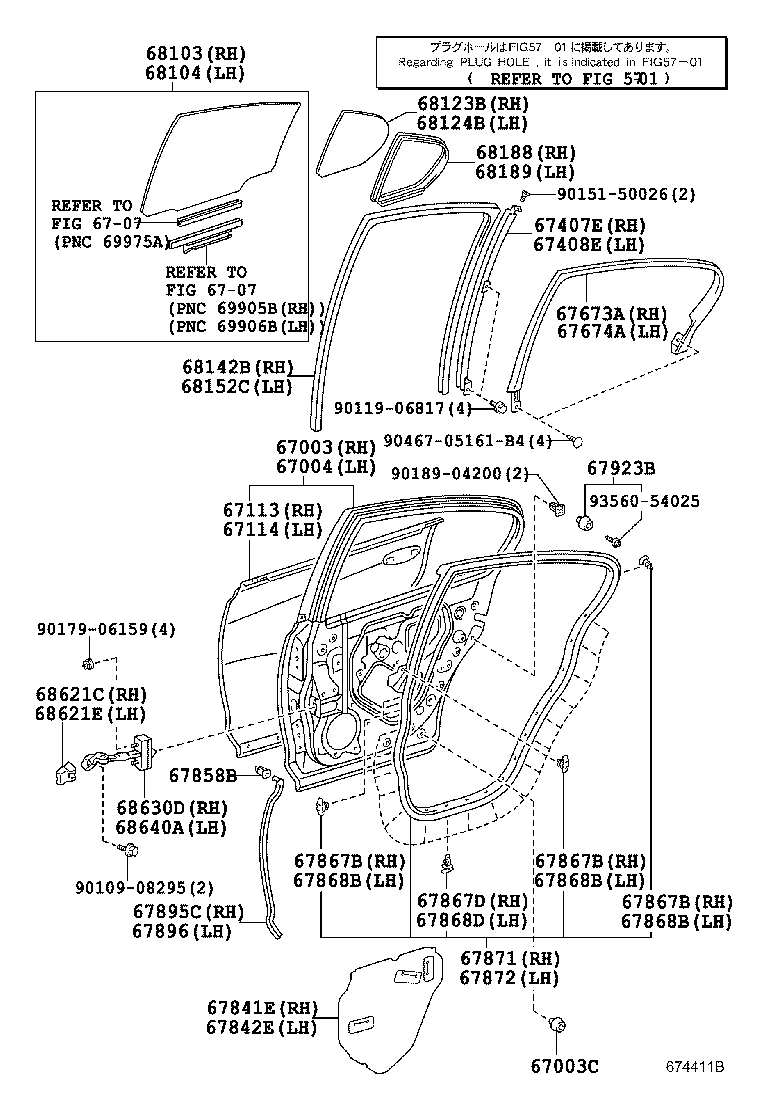

ILLUST NO. 1 OF 2(0602- )

Click highlighted areas on diagram

DOOR PANEL

Part #	Description	Period	Qty
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-30600	GWS191	02/2006 - 09/2007	1
67003C - CUSHION, REAR DOOR PANEL
90541-09069	GWS191	02/2006 - 09/2007	2
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-30600	GWS191	02/2006 - 09/2007	1
67113 - PANEL, REAR DOOR, OUTER RH
67113-30400	GWS191	02/2006 - 09/2007	1
67114 - PANEL, REAR DOOR, OUTER LH
67114-30410	GWS191	02/2006 - 09/2007	1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-30210	GWS191	02/2006 - 09/2007	1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-30200	GWS191	02/2006 - 09/2007	1
67673A - GARNISH, REAR DOOR FRAME, RH
67673-30111	GWS191	02/2006 - 09/2007	1
67674A - GARNISH, REAR DOOR FRAME, LH
67674-30111	GWS191	02/2006 - 09/2007	1
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-30420	GWS191	02/2006 - 09/2007	1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-30280	GWS191	02/2006 - 09/2007	1
67858B - PROTECTOR, REAR DOOR PANEL, LH
67857-30040	GWS191	02/2006 - 09/2007	2
67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
90467-04034	GWS191 WHITE	02/2006 - 09/2007	3
90467-05162B0	GWS191 DK.GRAY,BLACK	02/2006 - 09/2007	1
67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
90467-04034	GWS191 WHITE	02/2006 - 09/2007	3
90467-05162B0	GWS191 DK.GRAY,BLACK	02/2006 - 09/2007	1
67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
90467-04034	GWS191 WHITE	02/2006 - 09/2007	3
90467-05162B0	GWS191 DK.GRAY,BLACK	02/2006 - 09/2007	1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150	GWS191	02/2006 - 09/2007	17
67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
90467-04034	GWS191 WHITE	02/2006 - 09/2007	3
90467-05162B0	GWS191 DK.GRAY,BLACK	02/2006 - 09/2007	1
67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
90467-04034	GWS191 WHITE	02/2006 - 09/2007	3
90467-05162B0	GWS191 DK.GRAY,BLACK	02/2006 - 09/2007	1
67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
90467-04034	GWS191 WHITE	02/2006 - 09/2007	3
90467-05162B0	GWS191 DK.GRAY,BLACK	02/2006 - 09/2007	1
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150	GWS191	02/2006 - 09/2007	17
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-30290	GWS191	02/2006 - 09/2007	1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-30300	GWS191	02/2006 - 09/2007	1
67895C - WEATHERSTRIP, REAR DOOR, NO.3 RH
67895-30020	GWS191	02/2006 - 09/2007	1
67896 - WEATHERSTRIP, REAR DOOR, NO.3 LH
67896-30020	GWS191	02/2006 - 09/2007	1
67923B - CUSHION, REAR DOOR STIFFENER, NO.1
67923-24030	GWS191	02/2006 - 09/2007	2
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68103-30680	GWS191 *UVCT,T=4.0,GREEN	02/2006 - 09/2007	1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68104-30680	GWS191 *UVCT,T=4.0,GREEN	02/2006 - 09/2007	1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-30610	GWS191 *UVCT,T=4.0,GREEN	02/2006 - 09/2007	1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-30550	GWS191 *UVCT,T=4.0,GREEN	02/2006 - 09/2007	1
68142B - RUN, REAR DOOR WINDOW, RH
68142-30200	GWS191	02/2006 - 09/2007	1
68152C - RUN, REAR DOOR GLASS, LH
68152-30110	GWS191	02/2006 - 09/2007	1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-30180	GWS191	02/2006 - 09/2007	1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-30160	GWS191	02/2006 - 09/2007	1
68621C - COVER, REAR DOOR CHECK, RH
68621-33010	GWS191	02/2006 - 09/2007	1
68621E - COVER, REAR DOOR CHECK, LH
68622-33010	GWS191	02/2006 - 09/2007	1
68630D - CHECK ASSY, REAR DOOR, RH
68630-30200	GWS191	02/2006 - 09/2007	1
68640A - CHECK ASSY, REAR DOOR, LH
68640-30100	GWS191	02/2006 - 09/2007	1
Common parts
90109-08295
90119-06817
90151-50026
90179-06159
90189-04200
90467-05161B4
93560-54025
Linked diagrams
5701
6707
