Toyota Lexus gs450h GWS191 REAR BUMPER & BUMPER STAY

Part #	Description	Period	Qty
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-30330	GWS191	02/2006 - 09/2007	1
52151E - BAR, REAR BUMPER
52151-30220	GWS191 NO PAINT REQ.	02/2006 - 09/2007	1
52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH
52155-30080	GWS191	02/2006 - 09/2007	1
52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH
52156-30050	GWS191	02/2006 - 09/2007	1
52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-30061	GWS191	02/2006 - 09/2007	1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-30081	GWS191	02/2006 - 09/2007	1
52159 - COVER, REAR BUMPER
52159-30935	GWS191 PAINT REQ.	02/2006 - 09/2007	1
52159-30934	GWS191 PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT	02/2006 - 09/2007	1
52161A - PIECE, REAR BUMPER, RH
52161-30902	GWS191	02/2006 - 09/2007	1
52161B - PIECE, REAR BUMPER
52161-16010	GWS191	02/2006 - 09/2007	4
52162A - PIECE, REAR BUMPER, LH
52162-30902	GWS191	02/2006 - 09/2007	1
52162B - PLATE, REAR BUMPER, NO.1
52162-30906	GWS191	02/2006 - 09/2007	2
52187A - REINFORCEMENT, REAR BUMPER ARM, RH
52187-30090	GWS191	02/2006 - 09/2007	1
52188A - REINFORCEMENT, REAR BUMPER ARM, LH
52188-30110	GWS191	02/2006 - 09/2007	1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-30040	GWS191	02/2006 - 09/2007	1
52197B - BRACKET, REAR BUMPER SEAL, LH
52197-30040	GWS191	02/2006 - 09/2007	1
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-30120	GWS191	02/2006 - 09/2007	1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-30070	GWS191	02/2006 - 09/2007	1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-30180	GWS191	02/2006 - 09/2007	1
52576 - RETAINER, REAR BUMPER SIDE, LH
52575-30180	GWS191	02/2006 - 09/2007	1
52581B - PROTECTOR, REAR BUMPER
52581-30060	GWS191	02/2006 - 09/2007	2
52581B - PROTECTOR, REAR BUMPER
52581-30060	GWS191	02/2006 - 09/2007	2
52615 - ABSORBER, REAR BUMPER ENERGY
52615-30240	GWS191	02/2006 - 09/2007	1
Common parts
90159-60498
90159-60500
90189-06066
90189-06148
91635-B0835

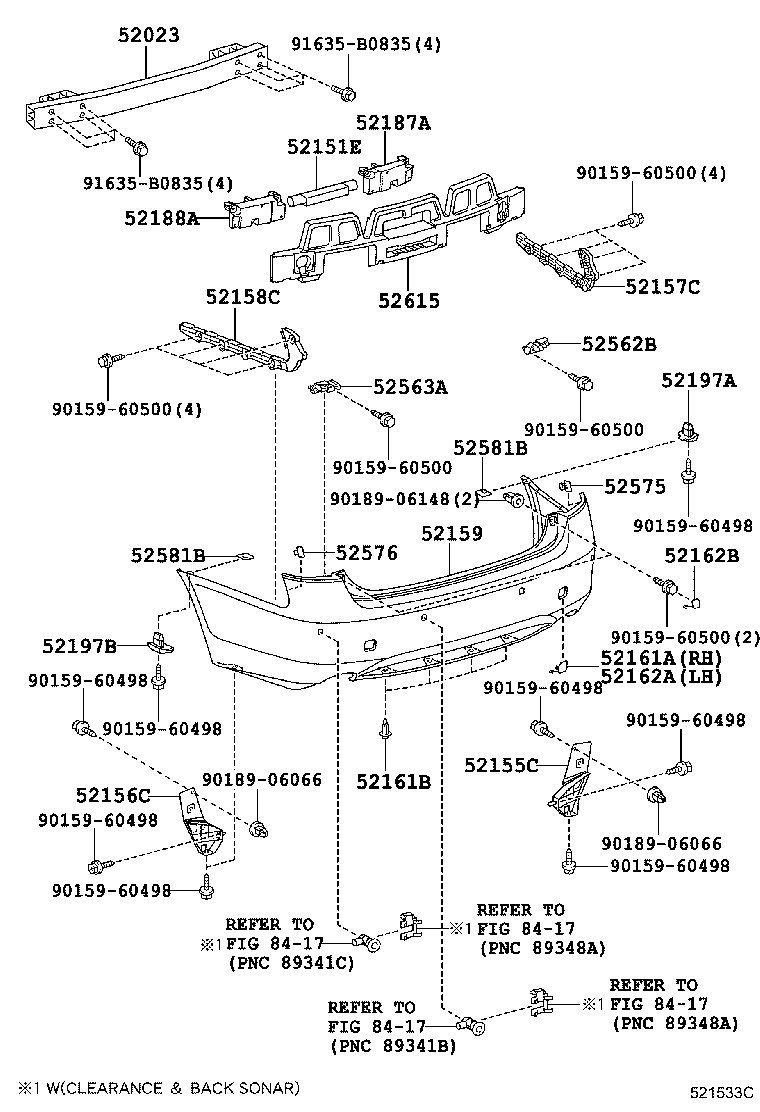

Linked diagrams
8417

GWS191L-BEXQHA (2006)

(0602-0709)
