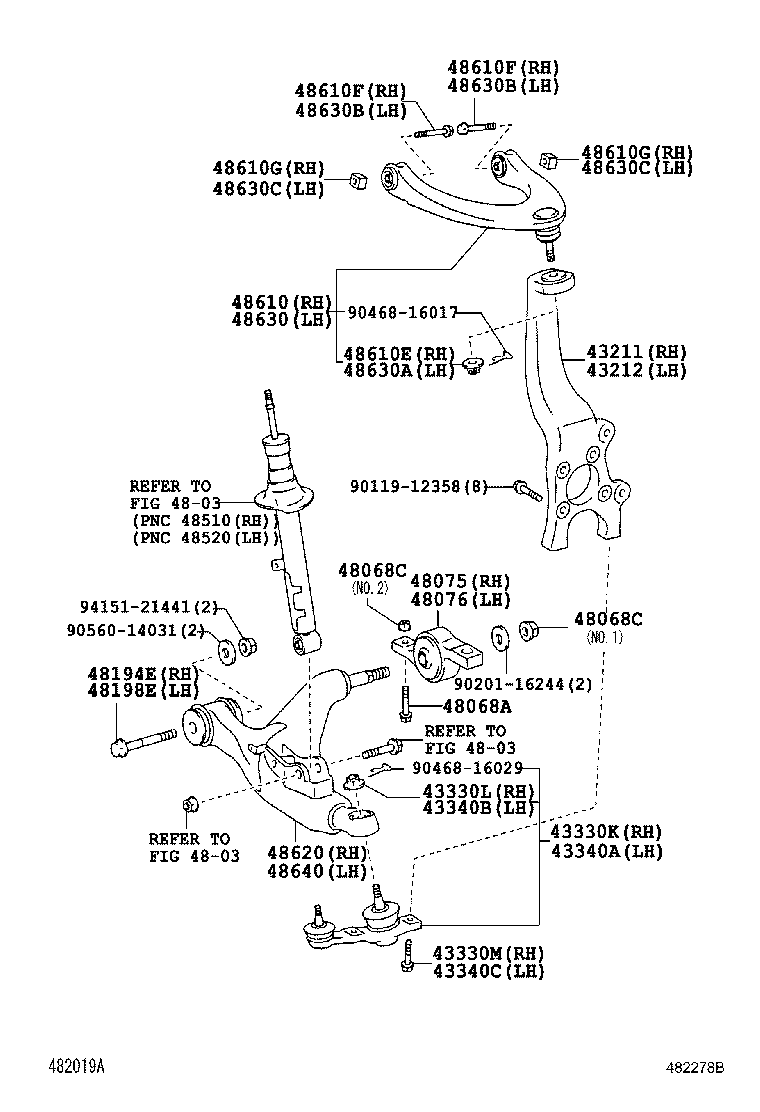

Toyota Lexus gs450h GWS191 FRONT AXLE ARM & STEERING KNUCKLE

Part #	Description	Period	Qty
43211 - KNUCKLE, STEERING, RH
43201-30010	GWS191	02/2006 - 09/2007	1
43212 - KNUCKLE, STEERING, LH
43202-30020	GWS191	02/2006 - 09/2007	1
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-39625	GWS191	02/2006 - 09/2007	1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14011	GWS191	02/2006 - 09/2007	1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
91552-L1455	GWS191	02/2006 - 09/2007	2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43340-39505	GWS191	02/2006 - 09/2007	1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14011	GWS191	02/2006 - 09/2007	1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
91552-L1455	GWS191	02/2006 - 09/2007	2
48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM)
91552-L1265	GWS191	02/2006 - 09/2007	2
48068C - NUT(FOR FRONT SUSPENSION LOWER ARM)
94151-21601	GWS191 NO.1	02/2006 - 09/2007	2
94151-21240	GWS191 NO.2	02/2006 - 09/2007	2
48068C - NUT(FOR FRONT SUSPENSION LOWER ARM)
94151-21601	GWS191 NO.1	02/2006 - 09/2007	2
94151-21240	GWS191 NO.2	02/2006 - 09/2007	2
48075 - BRACKET SUB-ASSY, LWR ARM, NO,1
48075-30030	GWS191 OFFSET:0,REFER R/M	02/2006 - 09/2007	1
48075-30050	GWS191 OFFSET:-20,REFER R/M	02/2006 - 09/2007	1
48075-30040	GWS191 OFFSET:+20,REFER R/M	02/2006 - 09/2007	1
48076 - BRACKET SUB-ASSY, LWR ARM, NO.2
48076-30050	GWS191 OFFSET:-20,REFER R/M	02/2006 - 09/2007	1
48076-30040	GWS191 OFFSET:+20,REFER R/M	02/2006 - 09/2007	1
48076-30030	GWS191 OFFSET:0,REFER R/M	02/2006 - 09/2007	1
48194E - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH
90105-14166	GWS191	02/2006 - 09/2007	1
48198E - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH
90105-14166	GWS191	02/2006 - 09/2007	1
48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH
48610-39125	GWS191	02/2006 - 09/2007	1
48610E - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH)
90171-12012	GWS191	02/2006 - 09/2007	1
48610F - BOLT(FOR FRONT SUSPENSION UPPER ARM RH)
91672-G1070	GWS191	02/2006 - 09/2007	2
48610F - BOLT(FOR FRONT SUSPENSION UPPER ARM RH)
91672-G1070	GWS191	02/2006 - 09/2007	2
48610G - NUT(FOR FRONT SUSPENSION UPPER ARM RH)
90173-10012	GWS191	02/2006 - 09/2007	2
48610G - NUT(FOR FRONT SUSPENSION UPPER ARM RH)
90173-10012	GWS191	02/2006 - 09/2007	2
48620 - ARM ASSY, FRONT SUSPENSION, LOWER RH
48620-30290	GWS191	02/2006 - 09/2007	1
48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH
48630-39085	GWS191	02/2006 - 09/2007	1
48630A - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH)
90171-12012	GWS191	02/2006 - 09/2007	1
48630B - BOLT(FOR FRONT SUSPENSION UPPER ARM LH)
91672-G1070	GWS191	02/2006 - 09/2007	2
48630B - BOLT(FOR FRONT SUSPENSION UPPER ARM LH)
91672-G1070	GWS191	02/2006 - 09/2007	2
48630C - NUT(FOR FRONT SUSPENSION UPPER ARM LH)
90173-10012	GWS191	02/2006 - 09/2007	2
48630C - NUT(FOR FRONT SUSPENSION UPPER ARM LH)
90173-10012	GWS191	02/2006 - 09/2007	2
48640 - ARM ASSY, FRONT SUSPENSION LOWER, LH
48640-30290	GWS191	02/2006 - 09/2007	1
Common parts
90119-12358
90201-16244
90468-16017
90468-16029
90560-14031
94151-21441
Linked diagrams
4803

GWS191L-BEXQHA (2006)

(0602- )
