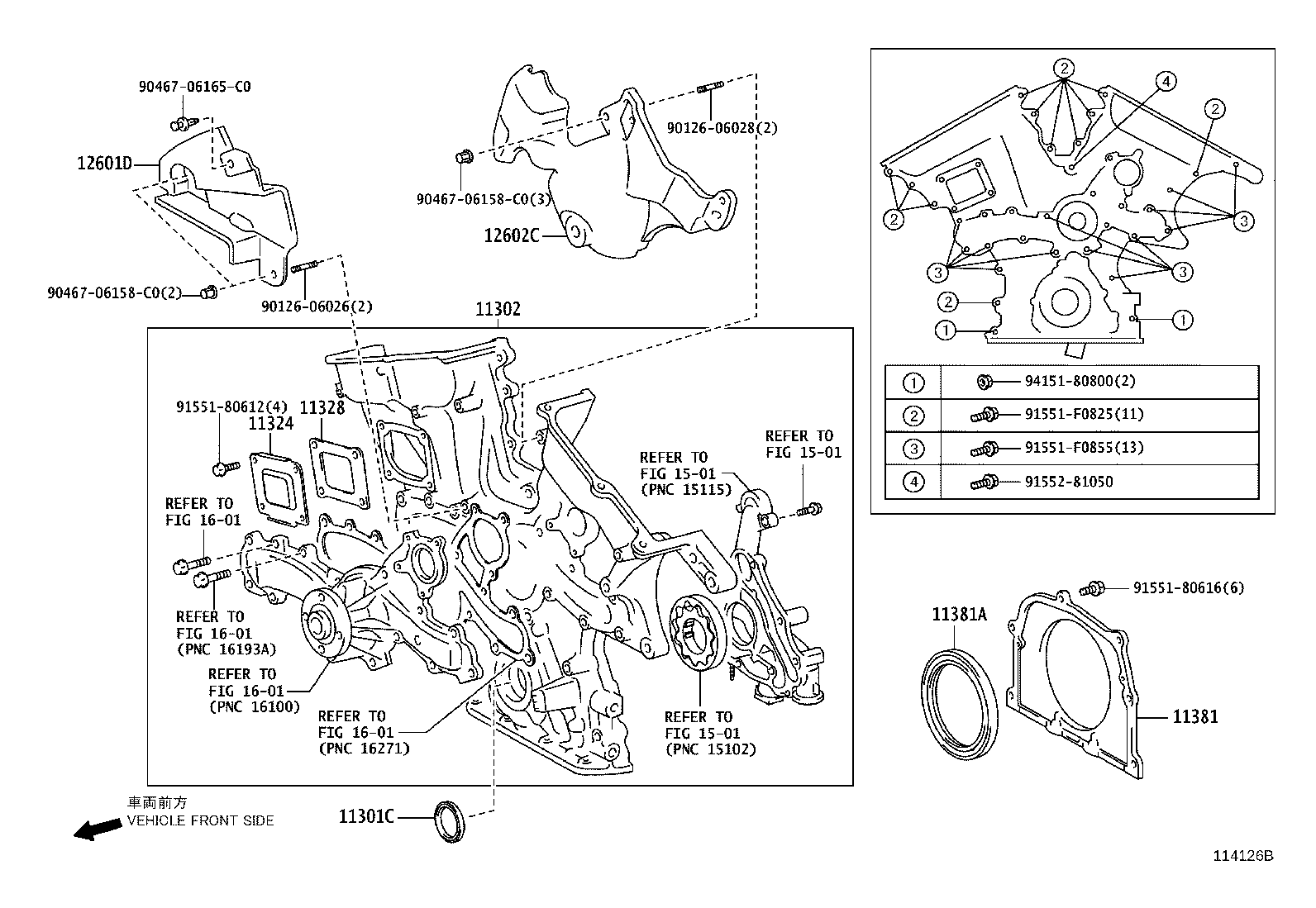

Toyota Lexus gs450h GWS191 TIMING GEAR COVER & REAR END PLATE

Part #	Description	Period	Qty
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42037	2GRFSE..GWS191	02/2006 - 09/2007	1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-31042	2GRFSE..GWS191	02/2006 - 09/2007	1
11324 - PLATE, TIMING CHAIN COVER
11324-31020	2GRFSE..GWS191	02/2006 - 09/2007	1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-31030	2GRFSE..GWS191	02/2006 - 09/2007	1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-31021	2GRFSE..GWS191	02/2006 - 09/2007	1
11381A - SEAL, ENGINE REAR OIL
90311-92006	2GRFSE..GWS191	02/2006 - 09/2007	1
12601D - COVER, ENGINE, NO.1
12601-31010	2GRFSE..GWS191	02/2006 - 09/2007	1
12602C - COVER, ENGINE, NO.2
12602-31012	2GRFSE..GWS191	02/2006 - 09/2007	1
Common parts
90126-06026
90126-06028
90467-06158C0
90467-06165C0
91551-80612
91551-80616
91551-F0825
91551-F0855
91552-81050
94151-80800
Linked diagrams
1501
1601

GWS191L-BEXQHA (2006)
