JZS147L-BEPQFA (1993)
Toyota Lexus Gs300
Production
Jan 1993
-
Aug 1995
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9301-9708)

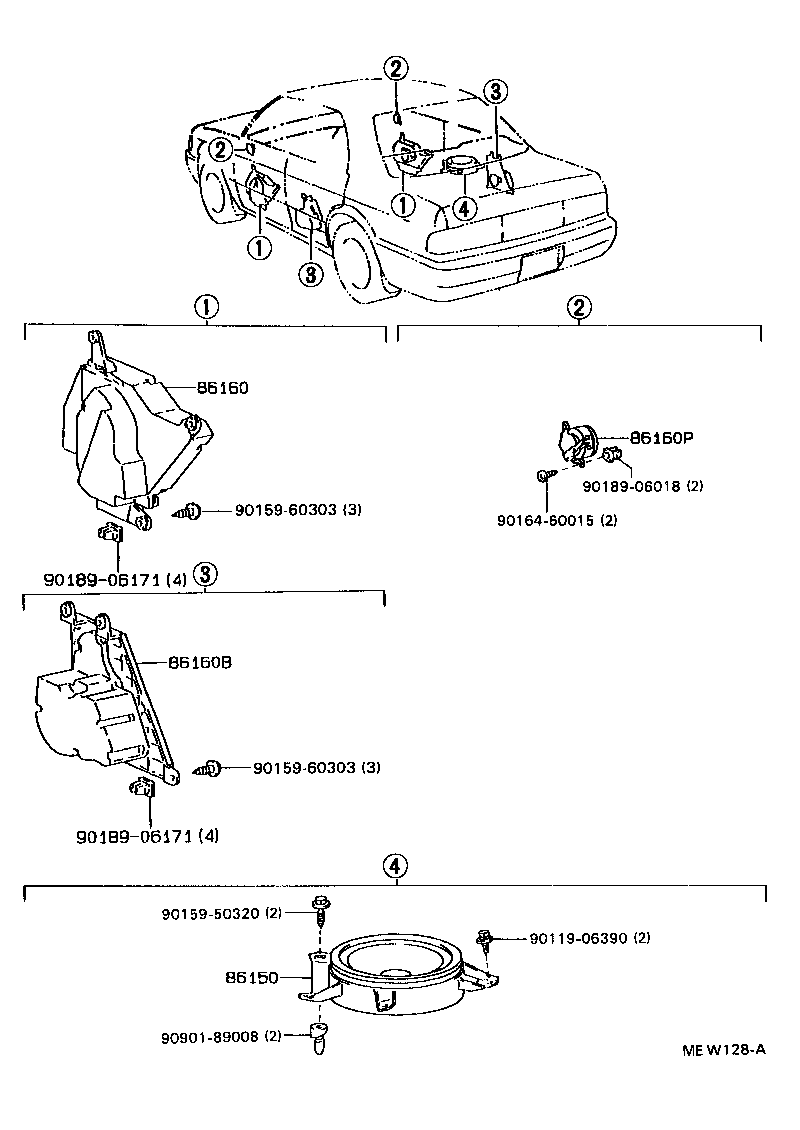

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86160-3A130 |
JZS147 NAKAMICHI |
1 | ||
| 86160-3A120 |
JZS147 |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86150-30190 |
JZS147 NAKAMICHI,RH |
1 | ||
| 86150-30200 |
JZS147 NAKAMICHI,LH |
1 | ||
| 86150-30180 |
JZS147 LH |
1 | ||
| 86150-30170 |
JZS147 RH |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86150-30230 |
JZS147 NAKAMICHI,RH |
1 | ||
| 86150-30210 |
JZS147 RH |
1 | ||
| 86150-30240 |
JZS147 NAKAMICHI,LH |
1 | ||
| 86150-30220 |
JZS147 LH |
1 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-3A140 |
JZS147 RH |
1 | ||
| 86160-3A150 |
JZS147 LH |
1 | ||
| 86160-3A170 |
JZS147 NAKAMICHI,LH |
1 | ||
| 86160-3A160 |
JZS147 NAKAMICHI,RH |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-50320 | ||||
| 90159-60303 | ||||
| 90164-60015 | ||||
| 90189-06018 | ||||
| 90189-06171 | ||||
| 90901-89008 | ||||
