JZS147L-BEPQFA (1993)
Toyota Lexus Gs300

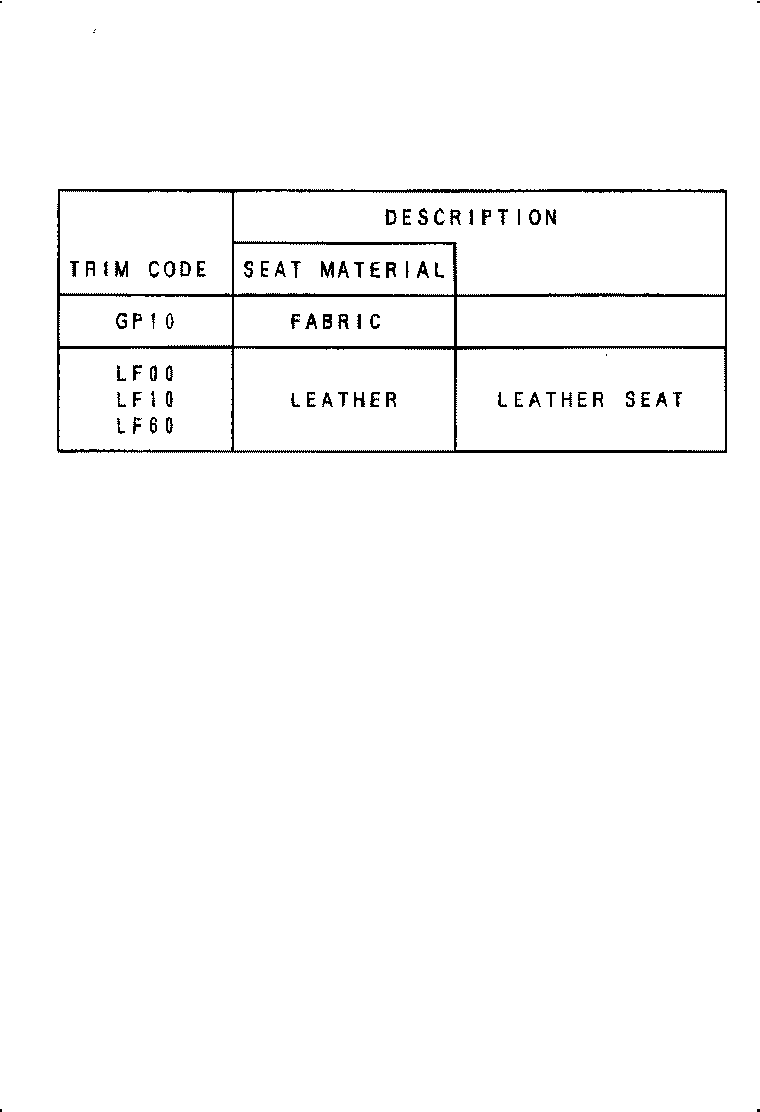

ILLUST NO. 2 OF 2(9301- )
| Part # | Description | Qty | Price |
|---|

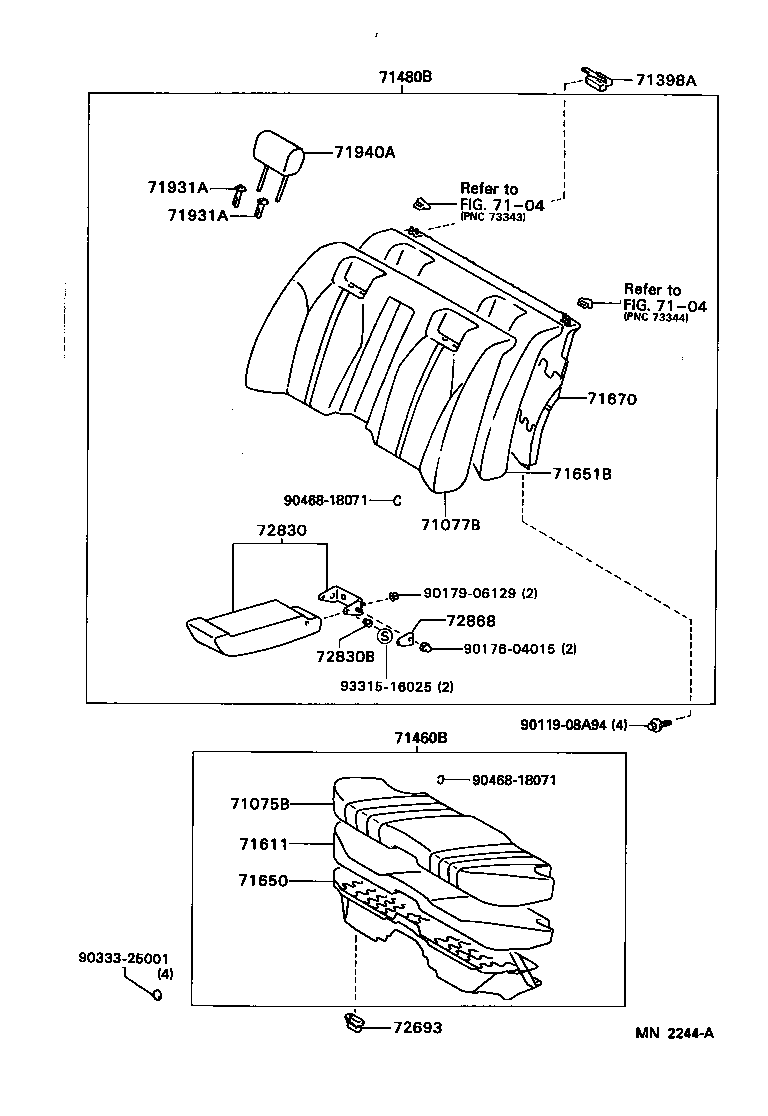

ILLUST NO. 1 OF 2(9301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-30650A0 |
JZS147..USA W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71065-30650G2 |
JZS147..USA W(LEATHER SEAT),LI.SPRUCE,TRIM6# |
1 | ||
| 71065-30650B0 |
JZS147..USA W(LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71065-30660B0 |
JZS147..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3A740B0 |
JZS147..USA W(LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71077-3A760B0 |
JZS147..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71077-3A741B0 |
JZS147..USA W(LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71077-3A741A0 |
JZS147..USA W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71077-3A740G2 |
JZS147..USA W(LEATHER SEAT),LI.SPRUCE,TRIM6# |
1 | ||
| 71077-3F110A0 |
JZS147..USA W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71077-3A740A0 |
JZS147..USA W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71077-3F110B0 |
JZS147..USA W(LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71077-3A741G2 |
JZS147..USA W(LEATHER SEAT),LI.SPRUCE,TRIM6# |
1 | ||
| 71077-3F110G0 |
JZS147..USA W(LEATHER SEAT),LI.SPRUCE,TRIM6# |
1 | ||
| 71077-3F111G0 |
JZS147..USA W(LEATHER SEAT),SPRUCE,TRIM6# |
1 | ||
| 71077-3F111A0 |
JZS147..USA W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71077-3F111B0 |
JZS147..USA W(LEATHER SEAT),MD.GRAY,TRIM1# |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-24010 |
JZS147 |
4 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30710 |
JZS147 |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30440 |
JZS147 |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-30790 |
JZS147 |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30560 |
JZS147 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070A0 |
JZS147 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-12040G0 |
JZS147 W/O(LOCK),LI.SPRUCE,TRIM6# |
2 | ||
| 71930-12070G0 |
JZS147 W(LOCK),LI.SPRUCE,TRIM6# |
2 | ||
| 71931-12040B2 |
JZS147 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-12040A0 |
JZS147 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-12070B2 |
JZS147 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070A0 |
JZS147 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-12040G0 |
JZS147 W/O(LOCK),LI.SPRUCE,TRIM6# |
2 | ||
| 71930-12070G0 |
JZS147 W(LOCK),LI.SPRUCE,TRIM6# |
2 | ||
| 71931-12040B2 |
JZS147 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-12040A0 |
JZS147 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-12070B2 |
JZS147 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-30430B0 |
JZS147..USA W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71940-30430G2 |
JZS147..USA W(LEATHER SEAT),LI.SPRUCE,TRIM6# |
2 | ||
| 71940-30460B0 |
JZS147..USA SHADOW GRAY,TRIM1# |
2 | ||
| 71940-30430A0 |
JZS147..USA W(LEATHER SEAT),IVORY,TRIM0# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32020 |
JZS147 |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-30810B0 |
JZS147..USA W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 72830-30810G2 |
JZS147..USA W(LEATHER SEAT),LI.SPRUCE,TRIM6# |
1 | ||
| 72830-30810A0 |
JZS147..USA W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 72830-3A120B0 |
JZS147..USA SHADOW GRAY,TRIM1# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06035 |
JZS147 |
2 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-30020B0 |
JZS147 GRAY,TRIM1# |
1 | ||
| 72868-30020G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 72868-30020A0 |
JZS147 IVORY,TRIM0# |
1 | ||
| 72868-30020B1 |
JZS147..USA MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08A94 | ||||
| 90176-04015 | ||||
| 90179-06129 | ||||
| 90333-25001 | ||||
| 90468-18071 | ||||
| 93315-16025 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 1 OF 2(9301-9608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-30650A0 |
JZS147..USA W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71065-30650G2 |
JZS147..USA W(LEATHER SEAT),LI.SPRUCE,TRIM6# |
1 | ||
| 71065-30650B0 |
JZS147..USA W(LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71065-30660B0 |
JZS147..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3A740B0 |
JZS147..USA W(LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71077-3A760B0 |
JZS147..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71077-3A741B0 |
JZS147..USA W(LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71077-3A741A0 |
JZS147..USA W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71077-3A740G2 |
JZS147..USA W(LEATHER SEAT),LI.SPRUCE,TRIM6# |
1 | ||
| 71077-3F110A0 |
JZS147..USA W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71077-3A740A0 |
JZS147..USA W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71077-3F110B0 |
JZS147..USA W(LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71077-3A741G2 |
JZS147..USA W(LEATHER SEAT),LI.SPRUCE,TRIM6# |
1 | ||
| 71077-3F110G0 |
JZS147..USA W(LEATHER SEAT),LI.SPRUCE,TRIM6# |
1 | ||
| 71077-3F111G0 |
JZS147..USA W(LEATHER SEAT),SPRUCE,TRIM6# |
1 | ||
| 71077-3F111A0 |
JZS147..USA W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71077-3F111B0 |
JZS147..USA W(LEATHER SEAT),MD.GRAY,TRIM1# |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-24010 |
JZS147 |
4 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30710 |
JZS147 |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30440 |
JZS147 |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-30790 |
JZS147 |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30560 |
JZS147 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070A0 |
JZS147 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-12040G0 |
JZS147 W/O(LOCK),LI.SPRUCE,TRIM6# |
2 | ||
| 71930-12070G0 |
JZS147 W(LOCK),LI.SPRUCE,TRIM6# |
2 | ||
| 71931-12040B2 |
JZS147 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-12040A0 |
JZS147 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-12070B2 |
JZS147 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070A0 |
JZS147 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-12040G0 |
JZS147 W/O(LOCK),LI.SPRUCE,TRIM6# |
2 | ||
| 71930-12070G0 |
JZS147 W(LOCK),LI.SPRUCE,TRIM6# |
2 | ||
| 71931-12040B2 |
JZS147 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-12040A0 |
JZS147 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-12070B2 |
JZS147 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-30430B0 |
JZS147..USA W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71940-30430G2 |
JZS147..USA W(LEATHER SEAT),LI.SPRUCE,TRIM6# |
2 | ||
| 71940-30460B0 |
JZS147..USA SHADOW GRAY,TRIM1# |
2 | ||
| 71940-30430A0 |
JZS147..USA W(LEATHER SEAT),IVORY,TRIM0# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32020 |
JZS147 |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-30810B0 |
JZS147..USA W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 72830-30810G2 |
JZS147..USA W(LEATHER SEAT),LI.SPRUCE,TRIM6# |
1 | ||
| 72830-30810A0 |
JZS147..USA W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 72830-3A120B0 |
JZS147..USA SHADOW GRAY,TRIM1# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06035 |
JZS147 |
2 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-30020B0 |
JZS147 GRAY,TRIM1# |
1 | ||
| 72868-30020G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 72868-30020A0 |
JZS147 IVORY,TRIM0# |
1 | ||
| 72868-30020B1 |
JZS147..USA MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08A94 | ||||
| 90176-04015 | ||||
| 90179-06129 | ||||
| 90333-25001 | ||||
| 90468-18071 | ||||
| 93315-16025 | ||||
| Linked diagrams | ||||
| 7104 | ||||
