JZS147L-BEPQFA (1993)
Toyota Lexus Gs300
Production
Jan 1993
-
Aug 1995
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9301- )

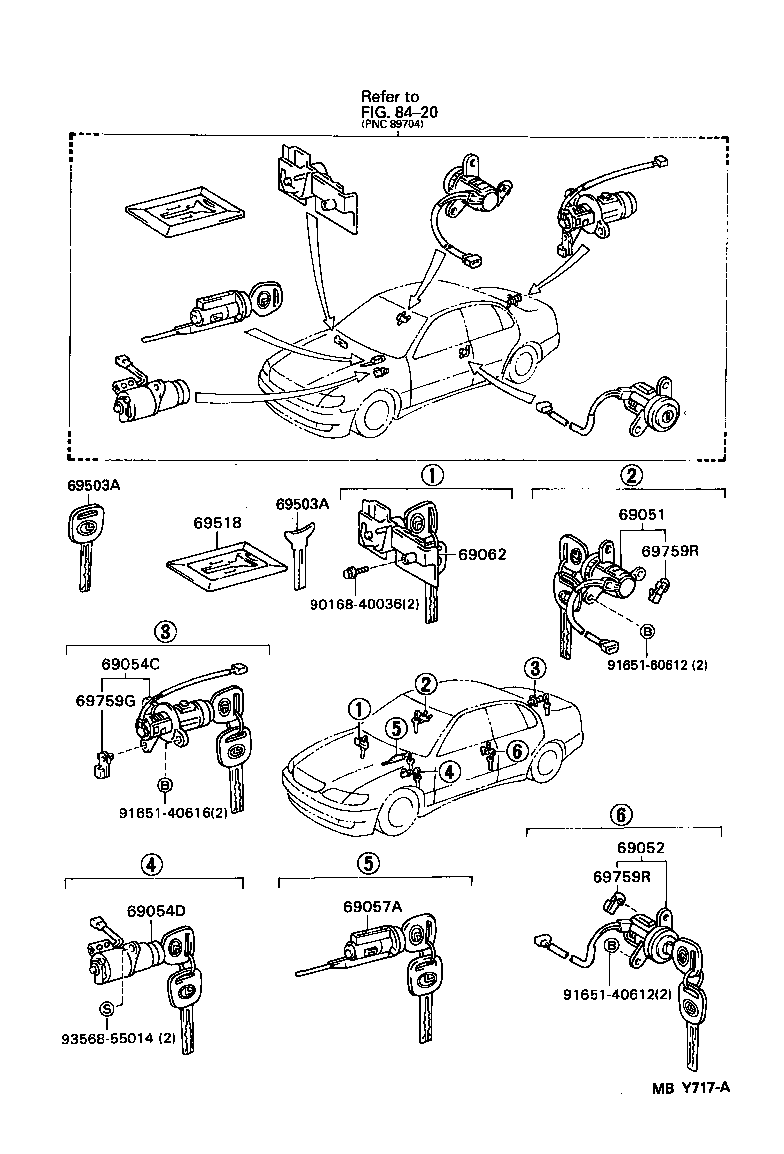

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-30230 |
JZS147 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-30200 |
JZS147 |
1 | ||
| 69054C - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-30290 |
JZS147 |
1 | ||
| 69054D - CYLINDER & KEY SET, LUGGAGE OPENER CANCEL | ||||
| 69053-30040 |
JZS147 |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-30140 |
JZS147 |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-30160 |
JZS147 |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00173 |
JZS147 MASTER KEY,CARD TYPE |
1 | ||
| 90999-00221 |
JZS147 SUB KEY,W(*68) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00173 |
JZS147 MASTER KEY,CARD TYPE |
1 | ||
| 90999-00221 |
JZS147 SUB KEY,W(*68) |
1 | ||
| 69518 - CARD, SPARE KEY | ||||
| 69518-50011 |
JZS147 |
1 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-24080 |
JZS147 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-24100 |
JZS147..4FC 0RANGE |
1 | ||
| 69759-24100 |
JZS147 ORANGE |
1 | ||
| 69759-24110 |
JZS147 PINK |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-24100 |
JZS147..4FC 0RANGE |
1 | ||
| 69759-24100 |
JZS147 ORANGE |
1 | ||
| 69759-24110 |
JZS147 PINK |
1 | ||
| Common parts | ||||
| 90168-40036 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-60612 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8420 | ||||
