JZS147L-BEPQFA (1993)
Toyota Lexus Gs300

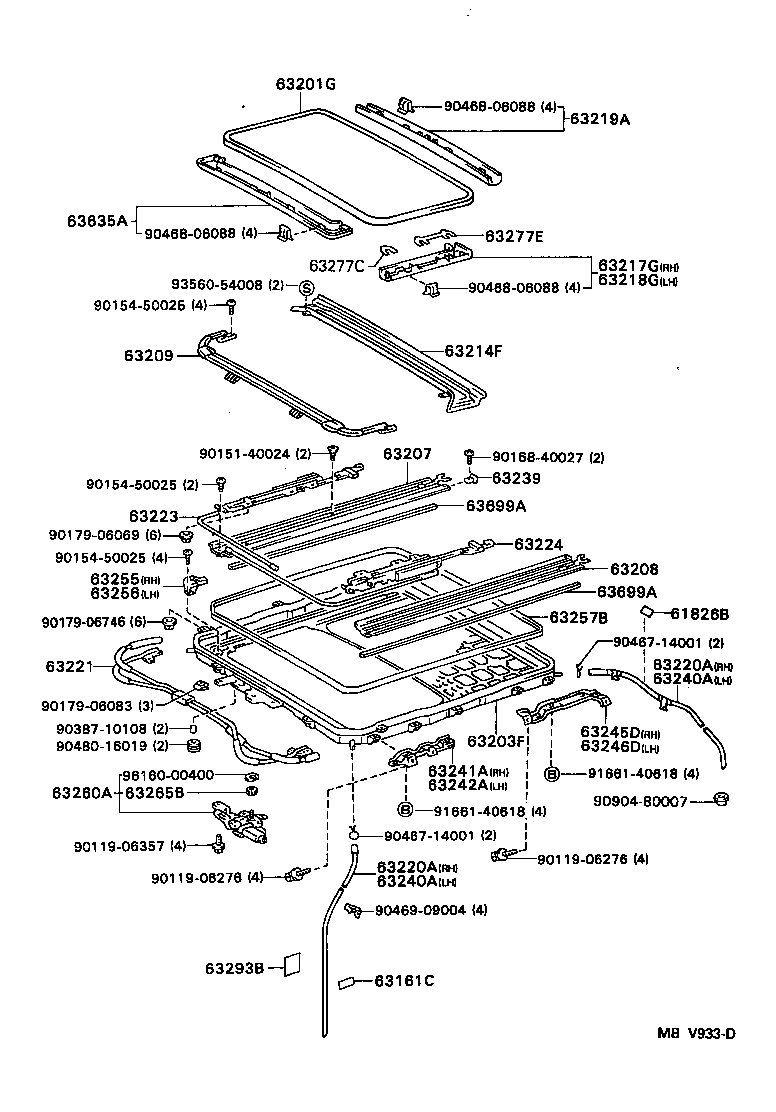

ILLUST NO. 2 OF 2(9301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61826B - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-22020 |
JZS147 QUARTER PANEL |
2 | ||
| 61826-22020 |
JZS147..4FC QUARTER PANEL |
2 | ||
| 63161C - PROTECTOR, WINDSHIELD HEADER, RH | ||||
| 61826-22020 |
JZS147 |
2 | ||
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-30060 |
JZS147 *SERL,T=4.7,GRAY |
1 | ||
| 63201-30090 |
JZS147 *SERL,T=4.7,BRONZE |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-30030 |
JZS147 |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-30050 |
JZS147 |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-30050 |
JZS147 |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-30040 |
JZS147 |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-30040 |
JZS147 |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-30040A0 |
JZS147 SHADOW GRAY,TRIM0# |
1 | ||
| 63217-30040B0 |
JZS147 GRAY,TRIM1# |
1 | ||
| 63217-30040G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-30050A0 |
JZS147 SHADOW GRAY,TRIM0# |
1 | ||
| 63218-30050B0 |
JZS147 GRAY,TRIM1# |
1 | ||
| 63218-30050G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-30040A0 |
JZS147 SHADOW GRAY,TRIM0# |
1 | ||
| 63219-30040G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 63219-30040B0 |
JZS147 GRAY,TRIM1# |
1 | ||
| 63220A - HOSE ASSY, SLIDING ROOF DRAIN, RH | ||||
| 63220-30020 |
JZS147 RR RH |
1 | ||
| 63220-30010 |
JZS147 FR RH |
1 | ||
| 63220A - HOSE ASSY, SLIDING ROOF DRAIN, RH | ||||
| 63220-30020 |
JZS147 RR RH |
1 | ||
| 63220-30010 |
JZS147 FR RH |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-30050 |
JZS147 |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-30050 |
JZS147 |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-30050 |
JZS147 |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-50010 |
JZS147 |
2 | ||
| 63240A - HOSE ASSY, SLIDING ROOF DRAIN, LH | ||||
| 63240-30020 |
JZS147 RR LH |
1 | ||
| 63240-30010 |
JZS147 FR LH |
1 | ||
| 63240A - HOSE ASSY, SLIDING ROOF DRAIN, LH | ||||
| 63240-30020 |
JZS147 RR LH |
1 | ||
| 63240-30010 |
JZS147 FR LH |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-30030 |
JZS147 |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63242-30010 |
JZS147 |
1 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-30020 |
JZS147 |
1 | ||
| 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH | ||||
| 63246-30010 |
JZS147 |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-30040 |
JZS147 |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63256-30020 |
JZS147 |
1 | ||
| 63257B - SEAL, SLIDING ROOF | ||||
| 63257-30020 |
JZS147 |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-30040 |
JZS147 |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-20010 |
JZS147 |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20050 |
JZS147 T=2.0,T=2 |
1 | ||
| 63277-20030 |
JZS147 T=1.0,T=1 |
1 | ||
| 63277E - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20040 |
JZS147 T=2 |
1 | ||
| 63277-20020 |
JZS147 T=1 |
1 | ||
| 63277-32030 |
JZS147 T=3 |
1 | ||
| 63293B - PROTECTOR, SLIDE ROOF SILENCER, NO.1 | ||||
| 63293-30010 |
JZS147 |
2 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-30020B0 |
JZS147 LI.GRAY,TRIM1# |
1 | ||
| 63635-30020G0 |
JZS147 LI.SPRUCE,TRIM6# |
1 | ||
| 63635-30020A0 |
JZS147 IVORY,TRIM0# |
1 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-30030 |
JZS147 |
2 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-30030 |
JZS147 |
2 | ||
| Common parts | ||||
| 90119-06276 | ||||
| 90119-06357 | ||||
| 90151-40024 | ||||
| 90154-50025 | ||||
| 90168-40027 | ||||
| 90179-06069 | ||||
| 90179-06083 | ||||
| 90179-06746 | ||||
| 90387-10108 | ||||
| 90467-14001 | ||||
| 90468-06088 | ||||
| 90469-09004 | ||||
| 90480-16019 | ||||
| 90904-80007 | ||||
| 91661-40618 | ||||
| 93560-54008 | ||||
| 96160-00400 | ||||

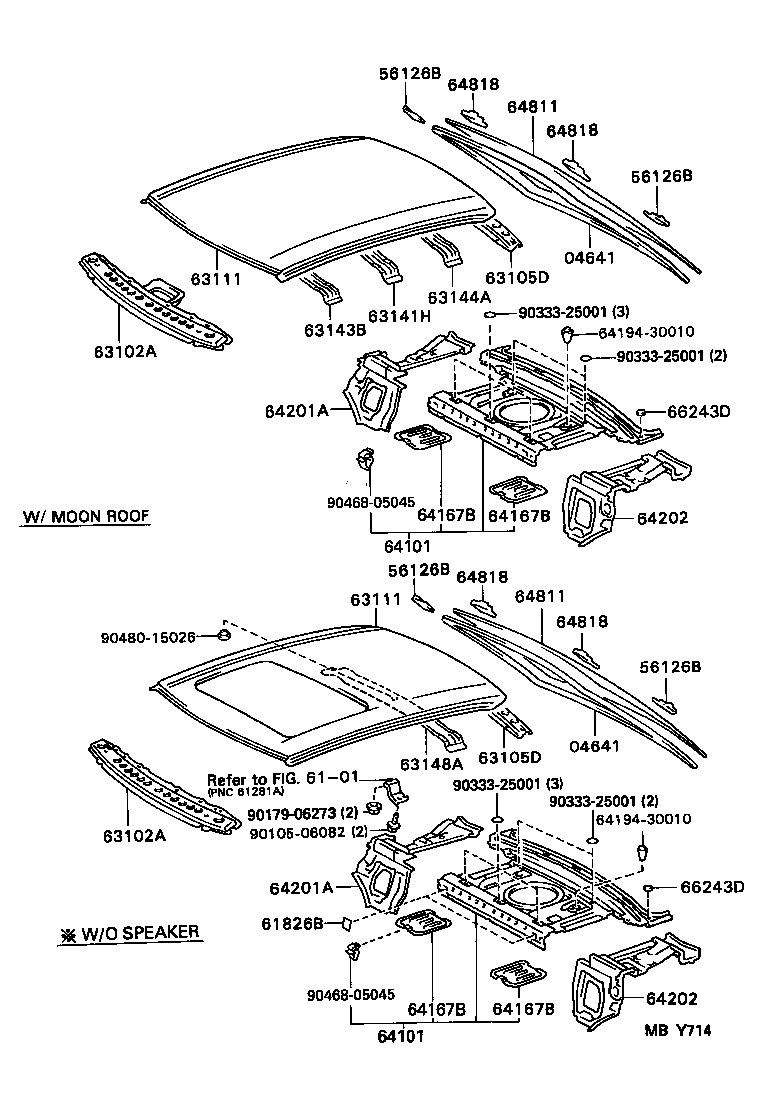

ILLUST NO. 1 OF 2(9301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 56117-50020 |
JZS147 |
1 | ||
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 56117-50020 |
JZS147 |
1 | ||
| 56126B - SPACER, WINDSHIELD GLASS, NO.2 | ||||
| 56126-30010 |
JZS147 |
2 | ||
| 56126B - SPACER, WINDSHIELD GLASS, NO.2 | ||||
| 56126-30010 |
JZS147 |
2 | ||
| 56126B - SPACER, WINDSHIELD GLASS, NO.2 | ||||
| 56126-30010 |
JZS147 |
2 | ||
| 56126B - SPACER, WINDSHIELD GLASS, NO.2 | ||||
| 56126-30010 |
JZS147 |
2 | ||
| 61826B - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-22020 |
JZS147 QUARTER PANEL |
2 | ||
| 61826-22020 |
JZS147..4FC QUARTER PANEL |
2 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-30050 |
JZS147 |
1 | ||
| 63102-30060 |
JZS147 W(MOON ROOF) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-30050 |
JZS147 |
1 | ||
| 63102-30060 |
JZS147 W(MOON ROOF) |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-30040 |
JZS147 |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-30040 |
JZS147 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-30260 |
JZS147 |
1 | ||
| 63111-30900 |
JZS147 W(MOON ROOF) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-30260 |
JZS147 |
1 | ||
| 63111-30900 |
JZS147 W(MOON ROOF) |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-30110 |
JZS147 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-30110 |
JZS147 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-30040 |
JZS147 |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-30020 |
JZS147 |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-30280 |
JZS147 |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-30280 |
JZS147 |
1 | ||
| 64167B - COVER, UPPER BACK PANEL HOLE, NO.3 | ||||
| 64167-30040 |
JZS147 |
2 | ||
| 64167B - COVER, UPPER BACK PANEL HOLE, NO.3 | ||||
| 64167-30040 |
JZS147 |
2 | ||
| 64167B - COVER, UPPER BACK PANEL HOLE, NO.3 | ||||
| 64167-30040 |
JZS147 |
2 | ||
| 64167B - COVER, UPPER BACK PANEL HOLE, NO.3 | ||||
| 64167-30040 |
JZS147 |
2 | ||
| 64201A - EXTENSION SUB-ASSY, PACKAGE TRAY, RH | ||||
| 64201-30050 |
JZS147 |
1 | ||
| 64201A - EXTENSION SUB-ASSY, PACKAGE TRAY, RH | ||||
| 64201-30050 |
JZS147 |
1 | ||
| 64202 - EXTENSION SUB-ASSY, PACKAGE TRAY, LH | ||||
| 64202-30040 |
JZS147 |
1 | ||
| 64202 - EXTENSION SUB-ASSY, PACKAGE TRAY, LH | ||||
| 64202-30040 |
JZS147 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-3A020 |
JZS147 *EHTT,T=3.5,GRAY |
1 | ||
| 64801-3A010 |
JZS147 *EHTT,T=3.5,BRONZE |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-3A020 |
JZS147 *EHTT,T=3.5,GRAY |
1 | ||
| 64801-3A010 |
JZS147 *EHTT,T=3.5,BRONZE |
1 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 56115-30090 |
JZS147 |
1 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 56115-30090 |
JZS147 |
1 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 56115-30090 |
JZS147 |
1 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 56115-30090 |
JZS147 |
1 | ||
| 66243D - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-20010 |
JZS147 |
2 | ||
| 66243D - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-20010 |
JZS147 |
2 | ||
| Common parts | ||||
| 64194-30010 | ||||
| 90105-06082 | ||||
| 90179-06273 | ||||
| 90333-25001 | ||||
| 90468-05045 | ||||
| 90480-15026 | ||||
| Linked diagrams | ||||
| 6101 | ||||
