JZS147L-BEPQFA (1993)

Toyota Lexus Gs300

Production Jan 1993 - Aug 1995
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9301- )

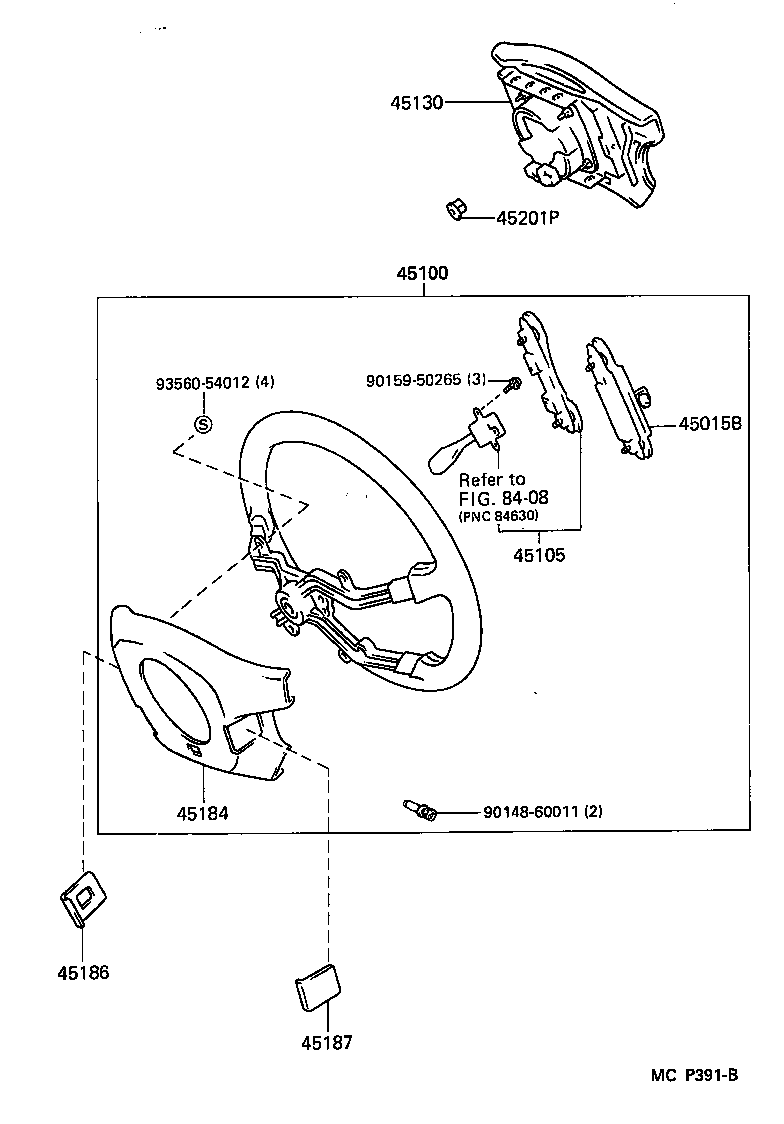

Click highlighted areas on diagram

diagram 45015B 45100 45105 45130 45184 45186 45187 45201P 8408 9014860011 9015950265 9356054012
Part # Description Qty Price
45015B - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.2
45015-30030

JZS147

 1
45100 - WHEEL ASSY, STEERING
45100-30630B0

JZS147..USA

4-SPOKE,LEATHER,W(LEATHER STEERING WHEEL),GRAY,TRIM1#

 1
45100-30630E0

JZS147..USA

4-SPOKE,LEATHER,W(LEATHER STEERING WHEEL),SABLE,TRIM0#

 1
45100-30630G0

JZS147..USA

4-SPOKE,LEATHER,W(LEATHER STEERING WHEEL),SPRUCEGRAY,TRIM6#

 1
45100-30670G0

JZS147..USA

4-SPOKE,LEATHER,W(LEATHER STEERING WHEEL),DK.SPRUCE GRAY,TRIM6#

 1
45100-30670B0

JZS147..USA

4-SPOKE,LEATHER,W(LEATHER STEERING WHEEL),SHADOW GRAY,TRIM1#

 1
45100-30640B2

JZS147..USA

4-SPOKE,URETHANE,SHADOW GRAY,TRIM1#

 1
45100-30670E0

JZS147..USA

4-SPOKE,LEATHER,W(LEATHER STEERING WHEEL),SABLE,TRIM0#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-30210

JZS147

 1
45130 - BUTTON ASSY, HORN
45130-30450B0

JZS147

GRAY,TRIM1#

 1
45130-30450E0

JZS147

SABLE,TRIM0#

 1
45130-30450G0

JZS147

SPRUCE GRAY,TRIM6#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-30240B0

JZS147

SHADOW GRAY,TRIM1#

 1
45184-30240G0

JZS147

SPRUCE GRAY,TRIM6#

 1
45184-30240E0

JZS147

SABLE,TRIM0#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-30020B0

JZS147

SHADOW GRAY,TRIM1#

 1
45186-30020G0

JZS147

SPRUCE GRAY,TRIM6#

 1
45186-30020E0

JZS147

SABLE,TRIM0#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-30020E0

JZS147

SABLE,TRIM0#

 1
45187-30020G0

JZS147

SPRUCE GRAY,TRIM6#

 1
45187-30020B0

JZS147

SHADOW GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

JZS147

 1
Common parts
90148-60011
90159-50265
93560-54012
Linked diagrams
8408
