JZS147L-BEPQFA (1993)
Toyota Lexus Gs300
Production
Jan 1993
-
Aug 1995
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9301- )

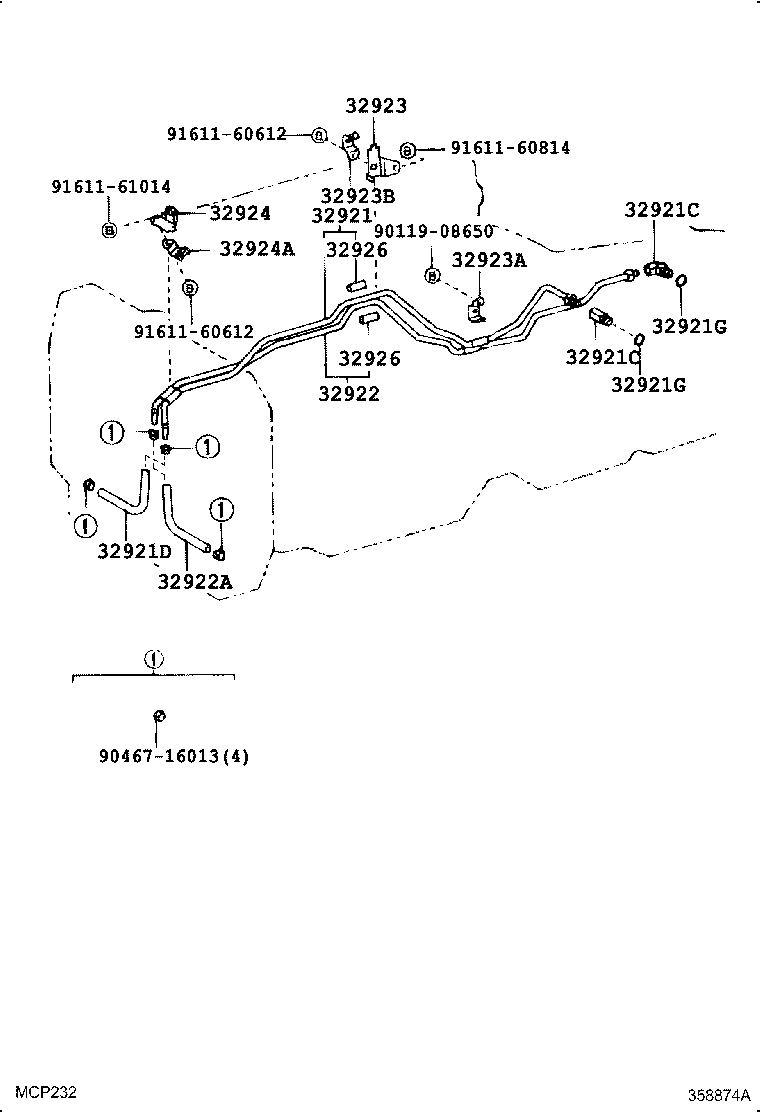

Click highlighted areas on diagram
A340E,A350E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-30531 |
JZS147 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16009 |
JZS147 OUTLET |
1 | ||
| 90404-16029 |
JZS147 INLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16009 |
JZS147 OUTLET |
1 | ||
| 90404-16029 |
JZS147 INLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-30190 |
JZS147 |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
JZS147 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
JZS147 |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-30531 |
JZS147 |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32942-30090 |
JZS147 |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32924-30190 |
JZS147 |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32929-30140 |
JZS147 |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32929-60010 |
JZS147 |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32923-30161 |
JZS147 |
1 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 32929-60010 |
JZS147 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30060 |
JZS147..4FC L=35,ID=10,FR & CTR |
8 | ||
| 32926-30030 |
JZS147..4FC L=35,ID=10,RR |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30060 |
JZS147..4FC L=35,ID=10,FR & CTR |
8 | ||
| 32926-30030 |
JZS147..4FC L=35,ID=10,RR |
4 | ||
| Common parts | ||||
| 90119-08650 | ||||
| 90467-16013 | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
| 91611-61014 | ||||
