JZS147L-BEPQFA (1993)

Toyota Lexus Gs300

Production Jan 1993 - Aug 1995

Engine 2JZGE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(9301-9708)

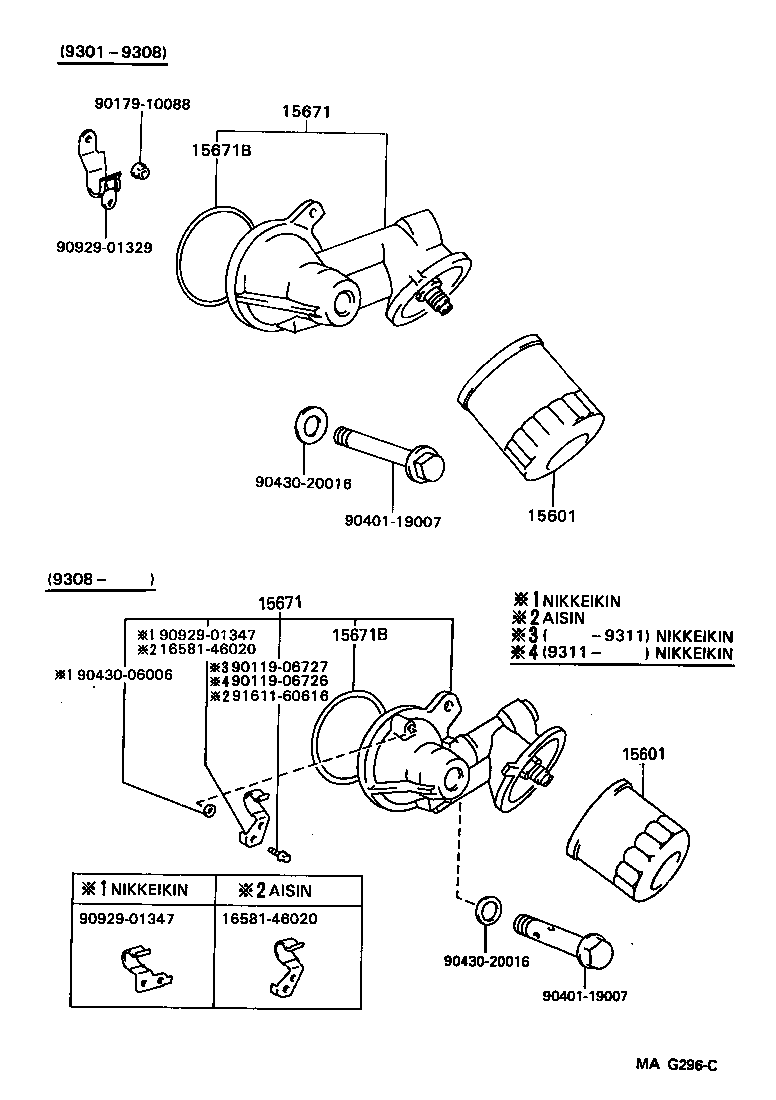

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
15601 - FILTER SUB-ASSY, OIL
90915-20001	2JZGE..JZS147	01/1993 - 10/1993	1
15601 - FILTER SUB-ASSY, OIL
90915-20001	2JZGE..JZS147	01/1993 - 10/1993	1
15671 - BRACKET, OIL FILTER
15670-46050	2JZGE..JZS147	01/1993 - 08/1993	1
15670-46070	2JZGE..JZS147	10/1993 - 01/1995	1
15670-46052	2JZGE..JZS147	01/1995 - 05/1995	1
15670-46051	2JZGE..JZS147	08/1993 - 10/1993	1
15671 - BRACKET, OIL FILTER
15670-46050	2JZGE..JZS147	01/1993 - 08/1993	1
15670-46070	2JZGE..JZS147	10/1993 - 01/1995	1
15670-46052	2JZGE..JZS147	01/1995 - 05/1995	1
15670-46051	2JZGE..JZS147	08/1993 - 10/1993	1
15671B - GASKET, OIL FILTER BRACKET
90301-68004	2JZGE..JZS147	01/1993 - 11/1993	1
90301-68004	2JZGE..JZS147	11/1993 - 05/1995	2
15671B - GASKET, OIL FILTER BRACKET
90301-68004	2JZGE..JZS147	01/1993 - 11/1993	1
90301-68004	2JZGE..JZS147	11/1993 - 05/1995	2
Common parts
16581-46020
90119-06726
90119-06727
90179-10088
90401-19007
90430-06006
90430-20016
90929-01329
90929-01347
91611-60616
