JZS147L-BEAQFK (1995)
Toyota Lexus Gs300
Production
Aug 1995
-
Aug 1997
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9301-9708)

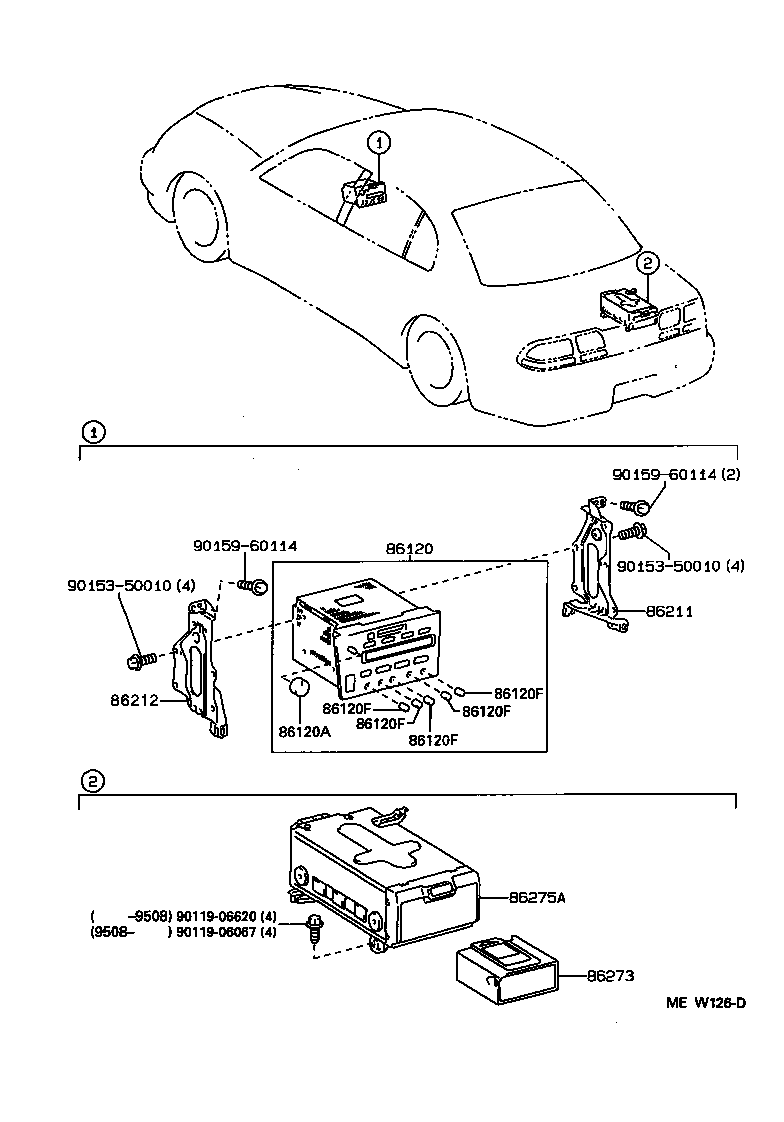

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-3A280 |
JZS147 NAKAMICHI,W(CD AUTO CHANGER) |
1 | ||
| 86120-3A270 |
JZS147..CND |
1 | ||
| 86120-3A271 |
JZS147 |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86127-30010 |
JZS147 |
1 | ||
| 86127-30020 |
JZS147 NAKAMICHI |
1 | ||
| 86120F - KNOB, RADIO RECEIVER SUB VOLUME | ||||
| 86127-30040 |
JZS147 NAKAMICHI |
5 | ||
| 86127-30050 |
JZS147 |
5 | ||
| 86120F - KNOB, RADIO RECEIVER SUB VOLUME | ||||
| 86127-30040 |
JZS147 NAKAMICHI |
5 | ||
| 86127-30050 |
JZS147 |
5 | ||
| 86120F - KNOB, RADIO RECEIVER SUB VOLUME | ||||
| 86127-30040 |
JZS147 NAKAMICHI |
5 | ||
| 86127-30050 |
JZS147 |
5 | ||
| 86120F - KNOB, RADIO RECEIVER SUB VOLUME | ||||
| 86127-30040 |
JZS147 NAKAMICHI |
5 | ||
| 86127-30050 |
JZS147 |
5 | ||
| 86120F - KNOB, RADIO RECEIVER SUB VOLUME | ||||
| 86127-30040 |
JZS147 NAKAMICHI |
5 | ||
| 86127-30050 |
JZS147 |
5 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-30190 |
JZS147 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-30160 |
JZS147 |
1 | ||
| 86273 - MAGAZINE, DISC PLAYER | ||||
| 86273-33020 |
JZS147 |
1 | ||
| 86275A - CHANGER, DISC PLAYER | ||||
| 86270-30070 |
JZS147 |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90119-06620 | ||||
| 90153-50010 | ||||
| 90159-60114 | ||||
(9301-9708)

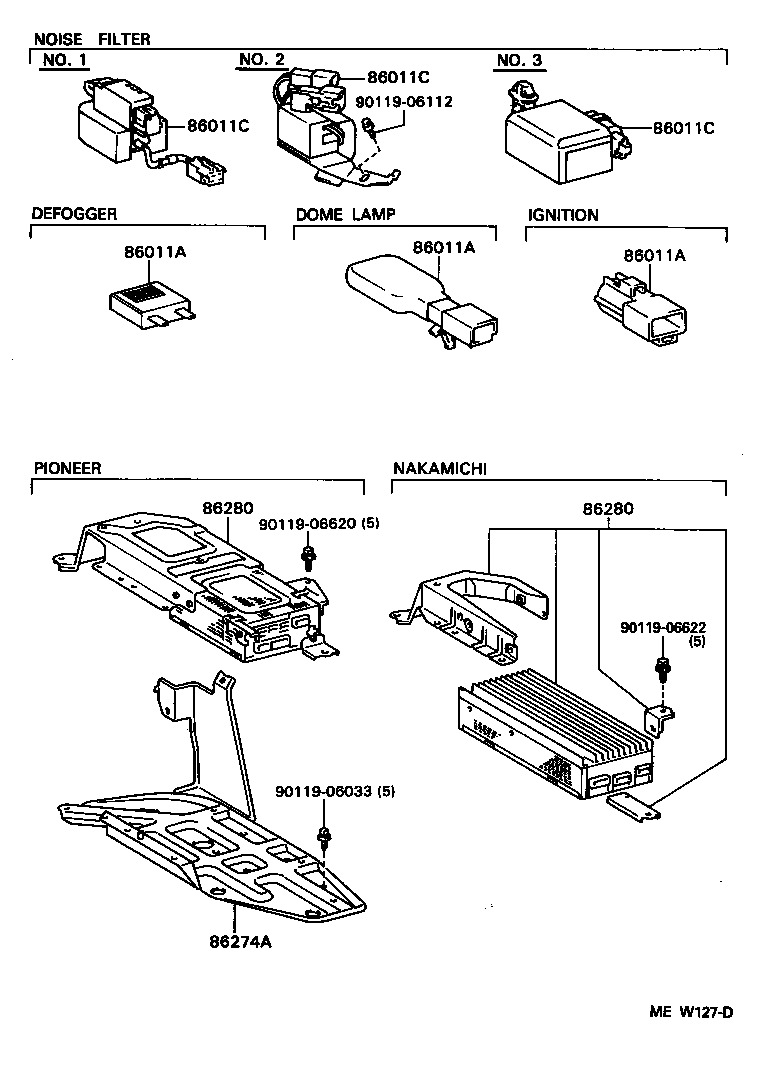

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
JZS147 IGNITION |
1 | ||
| 90980-04066 |
JZS147 DEFOGGER |
1 | ||
| 90980-04103 |
JZS147 DOME LAMP |
2 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
JZS147 IGNITION |
1 | ||
| 90980-04066 |
JZS147 DEFOGGER |
1 | ||
| 90980-04103 |
JZS147 DOME LAMP |
2 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
JZS147 IGNITION |
1 | ||
| 90980-04066 |
JZS147 DEFOGGER |
1 | ||
| 90980-04103 |
JZS147 DOME LAMP |
2 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05235 |
JZS147 |
1 | ||
| 90980-05228 |
JZS147 |
1 | ||
| 90980-05279 |
JZS147 |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05235 |
JZS147 |
1 | ||
| 90980-05228 |
JZS147 |
1 | ||
| 90980-05279 |
JZS147 |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05235 |
JZS147 |
1 | ||
| 90980-05228 |
JZS147 |
1 | ||
| 90980-05279 |
JZS147 |
1 | ||
| 86274A - BRACKET, DISC PLAYER | ||||
| 86274-30030 |
JZS147..CND |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-30220 |
JZS147 NAKAMICHI |
1 | ||
| 86280-30200 |
JZS147 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-30220 |
JZS147 NAKAMICHI |
1 | ||
| 86280-30200 |
JZS147 |
1 | ||
| Common parts | ||||
| 90119-06033 | ||||
| 90119-06112 | ||||
| 90119-06620 | ||||
| 90119-06622 | ||||
