JZS147L-BEAQFK (1995)
Toyota Lexus Gs300
Production
Aug 1995
-
Aug 1997
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9301-9708)

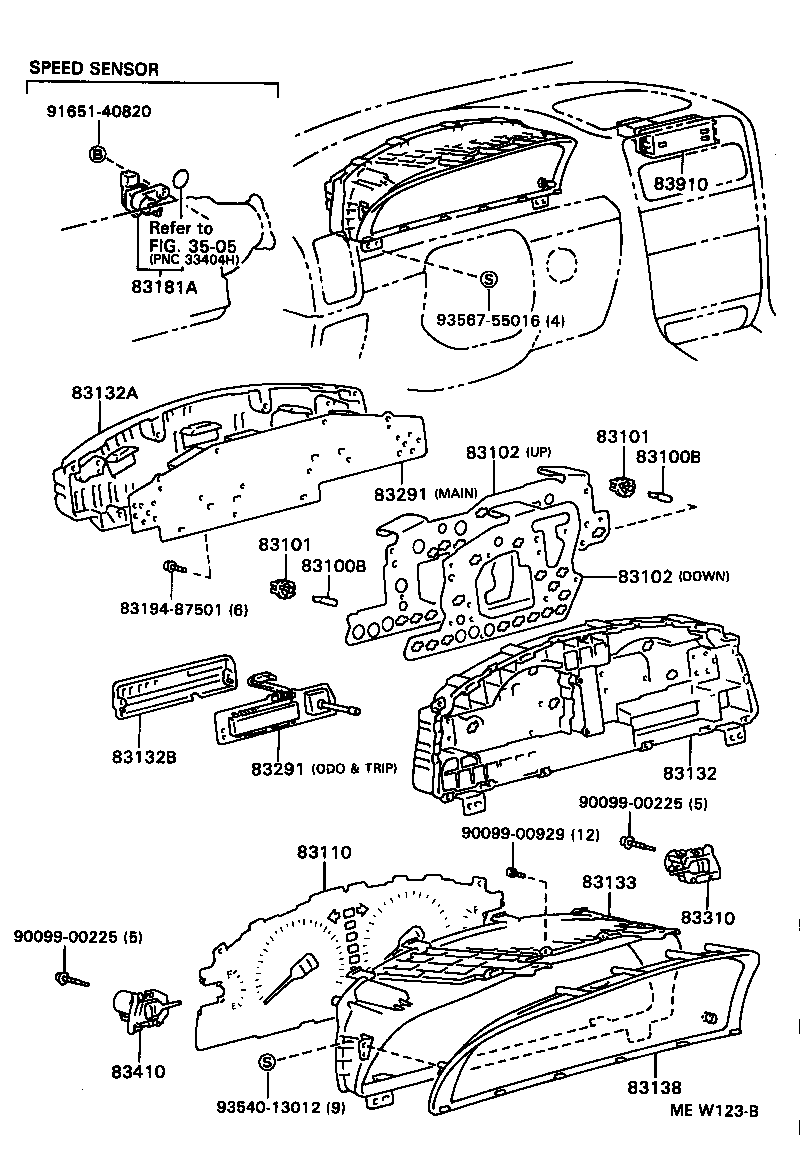

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-32010 |
JZS147 14V 3.0W |
7 | ||
| 83109-30070 |
JZS147 14V 2.0W,W/O SOCKET |
1 | ||
| 90981-11018 |
JZS147 12V 1.2W W/O SOCKET |
19 | ||
| 83119-24570 |
JZS147 14V 3.0W,BLUE CAP |
8 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-32010 |
JZS147 14V 3.0W |
7 | ||
| 83109-30070 |
JZS147 14V 2.0W,W/O SOCKET |
1 | ||
| 90981-11018 |
JZS147 12V 1.2W W/O SOCKET |
19 | ||
| 83119-24570 |
JZS147 14V 3.0W,BLUE CAP |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
JZS147 BULB:2.0W OR 3.0W |
7 | ||
| 83101-24010 |
JZS147 14V 3.0W BLUE BULB |
8 | ||
| 83101-14040 |
JZS147 BULB:1.4W |
20 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
JZS147 BULB:2.0W OR 3.0W |
7 | ||
| 83101-24010 |
JZS147 14V 3.0W BLUE BULB |
8 | ||
| 83101-14040 |
JZS147 BULB:1.4W |
20 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83149-3F090 |
JZS147 UP |
1 | ||
| 83149-3F110 |
JZS147 DOWN |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83149-3F090 |
JZS147 UP |
1 | ||
| 83149-3F110 |
JZS147 DOWN |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-3F220 |
JZS147..CND |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-3F251 |
JZS147 |
1 | ||
| 83132-3F010 |
JZS147 |
1 | ||
| 83132A - CASE, METER | ||||
| 83132-3F050 |
JZS147 |
1 | ||
| 83132B - CASE, COMBINATION METER NO.3 | ||||
| 83132-3F070 |
JZS147 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-3A330 |
JZS147 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-3A730 |
JZS147 |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-24040 |
JZS147 |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83149-3F010 |
JZS147 MAIN |
1 | ||
| 83149-3F050 |
JZS147..CND ODO & TRIP |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83149-3F010 |
JZS147 MAIN |
1 | ||
| 83149-3F050 |
JZS147..CND ODO & TRIP |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-3A570 |
JZS147 |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-3A290 |
JZS147 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-30540 |
JZS147 |
1 | ||
| Common parts | ||||
| 83194-87501 | ||||
| 90099-00225 | ||||
| 90099-00929 | ||||
| 91651-40820 | ||||
| 93540-13012 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 3505 | ||||
