JZS147L-BEAQFK (1995)

Toyota Lexus Gs300

Production Aug 1995 - Aug 1997
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9301-9608)

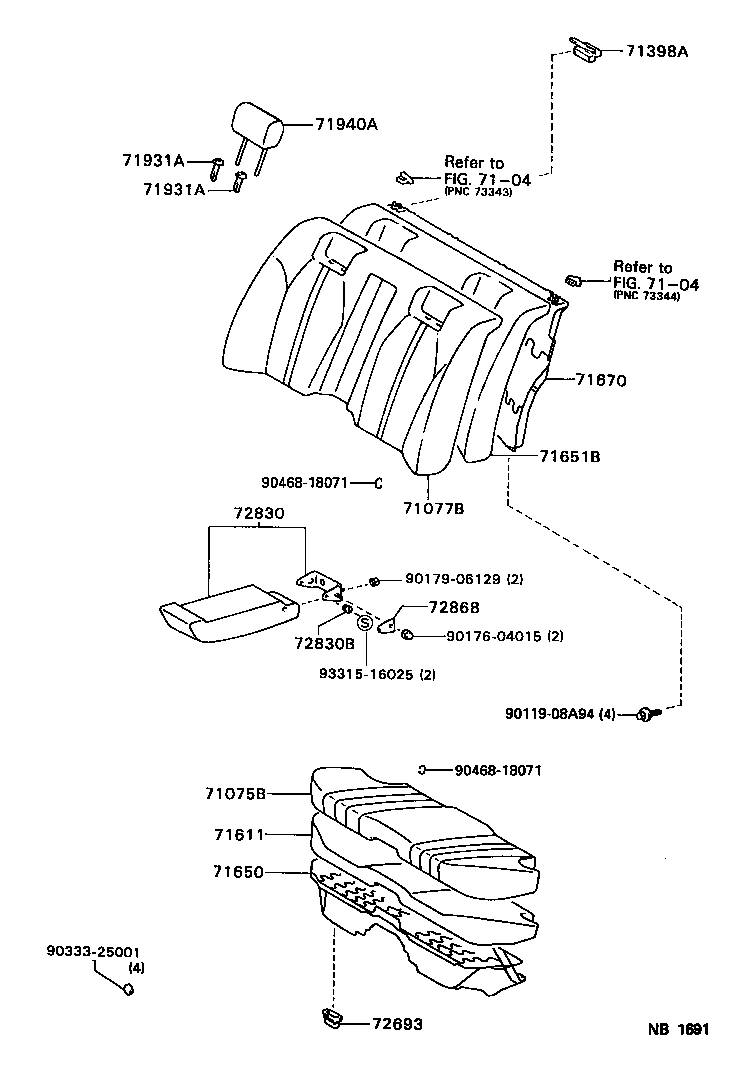

Click highlighted areas on diagram

diagram 7104 7104 71075B 71077B 71398A 71611 71650 71651B 71670 71931A 71931A 71940A 72693 72830 72830B 72868 9011908A94 9017604015 9017906129 9033325001 9046818071 9046818071 9331516025
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-30650A0

JZS147..CND

IVORY,TRIM0#

 1
71065-30650G2

JZS147..CND

LI.SPRUCE,TRIM6#

 1
71065-30650B0

JZS147..CND

GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-3A740B0

JZS147..CND

GRAY,TRIM1#

 1
71077-3A740G2

JZS147..CND

LI.SPRUCE,TRIM6#

 1
71077-3A740A0

JZS147..CND

IVORY,TRIM0#

 1
71077-3F112G0

JZS147..CND

SPRUCE,TRIM6#

 1
71077-3F112B0

JZS147..CND

MD.GRAY,TRIM1#

 1
71077-3F112A0

JZS147..CND

IVORY,TRIM0#

 1
71398A - HOLDER, REAR SEAT BACK
71398-24010

JZS147

 4
71611 - PAD, REAR SEAT CUSHION
71611-30710

JZS147

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-30440

JZS147

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-30790

JZS147

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-30560

JZS147

 1
71931A - SUPPORT, REAR SEAT HEADREST
71930-12070A0

JZS147

W(LOCK),IVORY,TRIM0#

 2
71931-12040G0

JZS147

W/O(LOCK),LI.SPRUCE,TRIM6#

 2
71930-12070G0

JZS147

W(LOCK),LI.SPRUCE,TRIM6#

 2
71931-12040B2

JZS147

W/O(LOCK),GRAY,TRIM1#

 2
71931-12040A0

JZS147

W/O(LOCK),IVORY,TRIM0#

 2
71930-12070B2

JZS147

W(LOCK),GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-12070A0

JZS147

W(LOCK),IVORY,TRIM0#

 2
71931-12040G0

JZS147

W/O(LOCK),LI.SPRUCE,TRIM6#

 2
71930-12070G0

JZS147

W(LOCK),LI.SPRUCE,TRIM6#

 2
71931-12040B2

JZS147

W/O(LOCK),GRAY,TRIM1#

 2
71931-12040A0

JZS147

W/O(LOCK),IVORY,TRIM0#

 2
71930-12070B2

JZS147

W(LOCK),GRAY,TRIM1#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-30430A0

JZS147..CND

IVORY,TRIM0#

 2
71940-30430B0

JZS147..CND

SHADOW GRAY,TRIM1#

 2
71940-30430G2

JZS147..CND

LI.SPRUCE,TRIM6#

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-32020

JZS147

 2
72693-14050

JZS147

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-30810B0

JZS147..CND

SHADOW GRAY,TRIM1#

 1
72830-30810A0

JZS147..CND

IVORY,TRIM0#

 1
72830-30810G2

JZS147..CND

LI.SPRUCE,TRIM6#

 1
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06035

JZS147

 2
72868 - COVER, CENTER ARMREST HINGE, RH
72868-30020B0

JZS147

GRAY,TRIM1#

 1
72868-30020G0

JZS147

LI.SPRUCE,TRIM6#

 1
72868-30020A0

JZS147

IVORY,TRIM0#

 1
Common parts
90119-08A94
90176-04015
90179-06129
90333-25001
90468-18071
93315-16025
Linked diagrams
7104
