JZS147L-BEAQFK (1995)
Toyota Lexus Gs300
Production
Aug 1995
-
Aug 1997
Engine
2JZGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9301-9708)

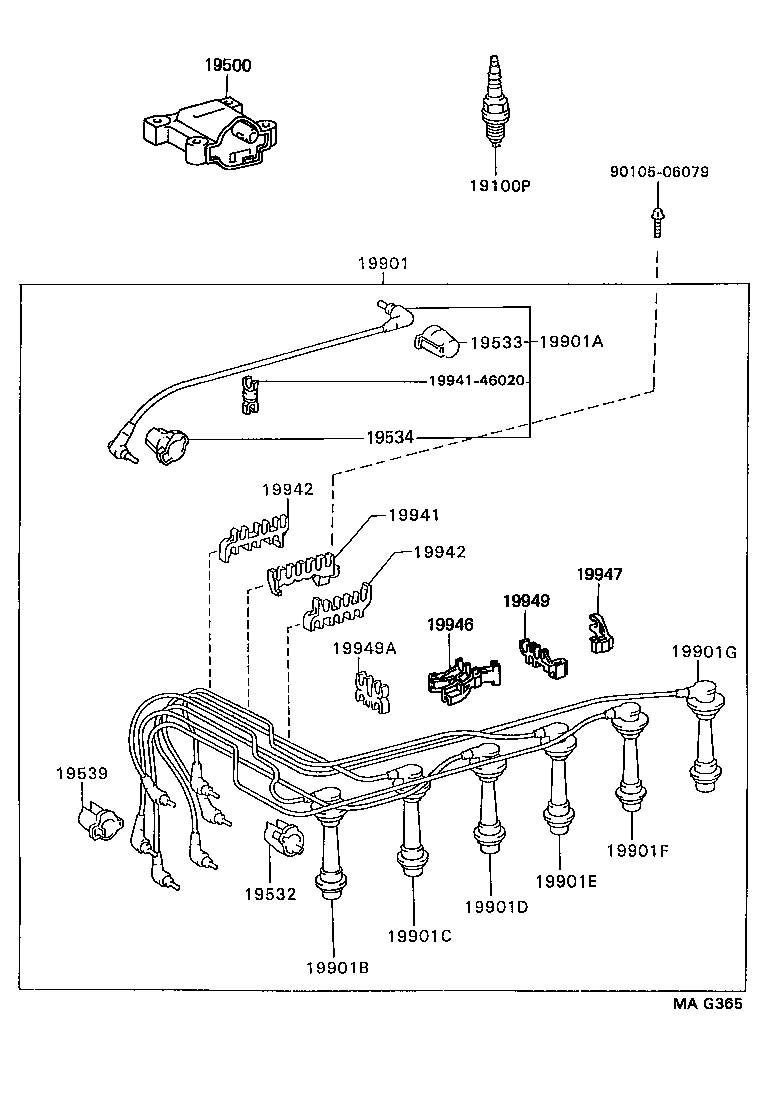

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01168 |
2JZGE..JZS147 PK16R11 |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02207 |
2JZGE..JZS147 |
1 | ||
| 19532 - HOLDER, RESISTIVE CODE, NO.2 | ||||
| 19532-46010 |
2JZGE..JZS147 FOR PNC=19901G |
1 | ||
| 19533 - HOLDER, RESISTIVE CORD, NO.3 | ||||
| 19531-46010 |
2JZGE..JZS147 |
1 | ||
| 19534 - HOLDER, RESISTIVE CORD, NO.4 | ||||
| 19539-50010 |
2JZGE..JZS147 |
1 | ||
| 19539 - HOLDER, RESISTIVE CODE, NO.4 | ||||
| 19539-62010 |
2JZGE..JZS147 FORPNC=19901C,19901E |
2 | ||
| 19539-11010 |
2JZGE..JZS147 FOR PNC=19901B |
1 | ||
| 19539-46010 |
2JZGE..JZS147 FOR PNC=19901F |
1 | ||
| 19539-16010 |
2JZGE..JZS147 FOR PNC=19901D |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21563 |
2JZGE..JZS147 |
1 | ||
| 90919-21597 |
2JZGE..JZS147 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13446 |
2JZGE..JZS147 |
1 | ||
| 90919-13470 |
2JZGE..JZS147 |
2 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-15325 |
2JZGE..JZS147 |
2 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-15326 |
2JZGE..JZS147 |
2 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-15327 |
2JZGE..JZS147 |
2 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-15328 |
2JZGE..JZS147 |
2 | ||
| 19901F - CORD, SPARK PLUG RESISTIVE, NO.5 | ||||
| 90919-12946 |
2JZGE..JZS147 |
1 | ||
| 19901G - CORD, SPARK PLUG RESISTIVE, NO.6 | ||||
| 90919-15329 |
2JZGE..JZS147 |
2 | ||
| 19941 - CLAMP, RESISTIVE CORD, NO.1 | ||||
| 90929-01277 |
2JZGE..JZS147 |
1 | ||
| 19942 - CLAMP, RESISTIVE CORD, NO.2 | ||||
| 90929-01278 |
2JZGE..JZS147 |
2 | ||
| 19942 - CLAMP, RESISTIVE CORD, NO.2 | ||||
| 90929-01278 |
2JZGE..JZS147 |
2 | ||
| 19946 - CLAMP, RESISTIVE CORD, NO.3 | ||||
| 19941-46010 |
2JZGE..JZS147 |
1 | ||
| 19947 - CLAMP, RESISTIVE CORD, NO.4 | ||||
| 90929-01280 |
2JZGE..JZS147 |
1 | ||
| 19949 - CLAMP, RESISTIVE CORD, NO.5 | ||||
| 90929-01285 |
2JZGE..JZS147 |
1 | ||
| 19949A - CLAMP, CORD, NO.6 | ||||
| 19949-50010 |
2JZGE..JZS147 |
1 | ||
| Common parts | ||||
| 19941-46020 | ||||
| 90105-06079 | ||||
