JZS147L-BEAQFK (1995)
Toyota Lexus Gs300

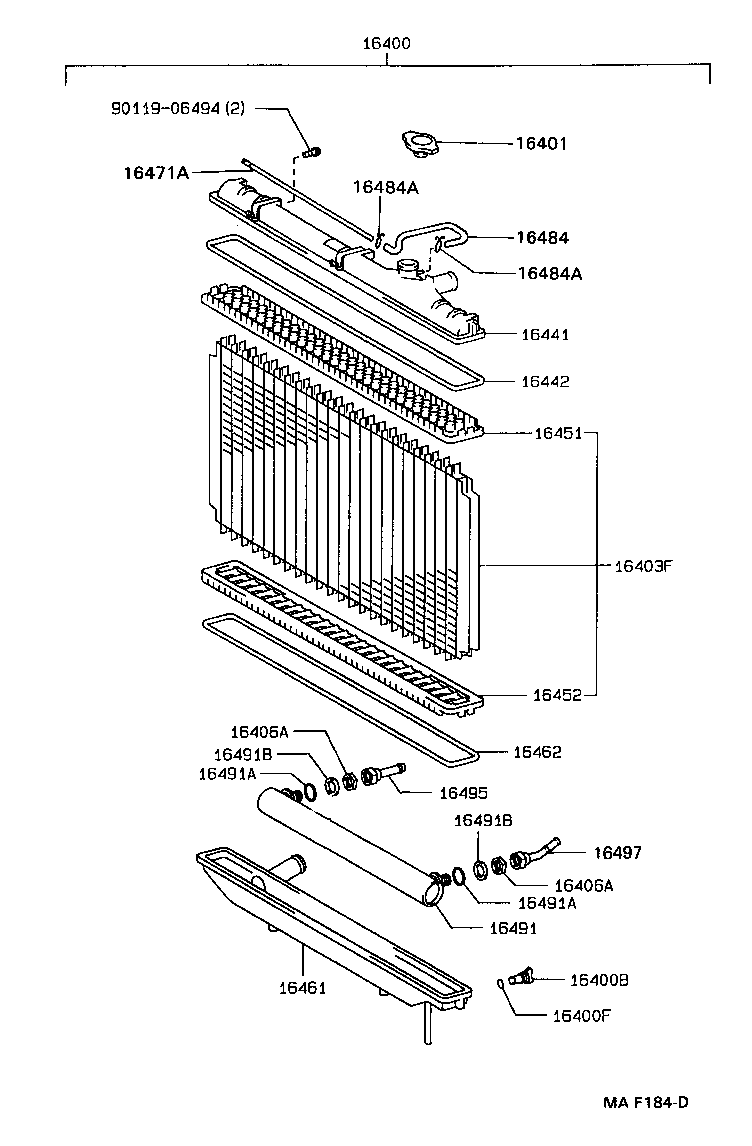

ILLUST NO. 2 OF 2(9301-9708)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-46270 |
2JZGE..JZS147 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
2JZGE..JZS147 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
2JZGE..JZS147 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
2JZGE..JZS147 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-46270 |
2JZGE..JZS147 |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
2JZGE..JZS147 |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
2JZGE..JZS147 |
2 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-46170 |
2JZGE..JZS147 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-50020 |
2JZGE..JZS147 |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16452-50080 |
2JZGE..JZS147 |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-50080 |
2JZGE..JZS147 |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-50070 |
2JZGE..JZS147 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-50020 |
2JZGE..JZS147 |
1 | ||
| 16471A - SUPPORT SUB-ASSY | ||||
| 16471-46040 |
2JZGE..JZS147 |
1 | ||
| 16484 - PIPE(FOR RADIATOR SUPPORT) | ||||
| 16484-46040 |
2JZGE..JZS147 |
1 | ||
| 16484A - CLIP(FOR RADIATOR SUPPORT) | ||||
| 90467-11085 |
2JZGE..JZS147 |
2 | ||
| 16484A - CLIP(FOR RADIATOR SUPPORT) | ||||
| 90467-11085 |
2JZGE..JZS147 |
2 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-54790 |
2JZGE..JZS147 |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-50020 |
2JZGE..JZS147 |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-50020 |
2JZGE..JZS147 |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
2JZGE..JZS147 |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
2JZGE..JZS147 |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-50020 |
2JZGE..JZS147 |
1 | ||
| 16497 - INLET SUB-ASSY | ||||
| 16497-74760 |
2JZGE..JZS147 |
1 | ||
| Common parts | ||||
| 90119-06494 | ||||

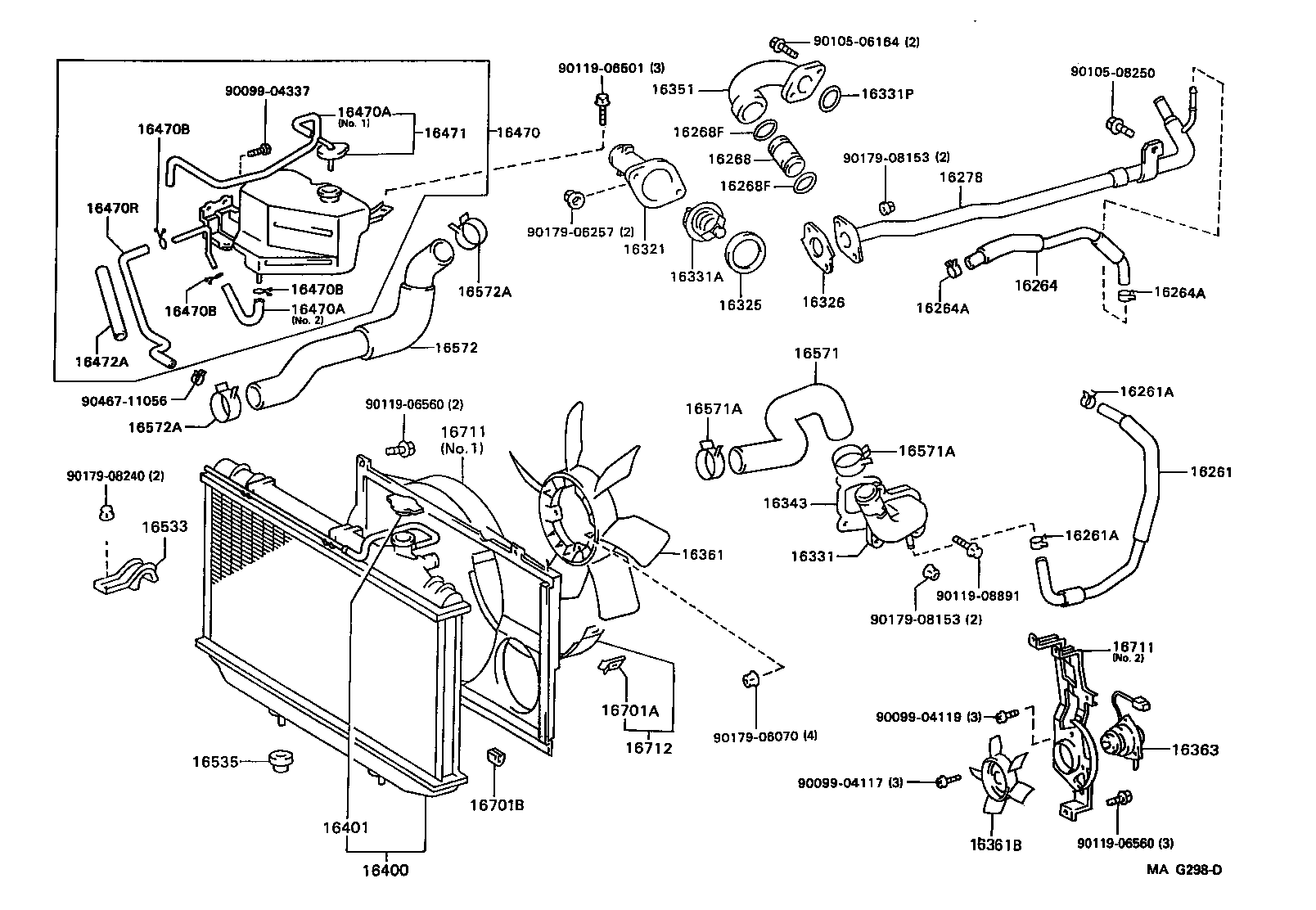

ILLUST NO. 1 OF 2(9301-9708)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-46020 |
2JZGE..JZS147 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13050 |
2JZGE..JZS147 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13050 |
2JZGE..JZS147 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-46041 |
2JZGE..JZS147 |
1 | ||
| 16264-46040 |
2JZGE..JZS147 |
1 | ||
| 16264-46010 |
2JZGE..JZS147 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13050 |
2JZGE..JZS147 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13050 |
2JZGE..JZS147 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-46011 |
2JZGE..JZS147 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24022 |
2JZGE..JZS147 |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24022 |
2JZGE..JZS147 |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-46040 |
2JZGE..JZS147 |
1 | ||
| 16278-46010 |
2JZGE..JZS147 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-46040 |
2JZGE..JZS147 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
2JZGE..JZS147 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-46010 |
2JZGE..JZS147 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-46041 |
2JZGE..JZS147 |
1 | ||
| 16331-46040 |
2JZGE..JZS147 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
2JZGE..JZS147 *WAX 82-95 |
1 | ||
| 16331P - RING,O(FOR WATER OUTLET) | ||||
| 96761-24028 |
2JZGE..JZS147 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-46020 |
2JZGE..JZS147 |
1 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-46022 |
2JZGE..JZS147 |
1 | ||
| 16351-46020 |
2JZGE..JZS147 |
1 | ||
| 16351-46021 |
2JZGE..JZS147 |
1 | ||
| 16361 - FAN | ||||
| 16361-46040 |
2JZGE..JZS147 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-46050 |
2JZGE..JZS147 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 88550-12130 |
2JZGE..JZS147 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-46270 |
2JZGE..JZS147 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
2JZGE..JZS147 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-46040 |
2JZGE..JZS147 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16478-46040 |
2JZGE..JZS147 NO.2 |
1 | ||
| 16477-46040 |
2JZGE..JZS147 NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16478-46040 |
2JZGE..JZS147 NO.2 |
1 | ||
| 16477-46040 |
2JZGE..JZS147 NO.1 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2JZGE..JZS147 |
3 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2JZGE..JZS147 |
3 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2JZGE..JZS147 |
3 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 16479-46040 |
2JZGE..JZS147 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-46030 |
2JZGE..JZS147 |
1 | ||
| 16472A - PROTECTOR, HOSE | ||||
| 16483-46040 |
2JZGE..JZS147 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-50040 |
2JZGE..JZS147 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40016 |
2JZGE..JZS147 |
2 | ||
| 90480-40020 |
2JZGE..JZS147 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-46080 |
2JZGE..JZS147 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37006 |
2JZGE..JZS147 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37006 |
2JZGE..JZS147 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-46080 |
2JZGE..JZS147 |
1 | ||
| 16572-46081 |
2JZGE..JZS147 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41007 |
2JZGE..JZS147 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41007 |
2JZGE..JZS147 |
2 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-05109 |
2JZGE..JZS147 |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
2JZGE..JZS147 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-46070 |
2JZGE..JZS147 NO.1 |
1 | ||
| 16711-46090 |
2JZGE..JZS147 NO.2 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-46070 |
2JZGE..JZS147 NO.1 |
1 | ||
| 16711-46090 |
2JZGE..JZS147 NO.2 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16702-46030 |
2JZGE..JZS147 |
1 | ||
| Common parts | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-04337 | ||||
| 90105-06164 | ||||
| 90105-08250 | ||||
| 90119-06501 | ||||
| 90119-06560 | ||||
| 90119-08891 | ||||
| 90179-06070 | ||||
| 90179-06257 | ||||
| 90179-08153 | ||||
| 90179-08240 | ||||
| 90467-11056 | ||||
